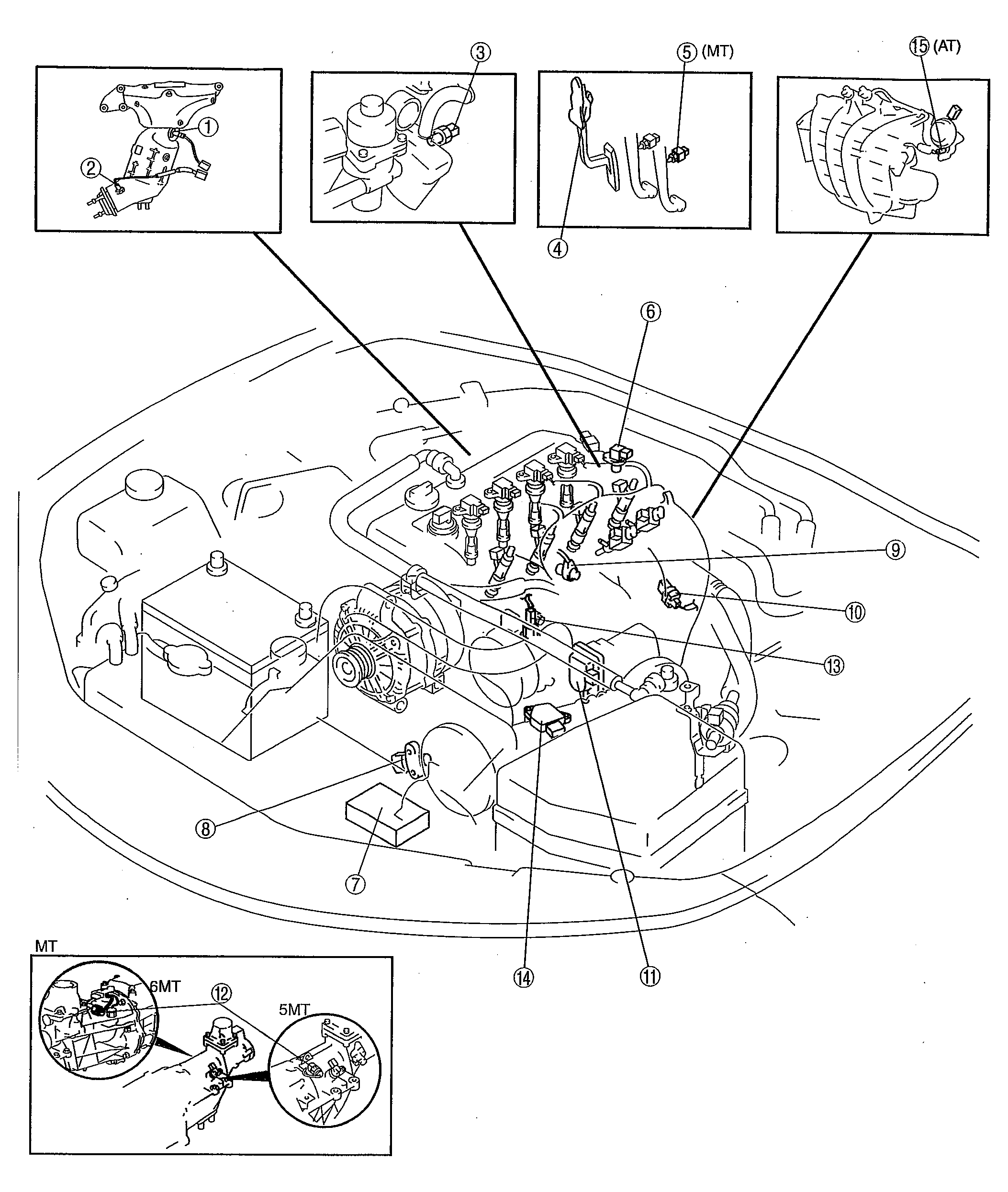

Control System Location Index
Courtesy of MAZDA MOTORS CORP. Control System Components
| 1 |
Front H02s |
| 2 |
Rear H02s |
| 3 |
ECT Sensor |
| 4 |
APP Sensor |
| 5 |
CPP Switch |
| 6 |
CMP Switch |
| 7 |
PCM (Built in BARO sensor) |
| 8 |
CKP sensor |
| 9 |
KS |
| 10 |
MAP sensor |
| 11 |
TP sensor |
| 12 |
Neutral switch |
| 13 |
PSP switch |
| 14 |
MAF/IAT sensor |
| 15 |
Variable tumble shutter valve switch |
