Powertrain Control Module (Pcm) - 2.3L Removal/Installation: Notes

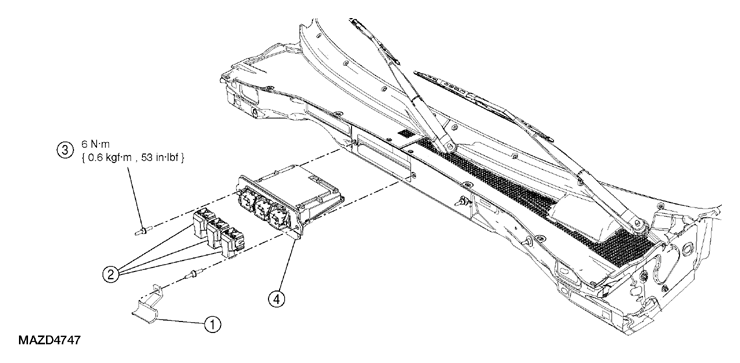

Fig 1: Powertrain Control Module (PCM) Replacement Components - 2.3L With Torque Specifications
G06361212Courtesy of MAZDA MOTORS CORP.
ITEM DESCRIPTION CHART

1 Wiring harness retainer
2 PCM electrical connectors
3 PCM-to-dash stud bolts (2 required)
4 PCM
