Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

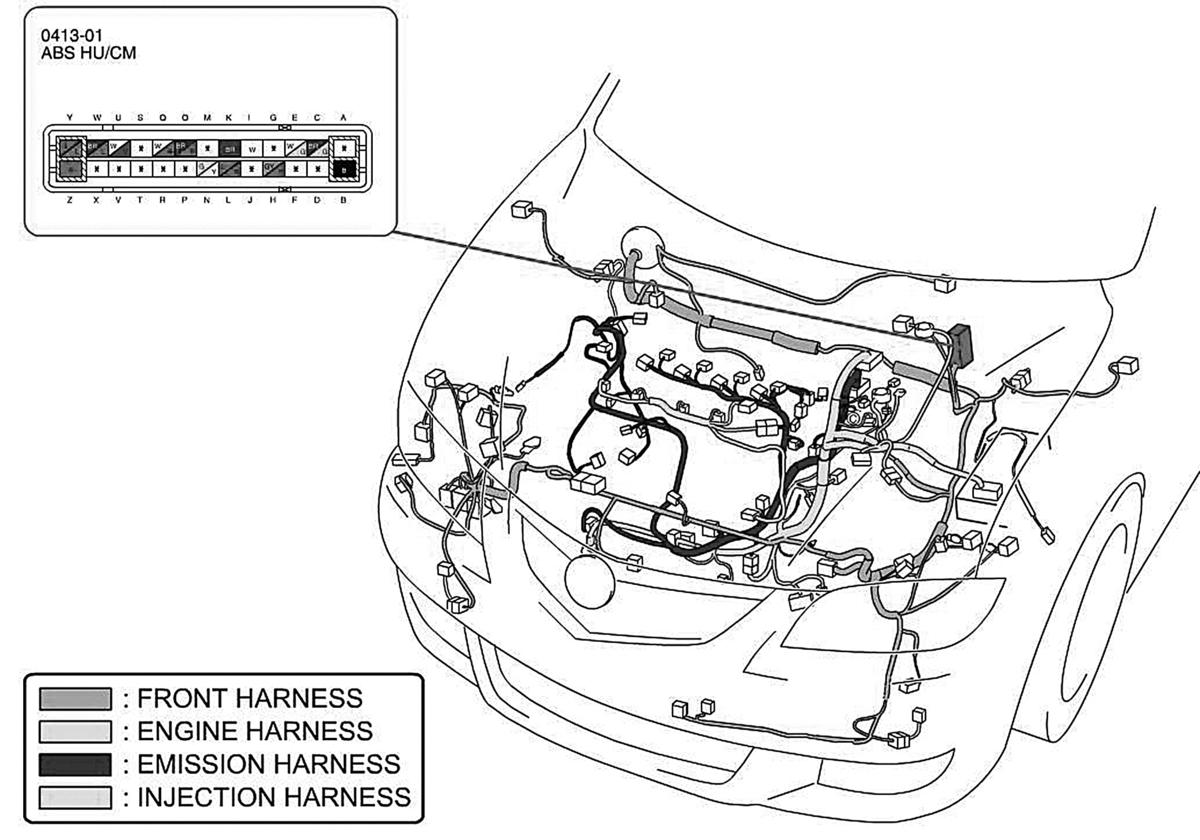

| ABS Hydraulic Unit Control Module | At left rear corner of engine compartment. See Figure. |
| Car Navigation Unit | Behind right side of dash. See Figure. |

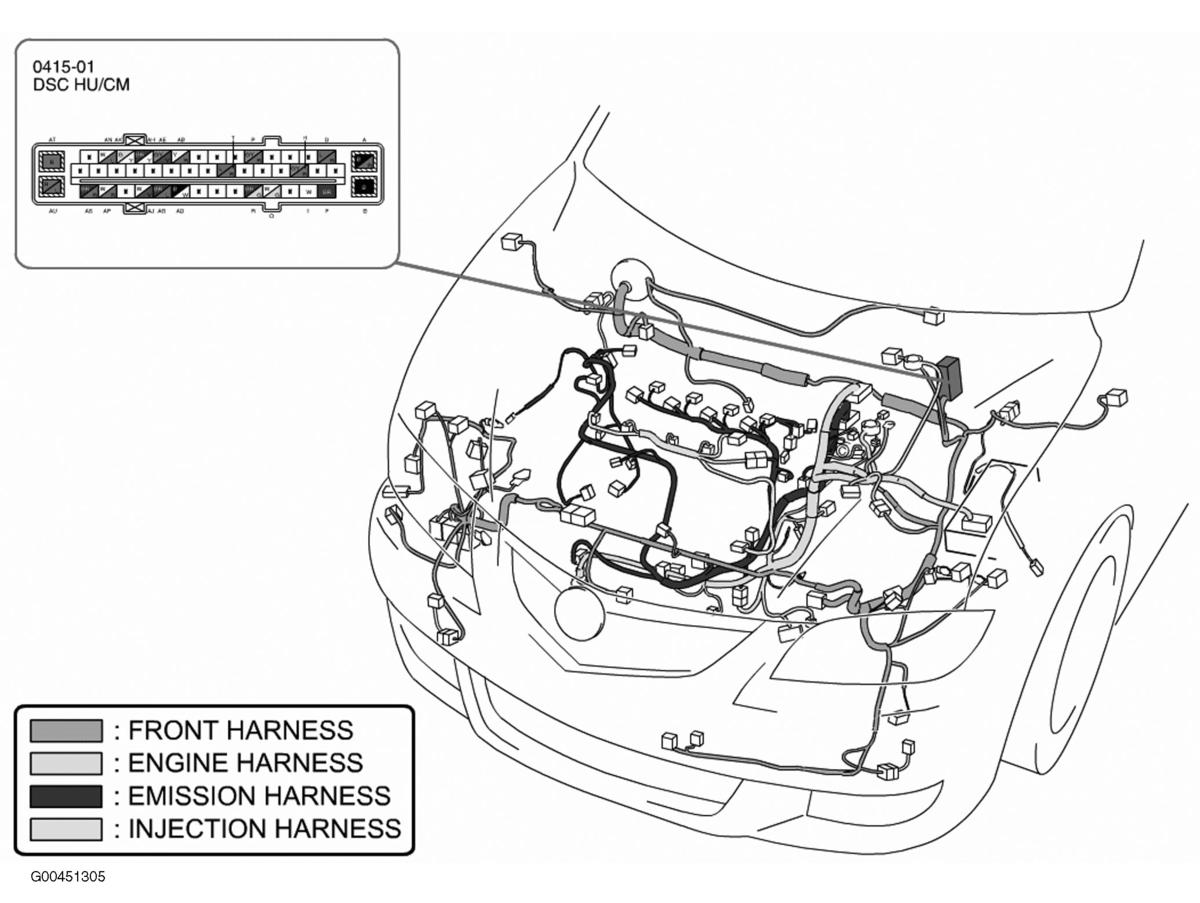

| DSC Hydraulic Unit Control Module | At left rear of engine compartment. See Figure. |
| EHPAS Control Module | Right front of engine compartment. See Figure. |
| Fan Control Module | Left front of engine compartment. See Figure. |
| Keyless Control Module | Behind left side of dash. See Figure. |
| PCM | Rear of engine compartment. See Figure. |
| SAS Control Module | Below center console. See Figure. |

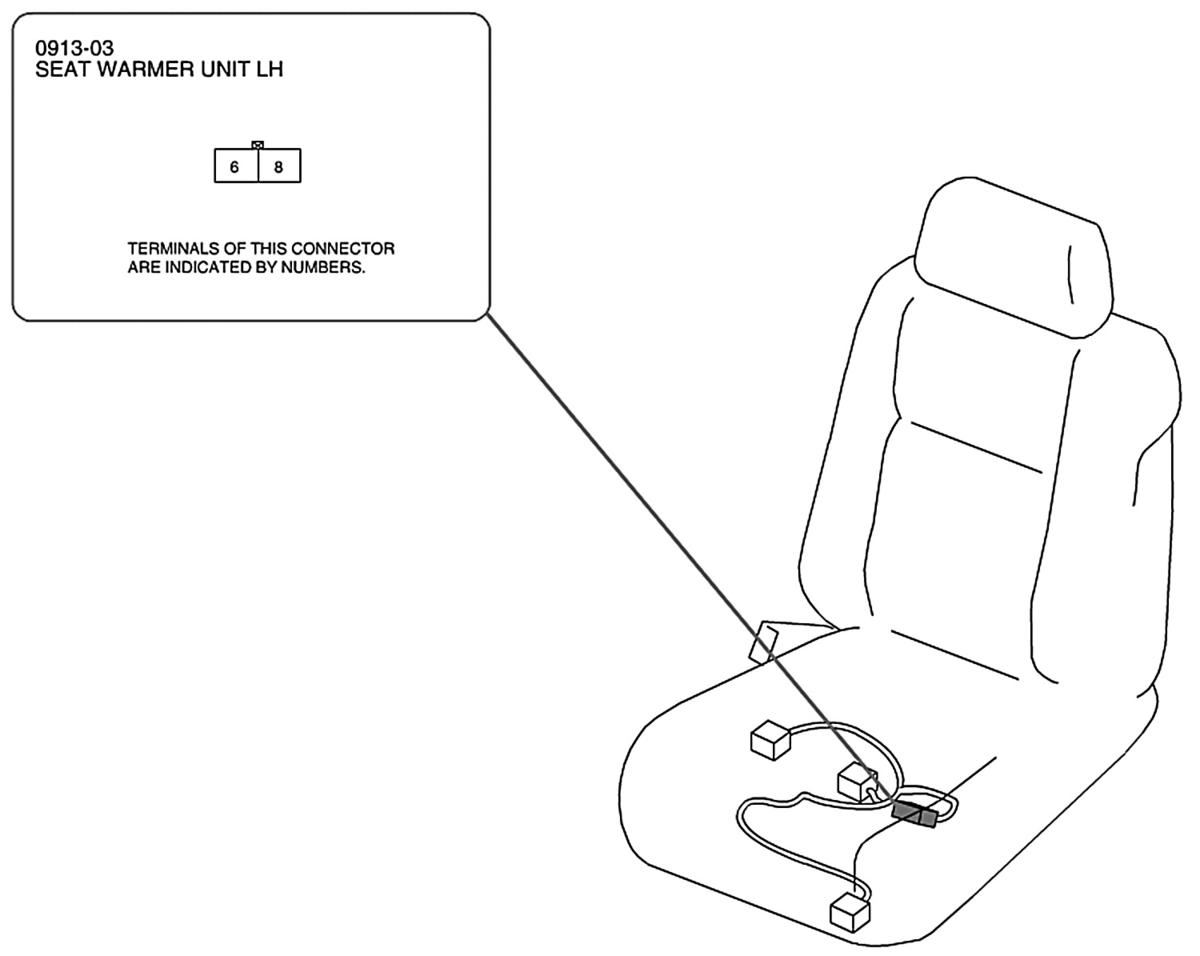

| Seat Warmer Unit | Under driver's seat. See Figure. |
| Seat Weight Sensor Control Module | Below right front seat. See Figure. |

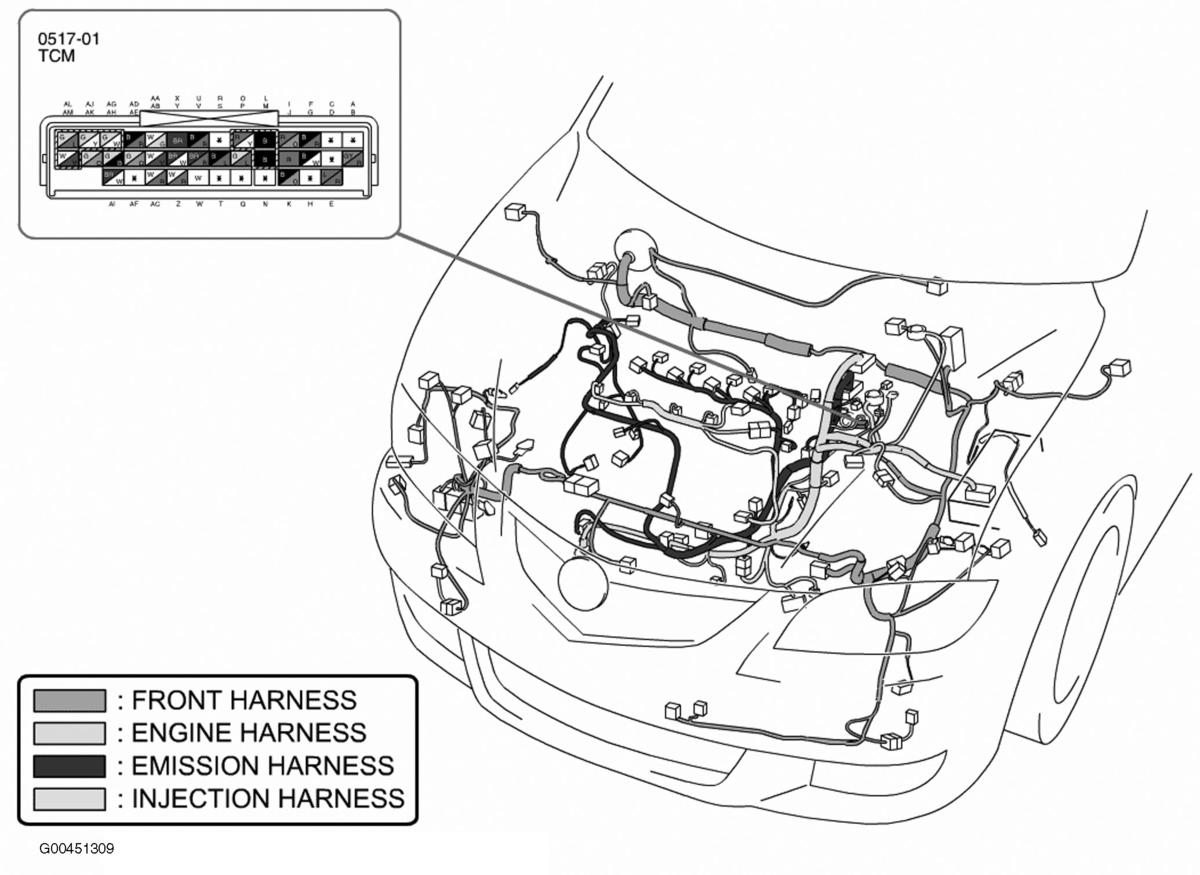

| TCM | Left rear of engine compartment. See Figure. |
