Rear Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION .
  2. Remove the rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .
  3. Remove the trunk end trim. See TRUNK END TRIM REMOVAL/INSTALLATION .
  4. Remove the trunk side trim. See TRUNK SIDE TRIM REMOVAL/INSTALLATION .
  5. Disconnect the rear ABS wheel-speed sensor connector.
  6. Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.

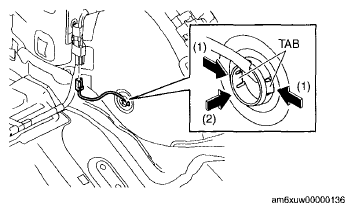

    Fig 1: Identifying Rear ABS Wheel-Speed Sensor Removal Order (1 Of 2)
    G06205569Courtesy of MAZDA MOTORS CORP.

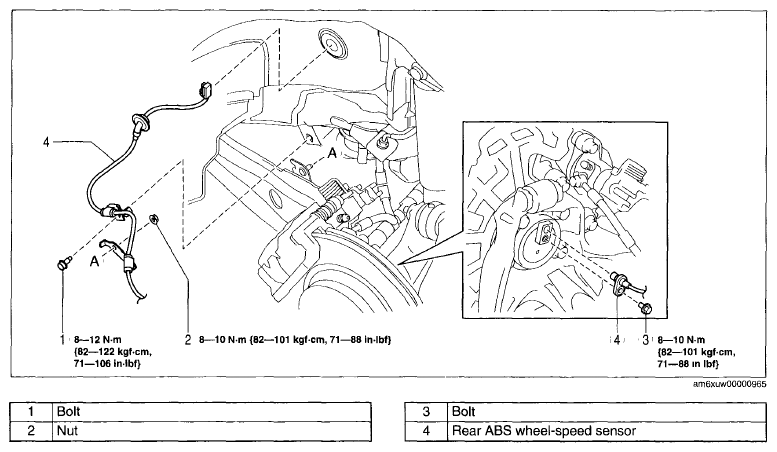

    Fig 2: Identifying Rear ABS Wheel-Speed Sensor Removal Order (2 Of 2)
    G06205570Courtesy of MAZDA MOTORS CORP.
