Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

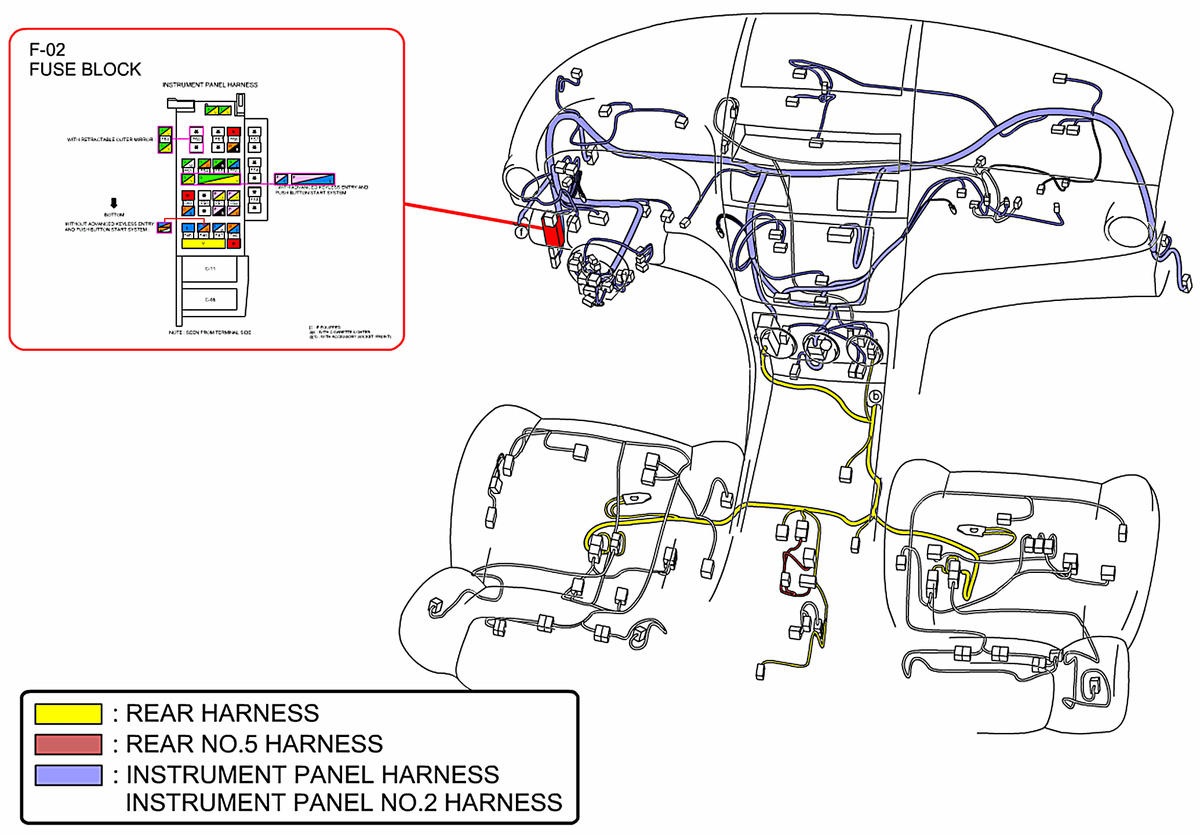

Fuse Block Under left side of dash. See Figure.

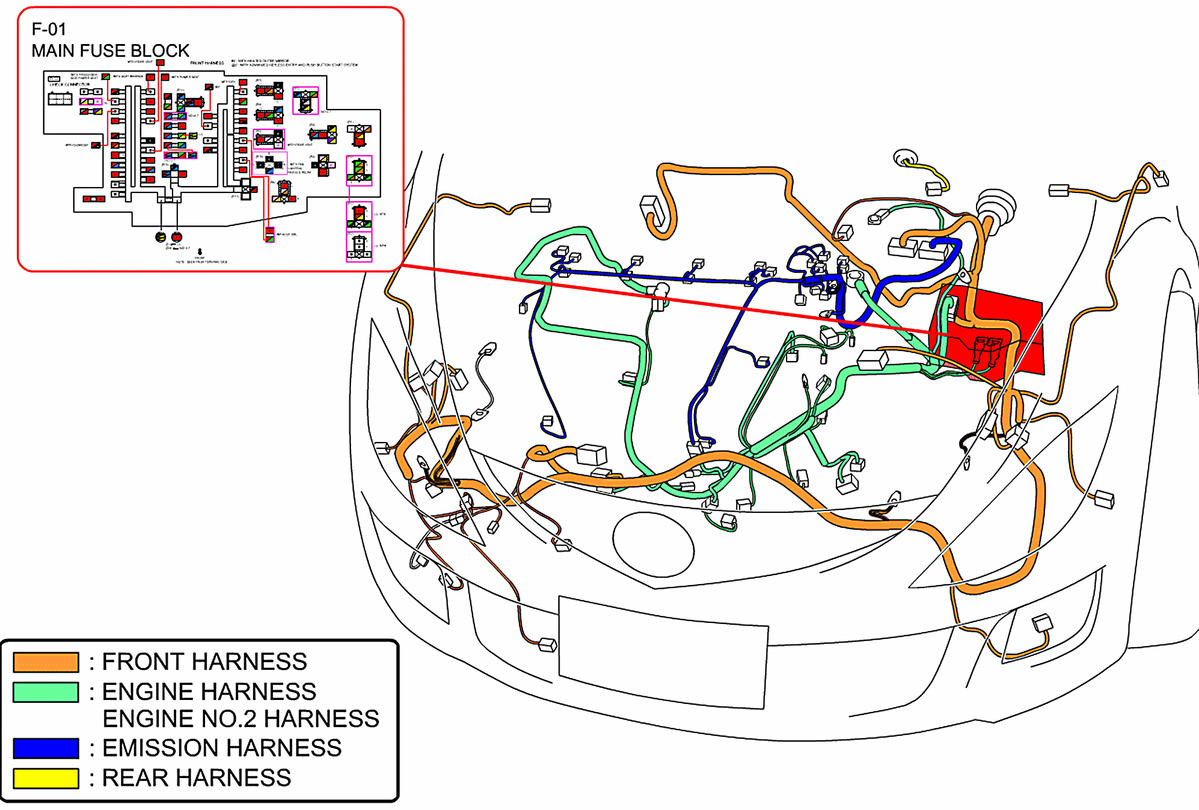

Main Fuse Block Left side of engine compartment. See Figure.

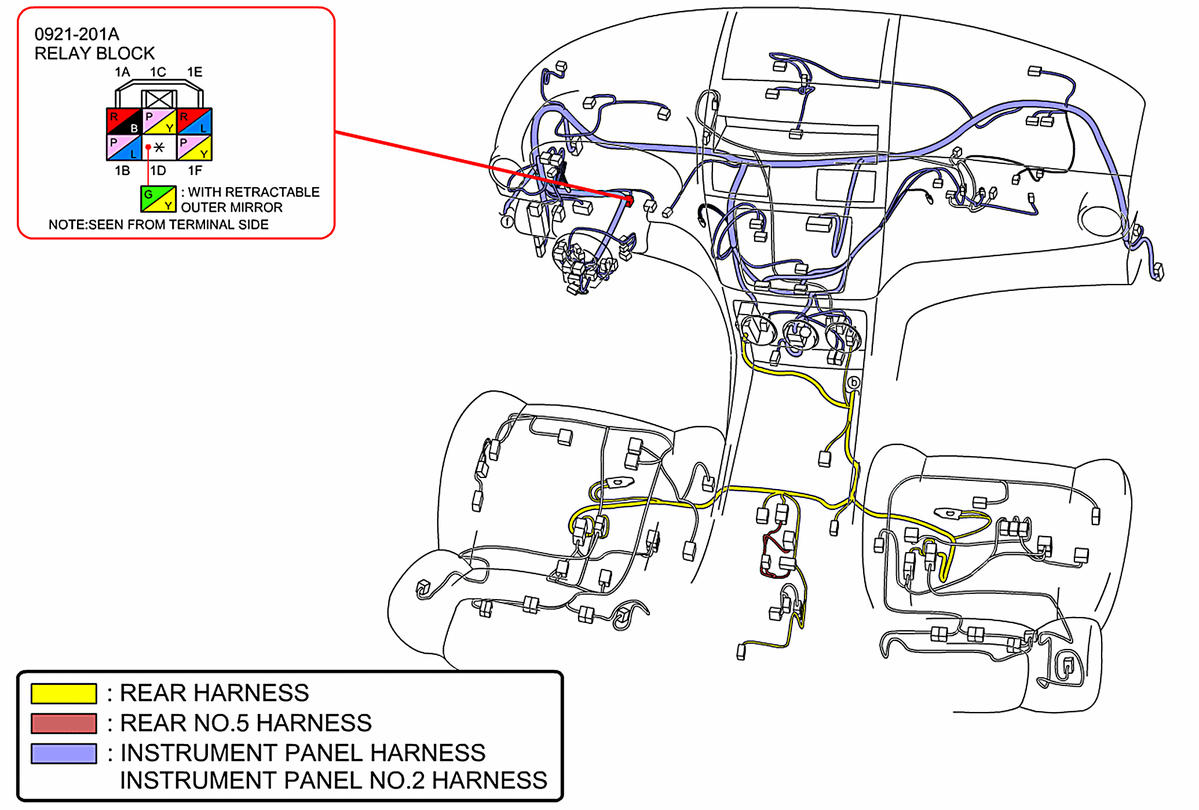

Relay Block Lower left side of dash. See Figure.
