Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

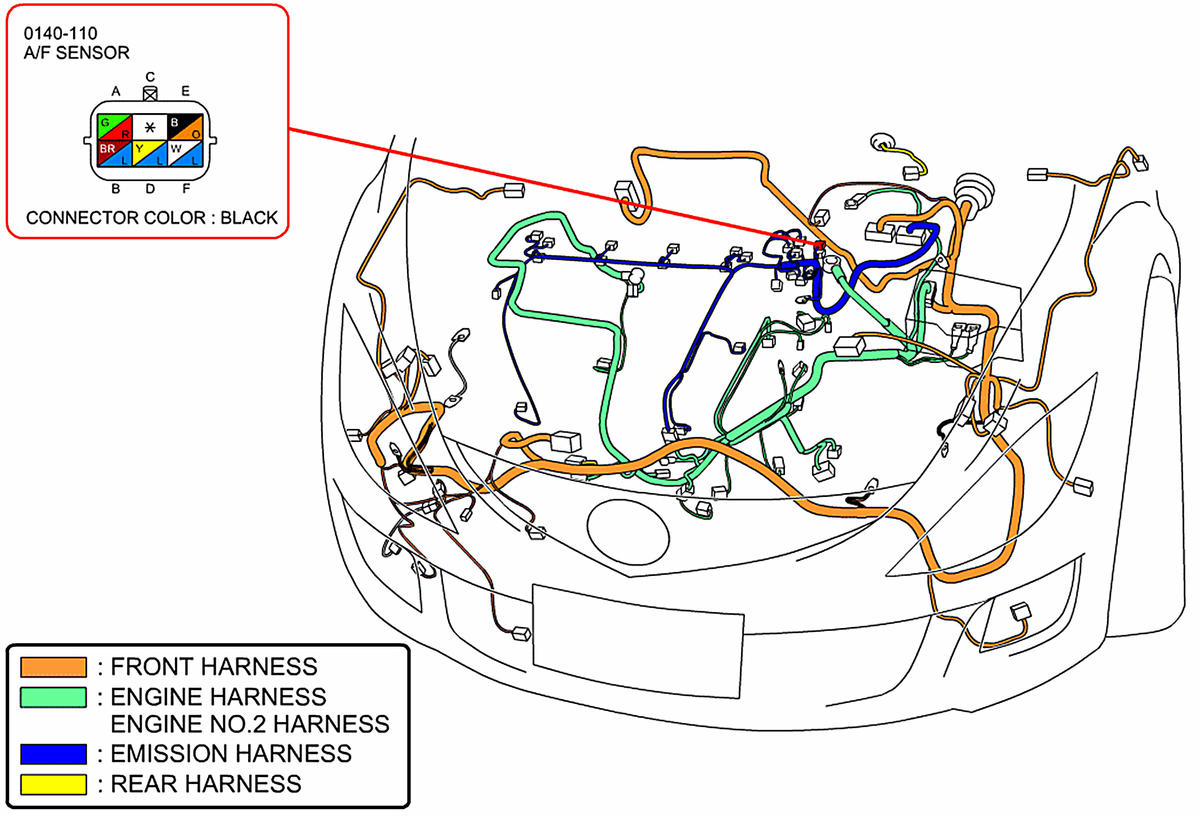

Fig 1: Engine Compartment (2.5L)

G00470955

Courtesy of MAZDA MOTORS CORP.

Fig 2: Engine Compartment (3.7L)

G00470956

Courtesy of MAZDA MOTORS CORP.

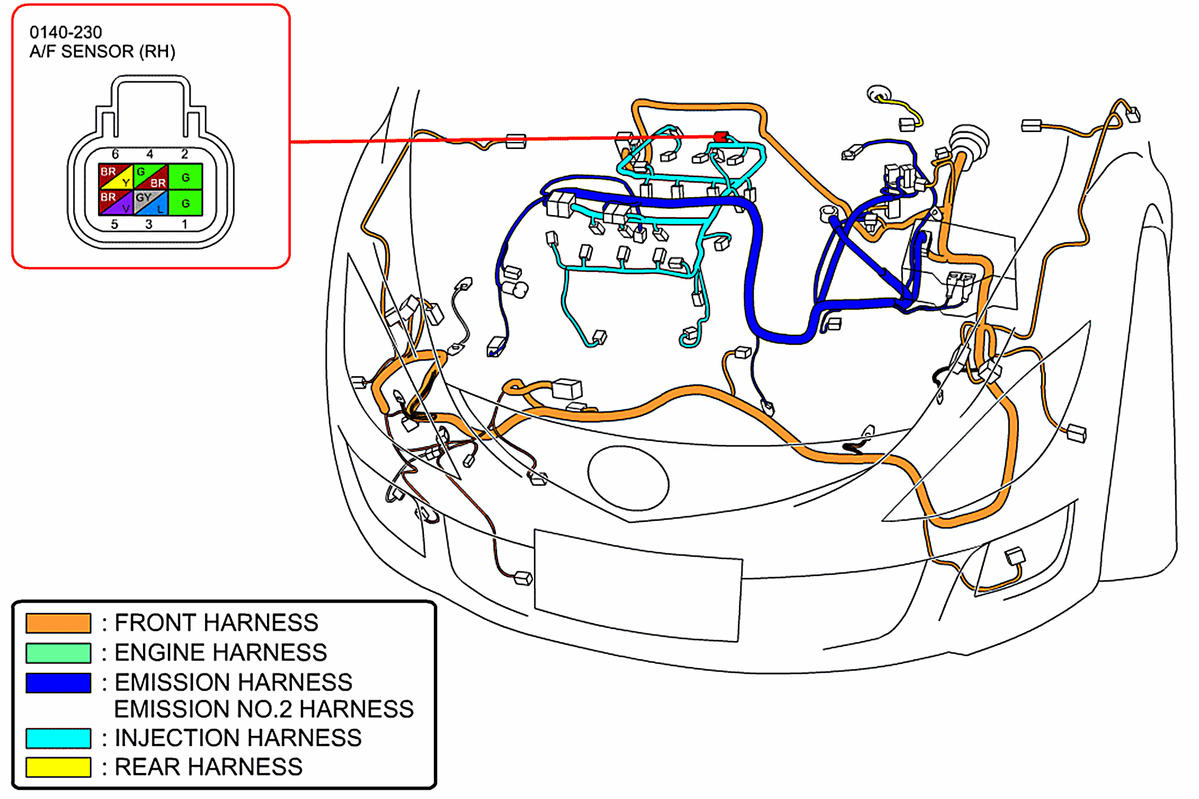

Fig 3: Engine Compartment (3.7L)

G00470957

Courtesy of MAZDA MOTORS CORP.

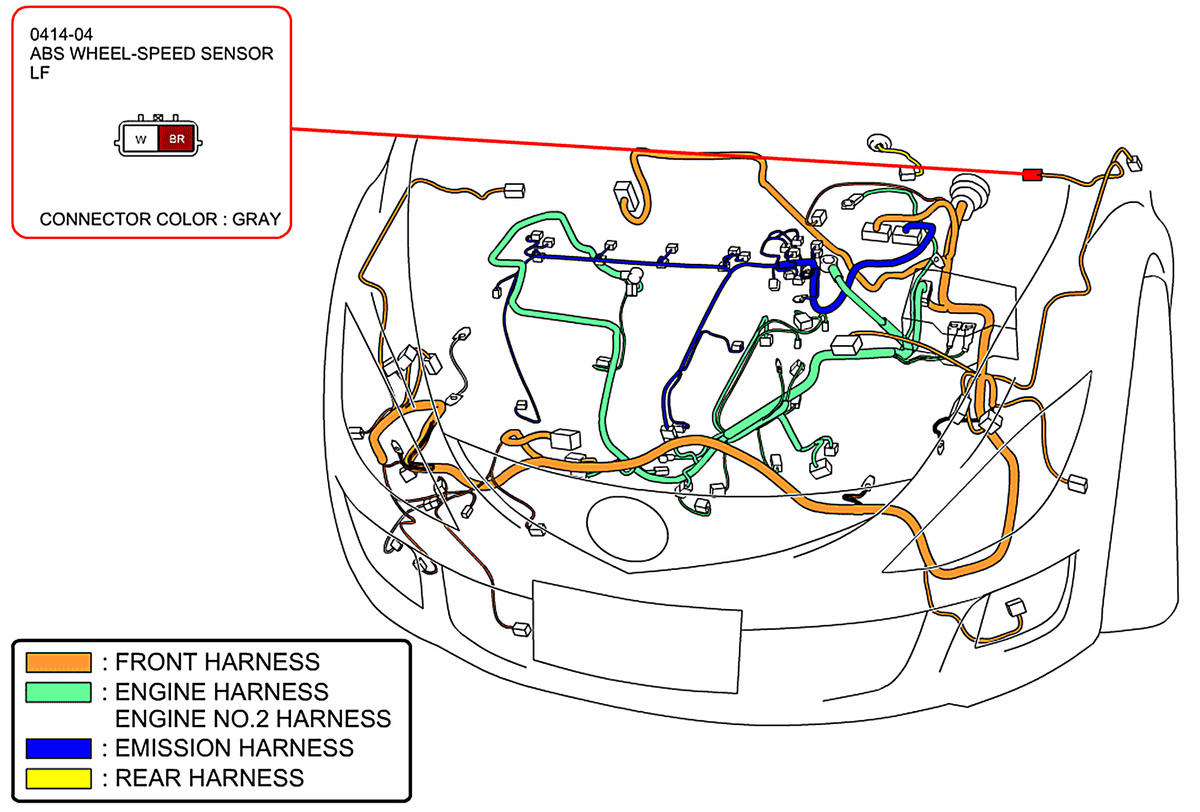

Fig 4: Engine Compartment

G00470958

Courtesy of MAZDA MOTORS CORP.

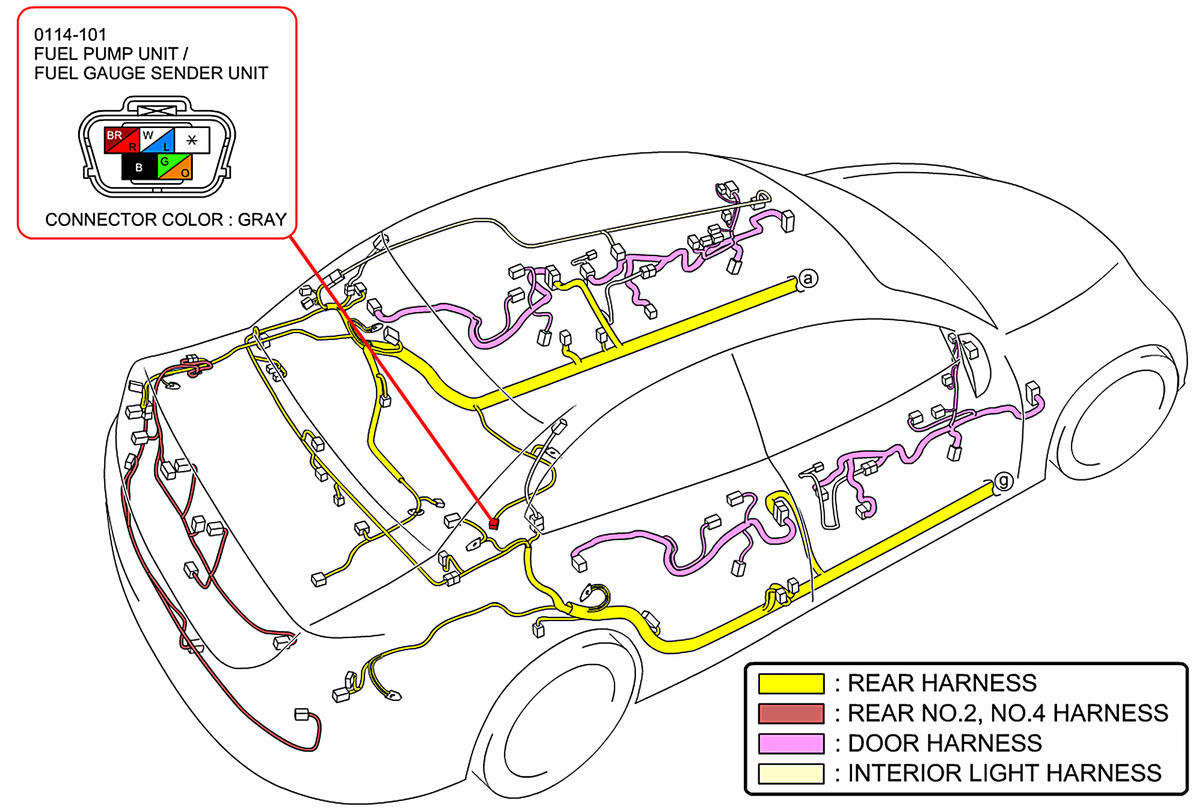

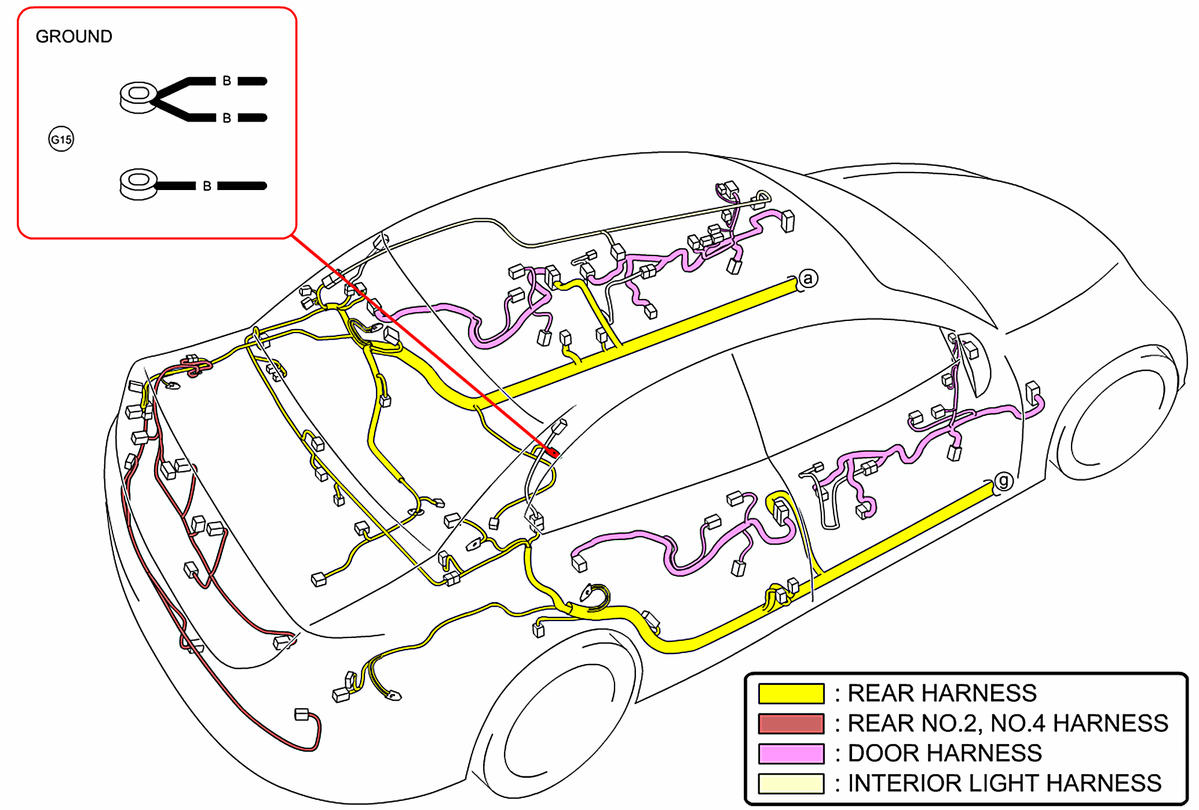

Fig 5: Body Overview

G00470959

Courtesy of MAZDA MOTORS CORP.

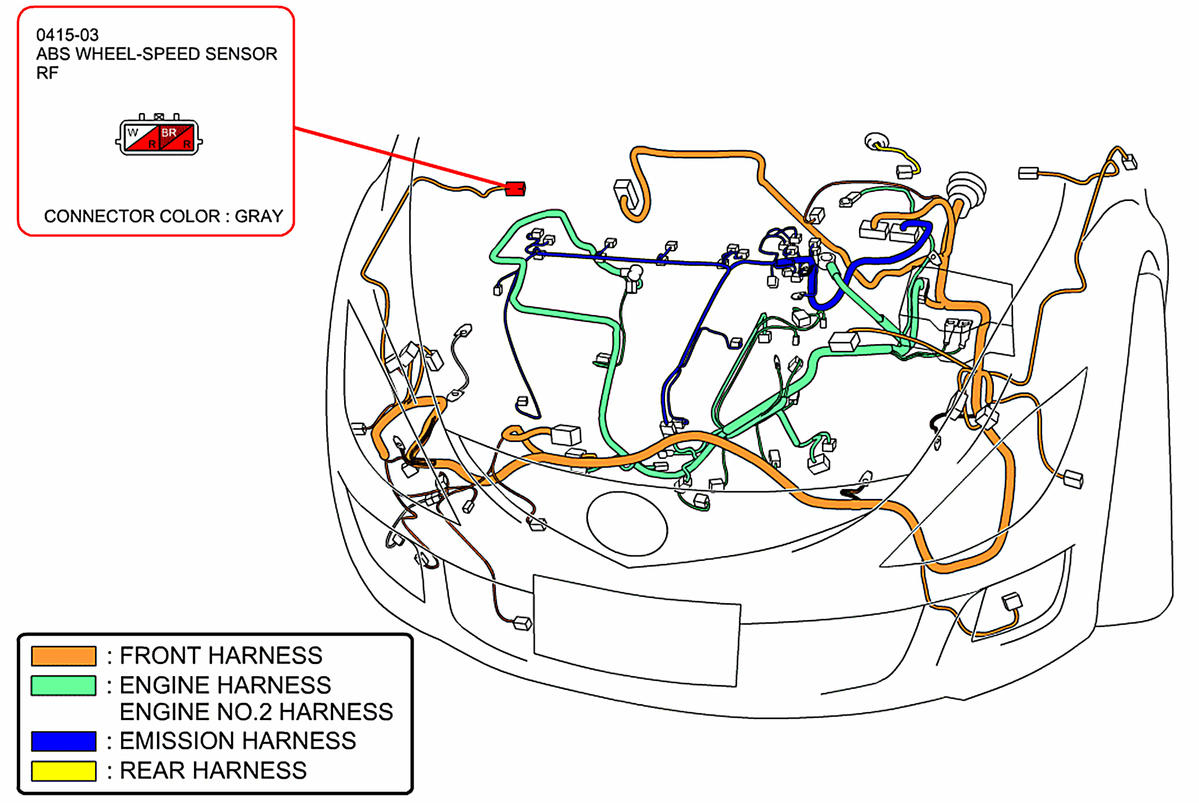

Fig 6: Engine Compartment

G00470960

Courtesy of MAZDA MOTORS CORP.

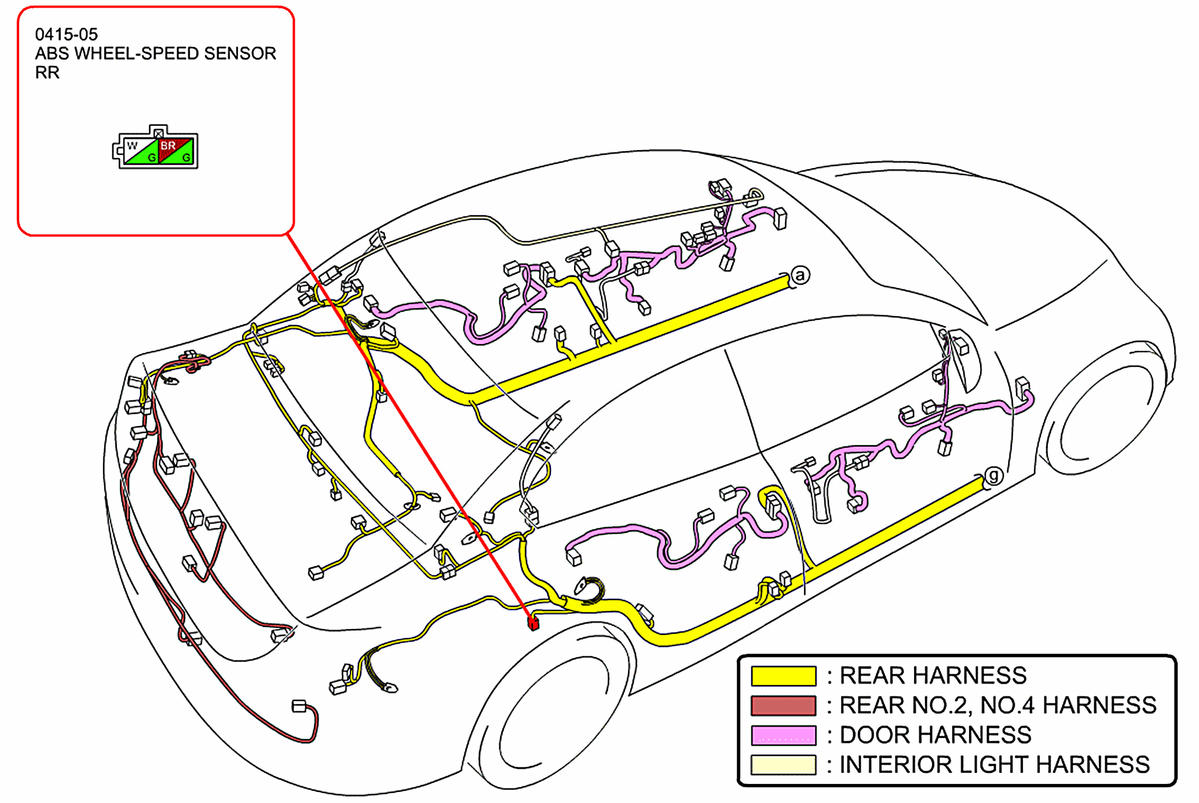

Fig 7: Body Overview

G00470961

Courtesy of MAZDA MOTORS CORP.

Fig 8: Engine Compartment

G00470962

Courtesy of MAZDA MOTORS CORP.

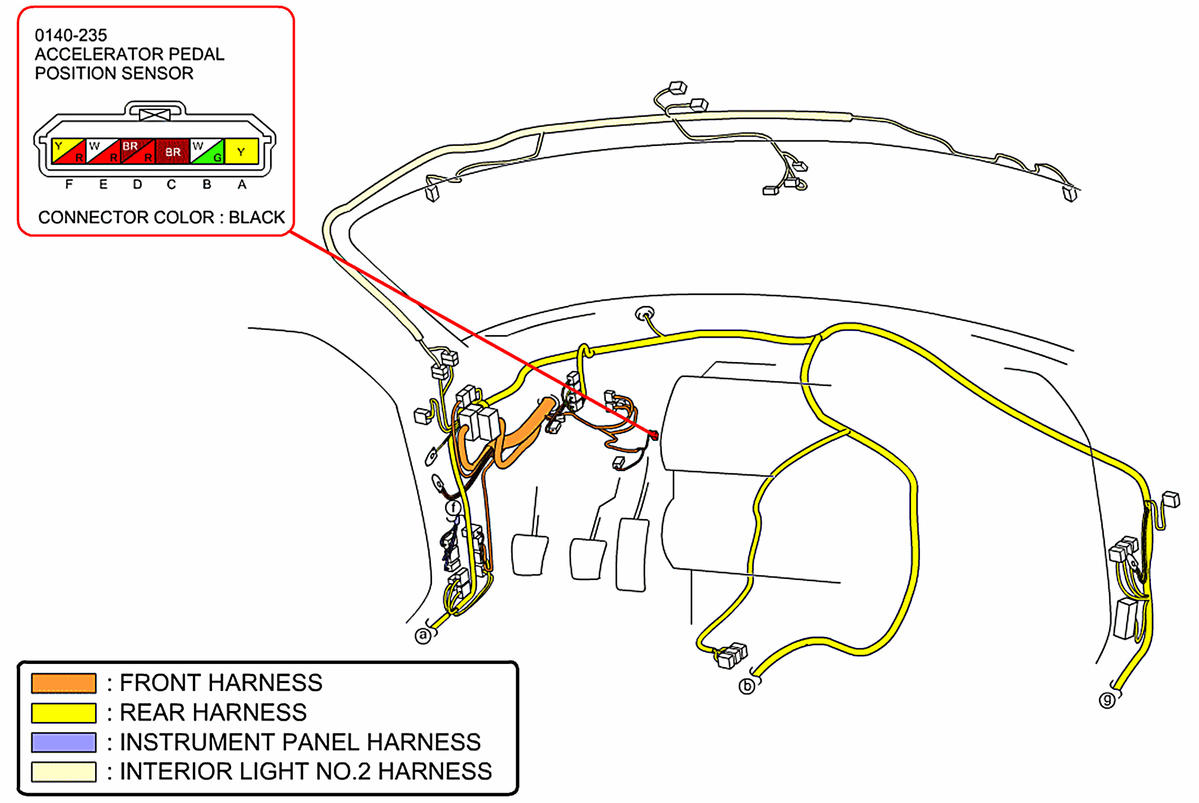

Fig 9: Lower Dash

G00470963

Courtesy of MAZDA MOTORS CORP.

Fig 10: Upper Dash & Front Seats

G00470964

Courtesy of MAZDA MOTORS CORP.

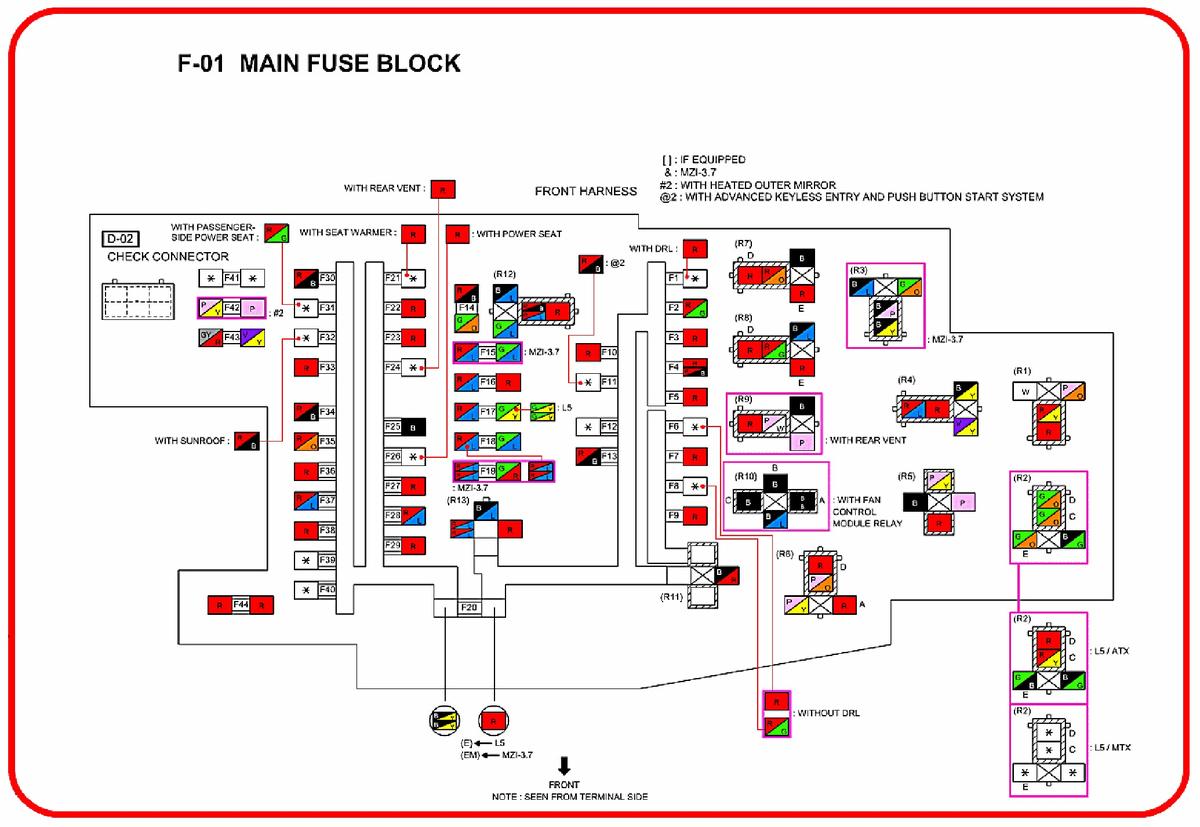

Fig 11: Left Rear Of Engine Compartment

G00470965

Courtesy of MAZDA MOTORS CORP.

Fig 12: Upper Dash & Front Seats

G00470966

Courtesy of MAZDA MOTORS CORP.

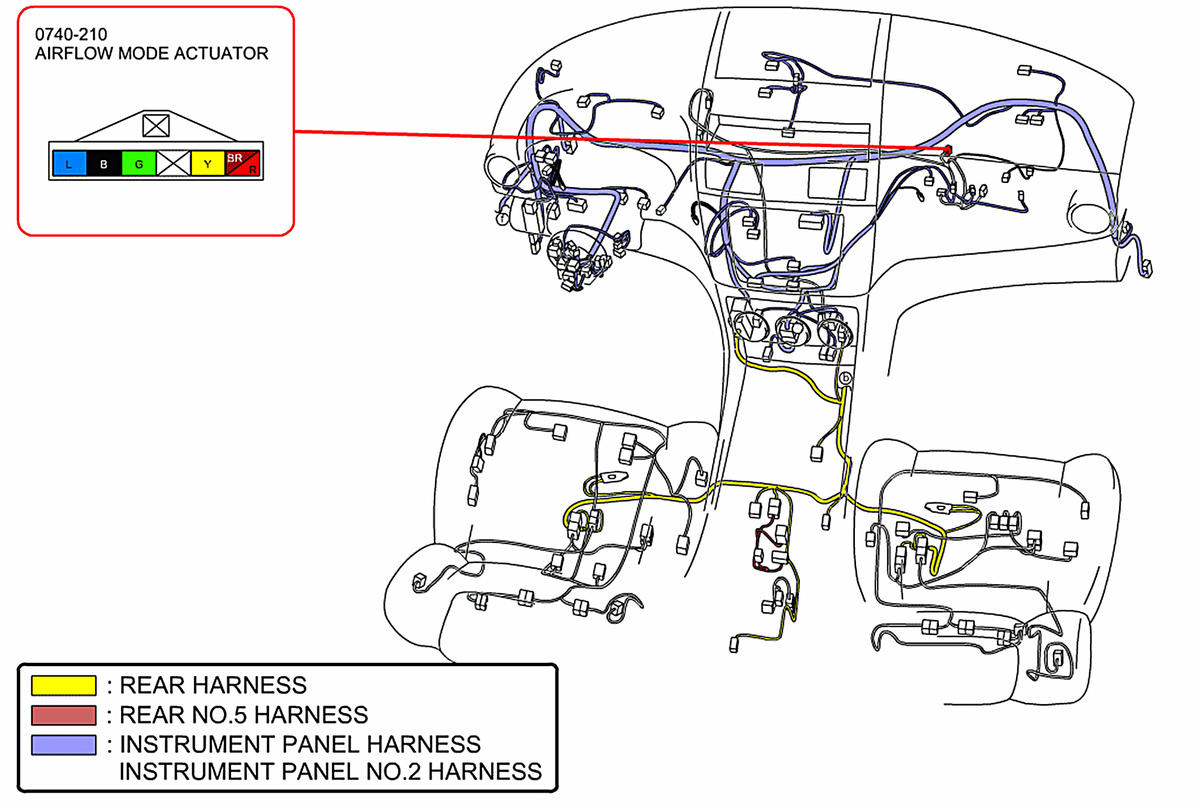

Fig 13: Upper Dash & Front Seats

G00470967

Courtesy of MAZDA MOTORS CORP.

Fig 14: Engine Compartment

G00470968

Courtesy of MAZDA MOTORS CORP.

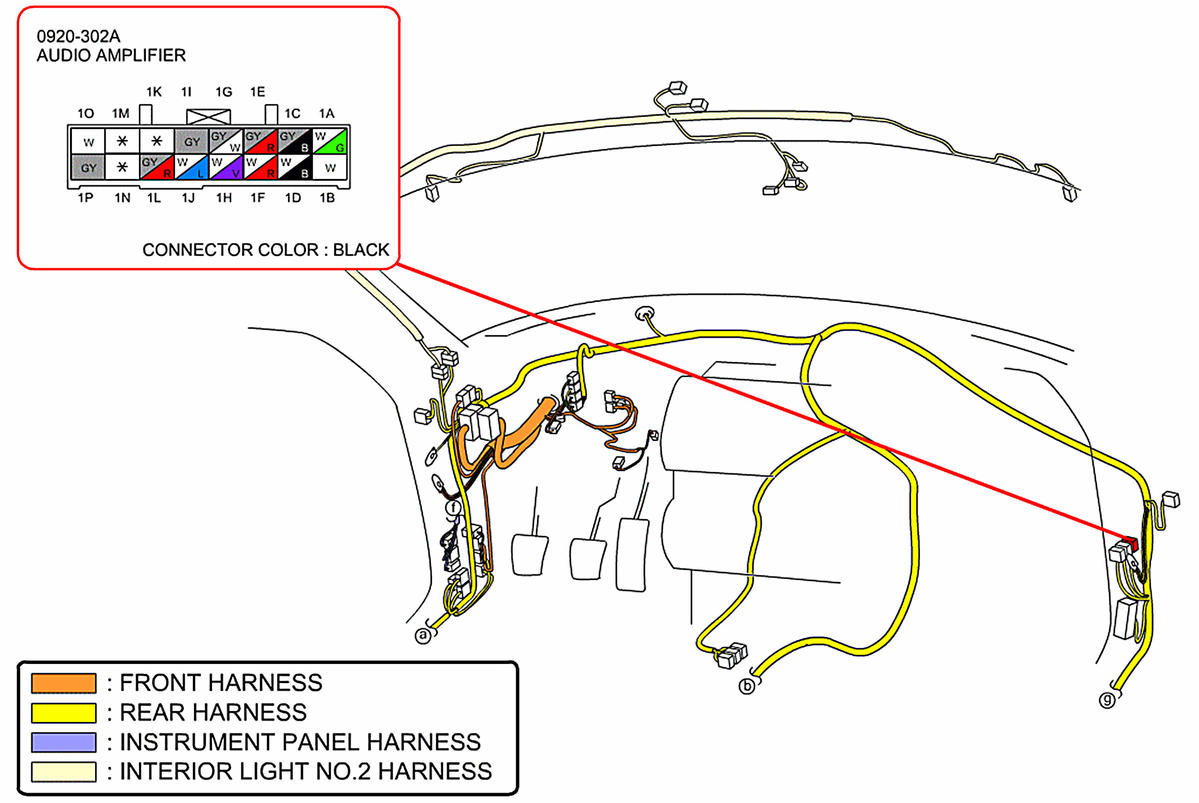

Fig 15: Lower Dash

G00470969

Courtesy of MAZDA MOTORS CORP.

Fig 16: Upper Dash & Front Seats

G00470970

Courtesy of MAZDA MOTORS CORP.

Fig 17: Upper Dash & Front Seats

G00470971

Courtesy of MAZDA MOTORS CORP.

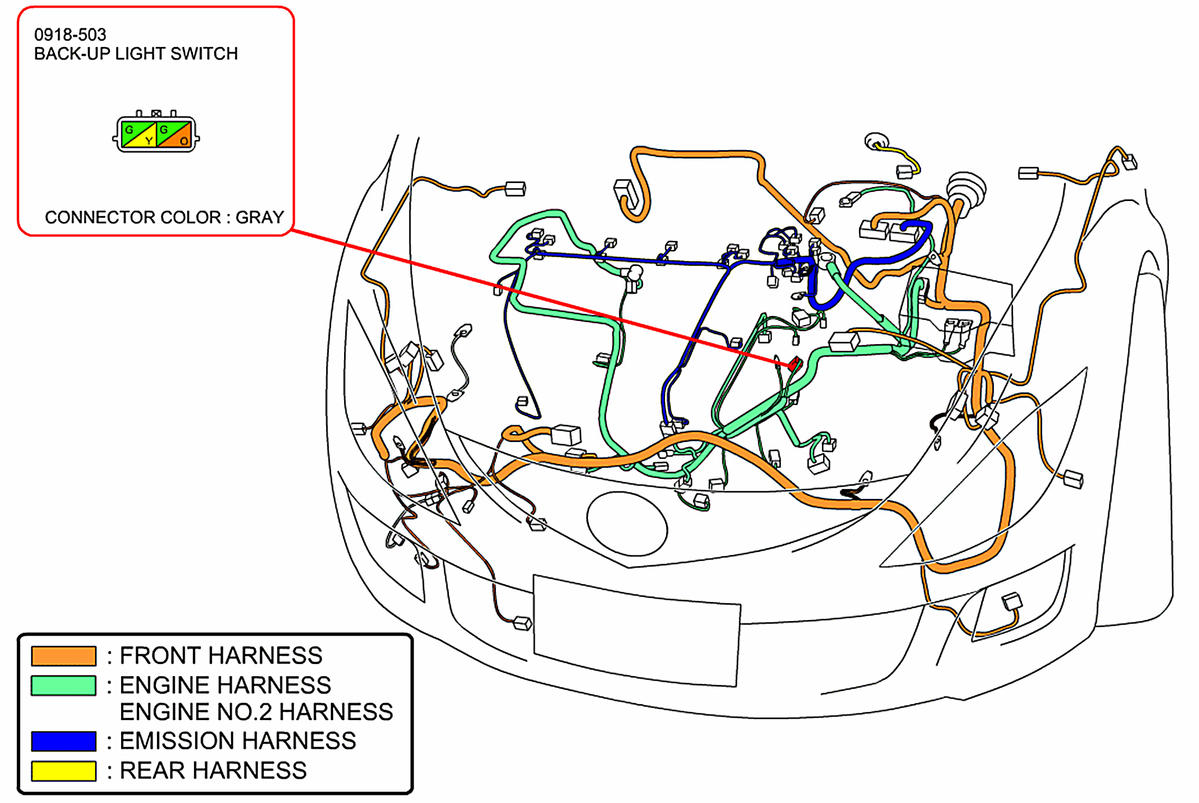

Fig 18: Engine Compartment

G00470972

Courtesy of MAZDA MOTORS CORP.

Fig 19: Upper Dash & Front Seats

G00470973

Courtesy of MAZDA MOTORS CORP.

Fig 20: Upper Dash

G00470974

Courtesy of MAZDA MOTORS CORP.

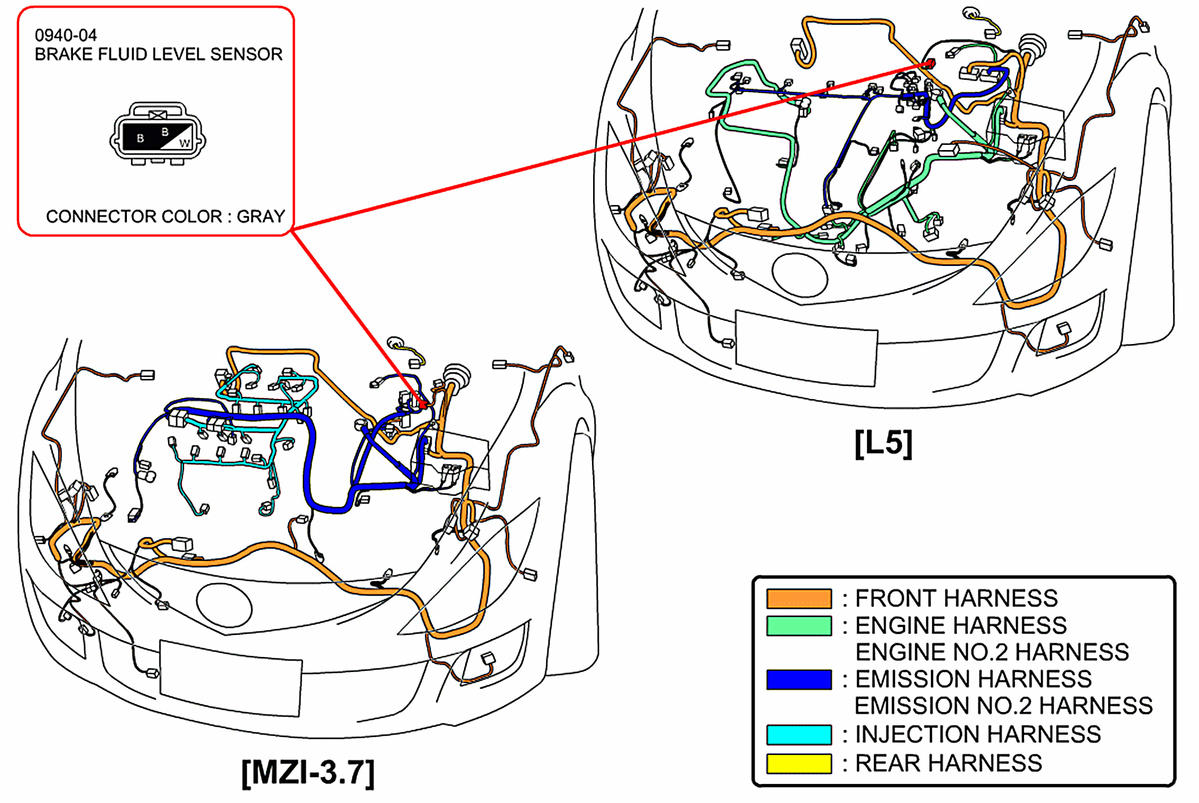

Fig 21: Engine Compartment

G00470975

Courtesy of MAZDA MOTORS CORP.

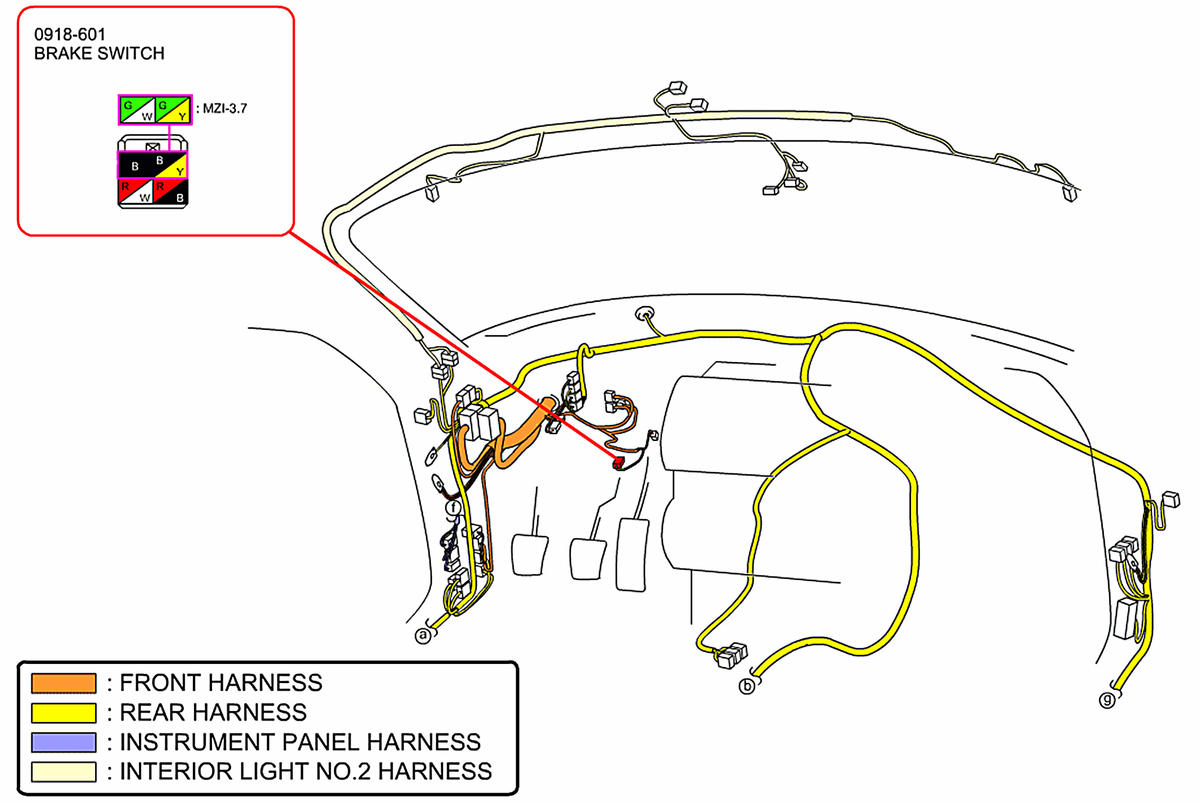

Fig 22: Lower Dash

G00470976

Courtesy of MAZDA MOTORS CORP.

Fig 23: Body Overview

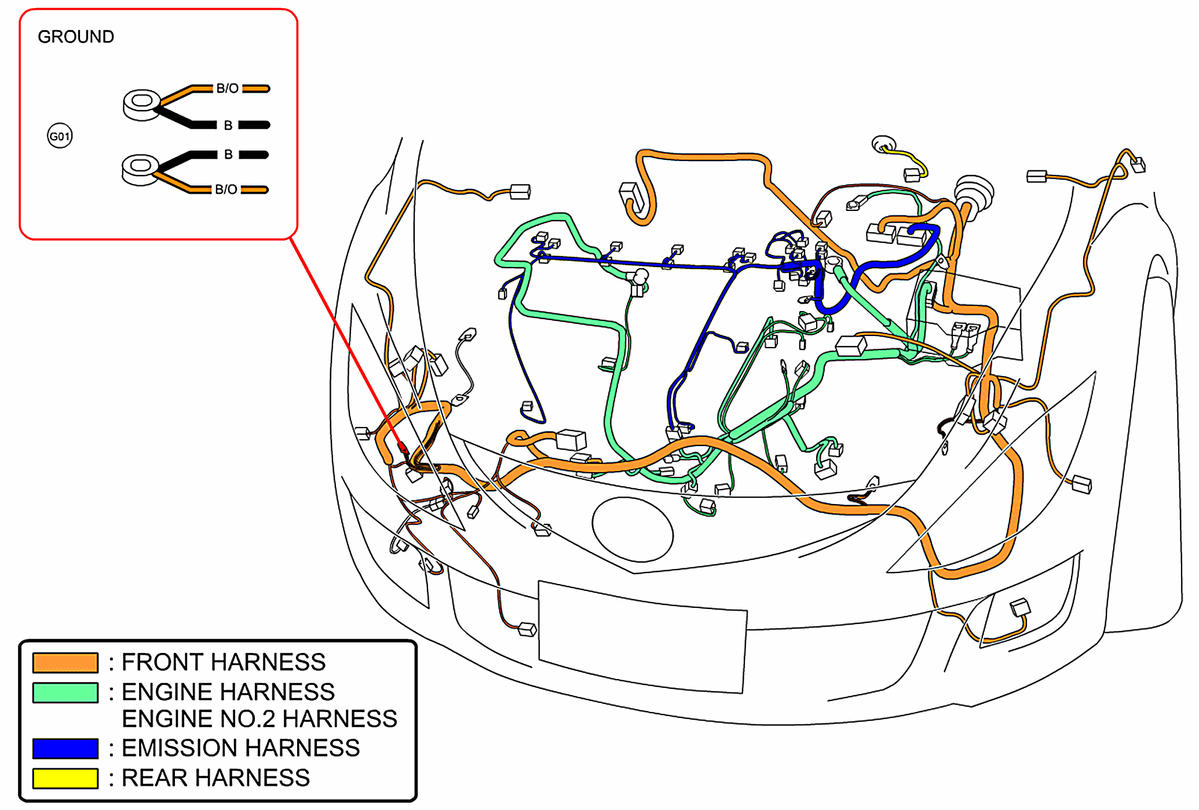

G00470977

Courtesy of MAZDA MOTORS CORP.

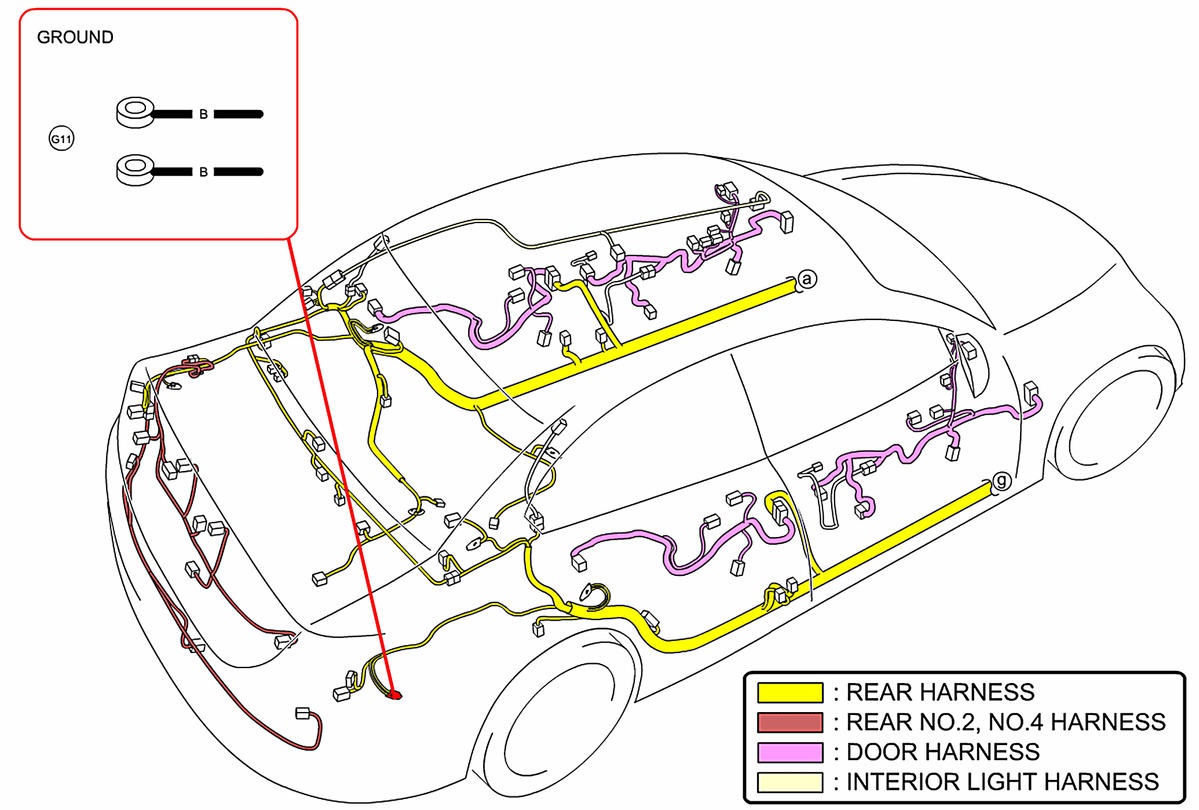

Fig 24: Body Overview

G00470978

Courtesy of MAZDA MOTORS CORP.

Fig 25: Engine Compartment (2.5L)

G00470979

Courtesy of MAZDA MOTORS CORP.

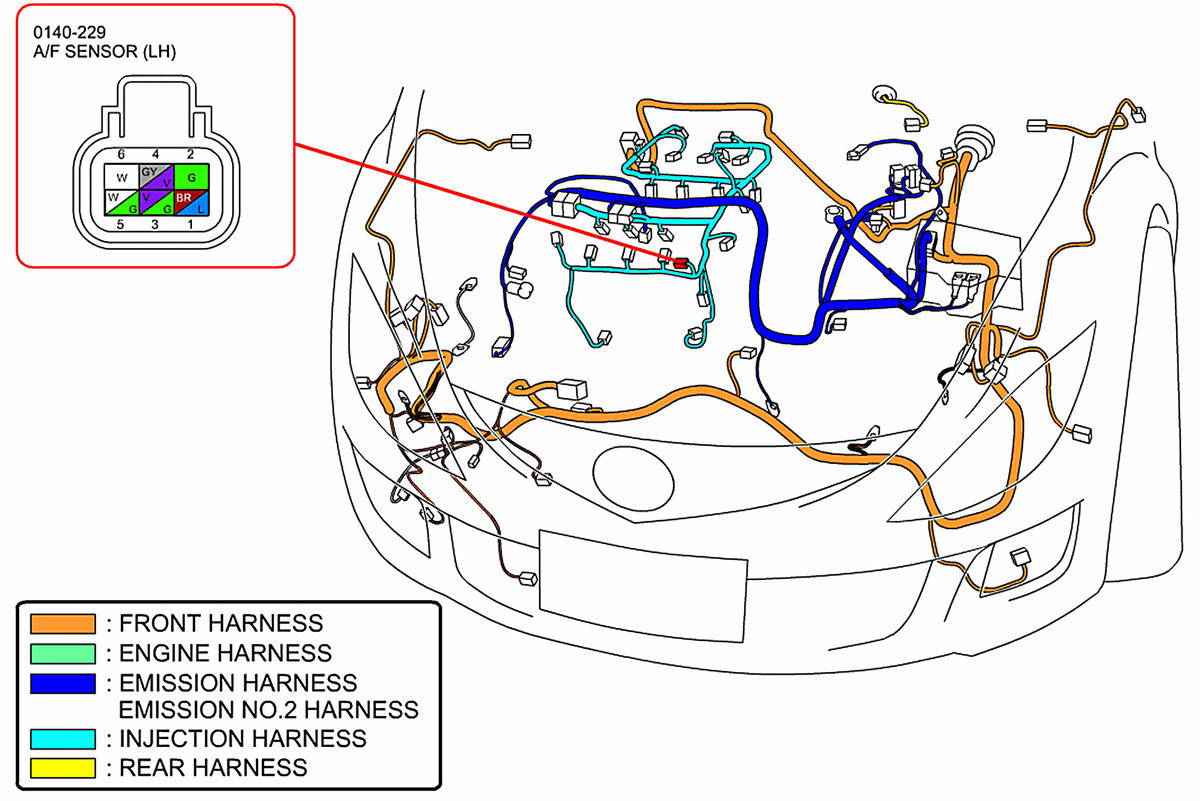

Fig 26: Engine Compartment (3.7L)

G00470980

Courtesy of MAZDA MOTORS CORP.

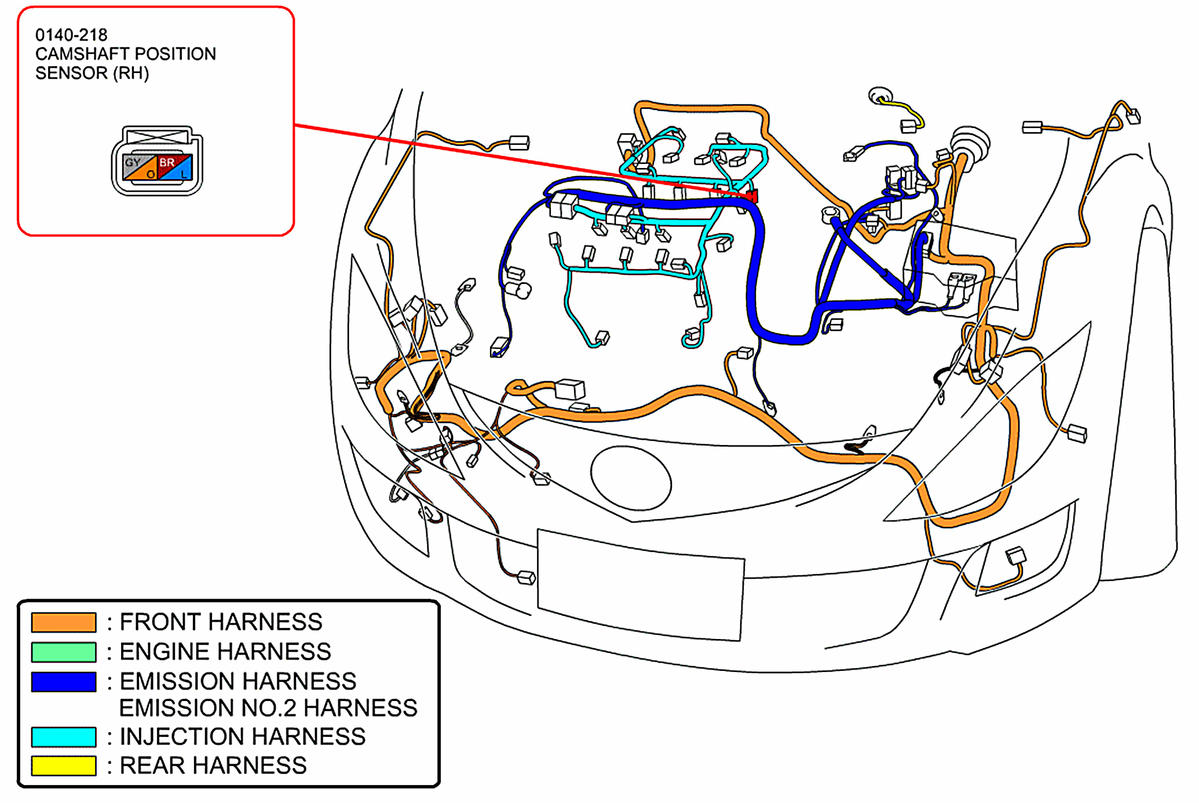

Fig 27: Engine Compartment (3.7L)

G00470981

Courtesy of MAZDA MOTORS CORP.

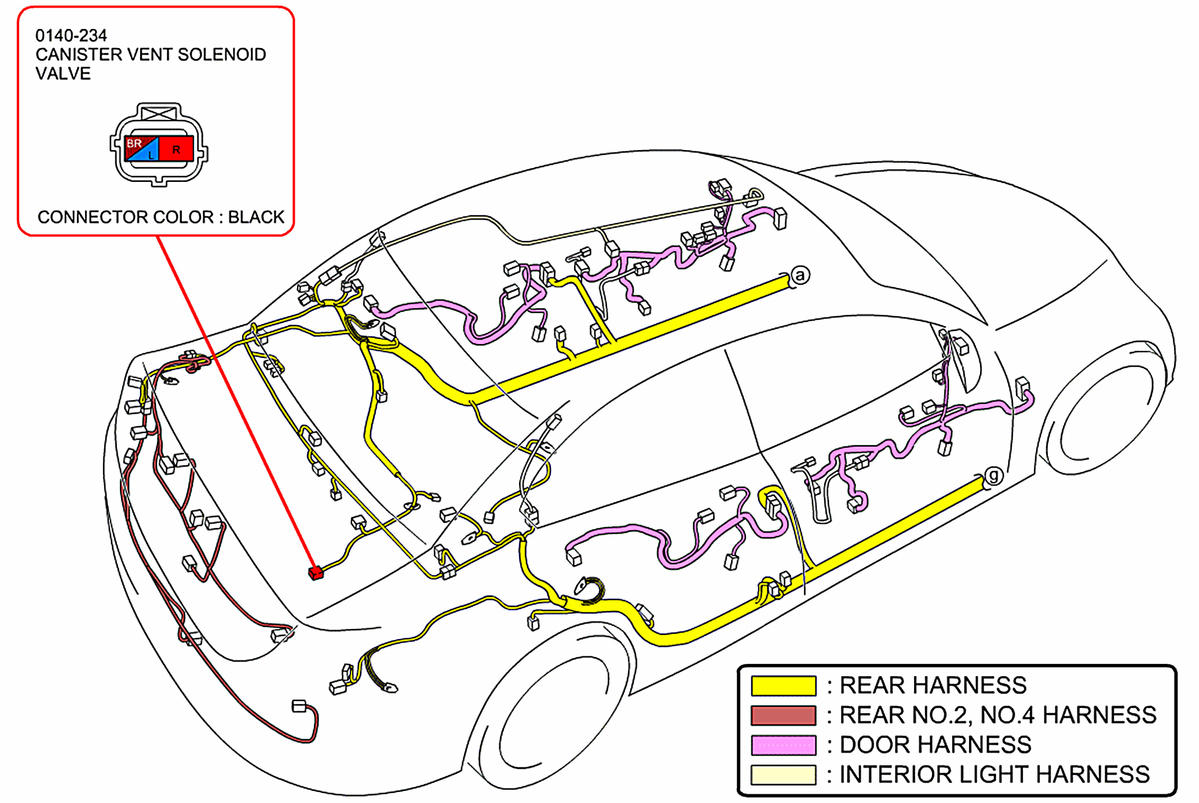

Fig 28: Body Overview

G00470982

Courtesy of MAZDA MOTORS CORP.

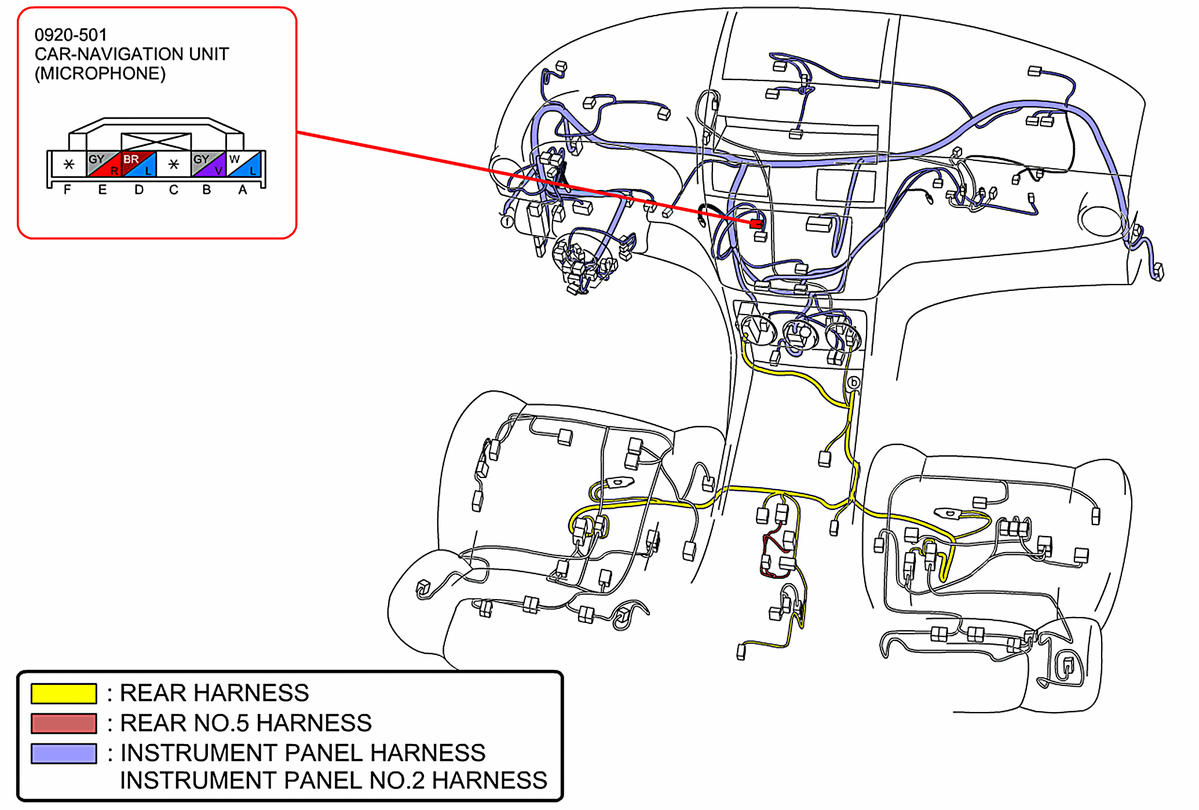

Fig 29: Upper Dash & Front Seats

G00470983

Courtesy of MAZDA MOTORS CORP.

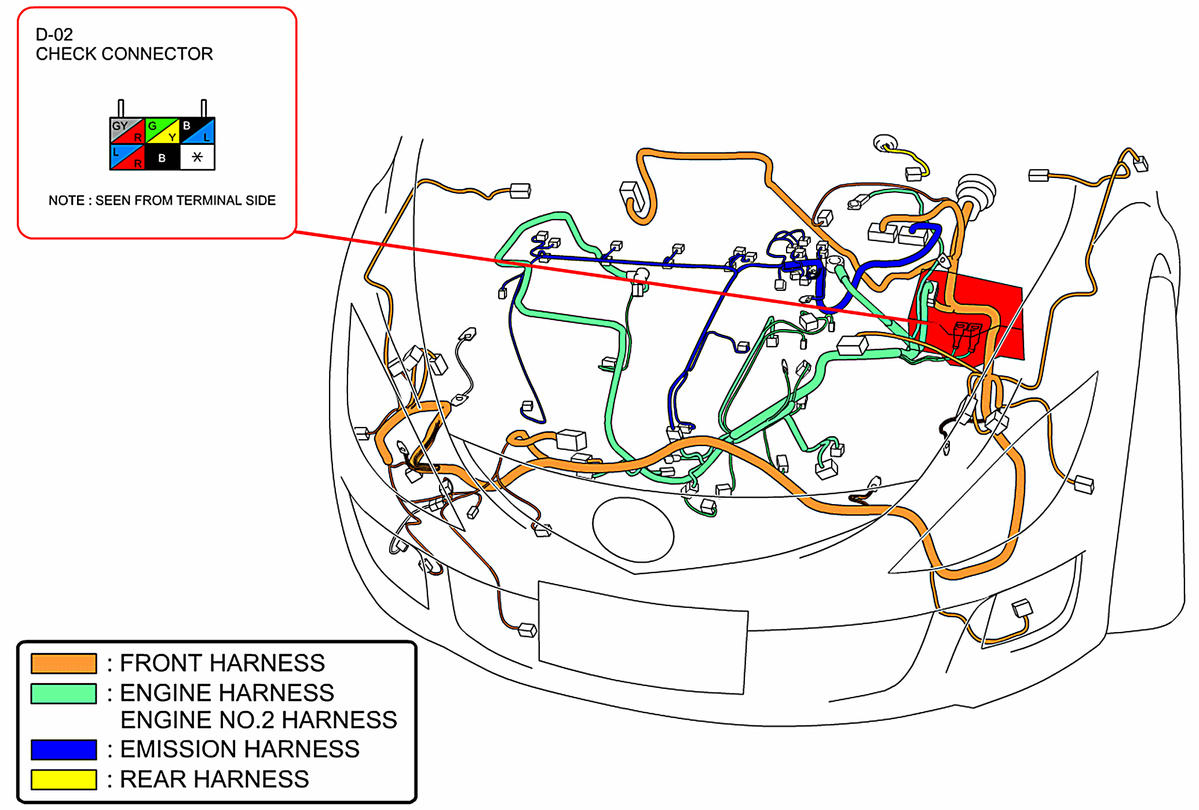

Fig 30: Engine Compartment

G00470984

Courtesy of MAZDA MOTORS CORP.

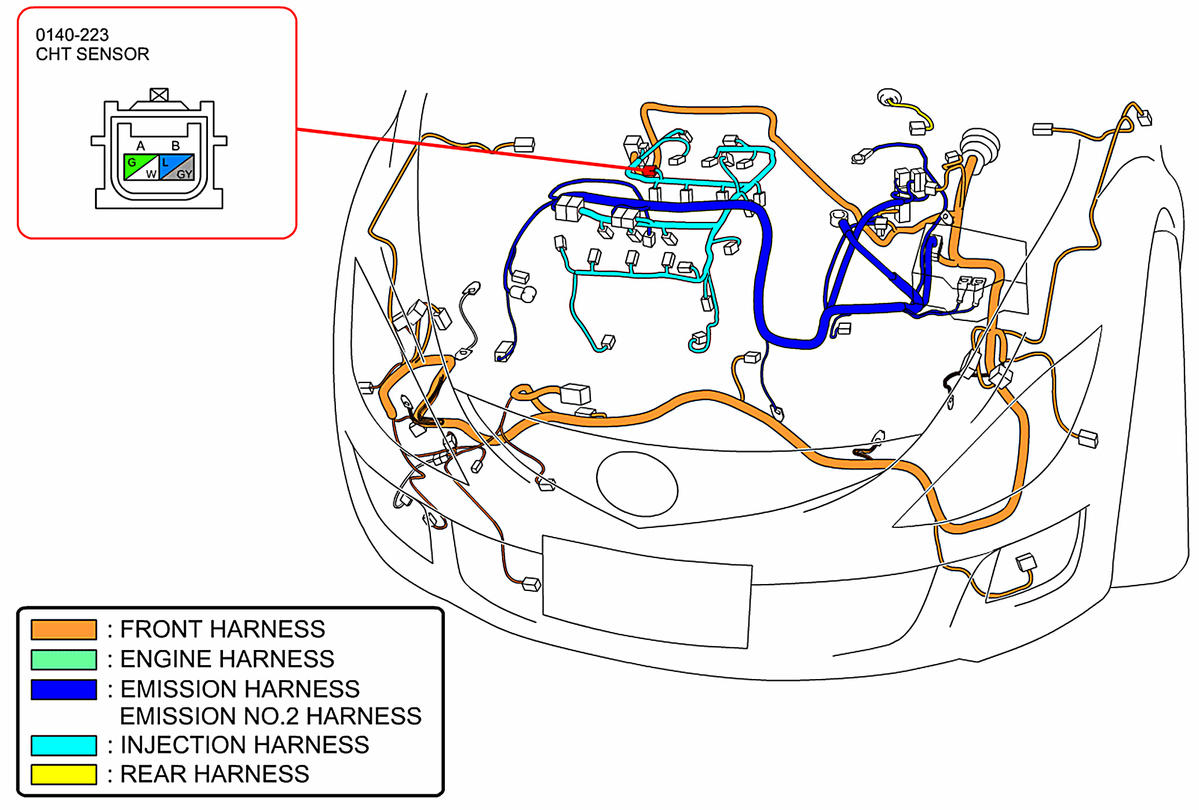

Fig 31: Engine Compartment

G00470985

Courtesy of MAZDA MOTORS CORP.

Fig 32: Upper Dash & Front Seats

G00470986

Courtesy of MAZDA MOTORS CORP.

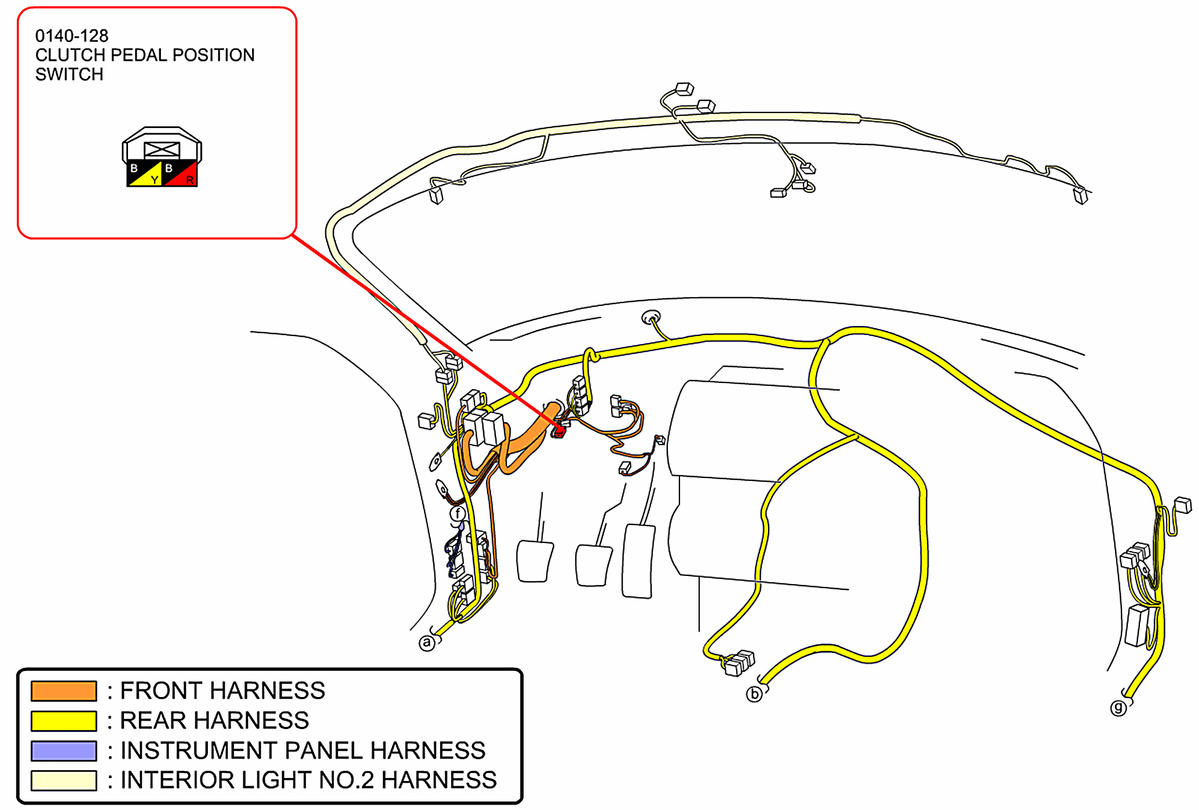

Fig 33: Lower Dash

G00470987

Courtesy of MAZDA MOTORS CORP.

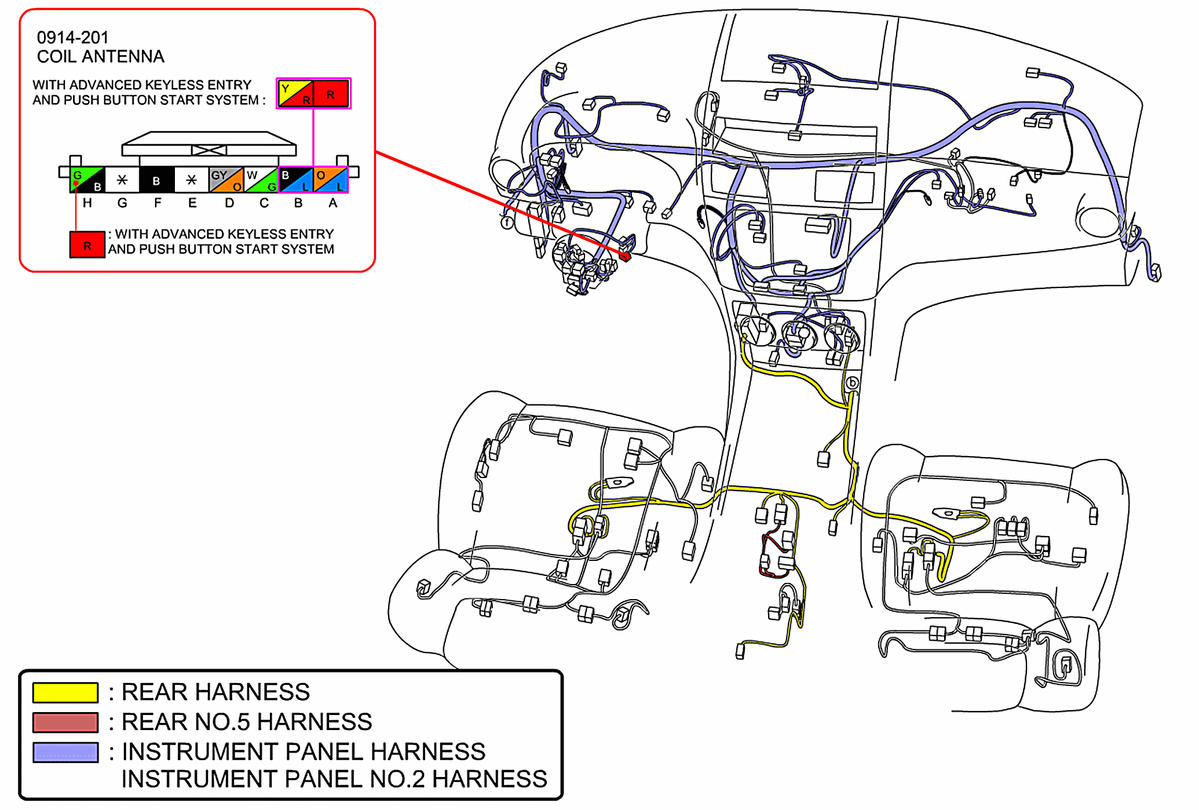

Fig 34: Upper Dash & Front Seats

G00470988

Courtesy of MAZDA MOTORS CORP.

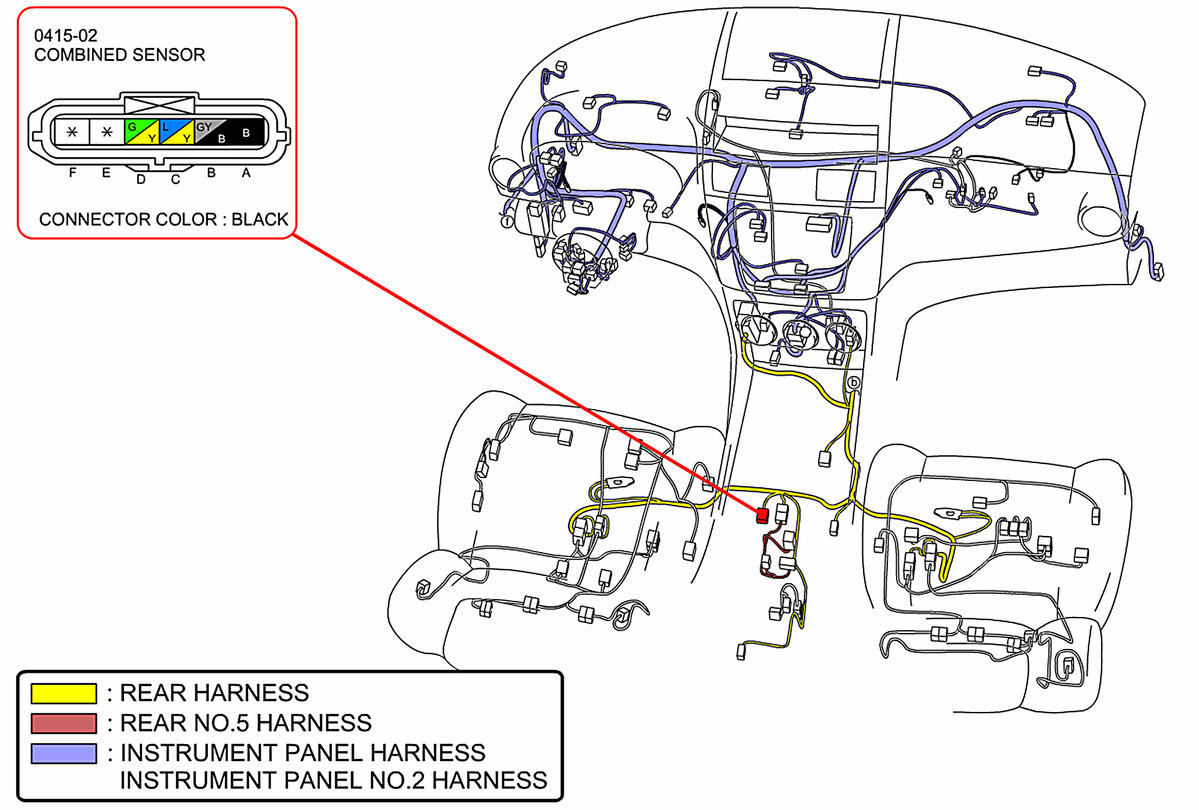

Fig 35: Upper Dash & Front Seats

G00470989

Courtesy of MAZDA MOTORS CORP.

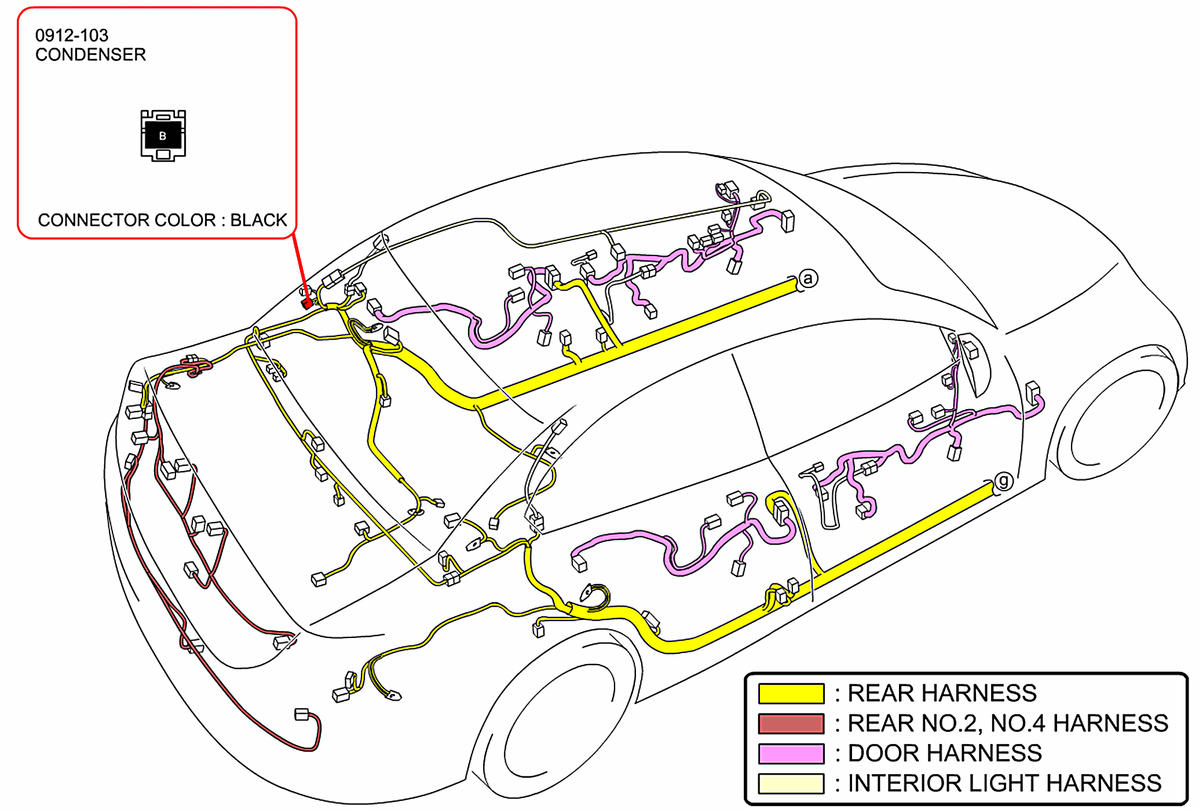

Fig 36: Body Overview

G00470990

Courtesy of MAZDA MOTORS CORP.

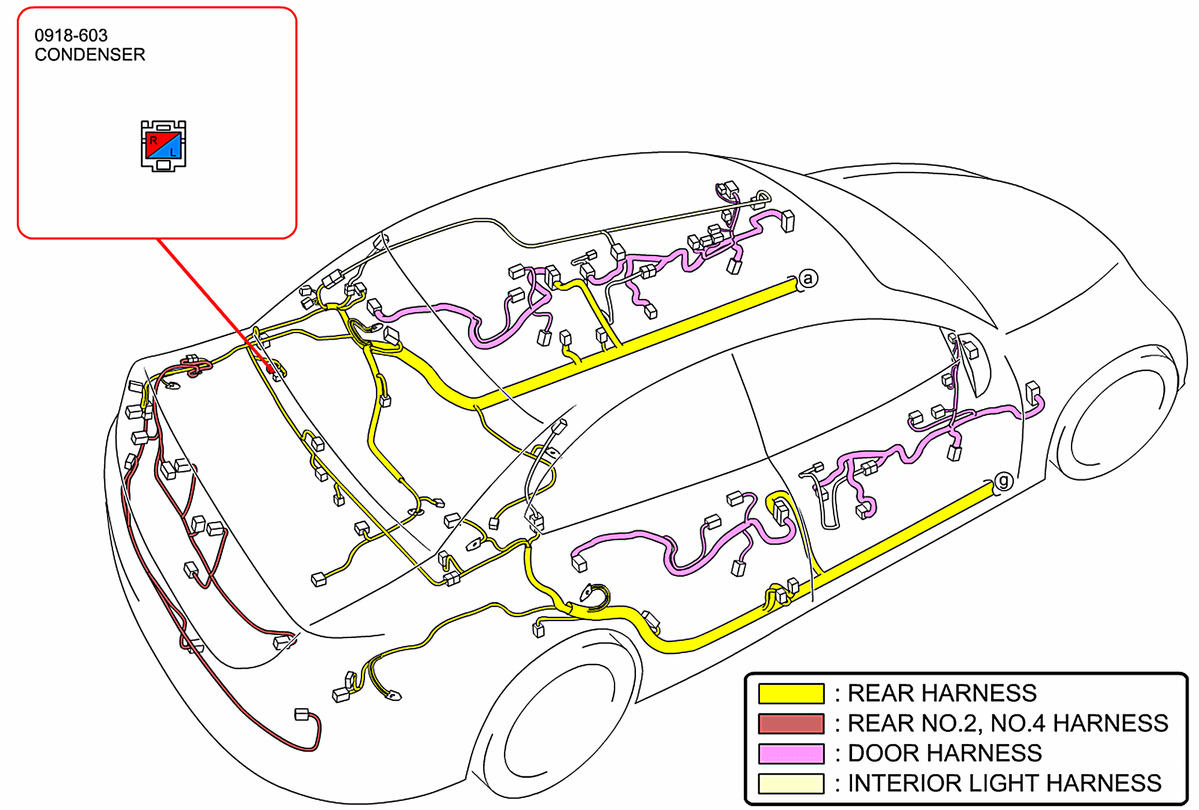

Fig 37: Body Overview

G00470991

Courtesy of MAZDA MOTORS CORP.

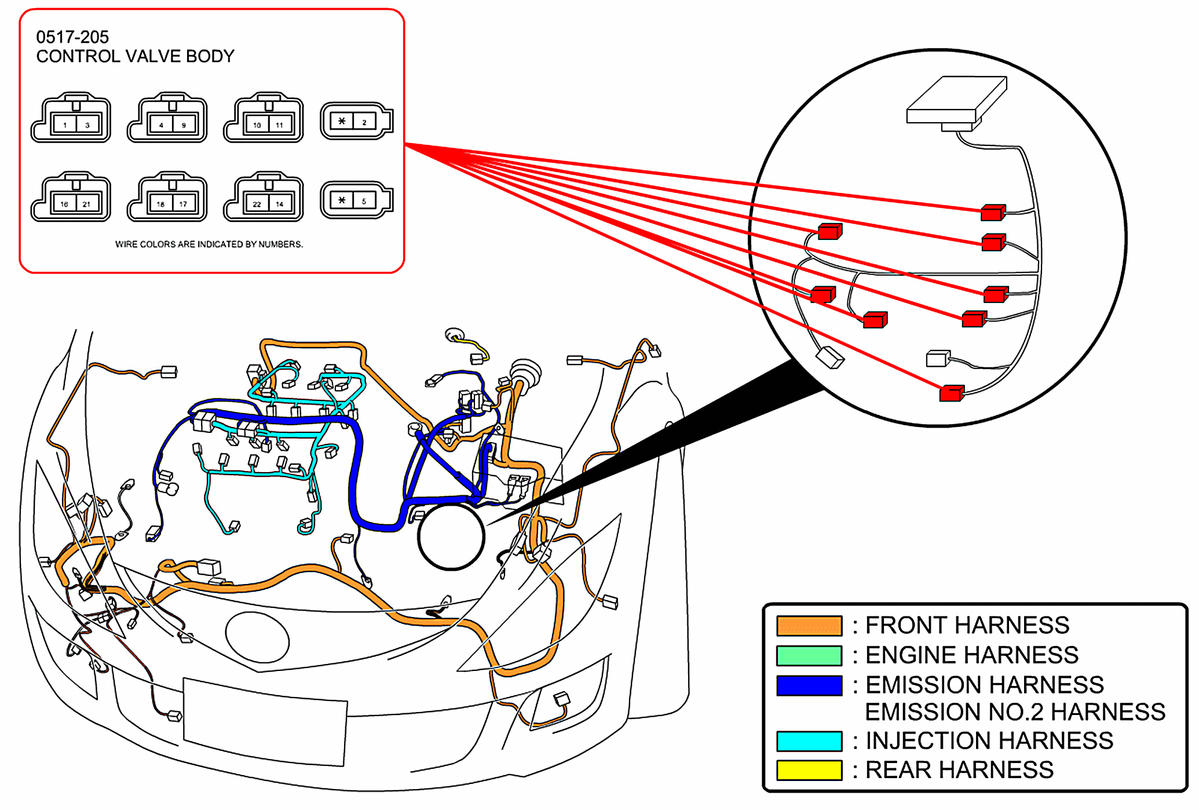

Fig 38: Engine Compartment

G00470992

Courtesy of MAZDA MOTORS CORP.

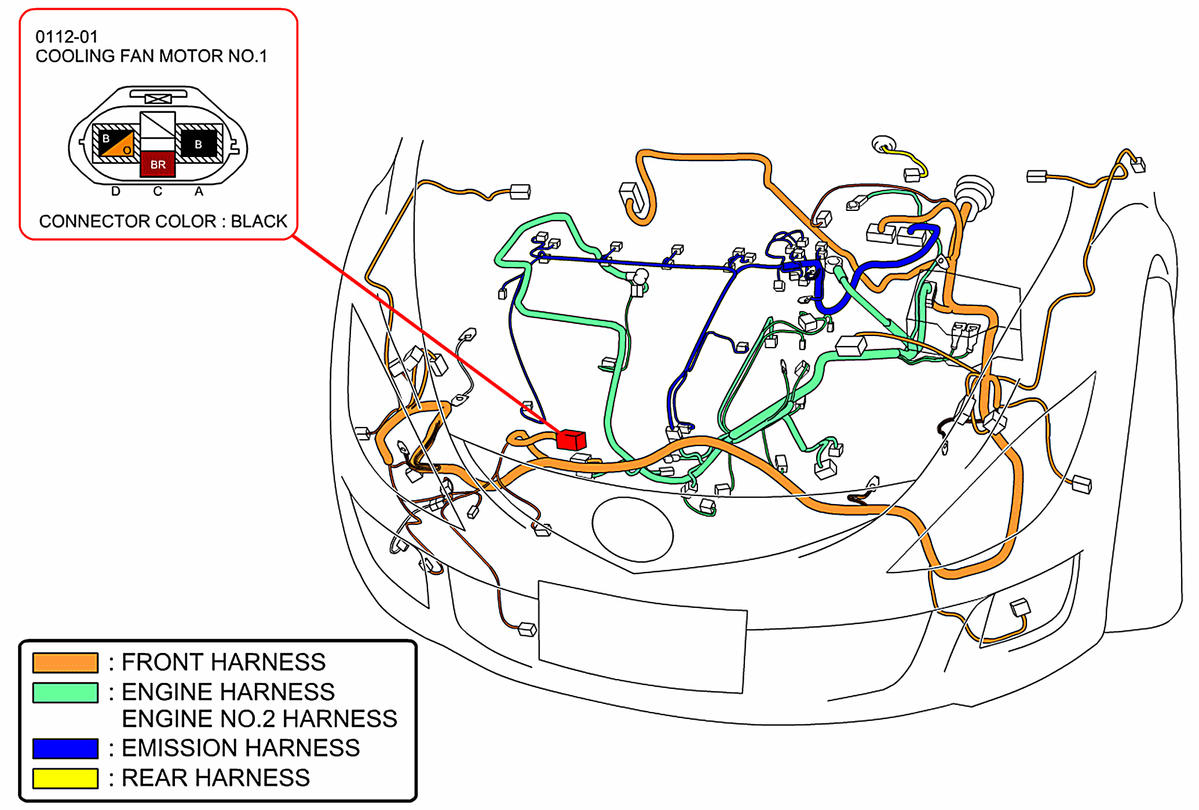

Fig 39: Engine Compartment

G00470993

Courtesy of MAZDA MOTORS CORP.

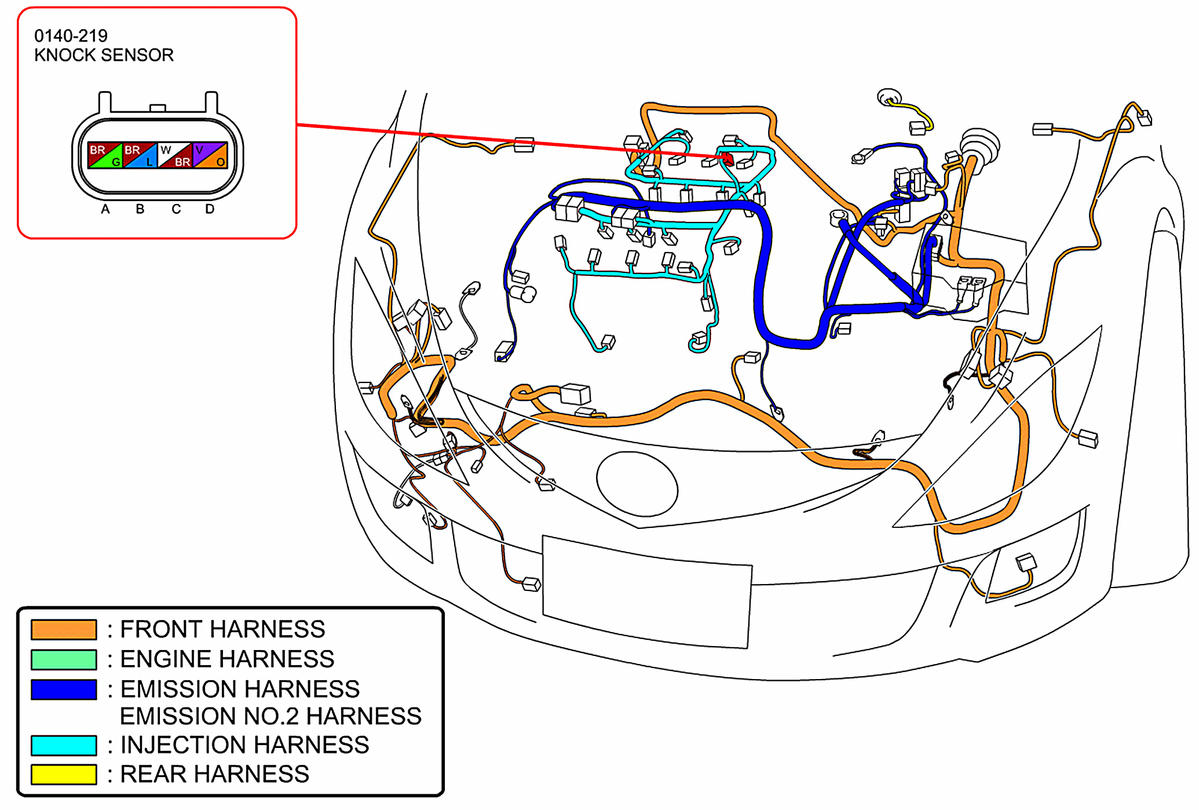

Fig 40: Engine Compartment (2.5L)

G00470994

Courtesy of MAZDA MOTORS CORP.

Fig 41: Engine Compartment (3.7L)

G00470995

Courtesy of MAZDA MOTORS CORP.

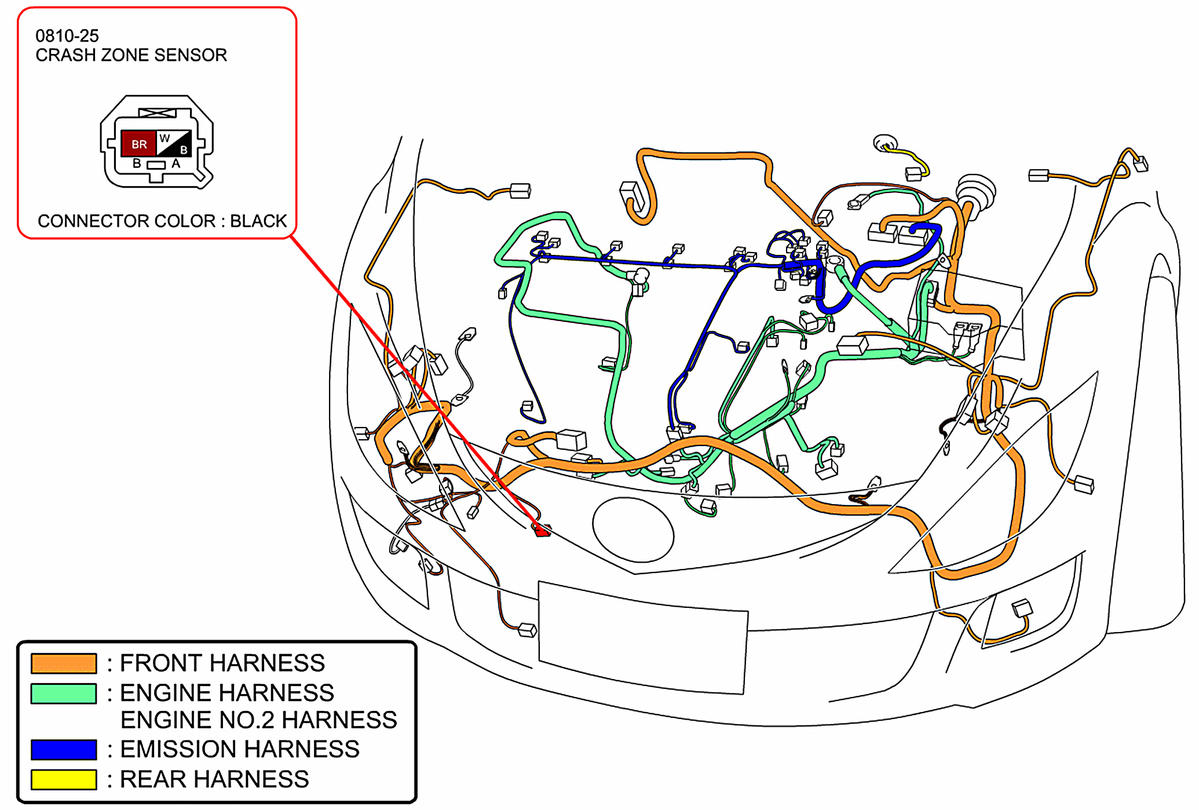

Fig 42: Engine Compartment

G00470996

Courtesy of MAZDA MOTORS CORP.

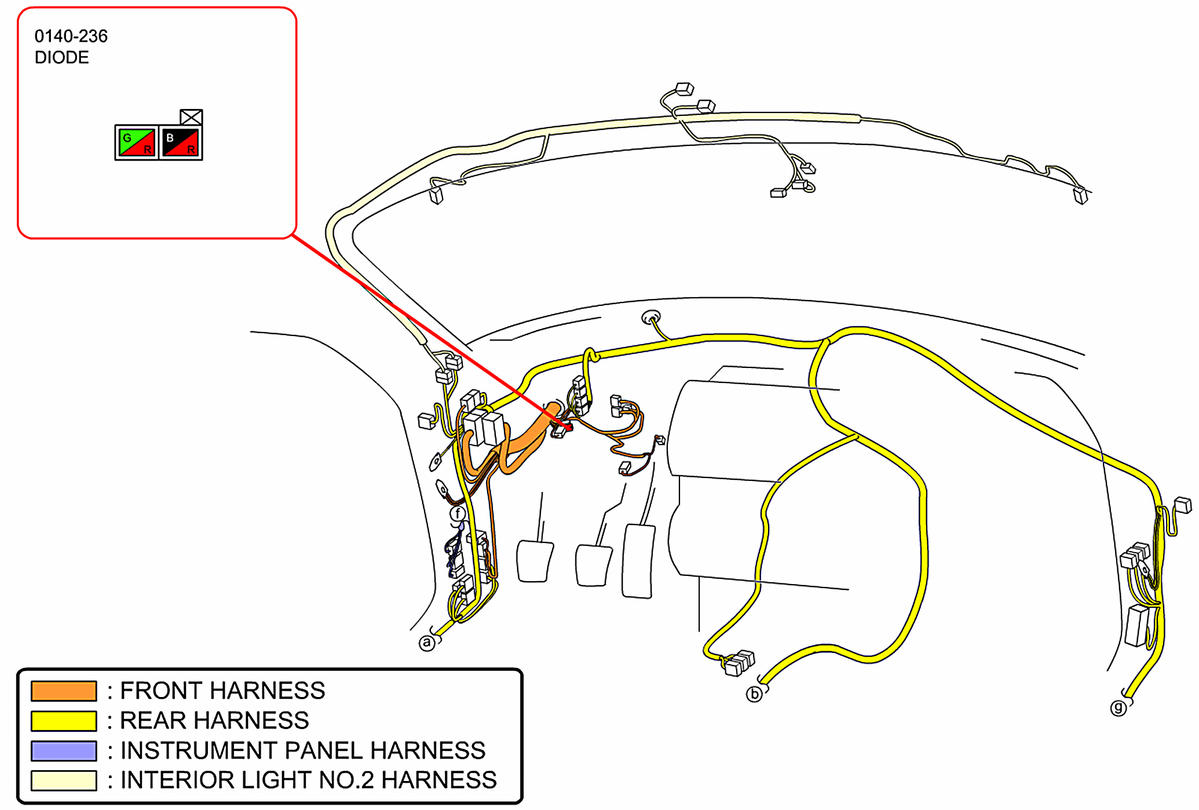

Fig 43: Lower Dash

G00470998

Courtesy of MAZDA MOTORS CORP.

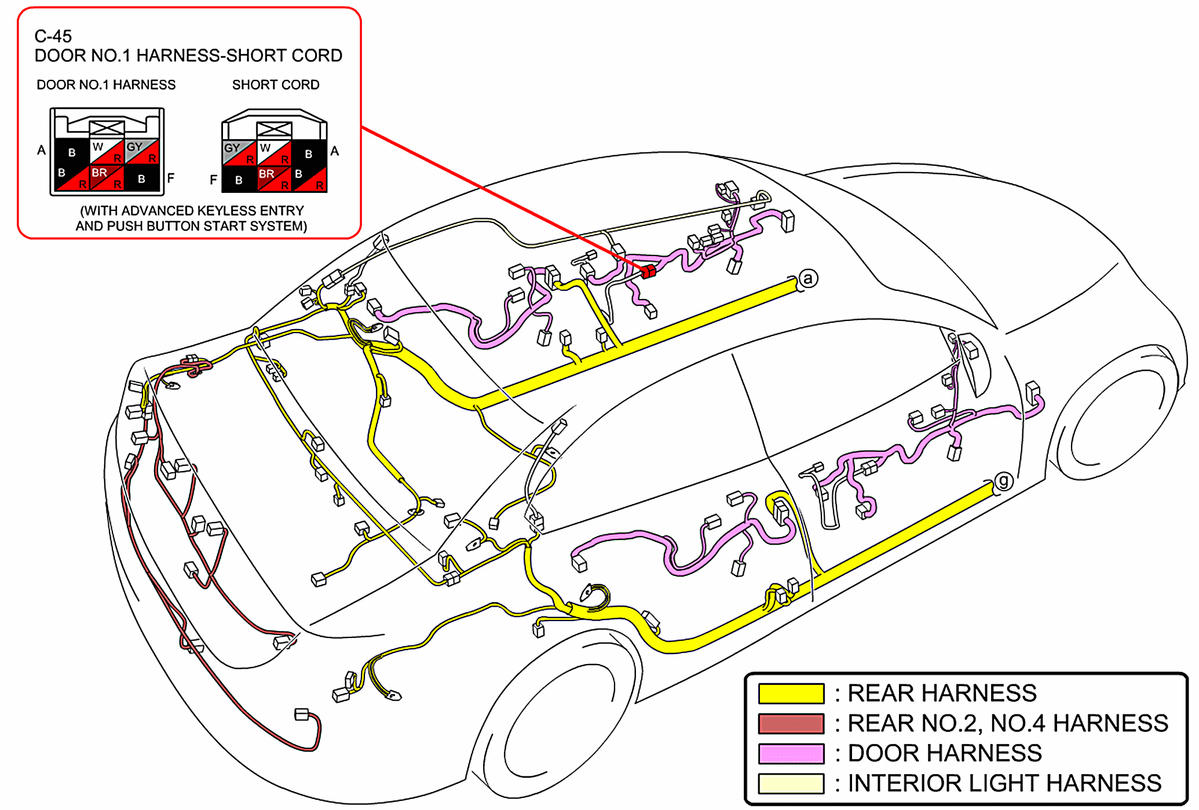

Fig 44: Body Overview

G00470999

Courtesy of MAZDA MOTORS CORP.

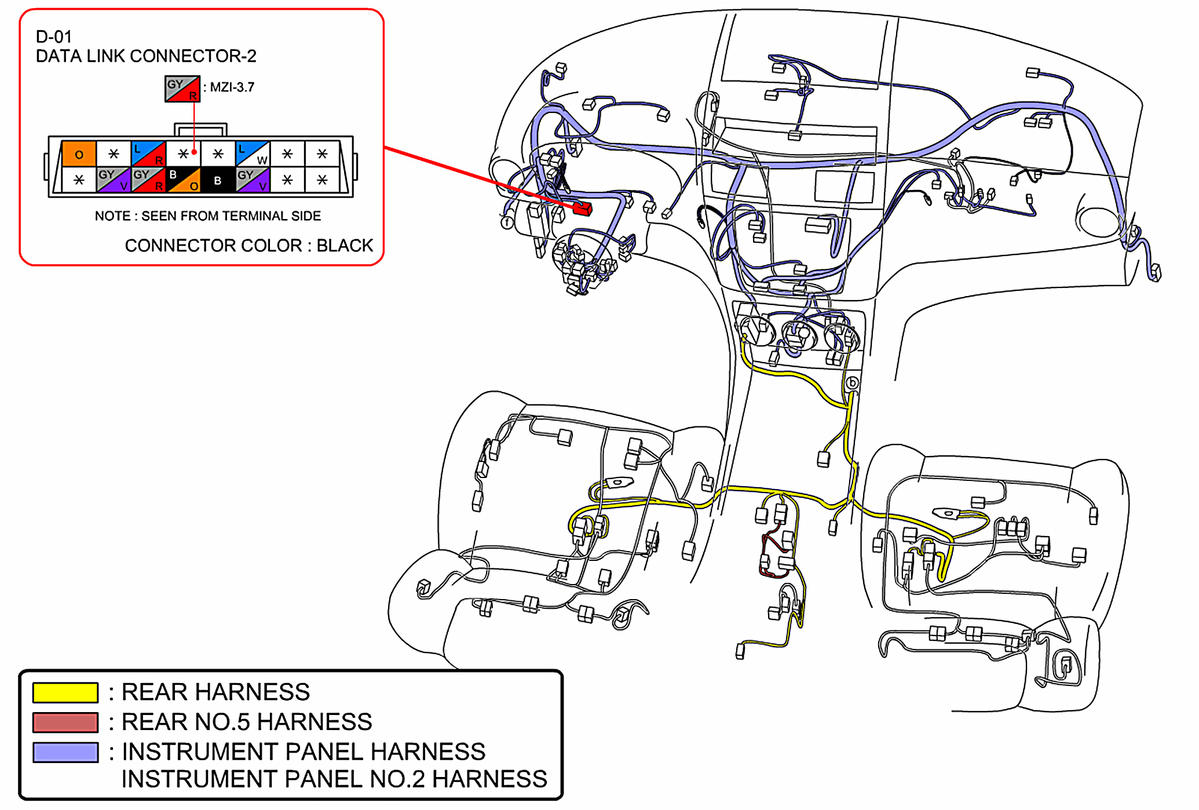

Fig 45: Upper Dash & Front Seats

G00470997

Courtesy of MAZDA MOTORS CORP.

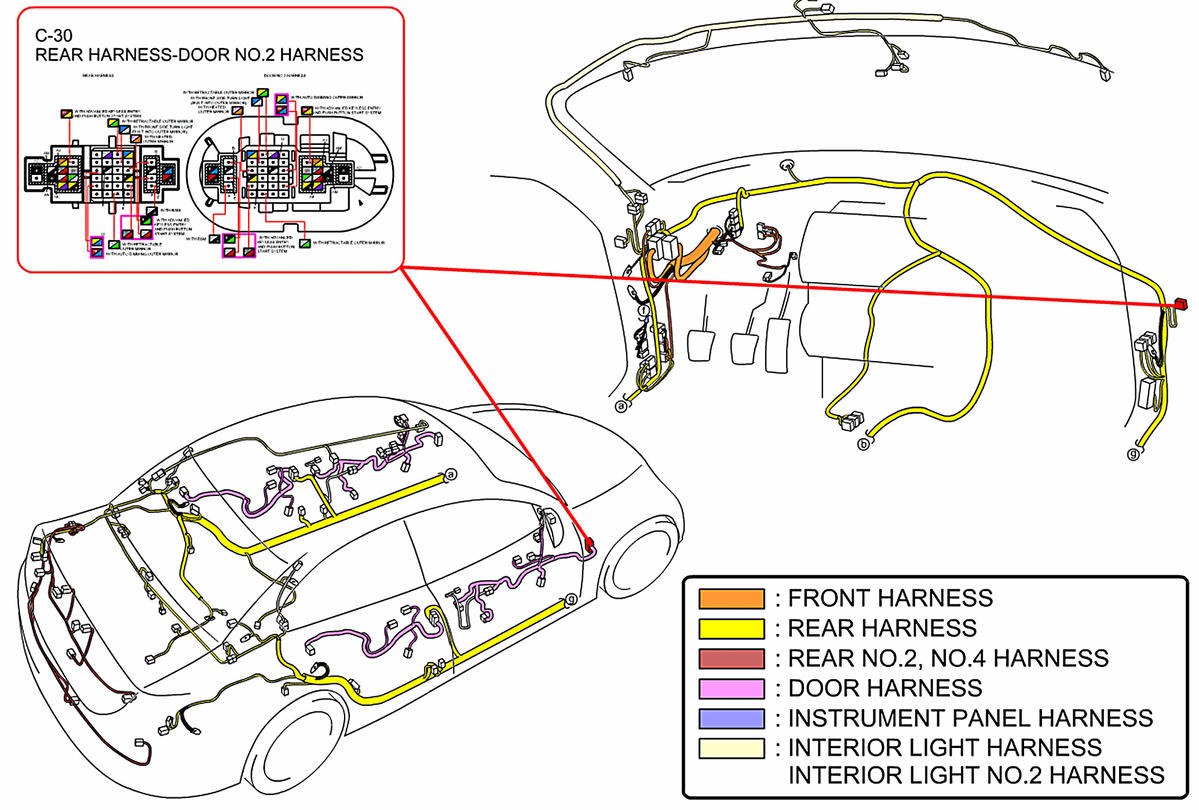

Fig 46: Body Overview

G00471000

Courtesy of MAZDA MOTORS CORP.

Fig 47: Upper Dash & Front Seats

G00471001

Courtesy of MAZDA MOTORS CORP.

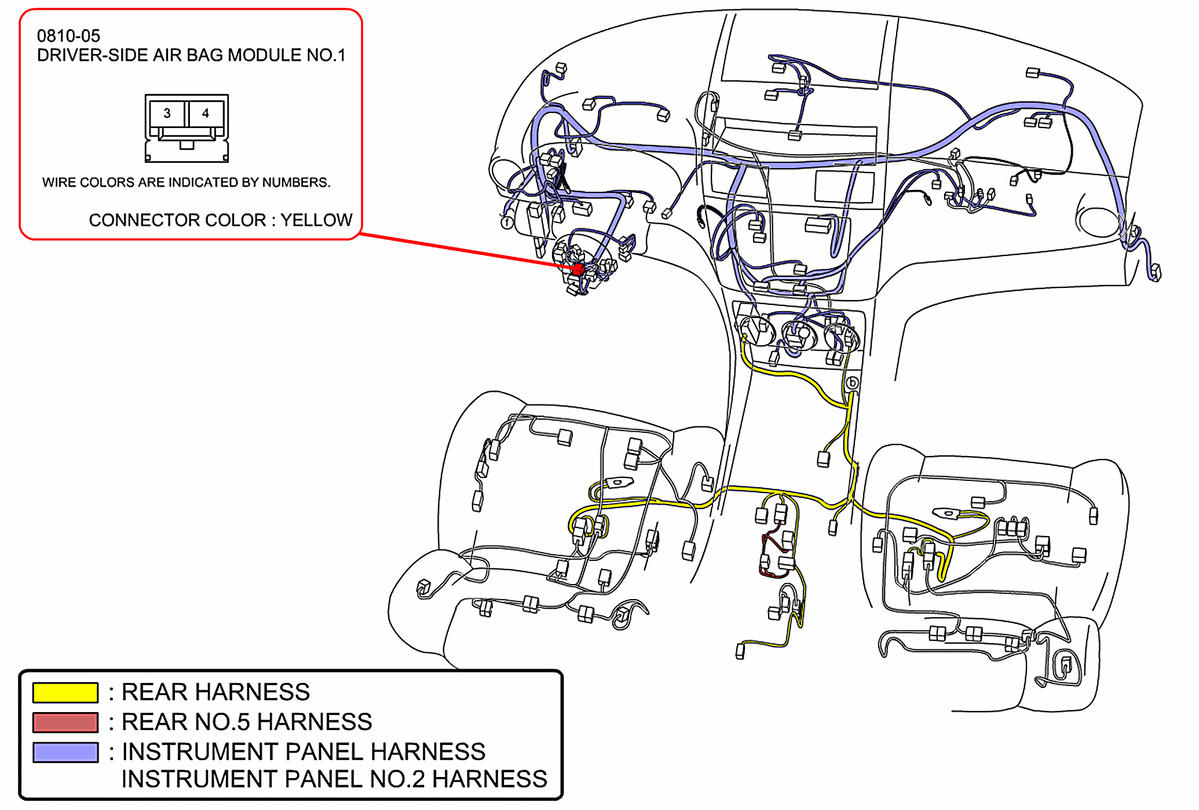

Fig 48: Upper Dash & Front Seats

G00471002

Courtesy of MAZDA MOTORS CORP.

Fig 49: Upper Dash & Front Seats

G00471003

Courtesy of MAZDA MOTORS CORP.

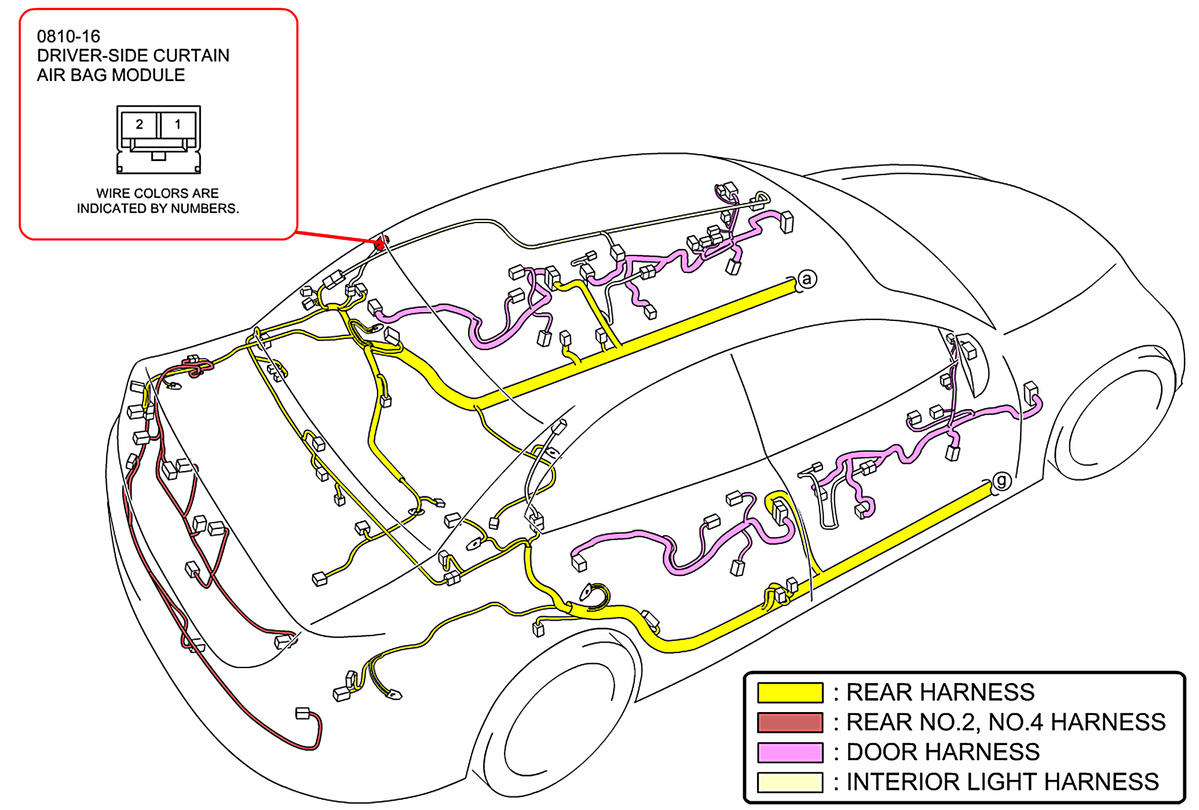

Fig 50: Body Overview

G00471004

Courtesy of MAZDA MOTORS CORP.

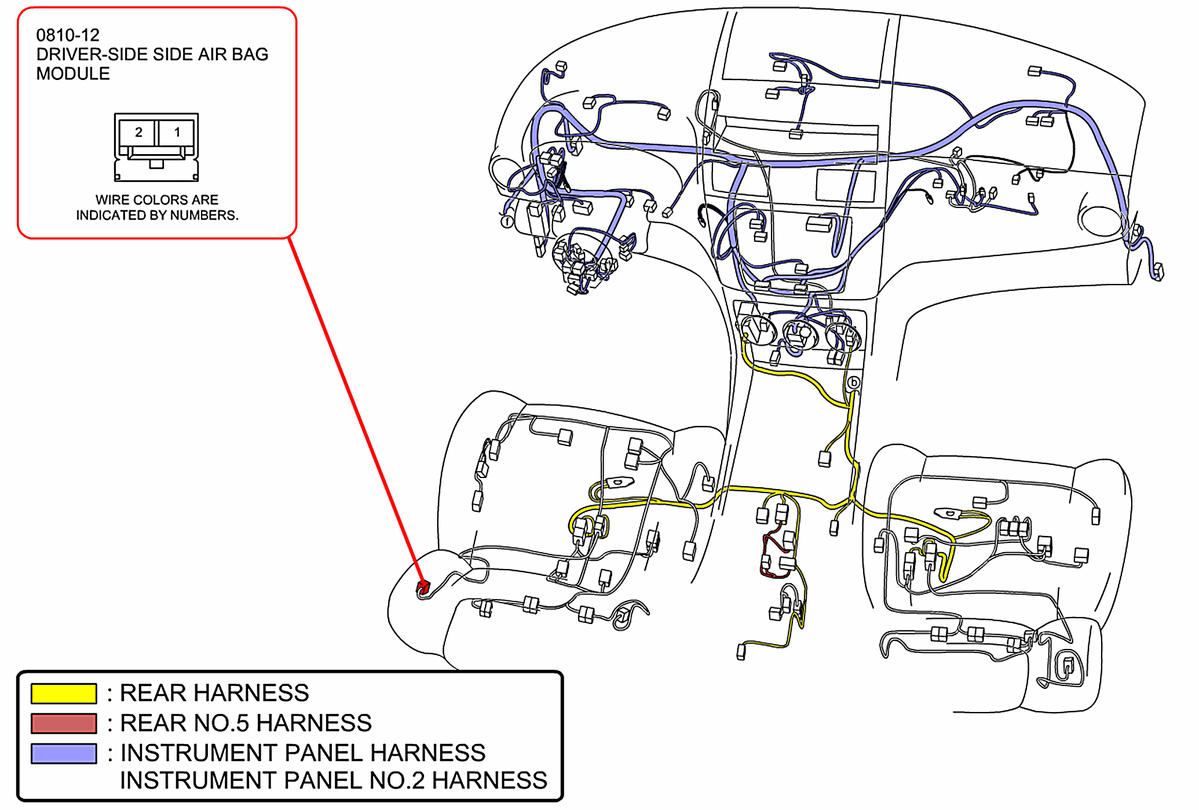

Fig 51: Upper Dash & Front Seats

G00471005

Courtesy of MAZDA MOTORS CORP.

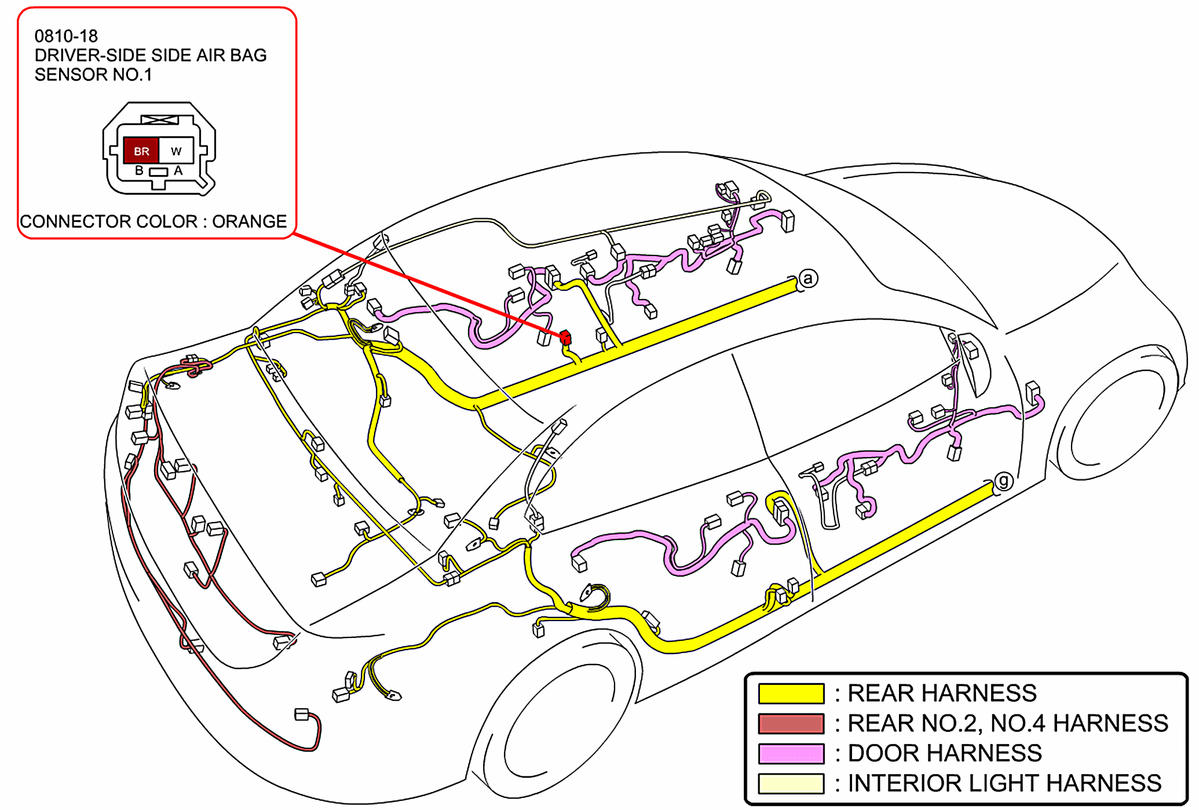

Fig 52: Body Overview

G00471006

Courtesy of MAZDA MOTORS CORP.

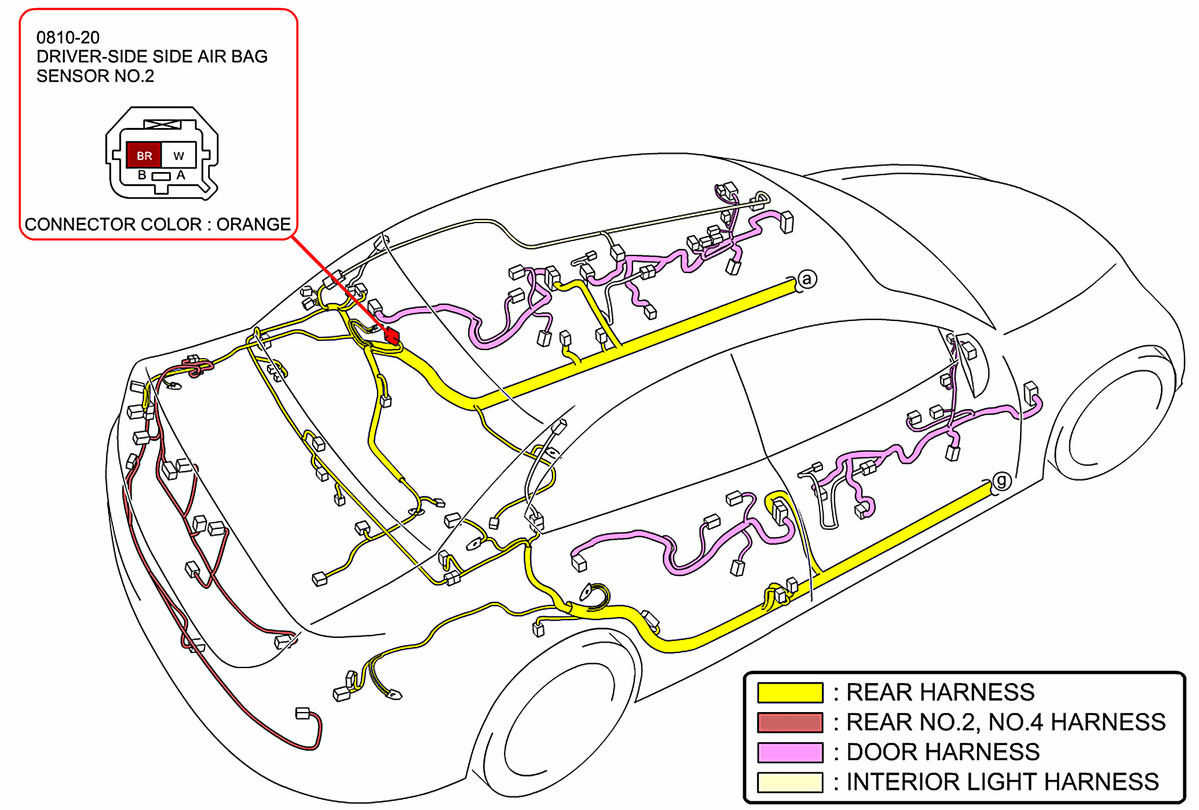

Fig 53: Body Overview

G00471007

Courtesy of MAZDA MOTORS CORP.

Fig 54: Engine Compartment

G00471008

Courtesy of MAZDA MOTORS CORP.

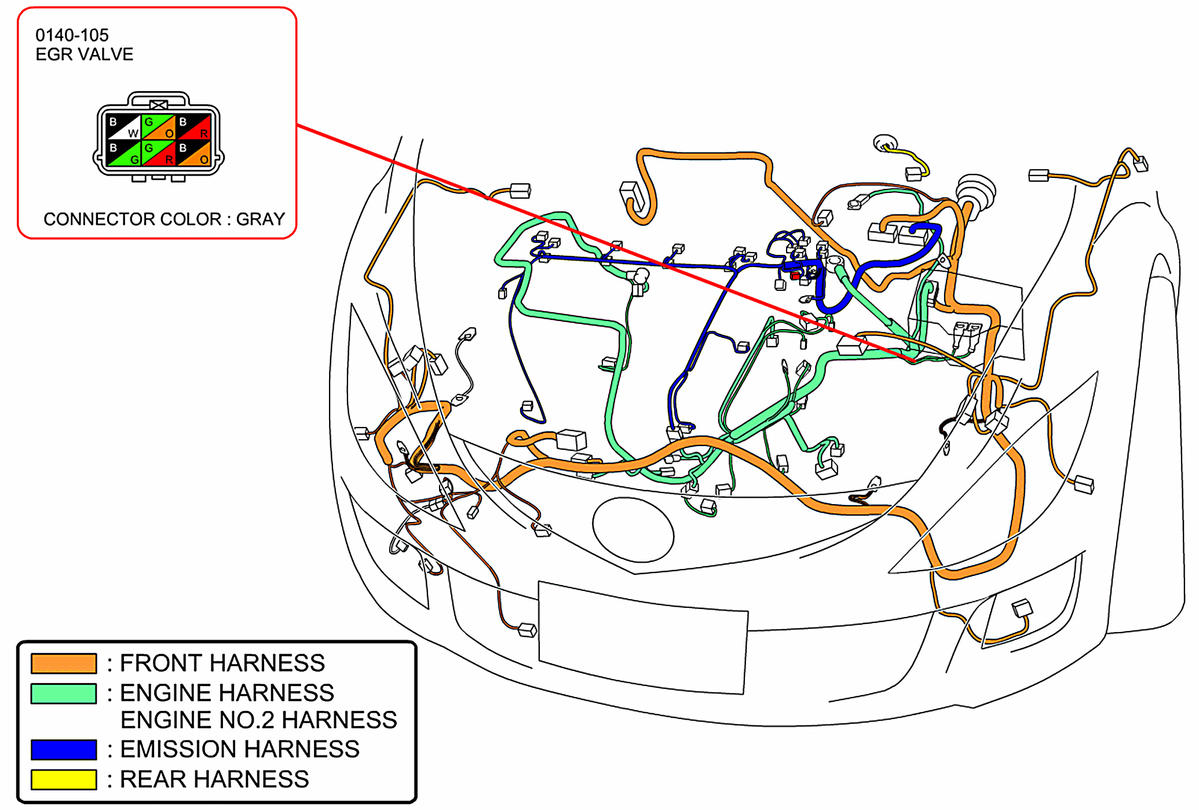

Fig 55: Engine Compartment

G00471009

Courtesy of MAZDA MOTORS CORP.

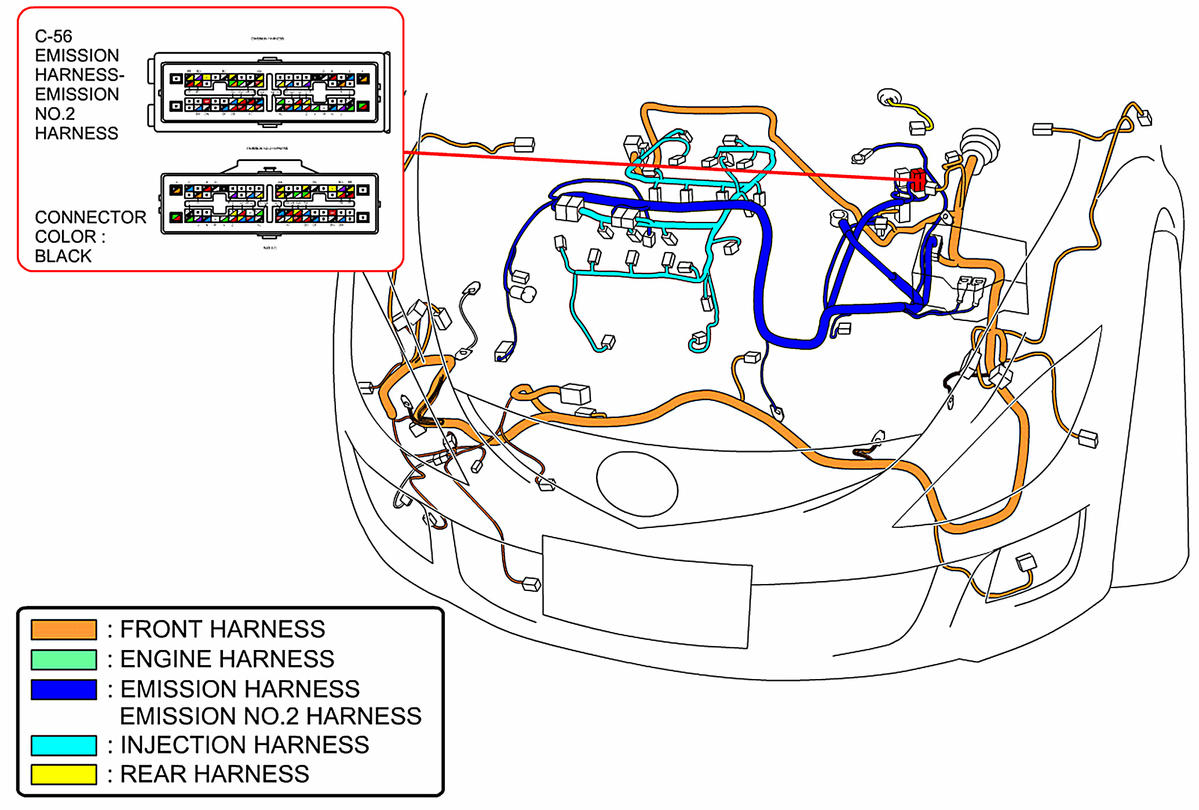

Fig 56: Engine Compartment (3.7L)

G00471010

Courtesy of MAZDA MOTORS CORP.

Fig 57: Engine Compartment (2.5L)

G00471011

Courtesy of MAZDA MOTORS CORP.

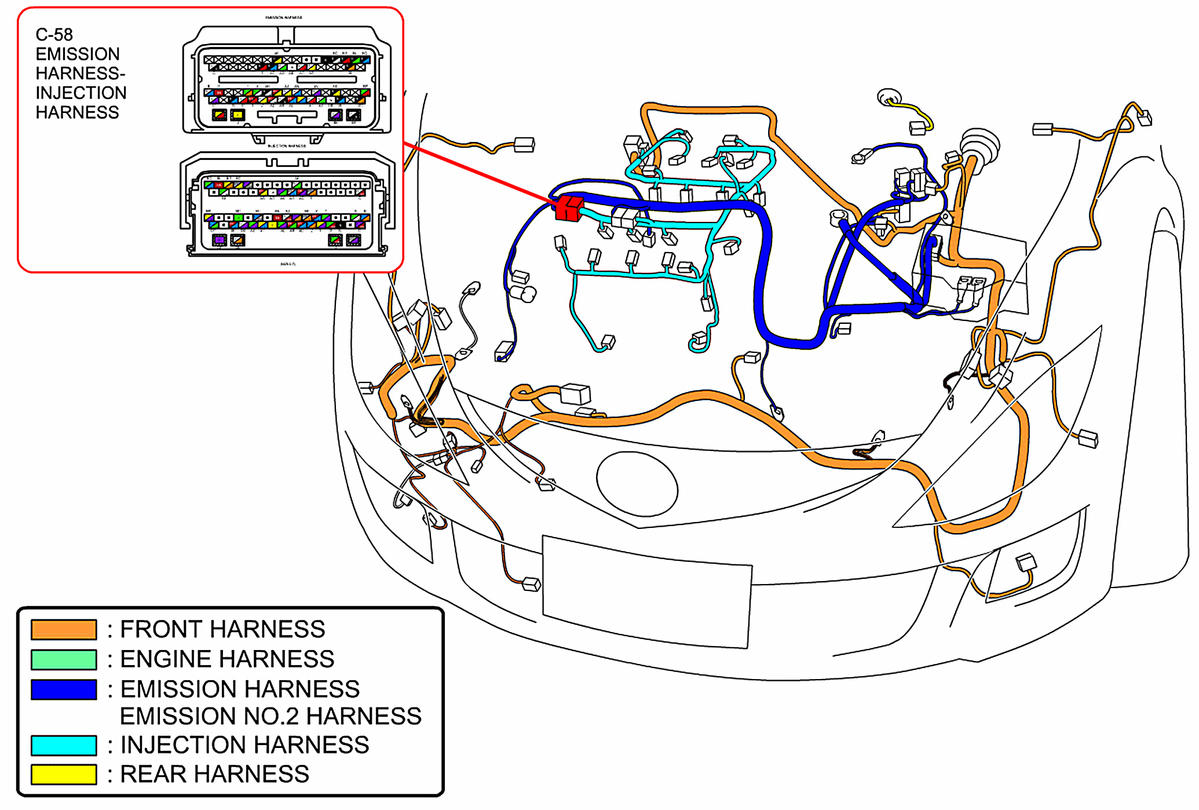

Fig 58: Engine Compartment (3.7L)

G00471012

Courtesy of MAZDA MOTORS CORP.

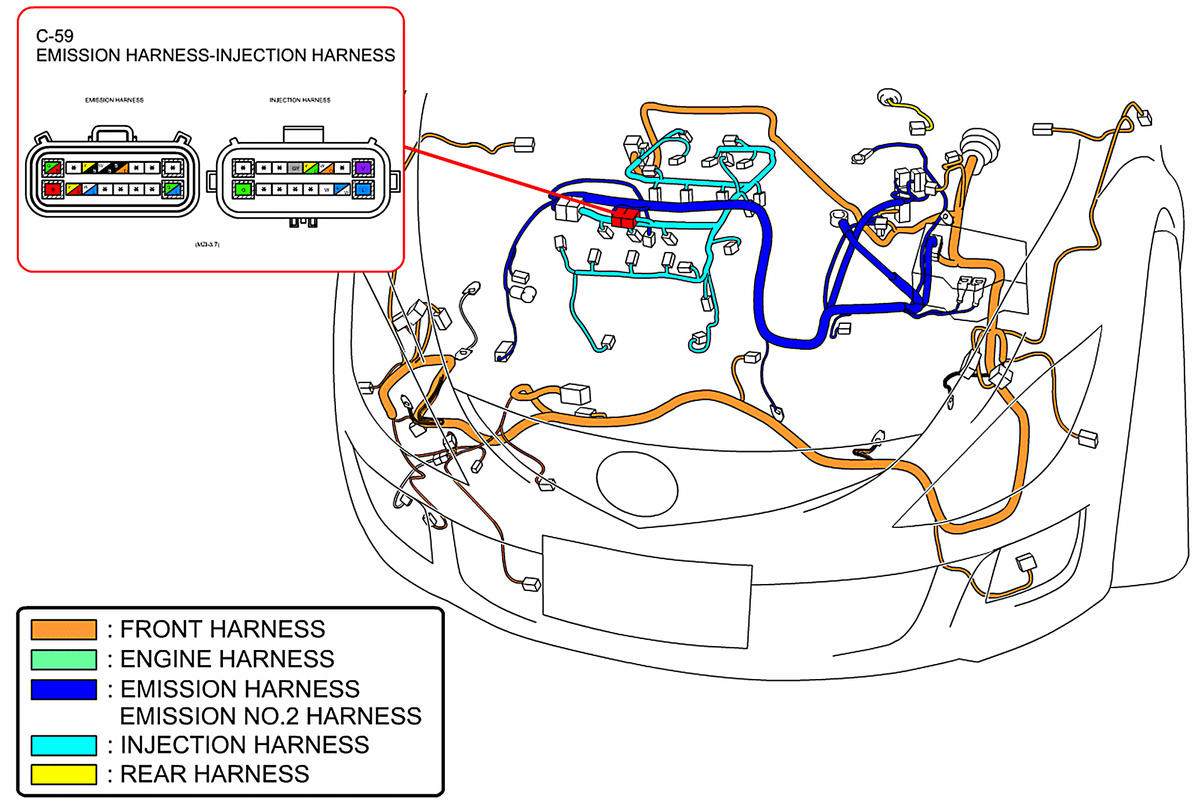

Fig 59: Engine Compartment

G00471013

Courtesy of MAZDA MOTORS CORP.

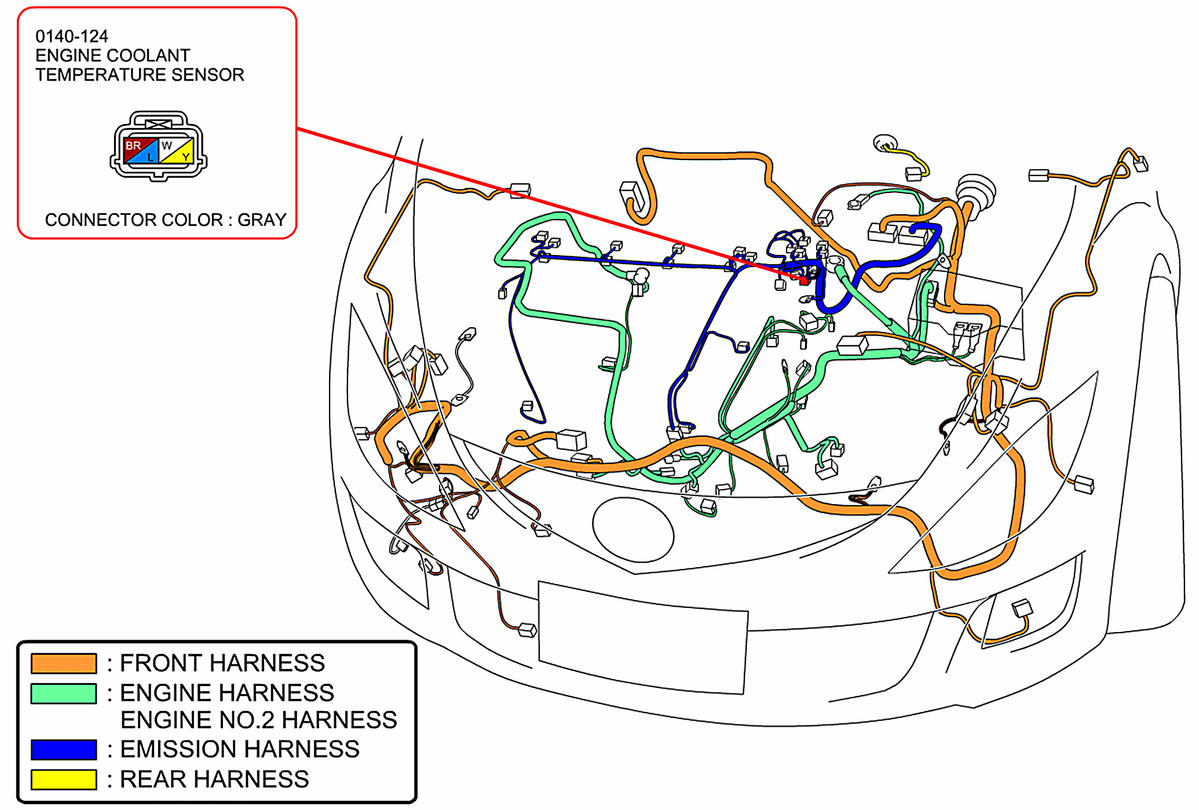

Fig 60: Engine Compartment

G00471014

Courtesy of MAZDA MOTORS CORP.

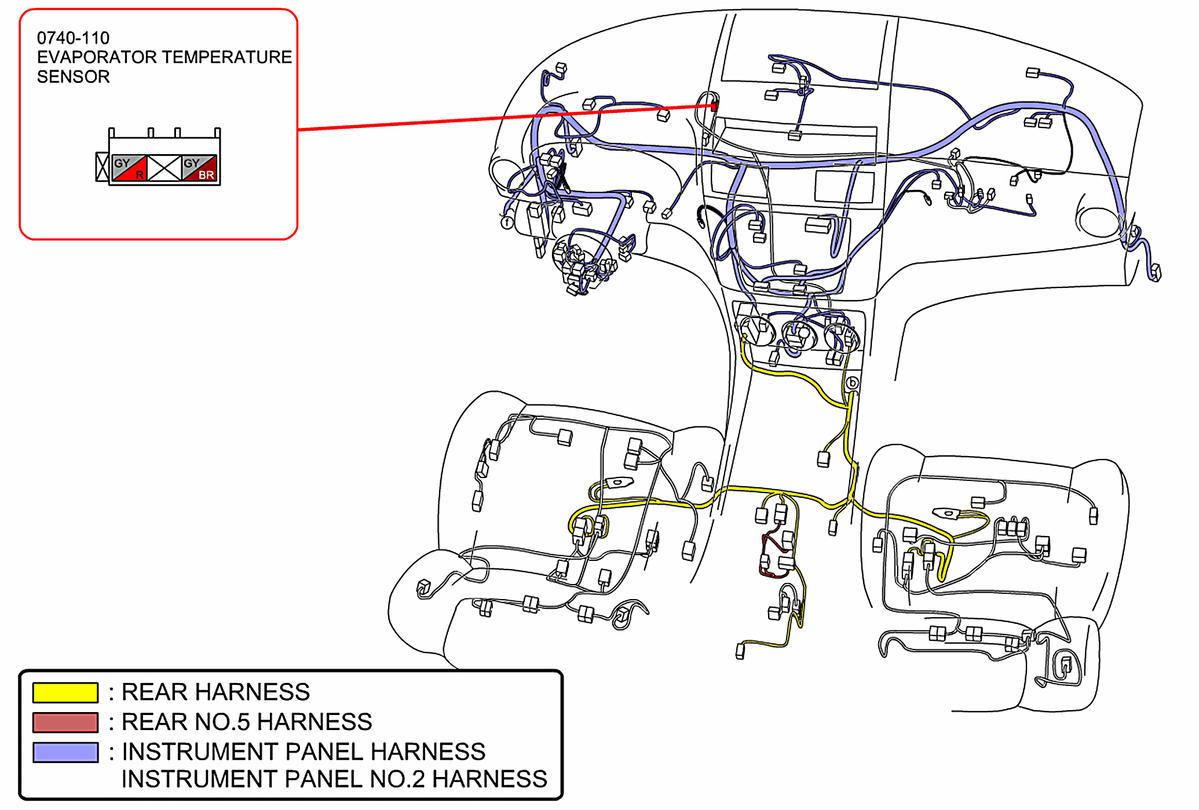

Fig 61: Upper Dash & Front Seats

G00471015

Courtesy of MAZDA MOTORS CORP.

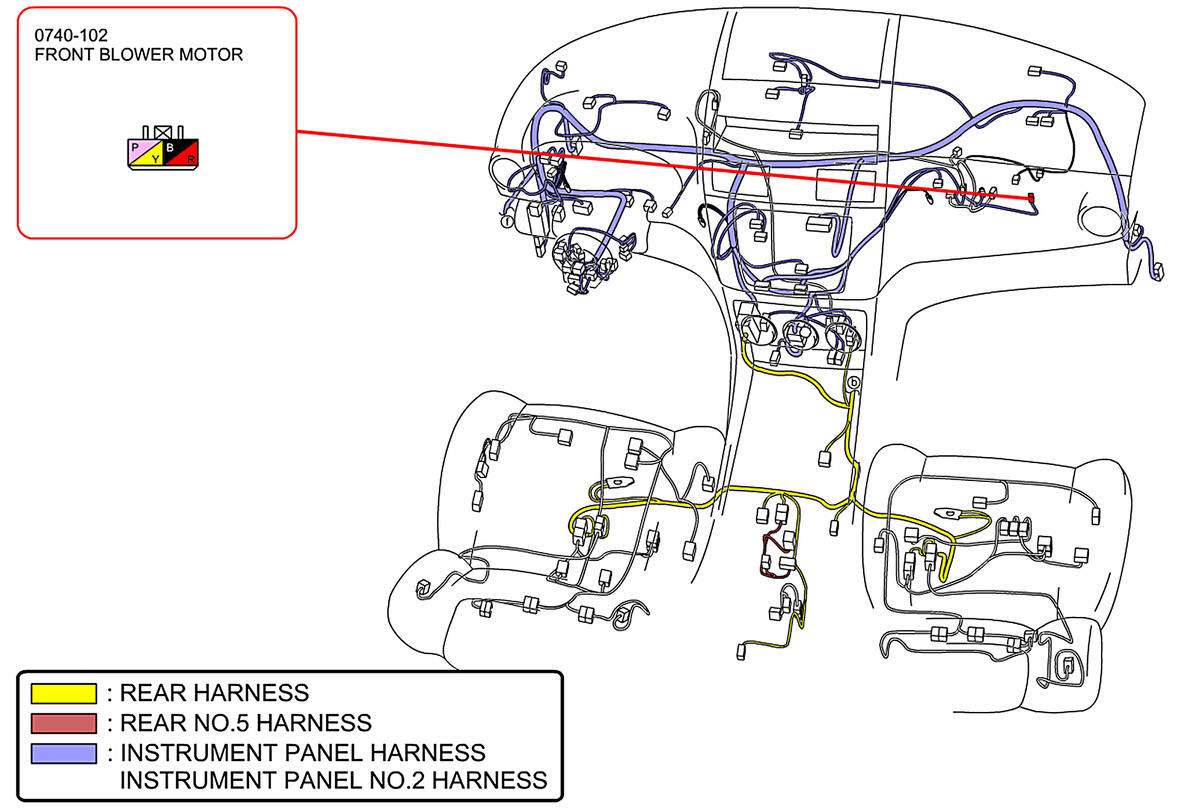

Fig 62: Upper Dash & Front Seats

G00471016

Courtesy of MAZDA MOTORS CORP.

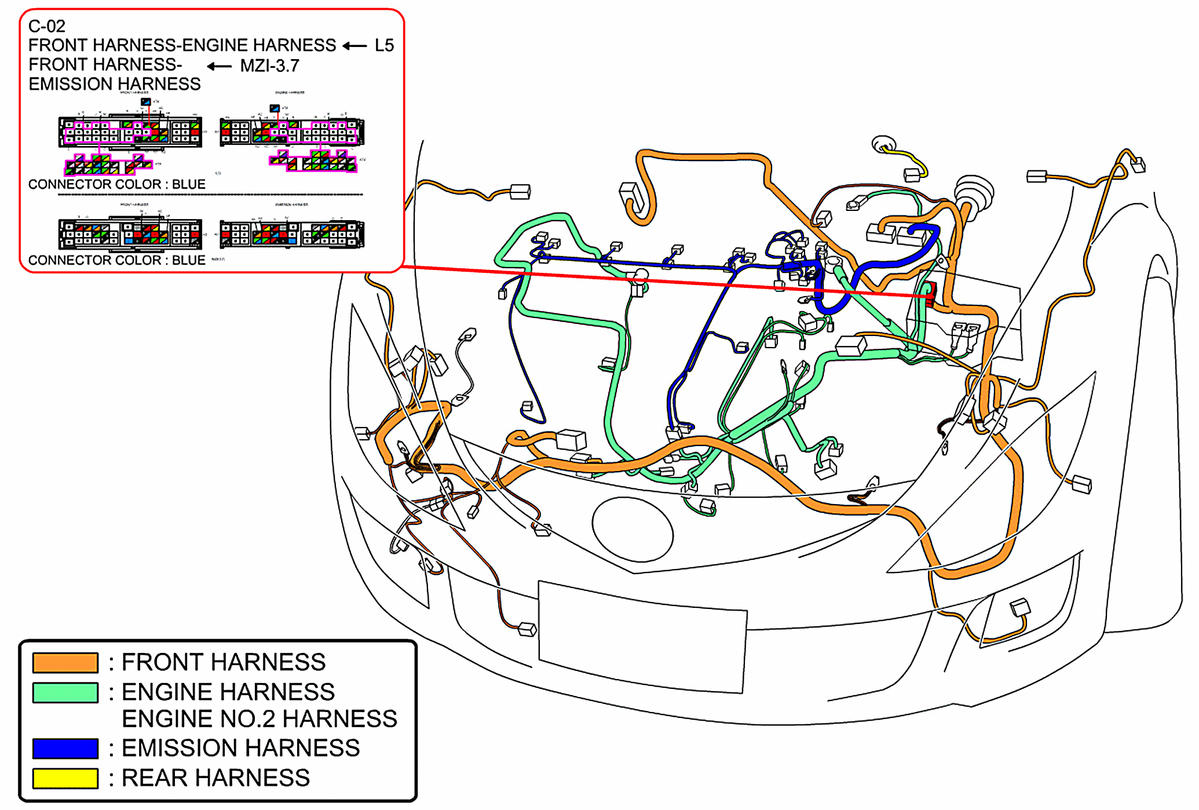

Fig 63: Engine Compartment

G00471017

Courtesy of MAZDA MOTORS CORP.

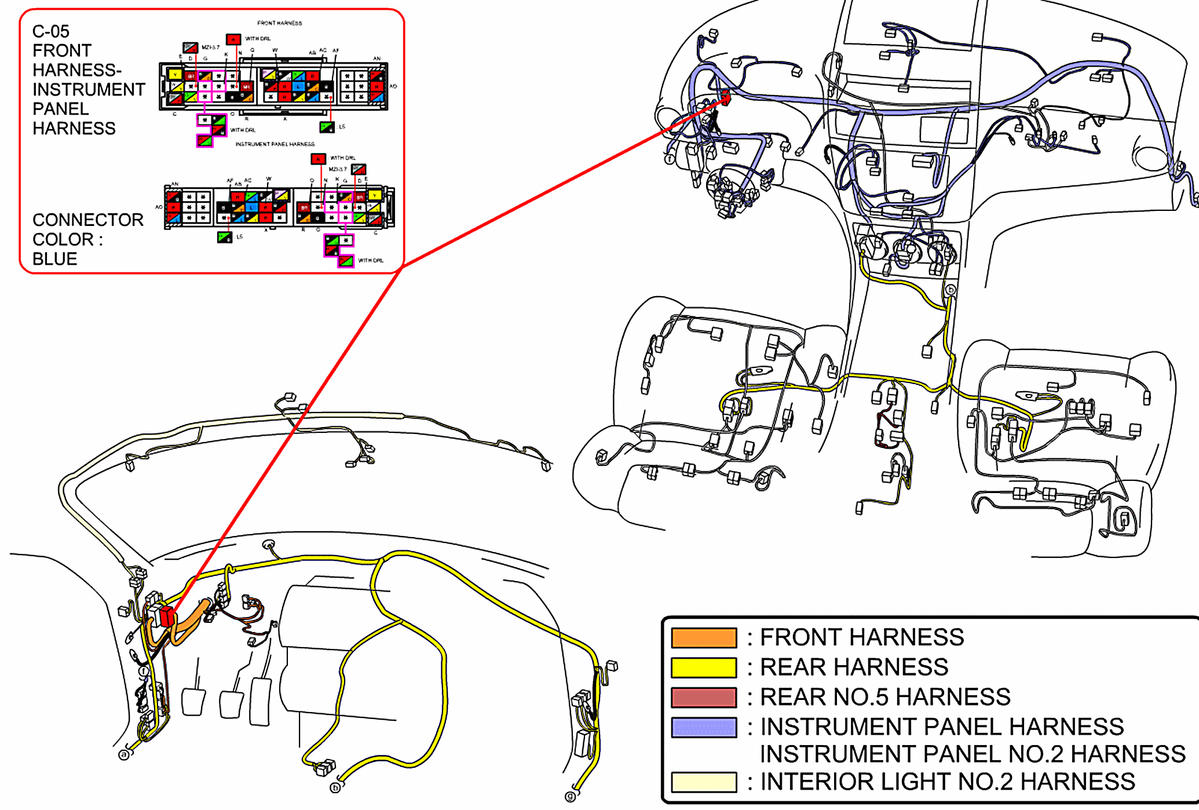

Fig 64: Upper Dash & Lower Dash

G00471018

Courtesy of MAZDA MOTORS CORP.

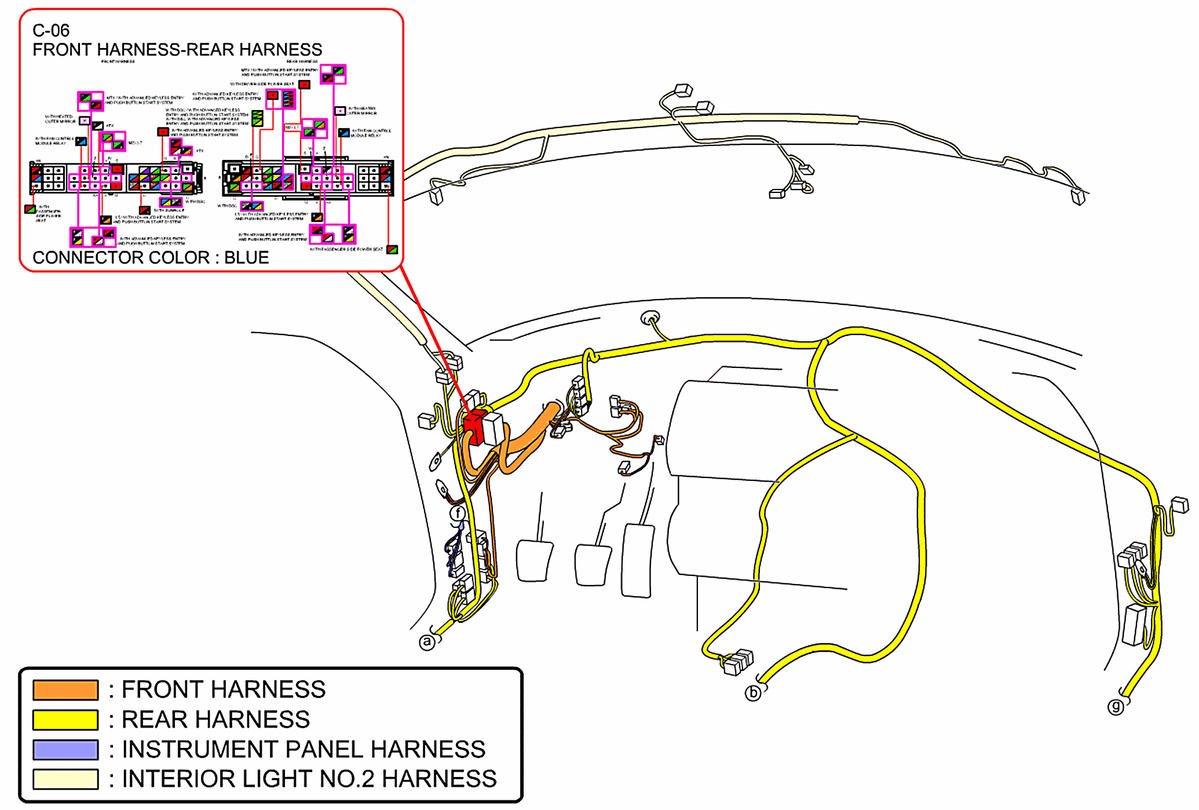

Fig 65: Lower Dash

G00471019

Courtesy of MAZDA MOTORS CORP.

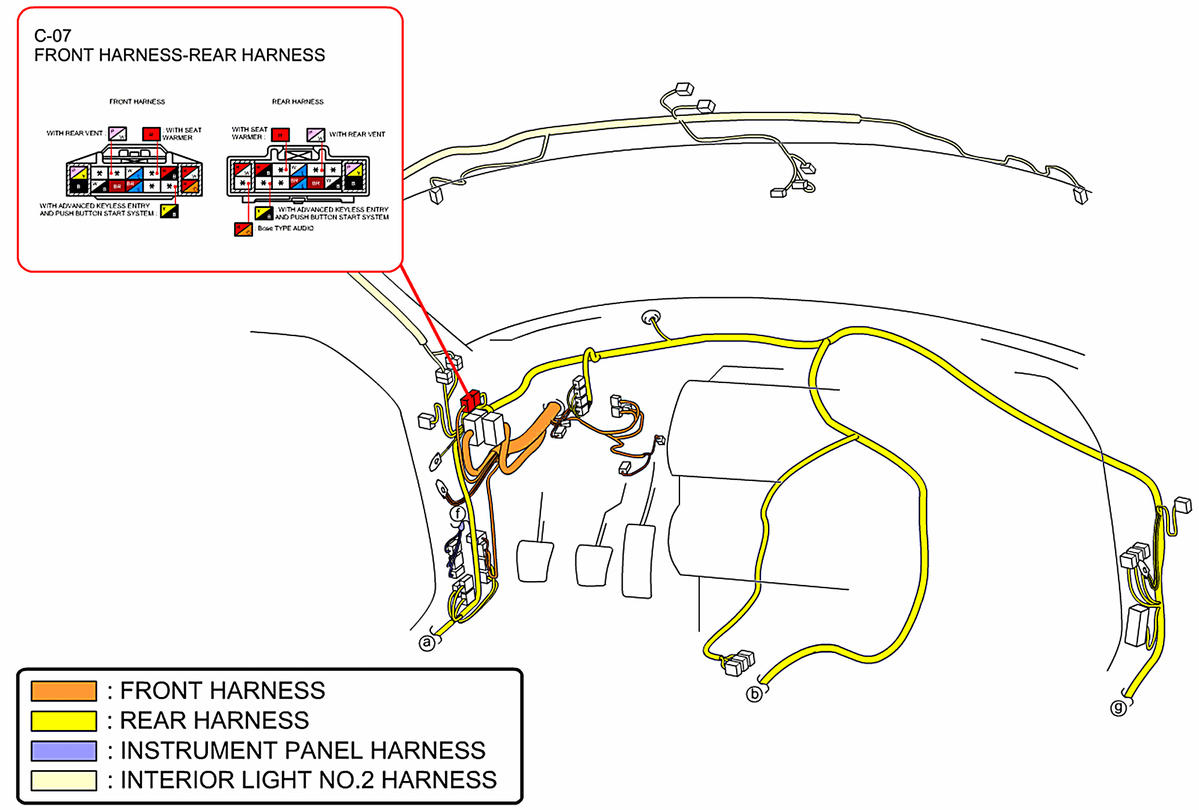

Fig 66: Lower Dash

G00471020

Courtesy of MAZDA MOTORS CORP.

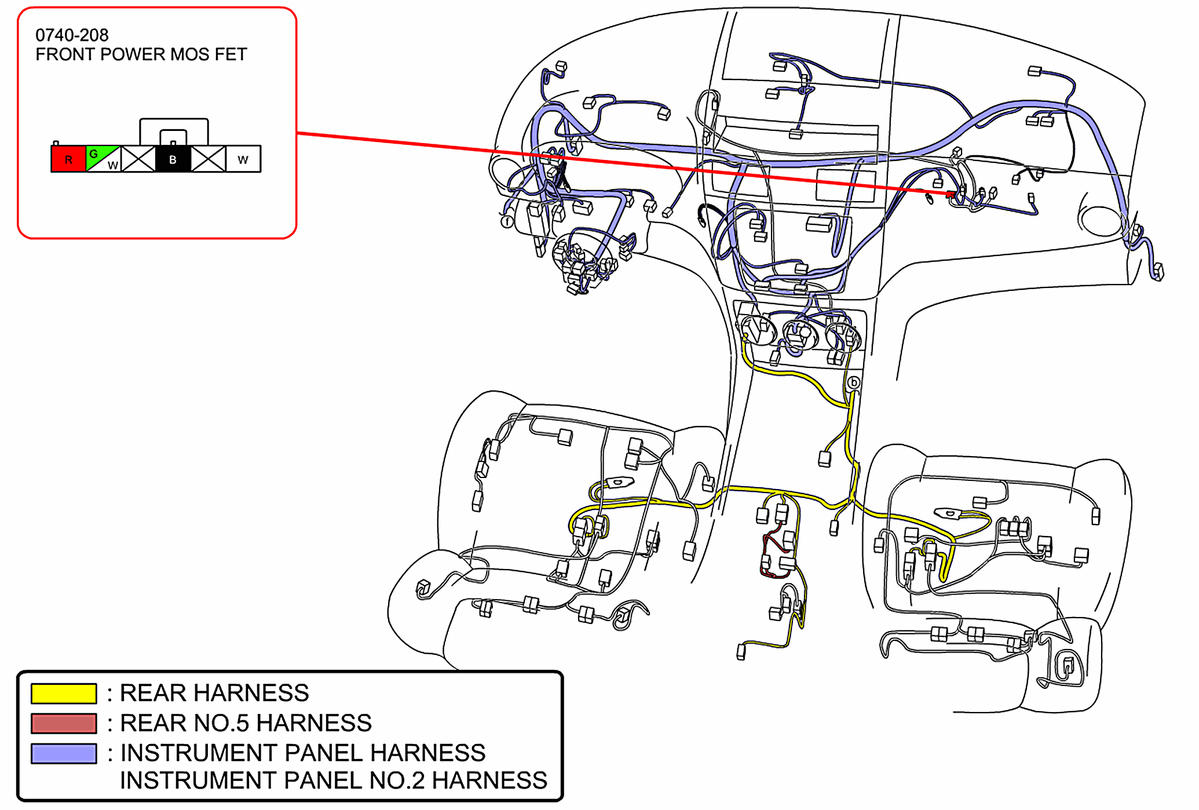

Fig 67: Upper Dash & Front Seats

G00471021

Courtesy of MAZDA MOTORS CORP.

Fig 68: Body Overview

G00471022

Courtesy of MAZDA MOTORS CORP.

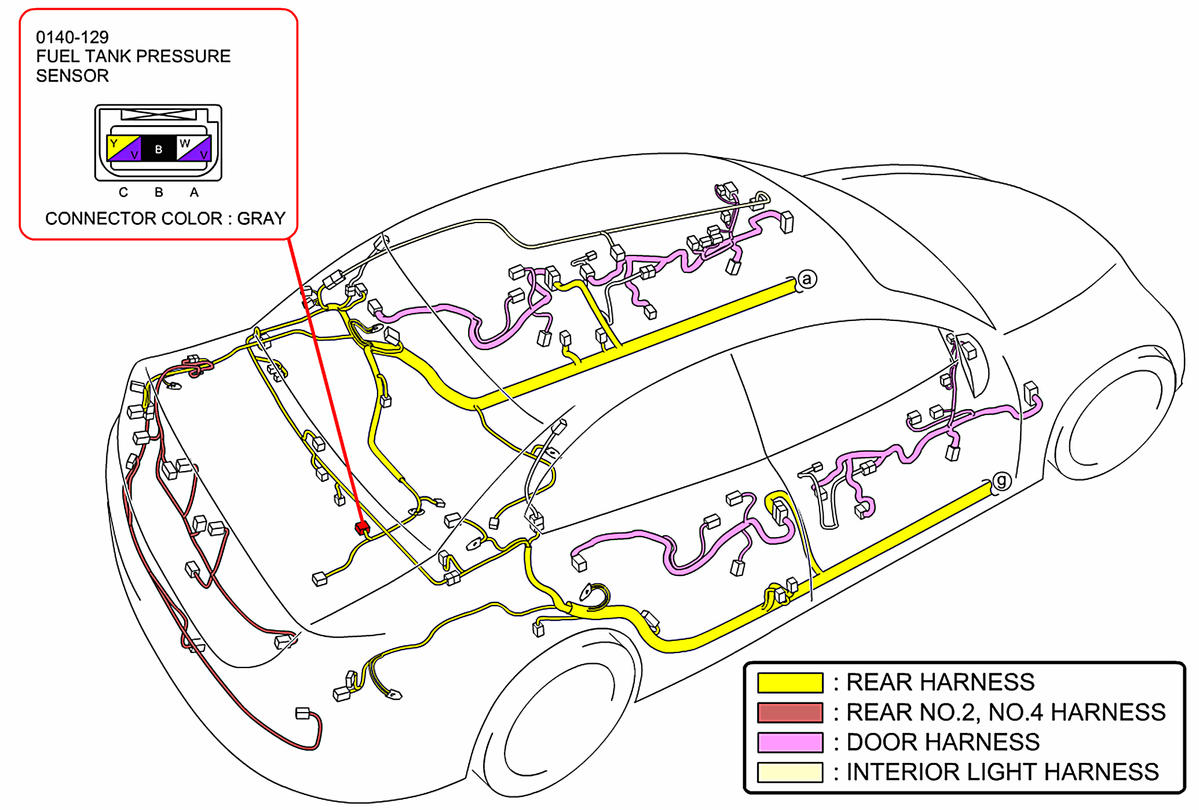

Fig 69: Body Overview

G00471023

Courtesy of MAZDA MOTORS CORP.

Fig 70: Upper Dash & Front Seats

G00471024

Courtesy of MAZDA MOTORS CORP.

Fig 71: Engine Compartment

G00471025

Courtesy of MAZDA MOTORS CORP.

Fig 72: Body Overview

G00471026

Courtesy of MAZDA MOTORS CORP.

Fig 73: Body Overview

G00471027

Courtesy of MAZDA MOTORS CORP.

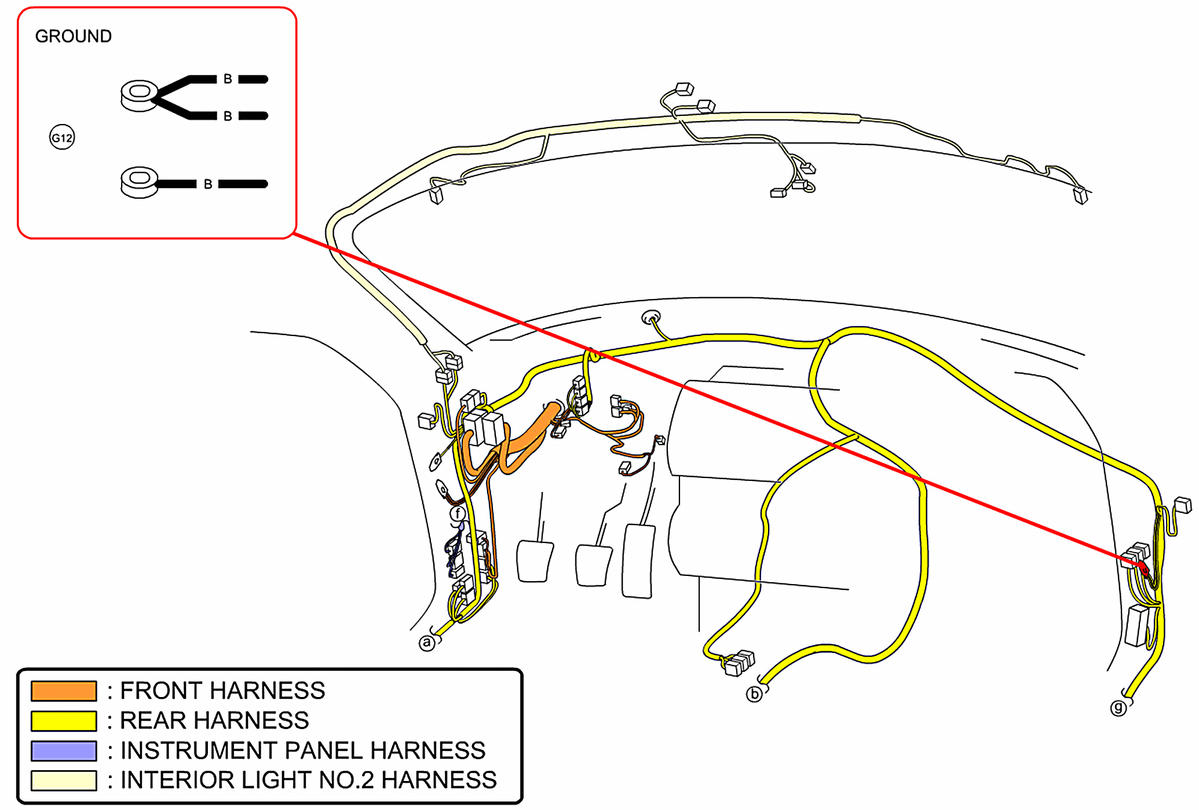

Fig 74: Lower Dash

G00471028

Courtesy of MAZDA MOTORS CORP.

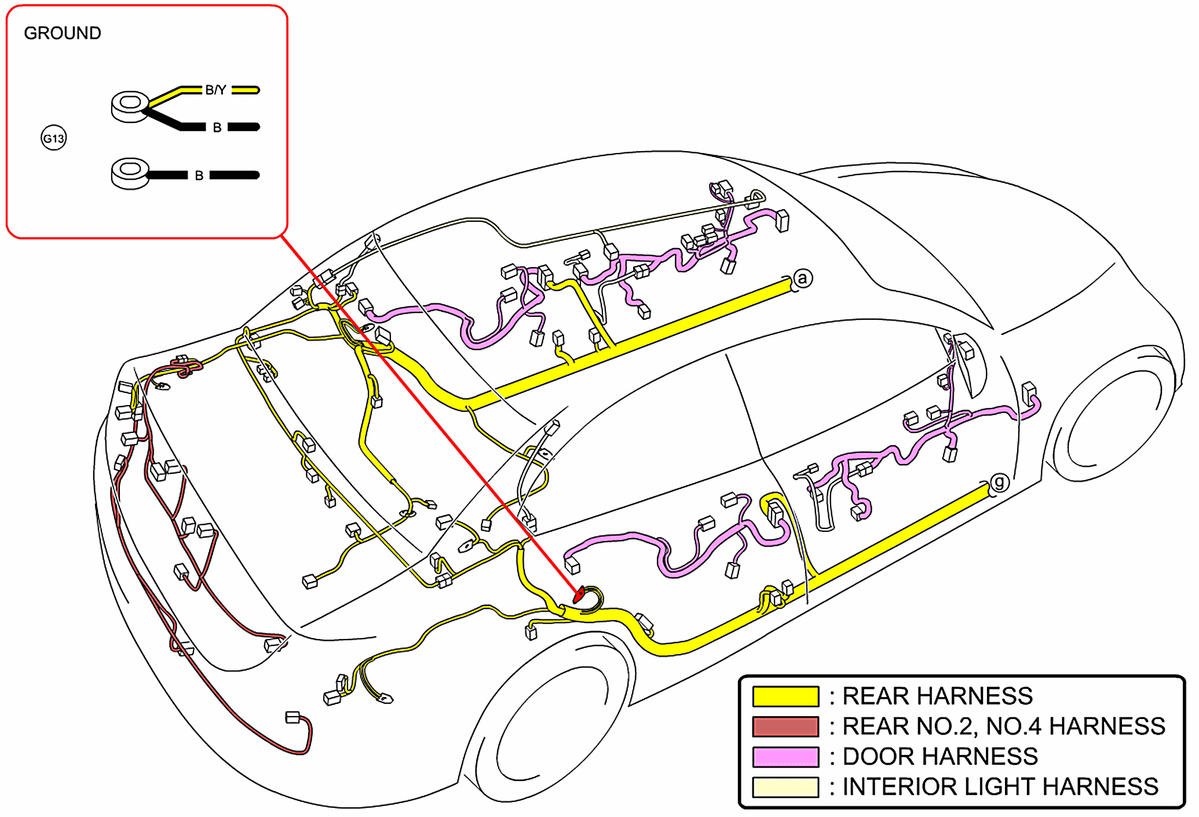

Fig 75: Body Overview

G00471029

Courtesy of MAZDA MOTORS CORP.

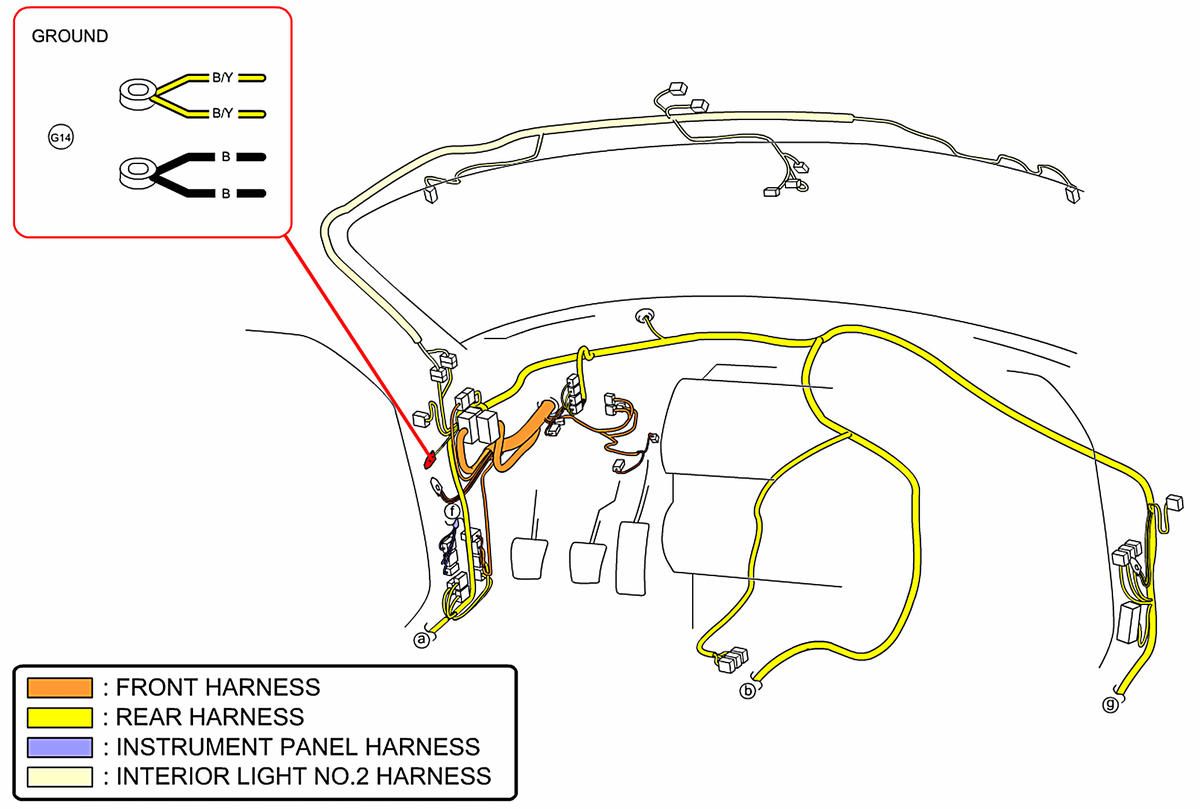

Fig 76: Lower Dash

G00471030

Courtesy of MAZDA MOTORS CORP.

Fig 77: Body Overview

G00471031

Courtesy of MAZDA MOTORS CORP.

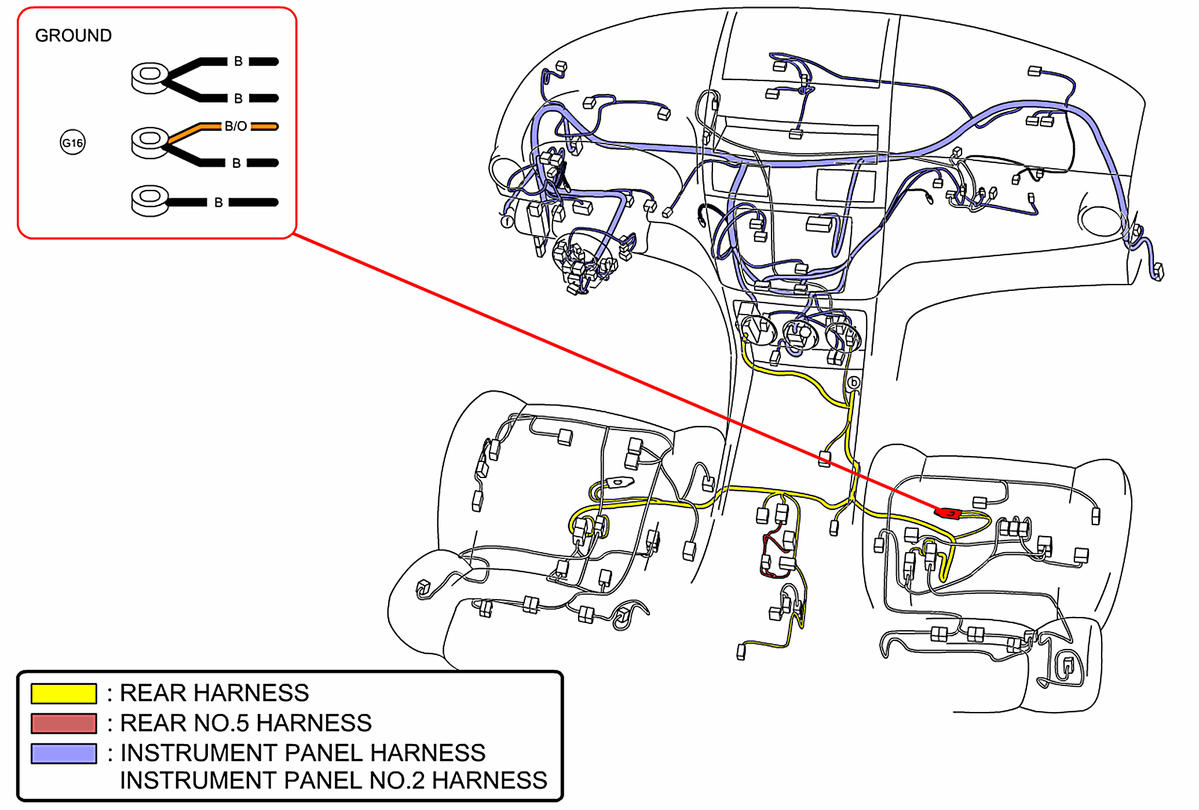

Fig 78: Upper Dash & Front Seats

G00471032

Courtesy of MAZDA MOTORS CORP.

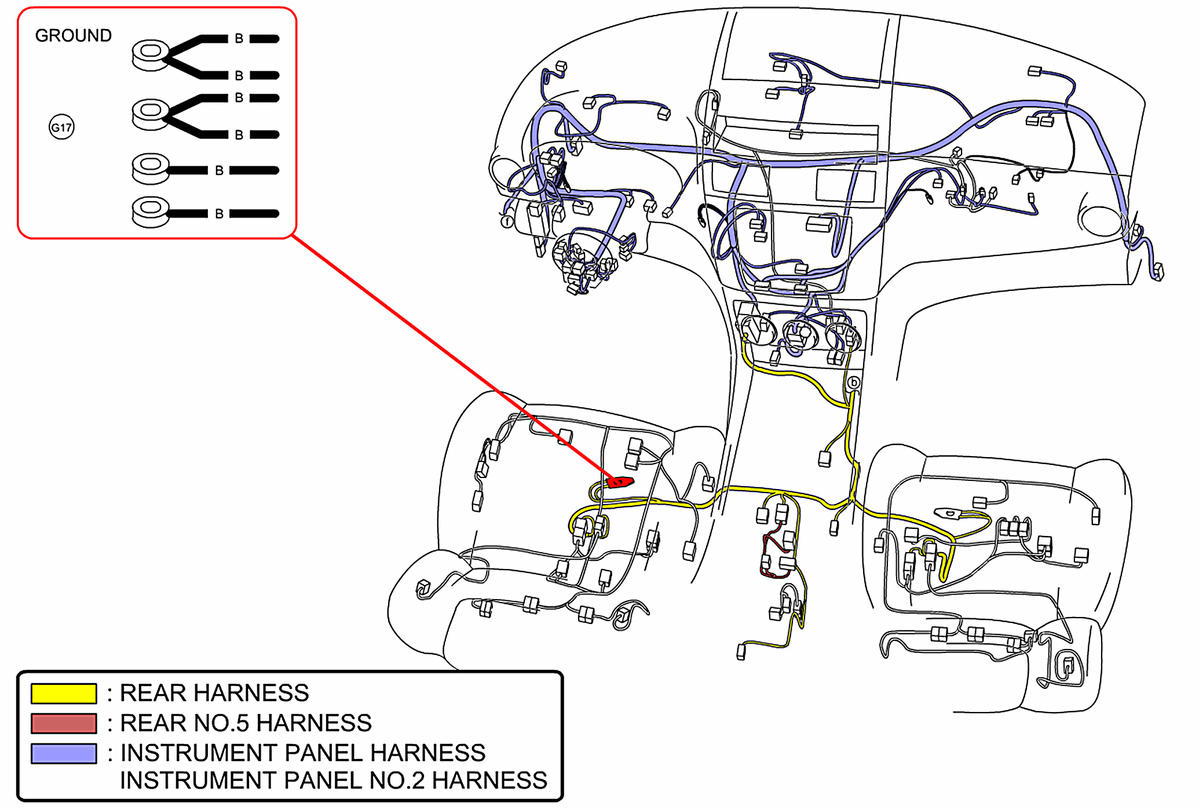

Fig 79: Upper Dash & Front Seats

G00471033

Courtesy of MAZDA MOTORS CORP.

Fig 80: Body Overview

G00471034

Courtesy of MAZDA MOTORS CORP.

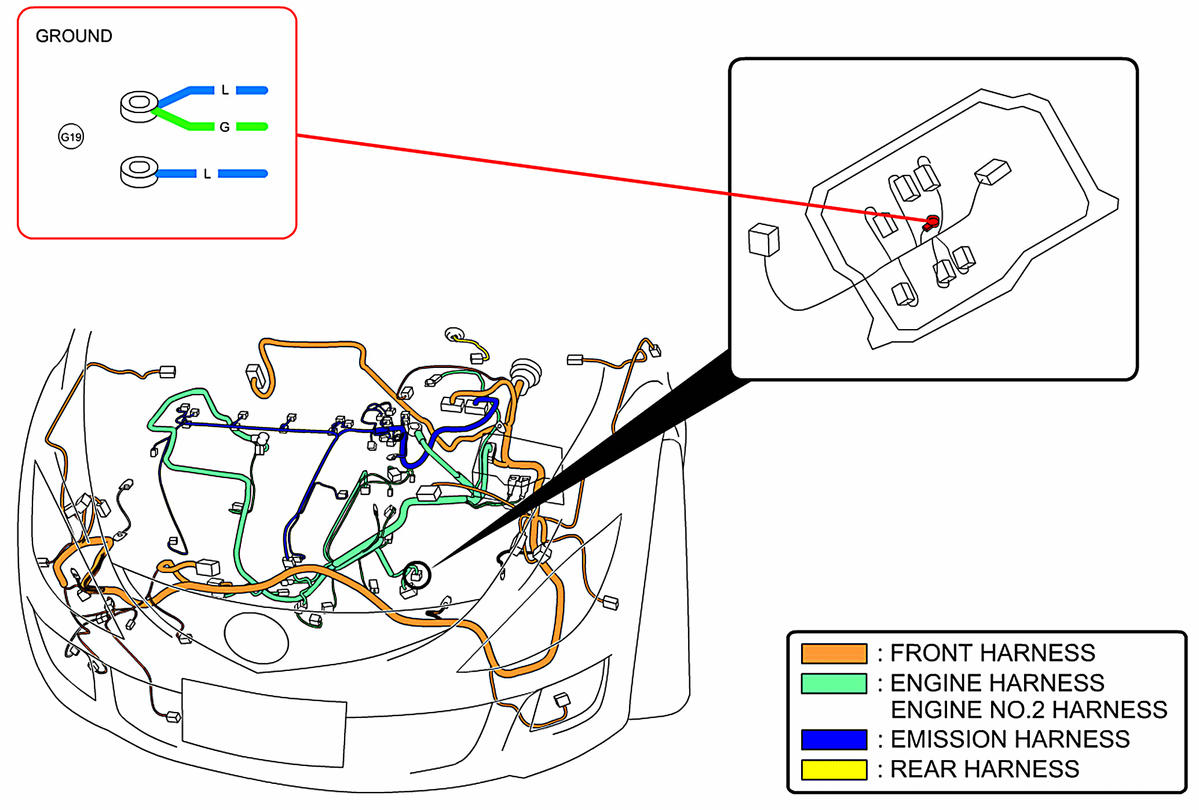

Fig 81: Engine Compartment

G00471035

Courtesy of MAZDA MOTORS CORP.

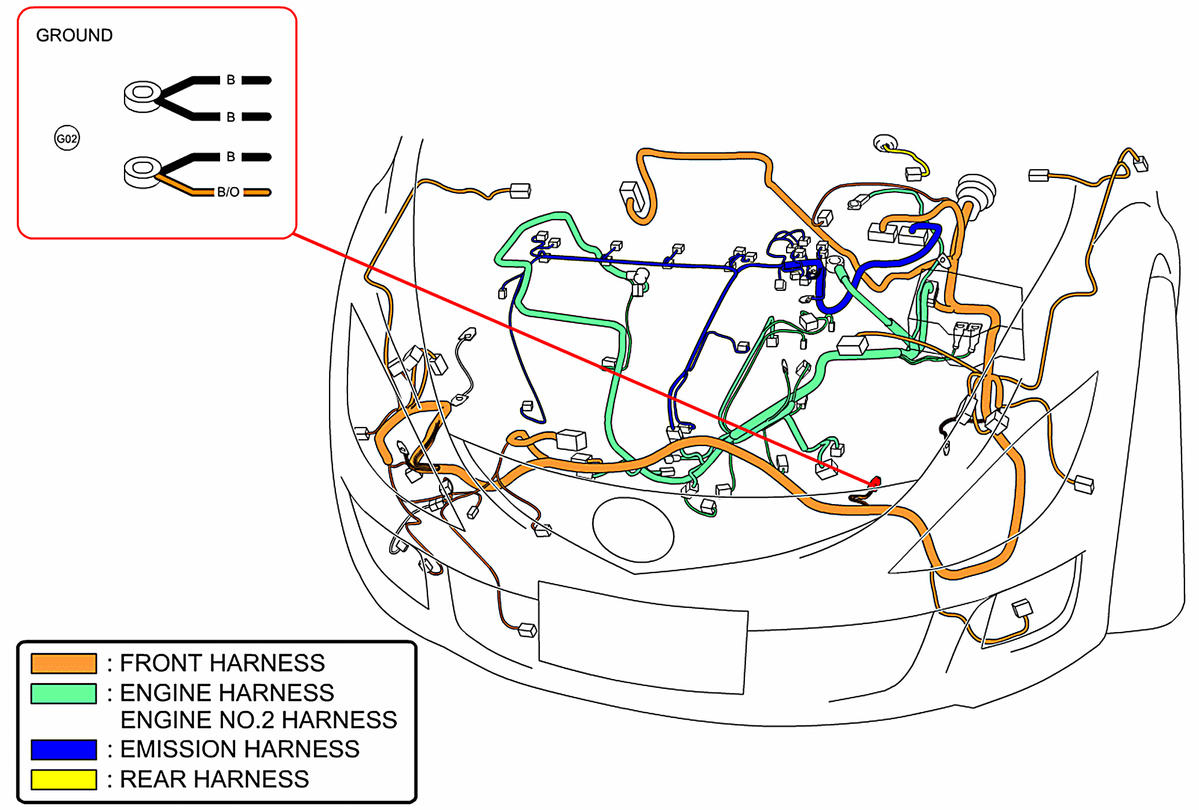

Fig 82: Engine Compartment

G00471036

Courtesy of MAZDA MOTORS CORP.

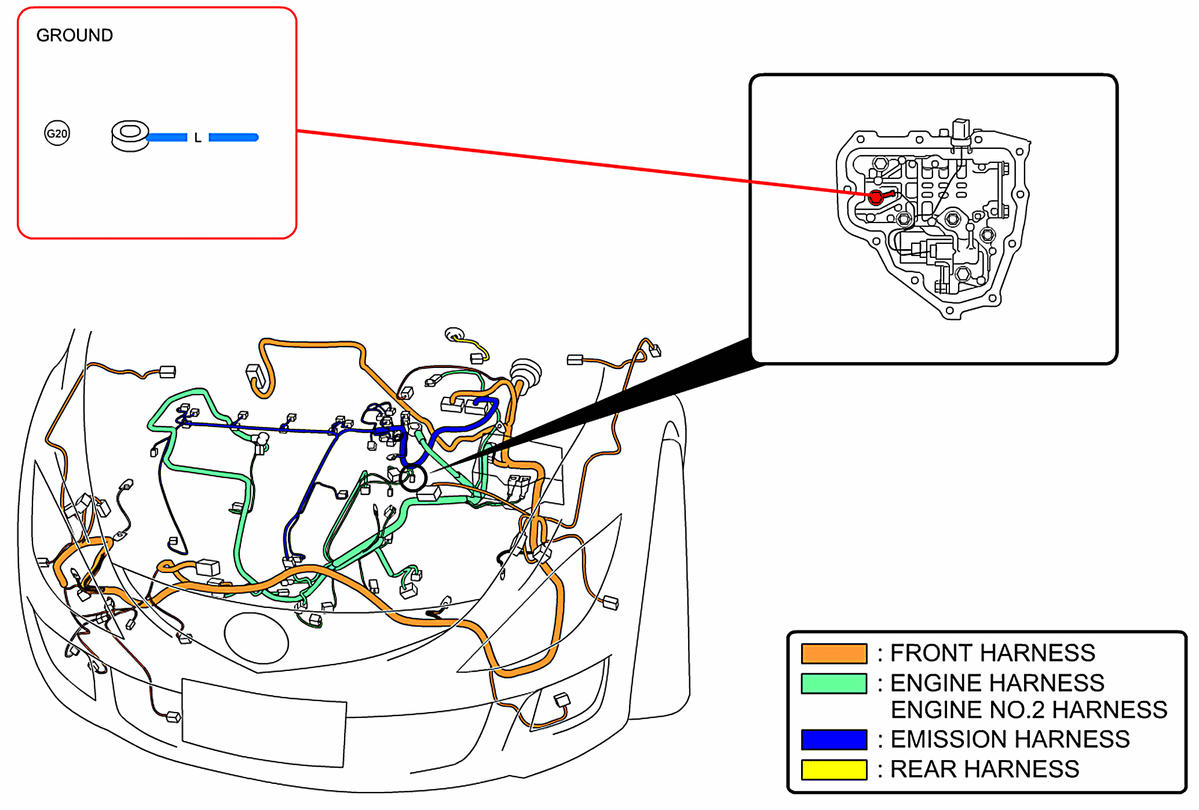

Fig 83: Engine Compartment

G00471037

Courtesy of MAZDA MOTORS CORP.

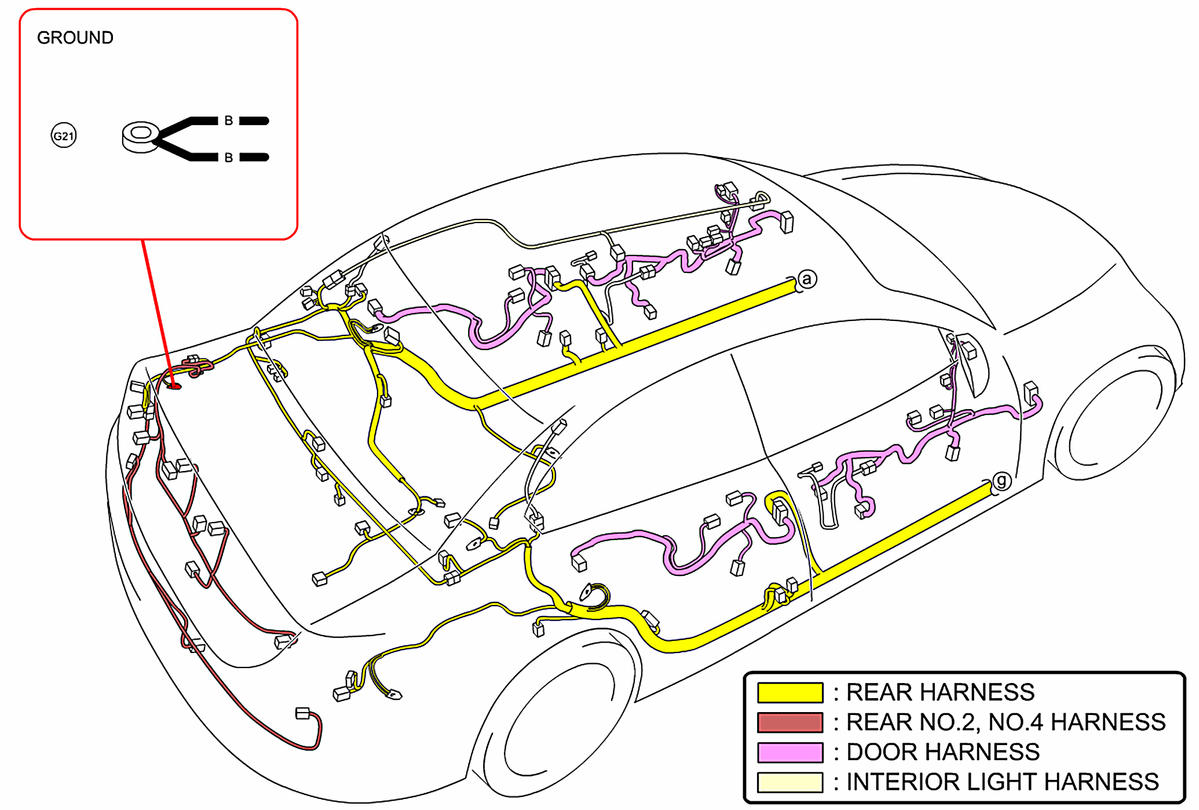

Fig 84: Body Overview

G00471038

Courtesy of MAZDA MOTORS CORP.

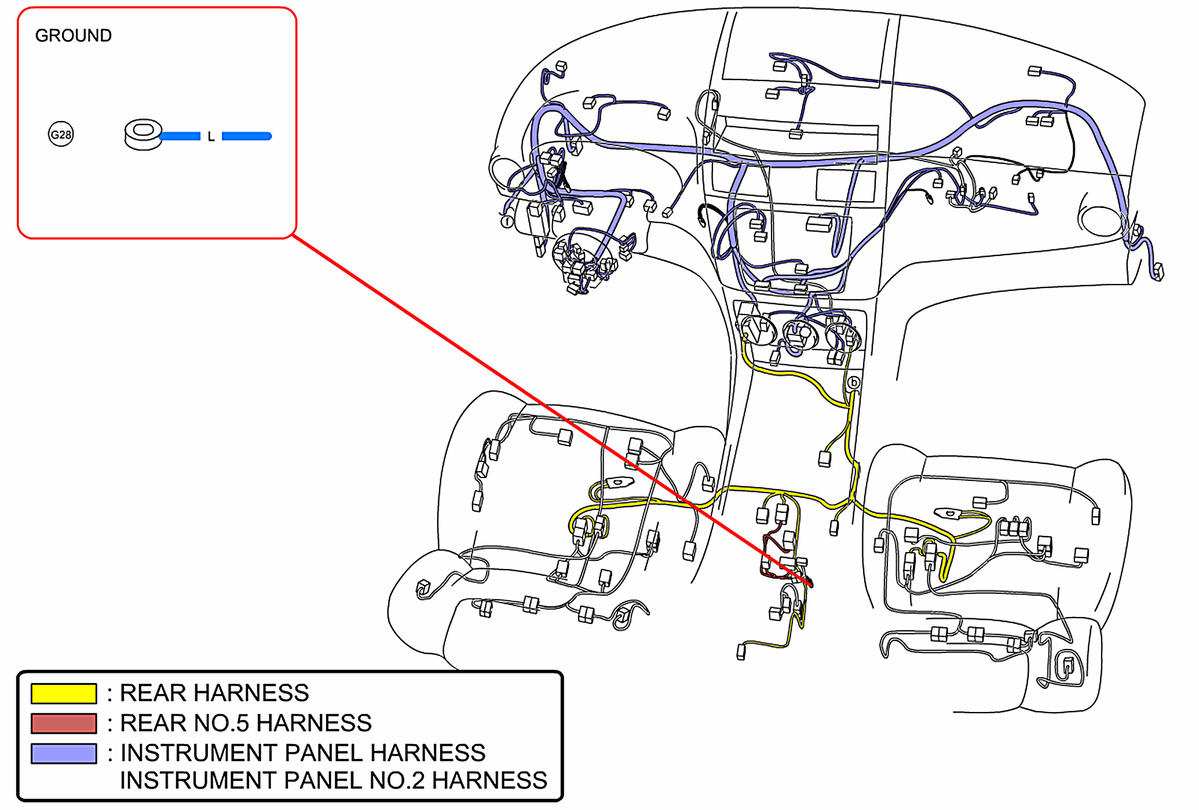

Fig 85: Upper Dash & Front Seats

G00471039

Courtesy of MAZDA MOTORS CORP.

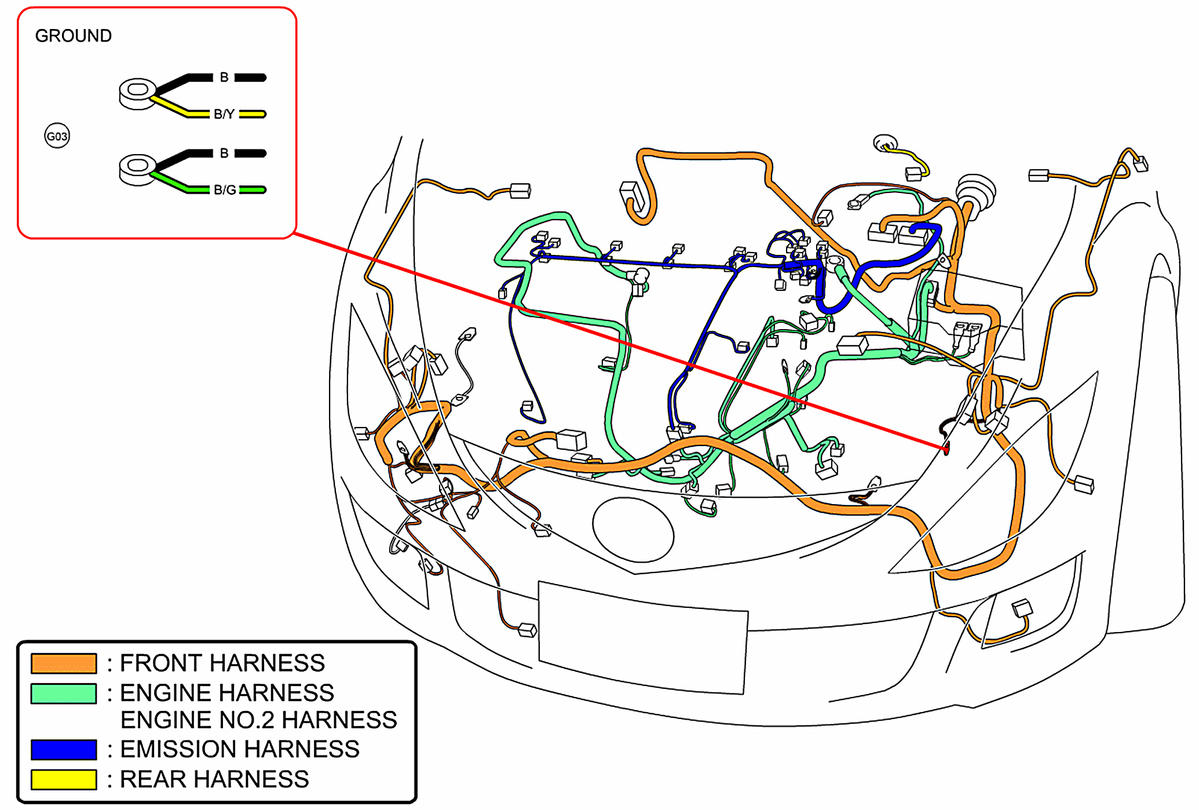

Fig 86: Engine Compartment

G00471040

Courtesy of MAZDA MOTORS CORP.

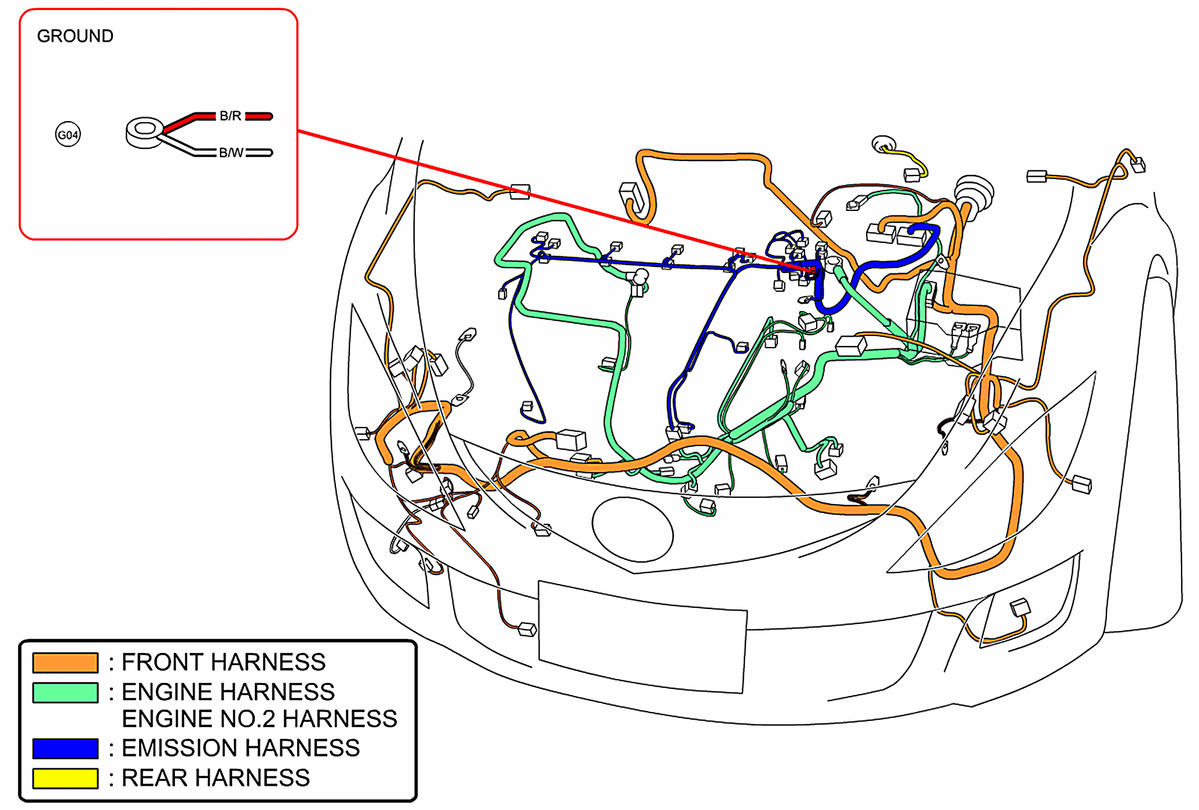

Fig 87: Engine Compartment

G00471041

Courtesy of MAZDA MOTORS CORP.

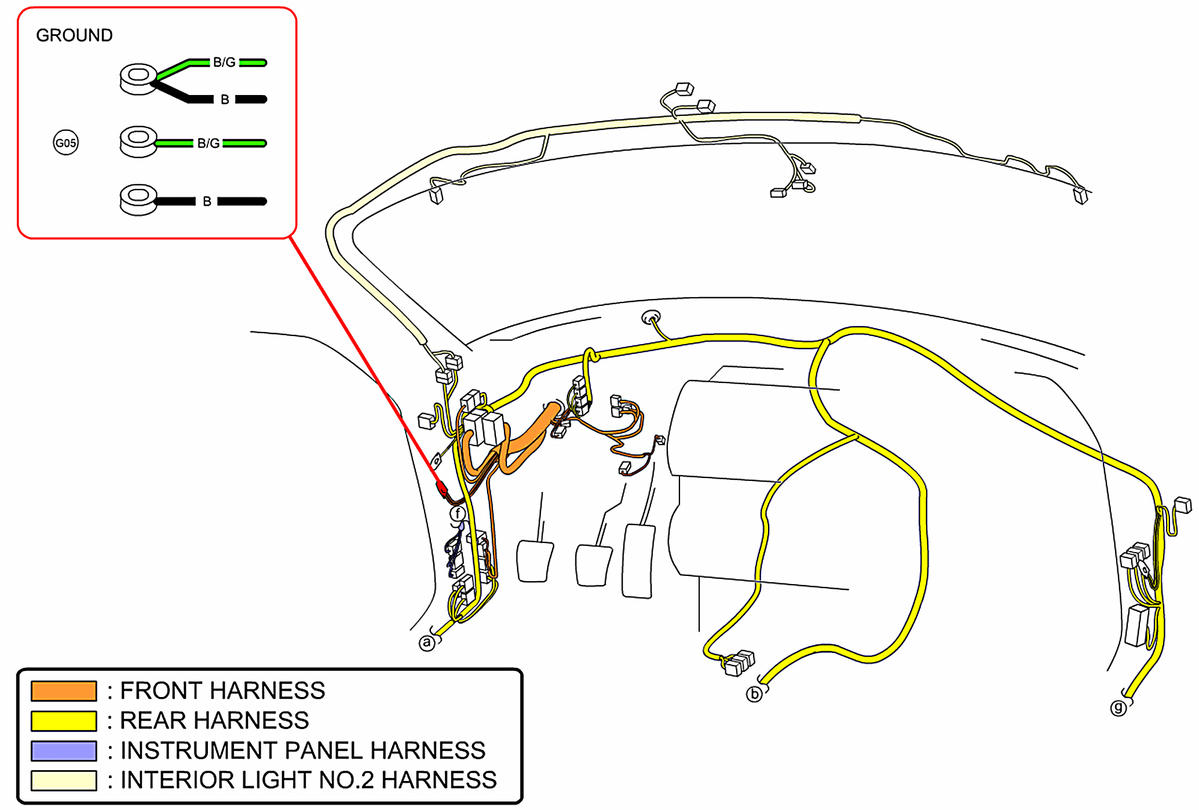

Fig 88: Lower Dash

G00471042

Courtesy of MAZDA MOTORS CORP.

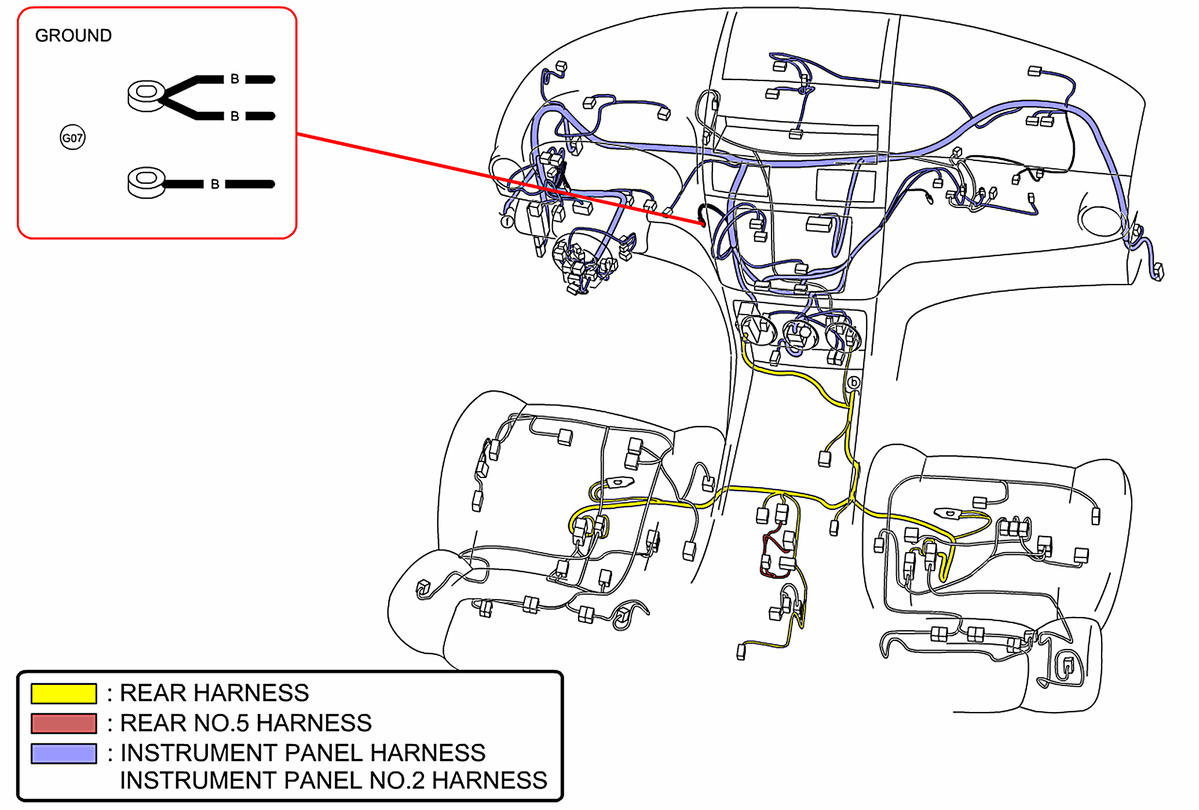

Fig 89: Upper Dash & Front Seats

G00471043

Courtesy of MAZDA MOTORS CORP.

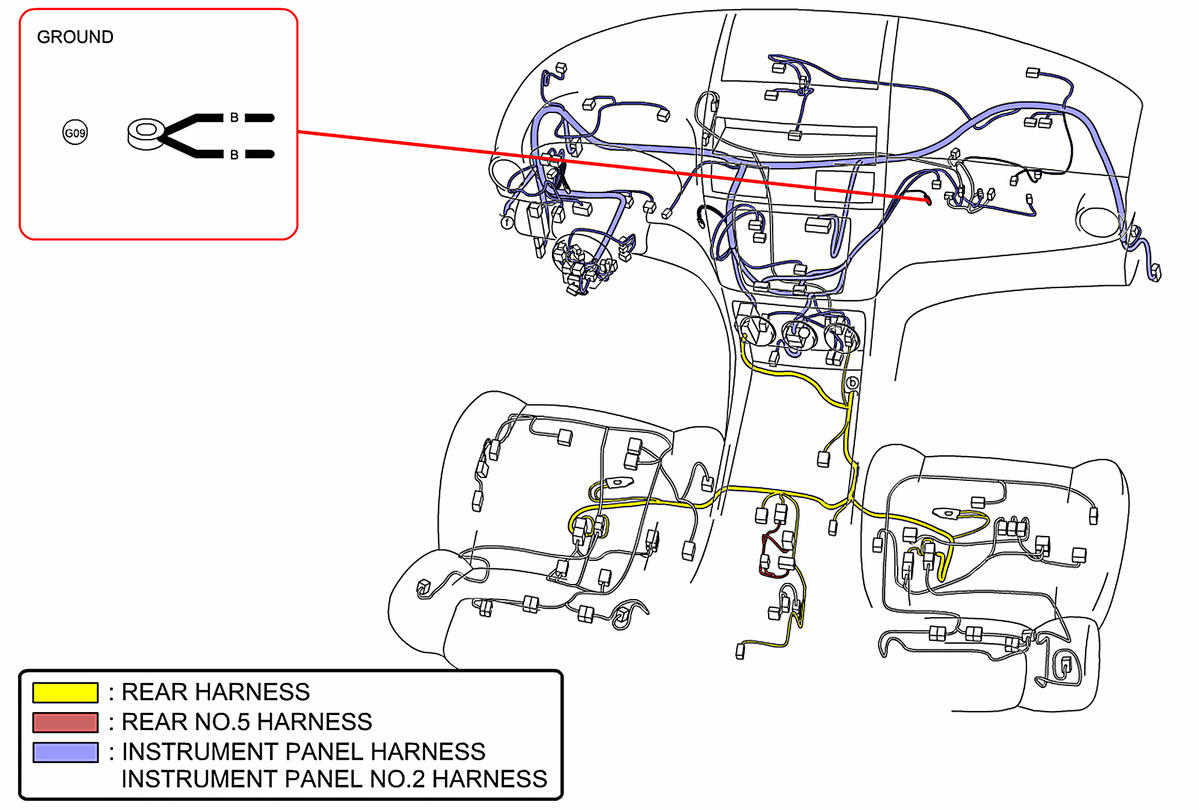

Fig 90: Upper Dash & Front Seats

G00471044

Courtesy of MAZDA MOTORS CORP.

Fig 91: Upper Dash & Front Seats

G00471045

Courtesy of MAZDA MOTORS CORP.

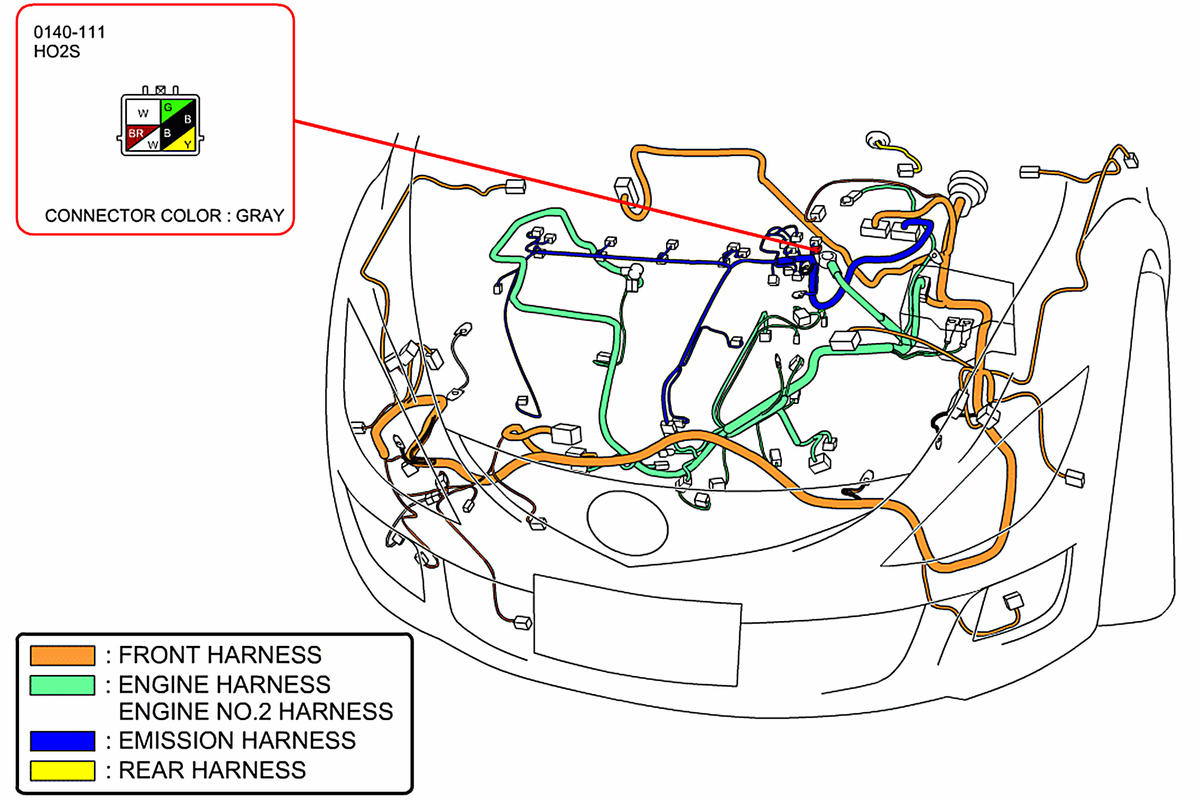

Fig 92: Engine Compartment

G00471046

Courtesy of MAZDA MOTORS CORP.

Fig 93: Engine Compartment

G00471047

Courtesy of MAZDA MOTORS CORP.

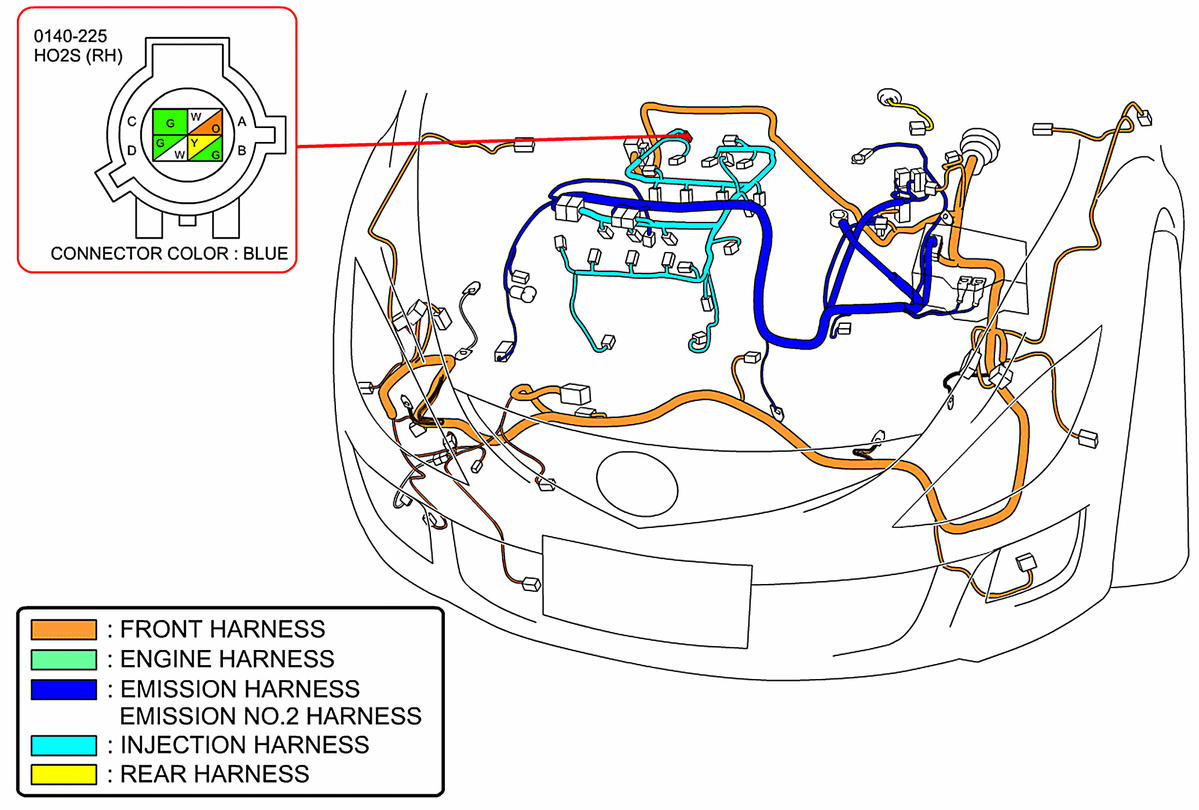

Fig 94: Engine Compartment

G00471048

Courtesy of MAZDA MOTORS CORP.

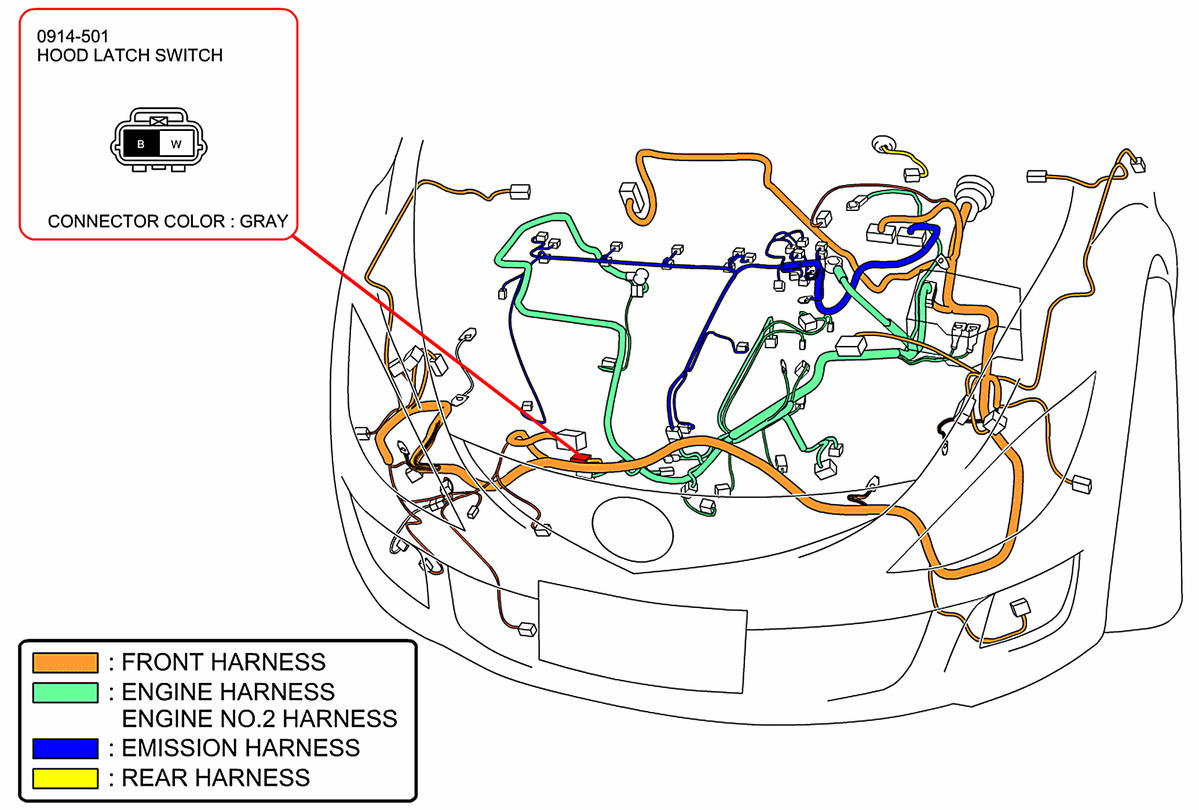

Fig 95: Engine Compartment

G00471049

Courtesy of MAZDA MOTORS CORP.

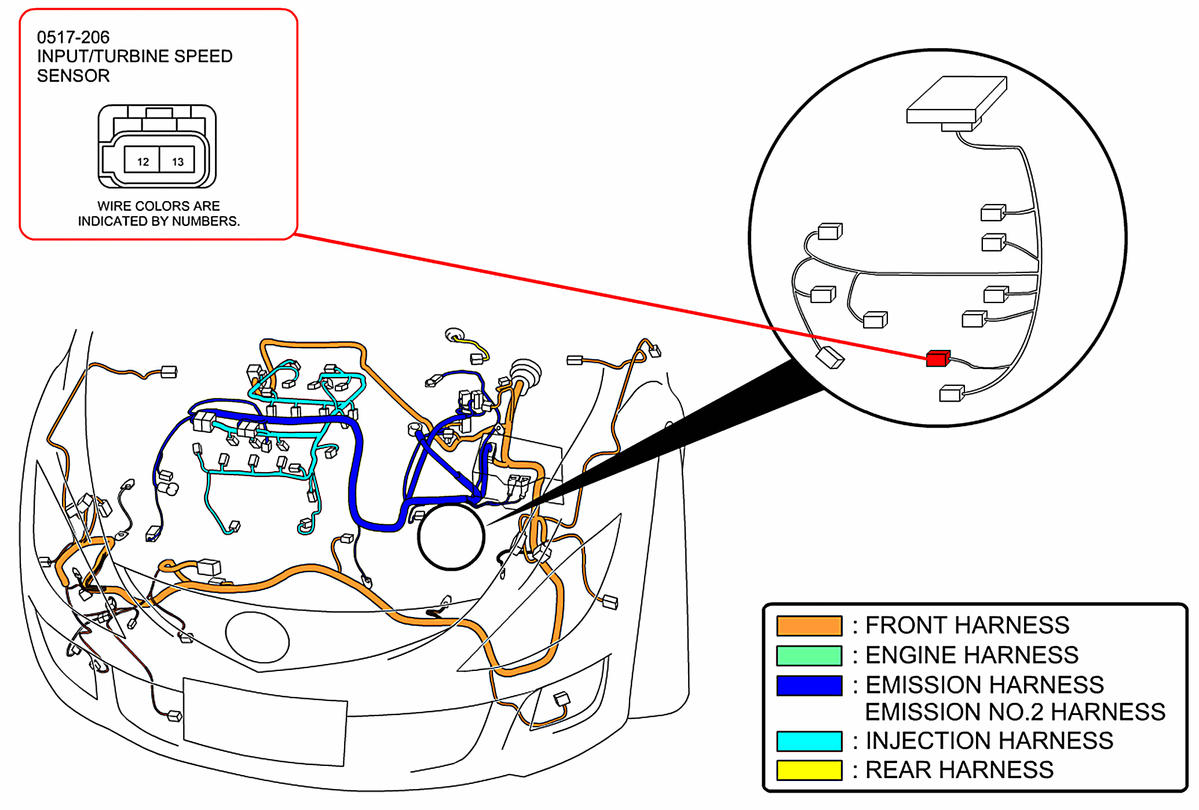

Fig 96: Engine Compartment (2.5L)

G00471050

Courtesy of MAZDA MOTORS CORP.

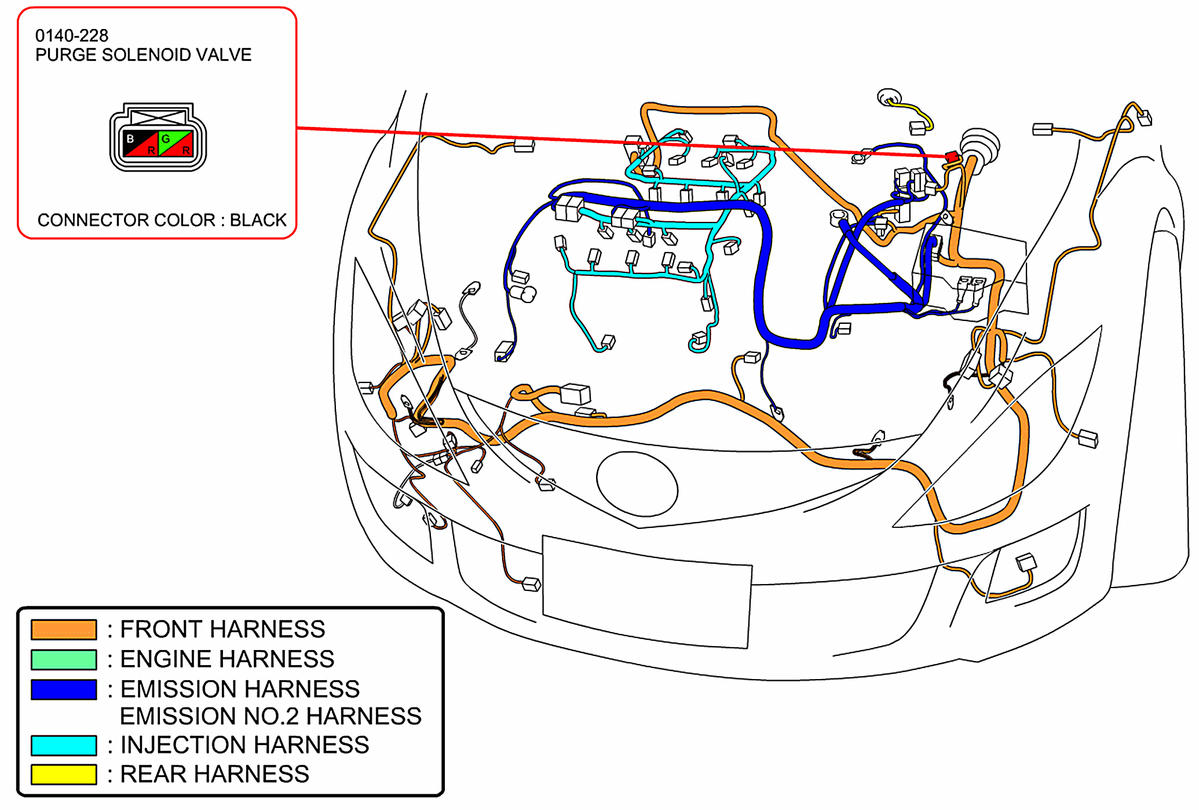

Fig 97: Engine Compartment (3.7L)

G00471051

Courtesy of MAZDA MOTORS CORP.

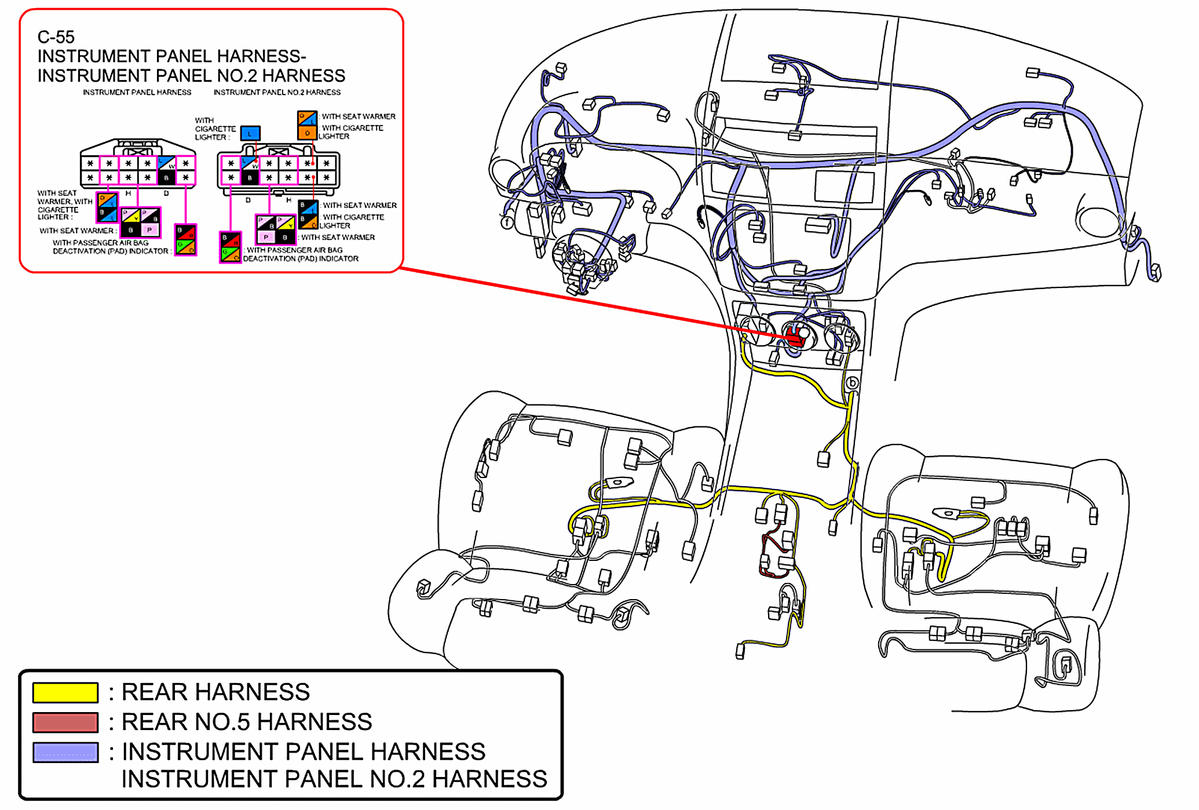

Fig 98: Upper Dash

G00471052

Courtesy of MAZDA MOTORS CORP.

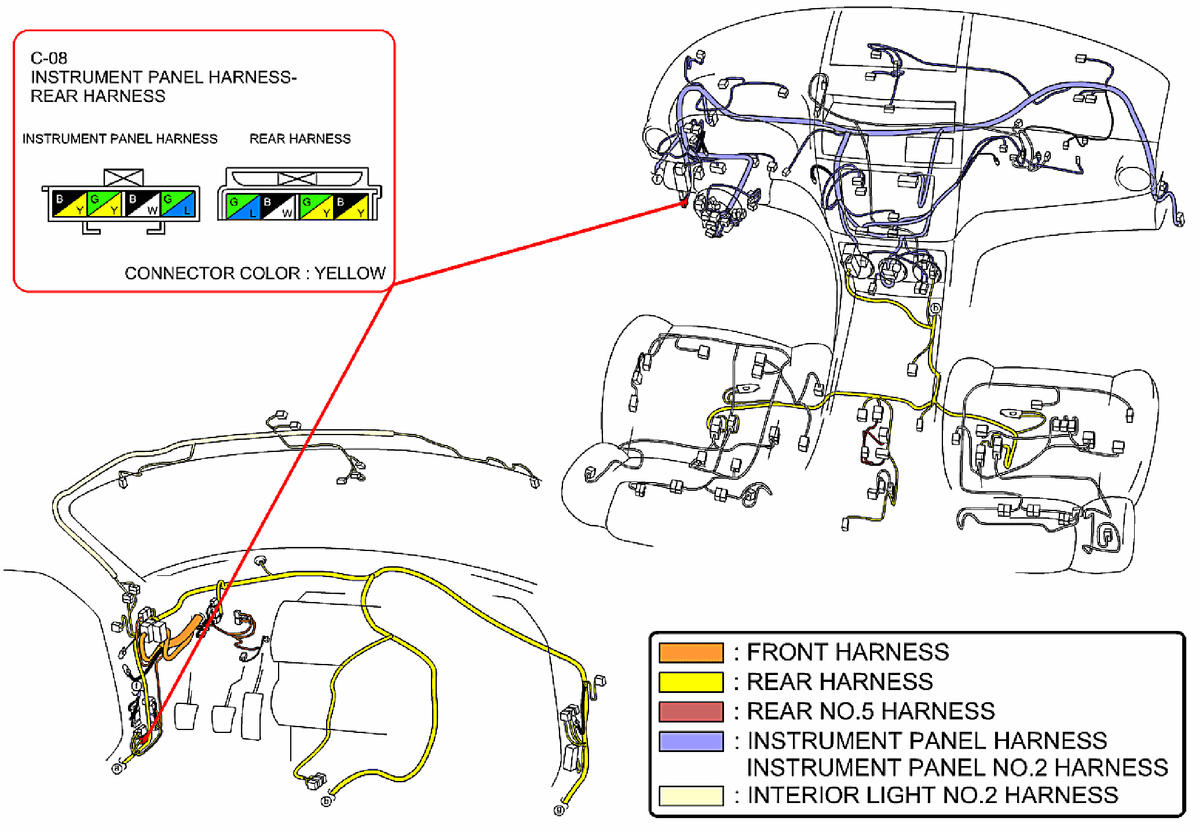

Fig 99: Upper & Lower Dash

G00471053

Courtesy of MAZDA MOTORS CORP.

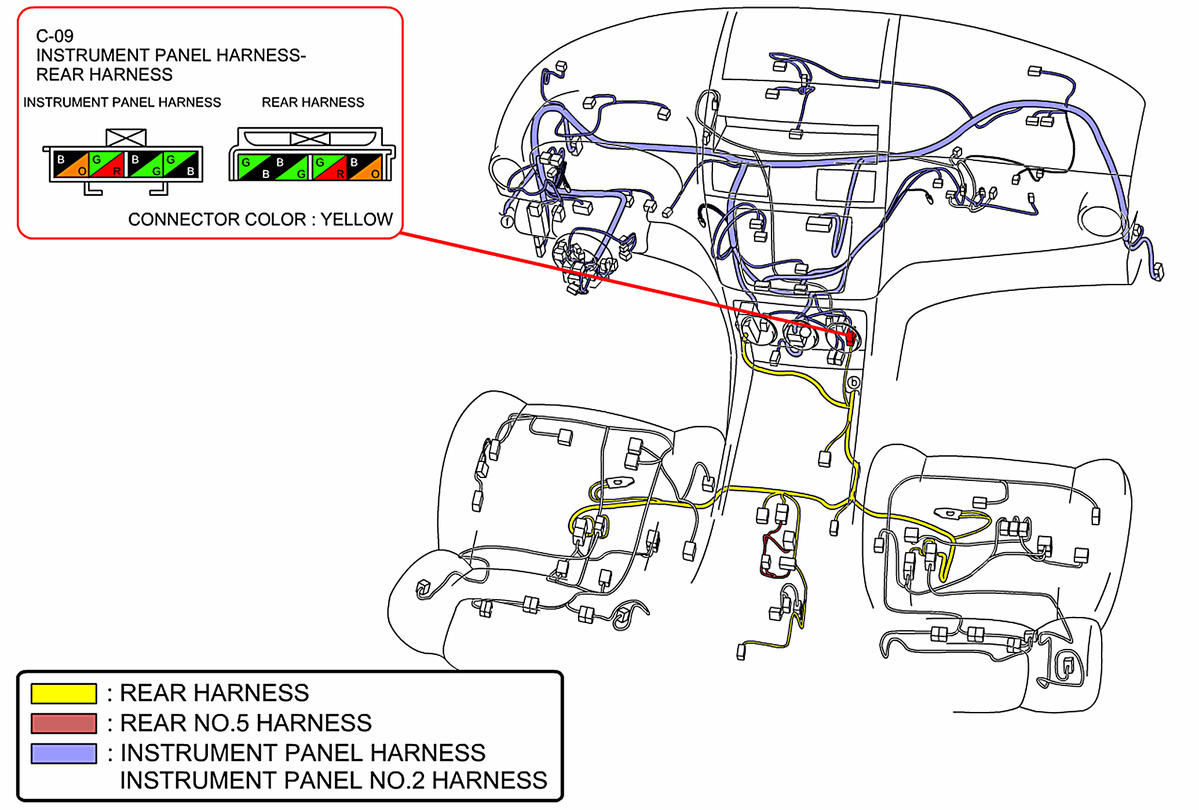

Fig 100: Upper Dash

G00471054

Courtesy of MAZDA MOTORS CORP.

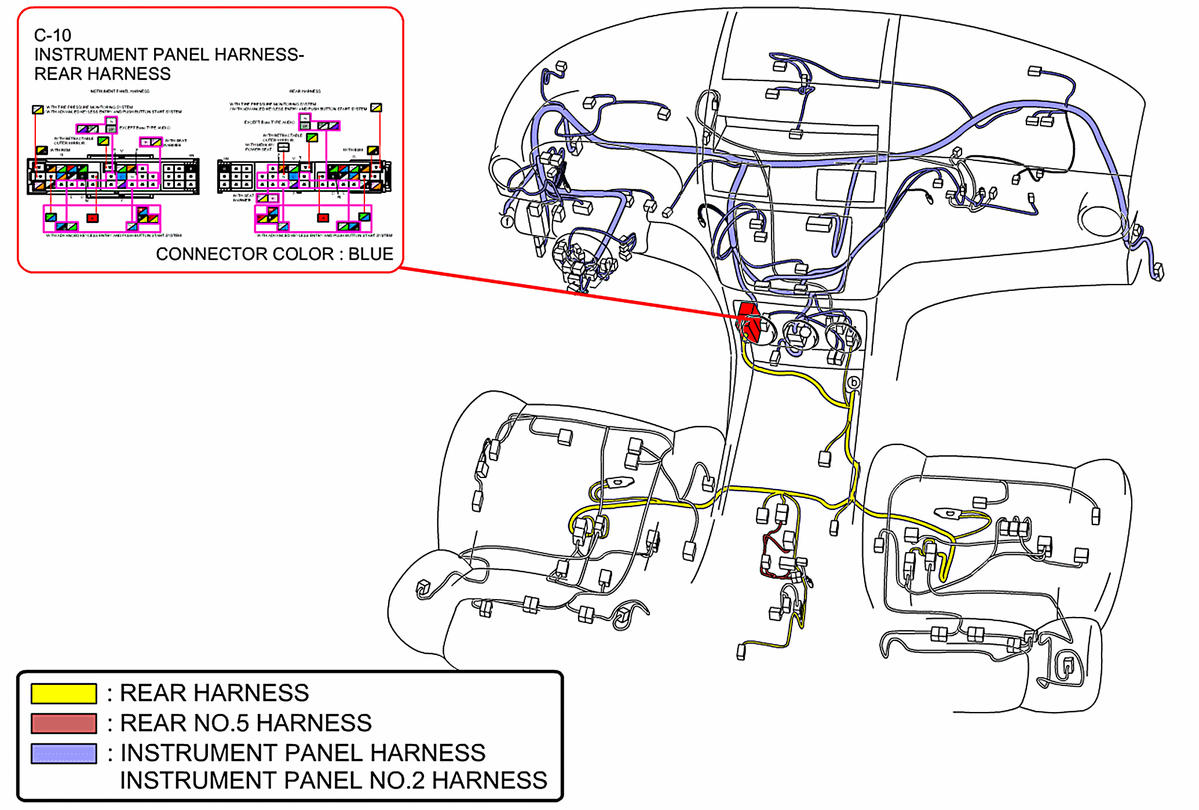

Fig 101: Upper Dash

G00471055

Courtesy of MAZDA MOTORS CORP.

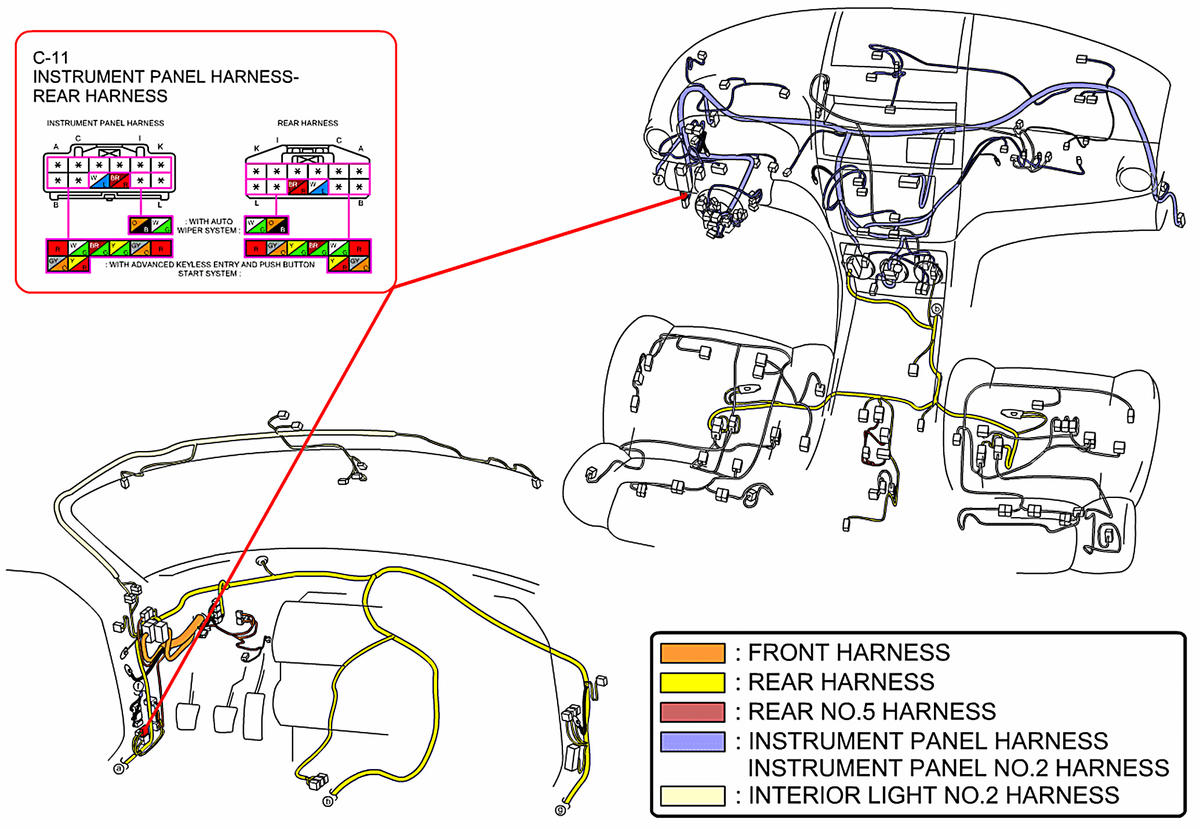

Fig 102: Upper & Lower Dash

G00471056

Courtesy of MAZDA MOTORS CORP.

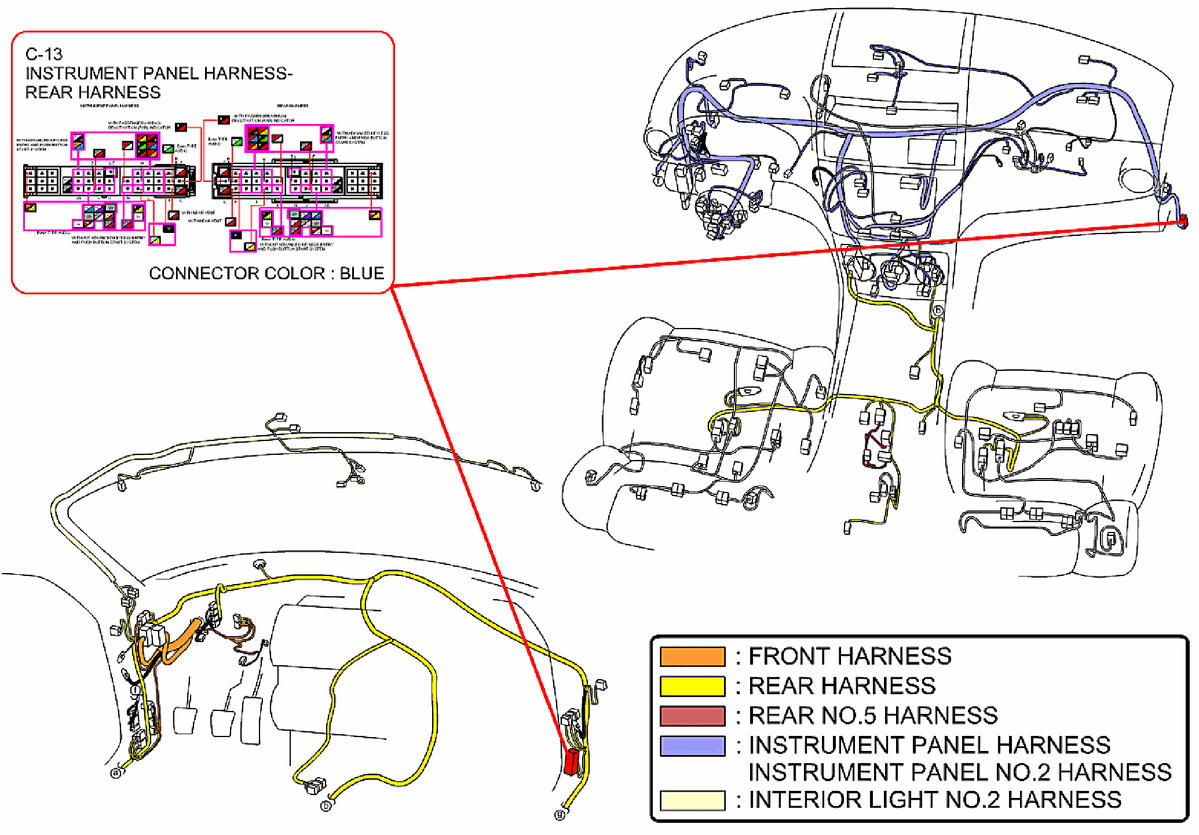

Fig 103: Upper & Lower Dash

G00471057

Courtesy of MAZDA MOTORS CORP.

Fig 104: Engine Compartment

G00471058

Courtesy of MAZDA MOTORS CORP.

Fig 105: Upper Dash & Front Seats

G00471059

Courtesy of MAZDA MOTORS CORP.

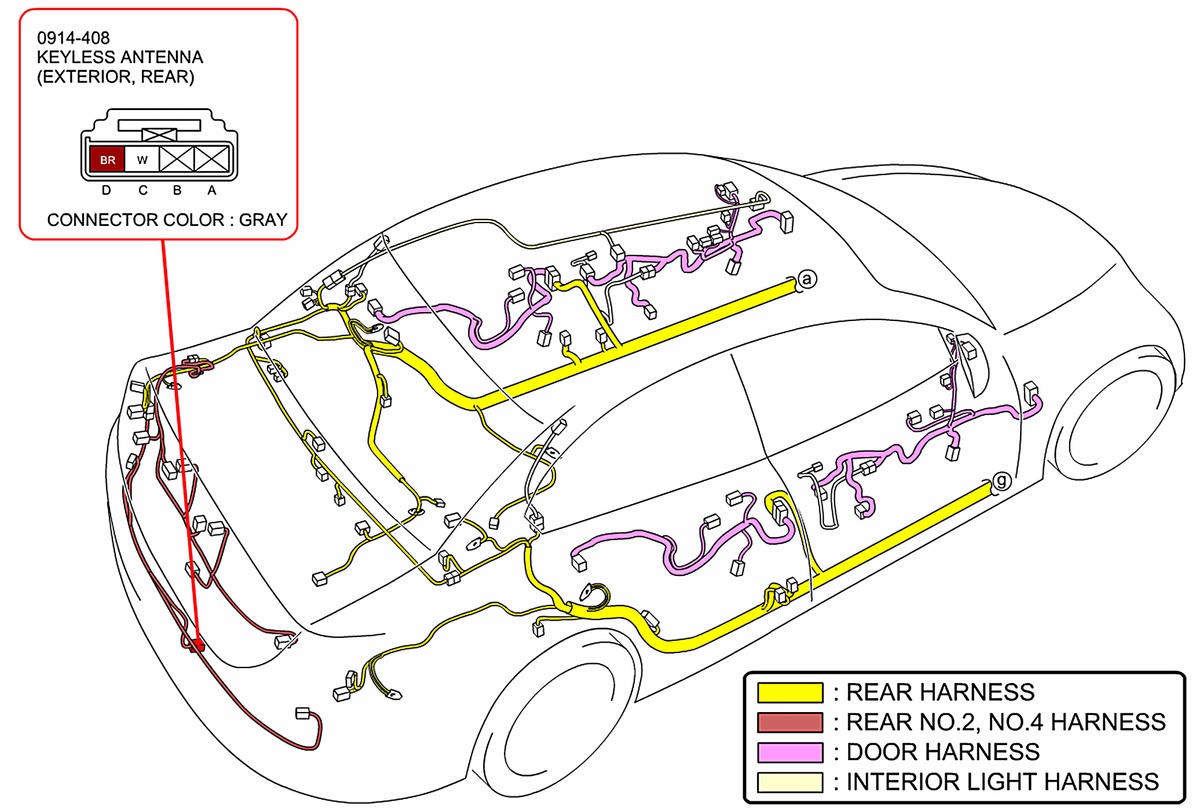

Fig 106: Body Overview

G00471060

Courtesy of MAZDA MOTORS CORP.

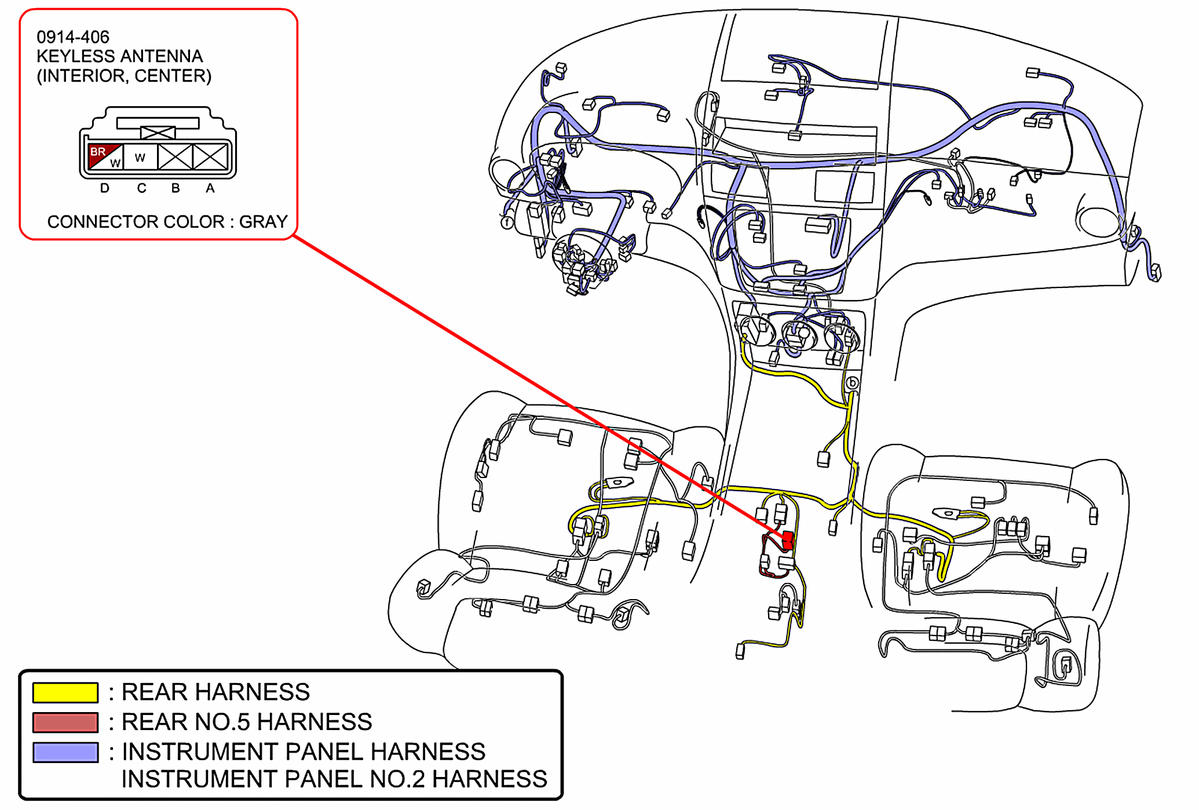

Fig 107: Upper Dash & Front Seats

G00471061

Courtesy of MAZDA MOTORS CORP.

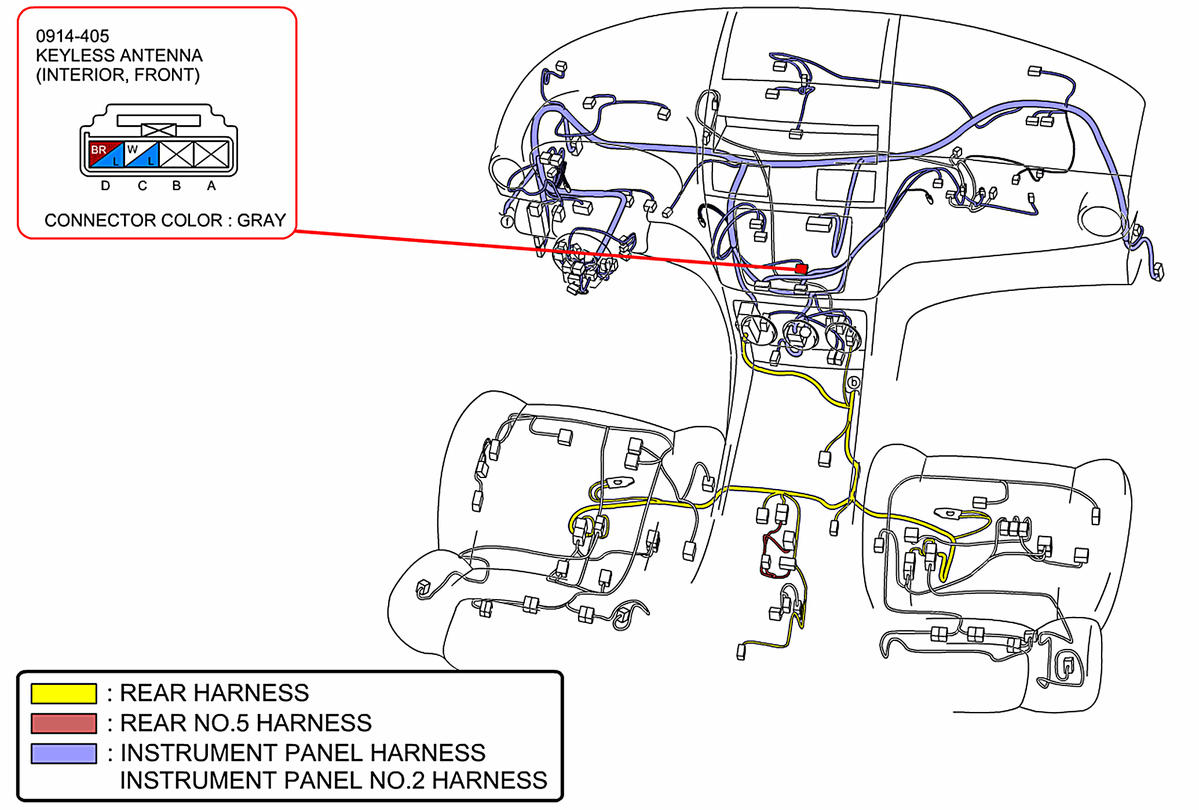

Fig 108: Upper Dash & Front Seats

G00471062

Courtesy of MAZDA MOTORS CORP.

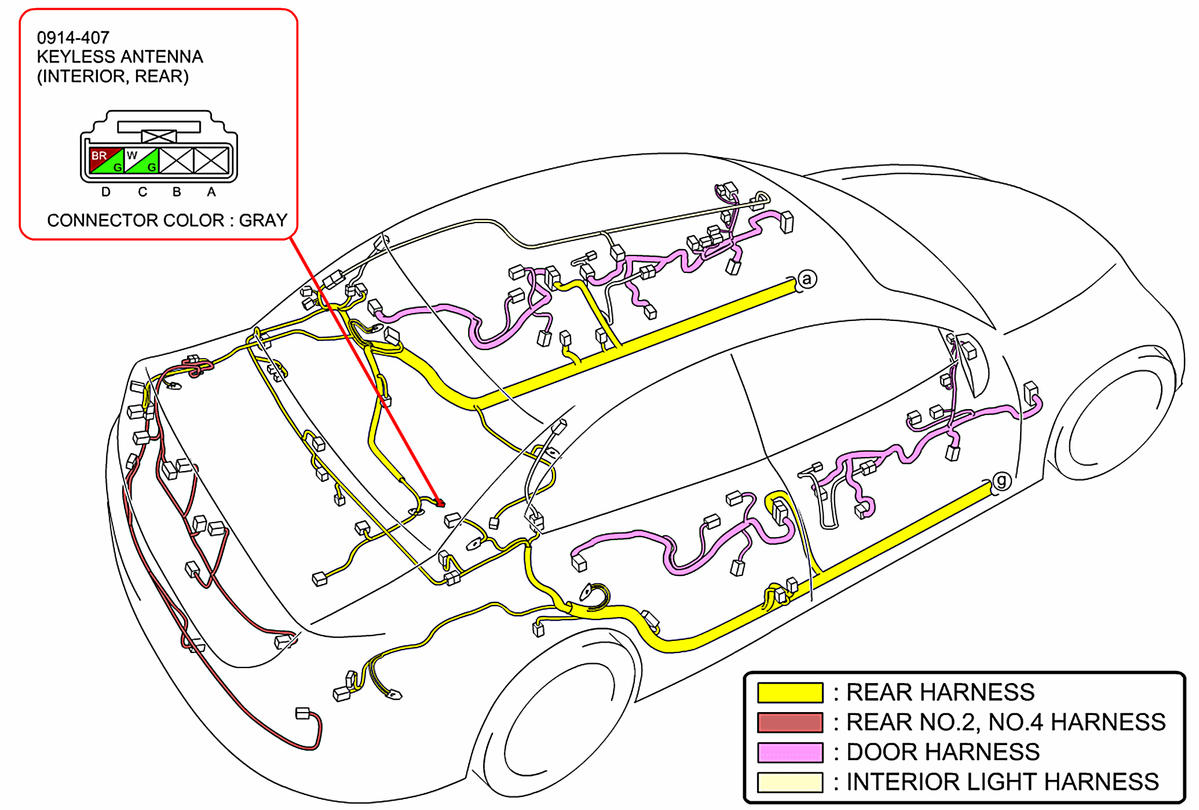

Fig 109: Body Overview

G00471063

Courtesy of MAZDA MOTORS CORP.

Fig 110: Engine Compartment

G00471064

Courtesy of MAZDA MOTORS CORP.

Fig 111: Lower Dash

G00471065

Courtesy of MAZDA MOTORS CORP.

Fig 112: Upper Dash & Front Seats

G00471066

Courtesy of MAZDA MOTORS CORP.

Fig 113: Upper Dash & Front Seats

G00471067

Courtesy of MAZDA MOTORS CORP.

Fig 114: Engine Compartment

G00471068

Courtesy of MAZDA MOTORS CORP.

Fig 115: Engine Compartment

G00471069

Courtesy of MAZDA MOTORS CORP.

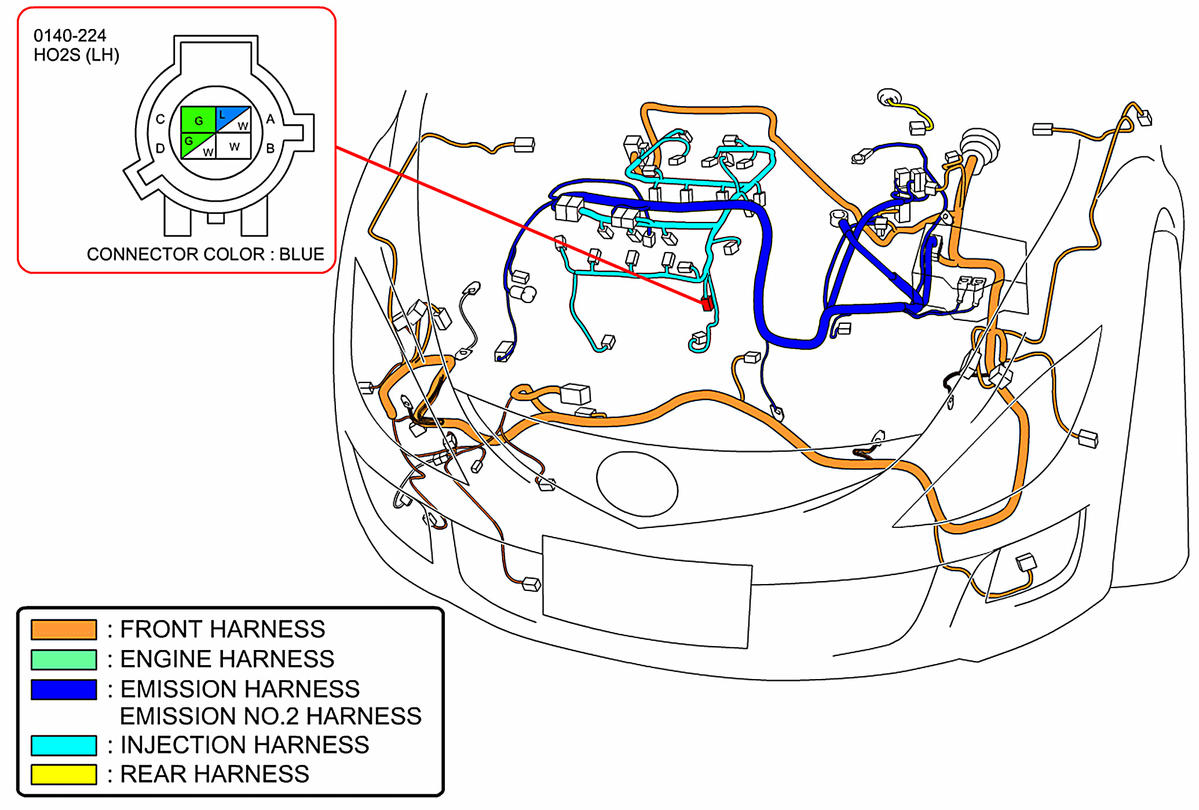

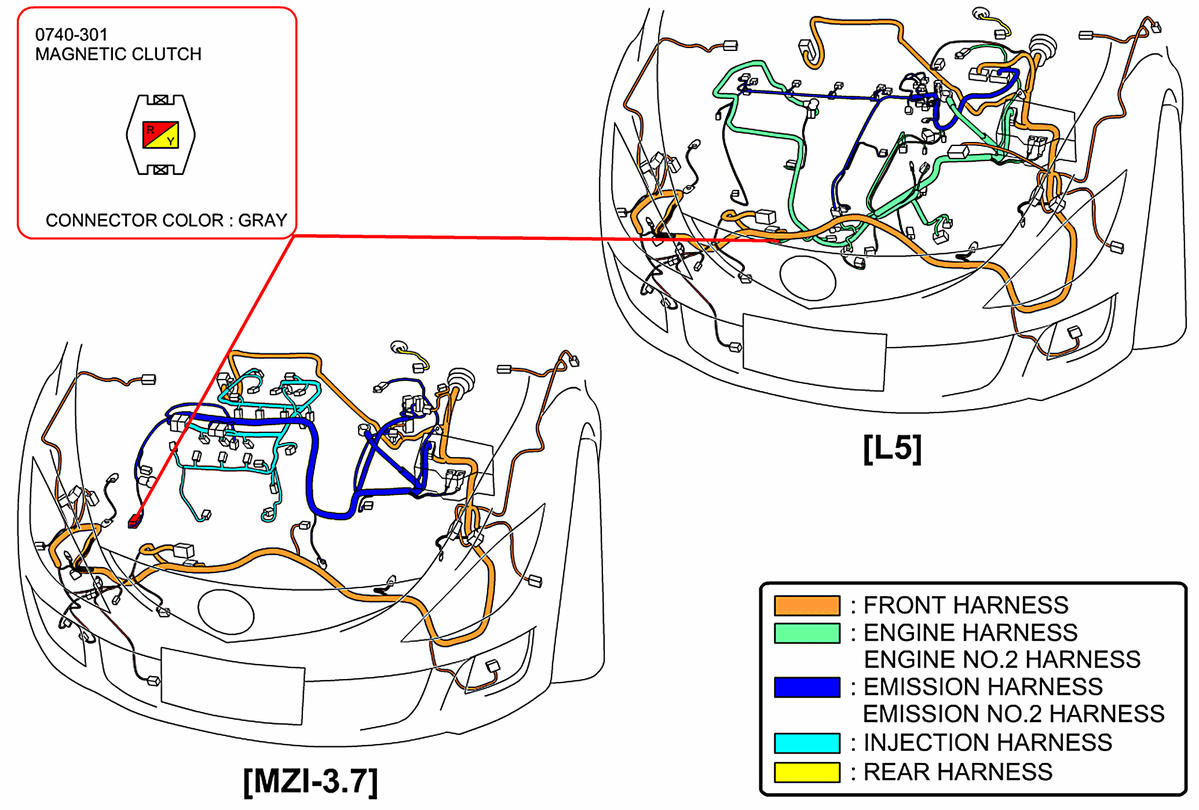

Fig 116: Engine Compartment

G00471070

Courtesy of MAZDA MOTORS CORP.

Fig 117: Engine Compartment

G00471071

Courtesy of MAZDA MOTORS CORP.

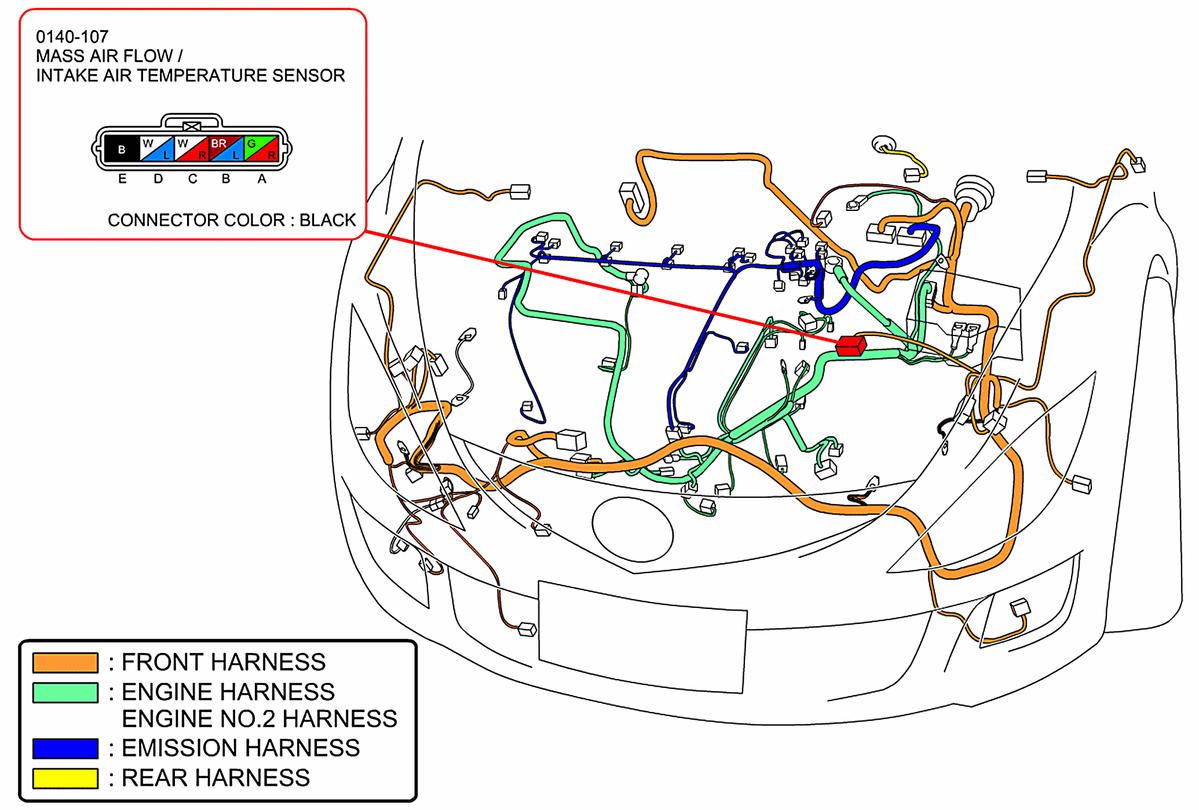

Fig 118: Engine Compartment (2.5L)

G00471072

Courtesy of MAZDA MOTORS CORP.

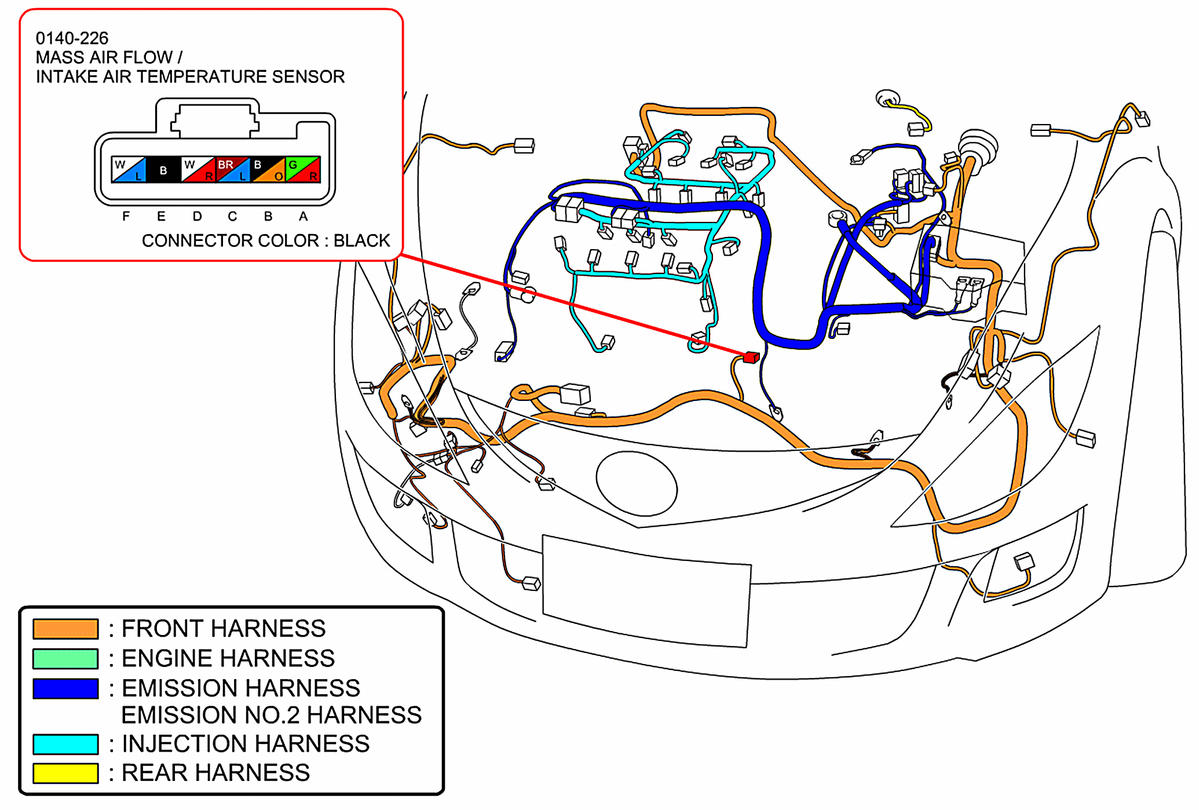

Fig 119: Engine Compartment (3.7L)

G00471073

Courtesy of MAZDA MOTORS CORP.

Fig 120: Upper Dash & Front Seats

G00471074

Courtesy of MAZDA MOTORS CORP.

Fig 121: Upper Dash & Front Seats

G00471075

Courtesy of MAZDA MOTORS CORP.

Fig 122: Engine Compartment

G00471076

Courtesy of MAZDA MOTORS CORP.

Fig 123: Engine Compartment (2.5L)

G00471077

Courtesy of MAZDA MOTORS CORP.

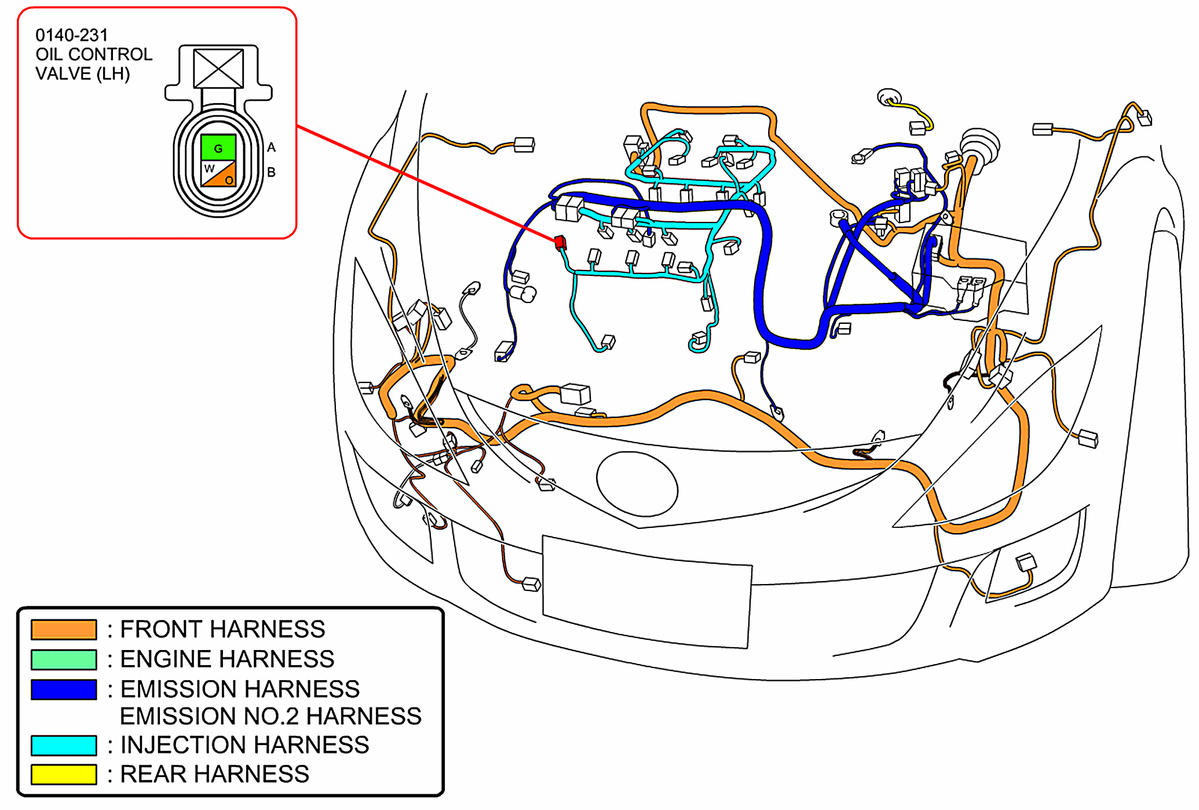

Fig 124: Engine Compartment (3.7L)

G00471078

Courtesy of MAZDA MOTORS CORP.

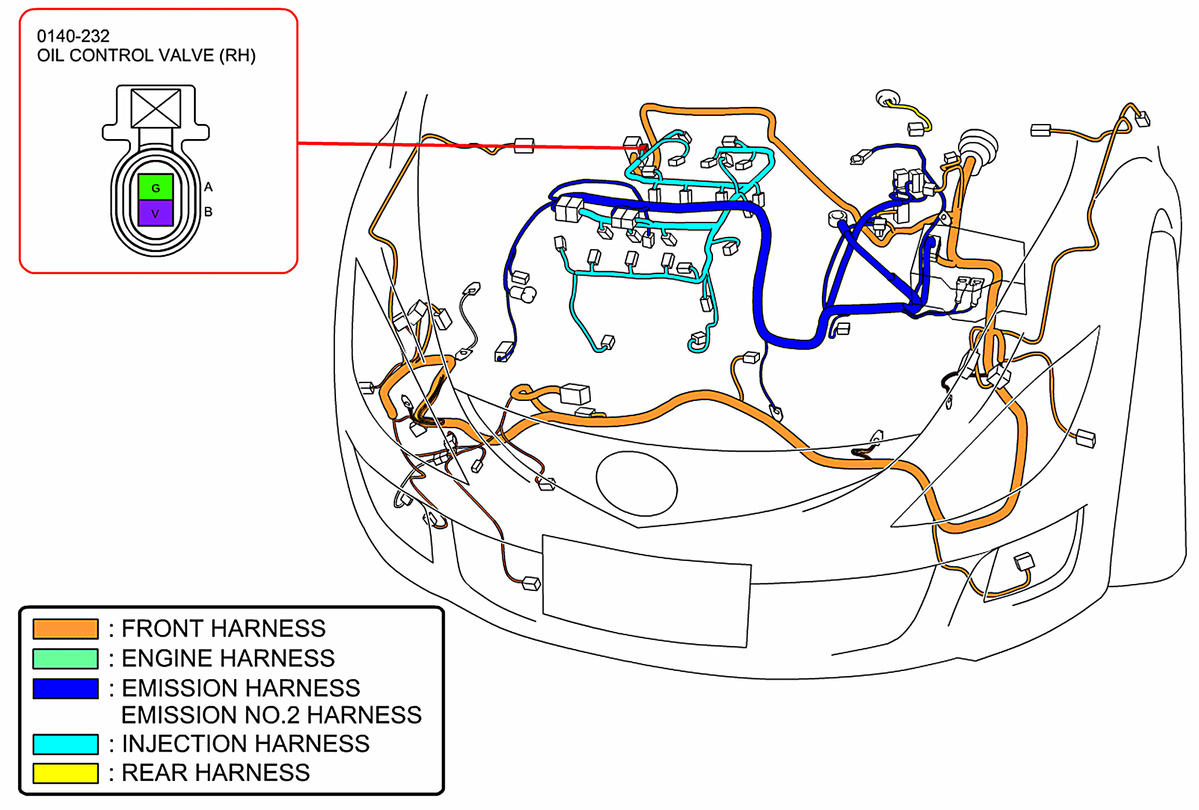

Fig 125: Engine Compartment (3.7L)

G00471079

Courtesy of MAZDA MOTORS CORP.

Fig 126: Engine Compartment

G00471080

Courtesy of MAZDA MOTORS CORP.

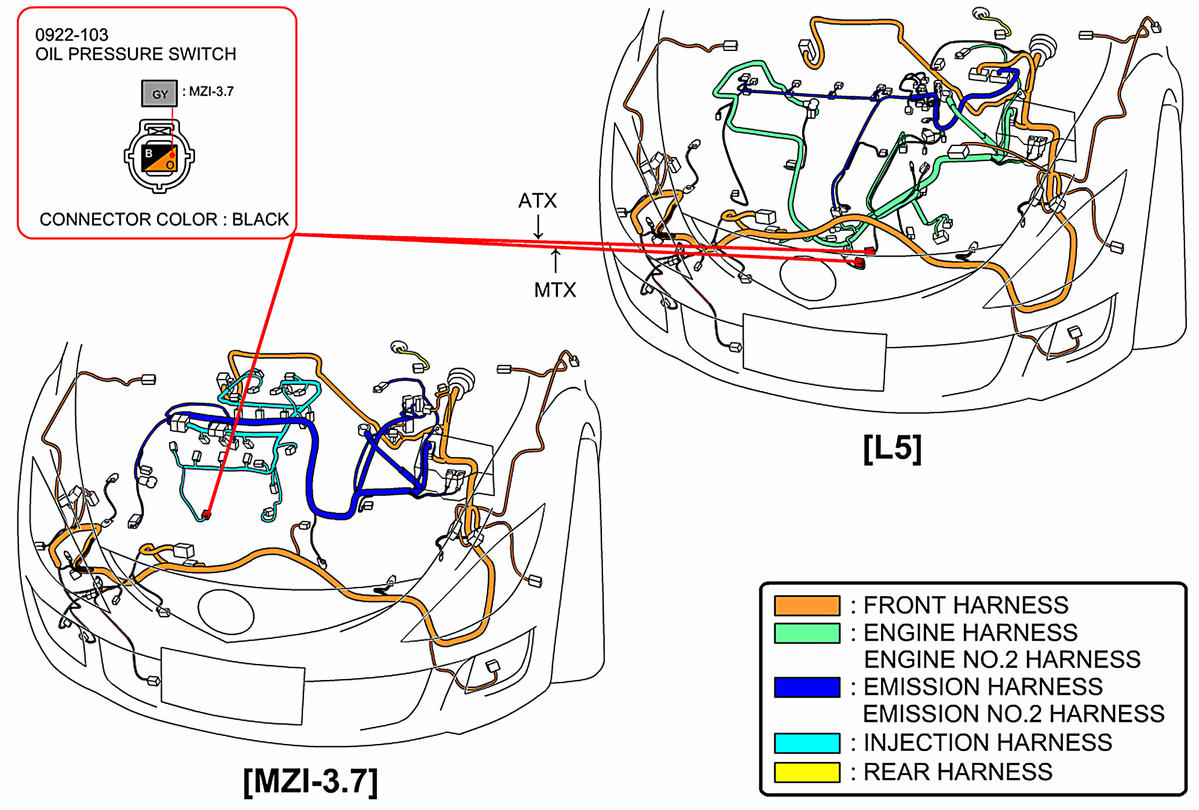

Fig 127: Engine Compartment

G00471081

Courtesy of MAZDA MOTORS CORP.

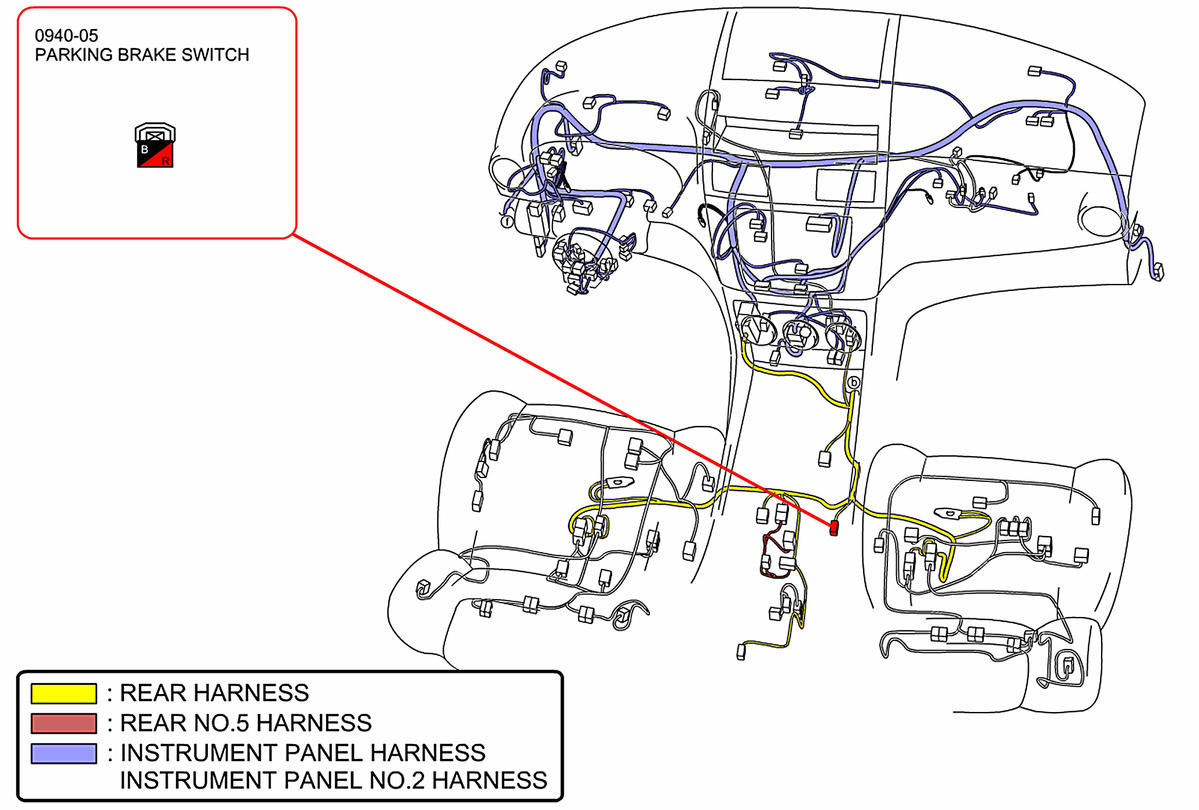

Fig 128: Upper Dash & Front Seats

G00471082

Courtesy of MAZDA MOTORS CORP.

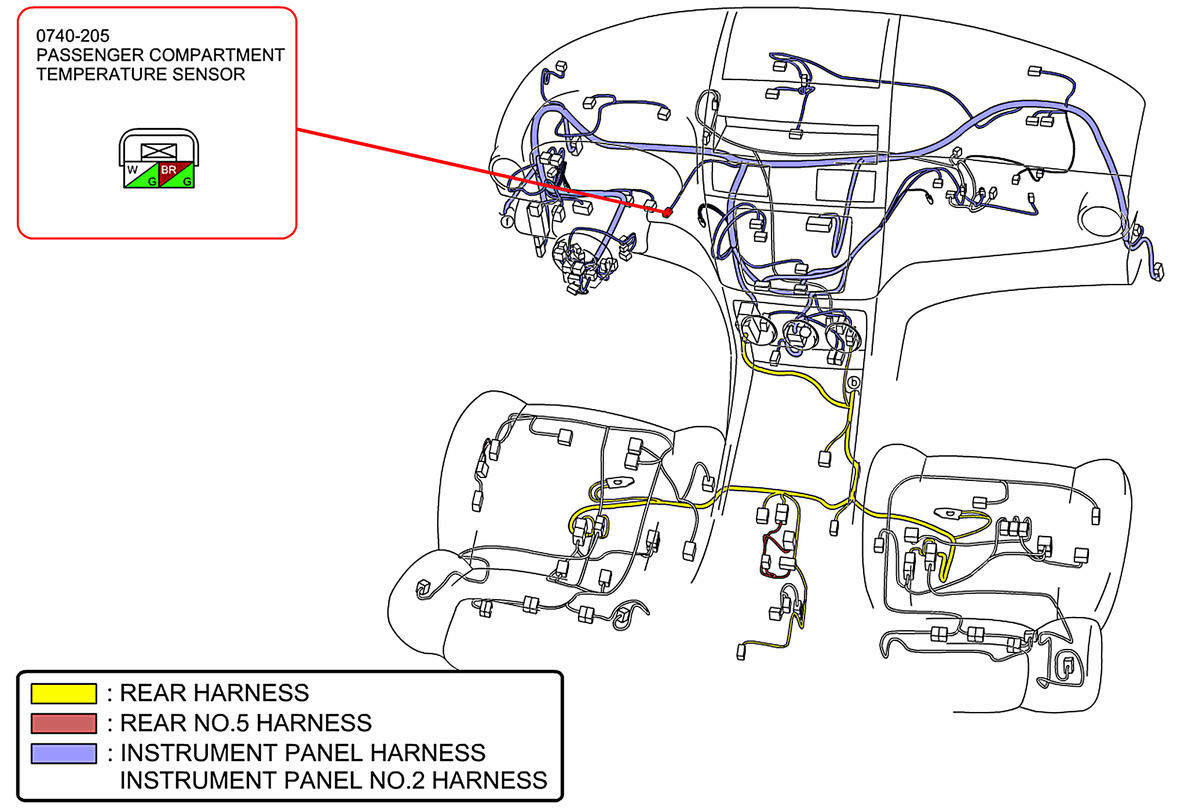

Fig 129: Upper Dash & Front Seats

G00471083

Courtesy of MAZDA MOTORS CORP.

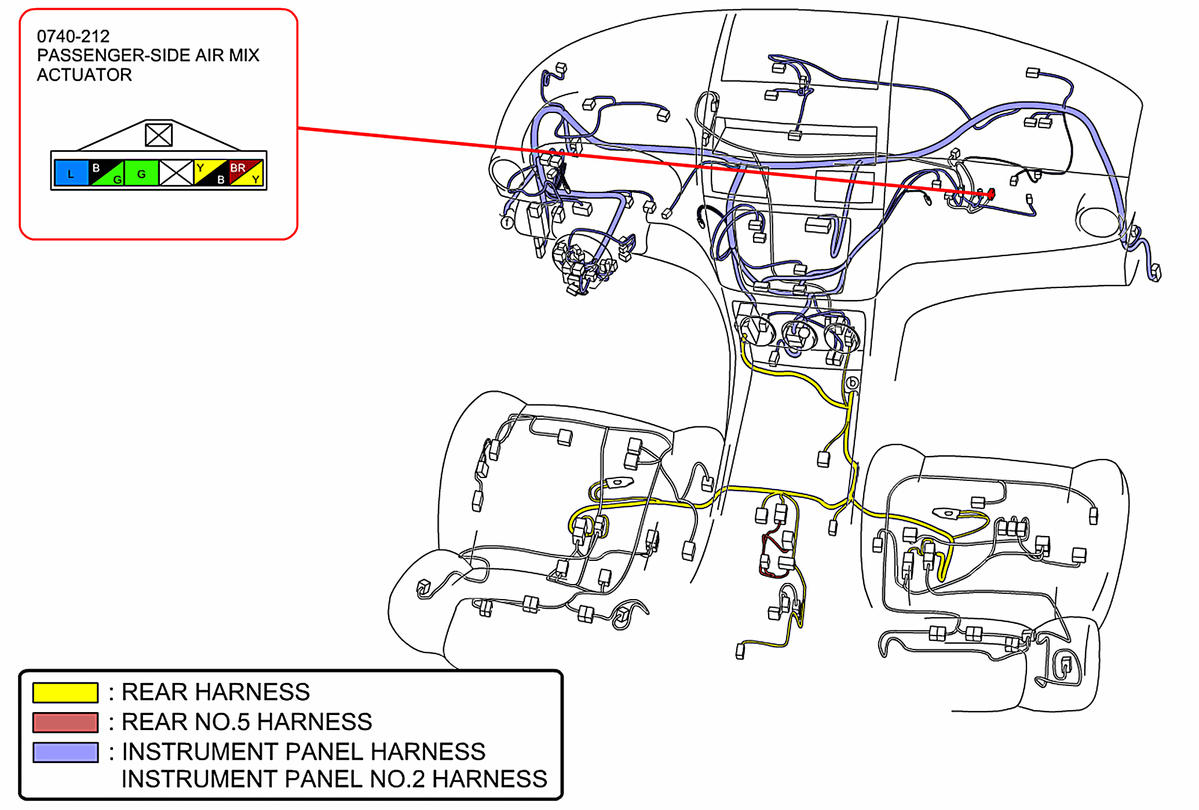

Fig 130: Upper Dash & Front Seats

G00471084

Courtesy of MAZDA MOTORS CORP.

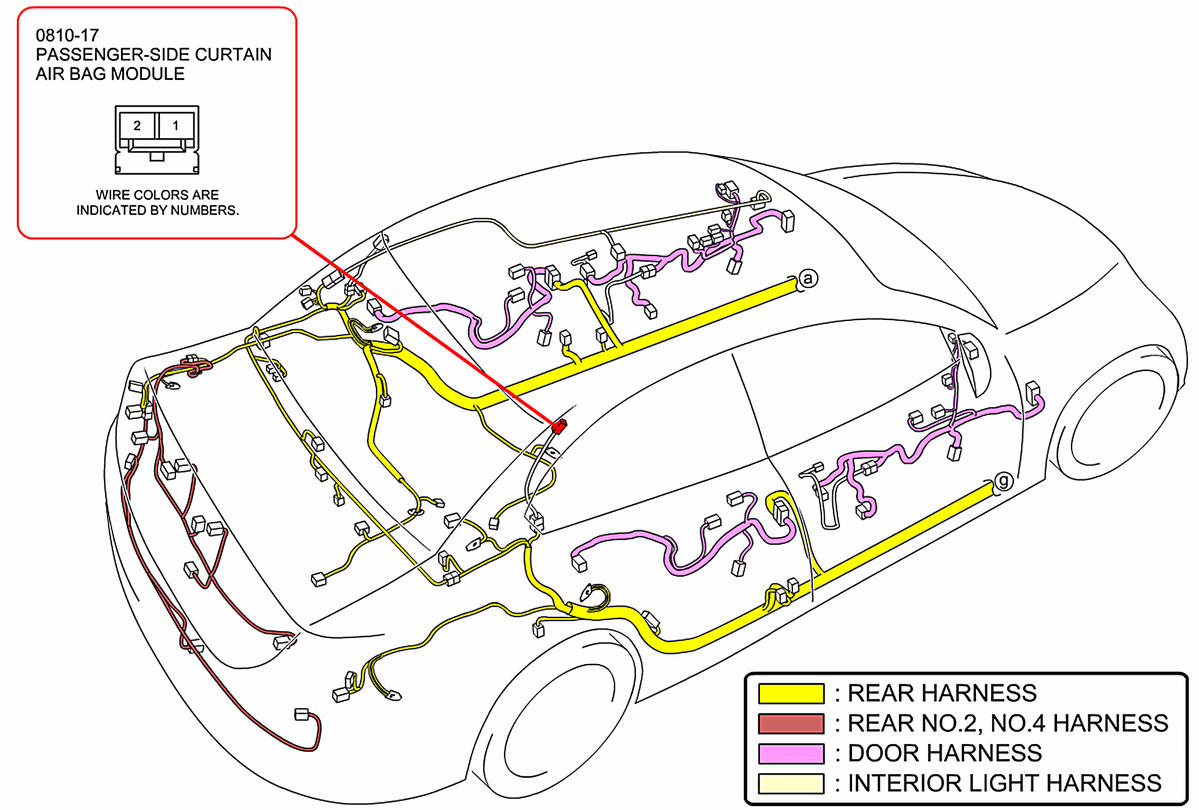

Fig 131: Body Overview

G00471085

Courtesy of MAZDA MOTORS CORP.

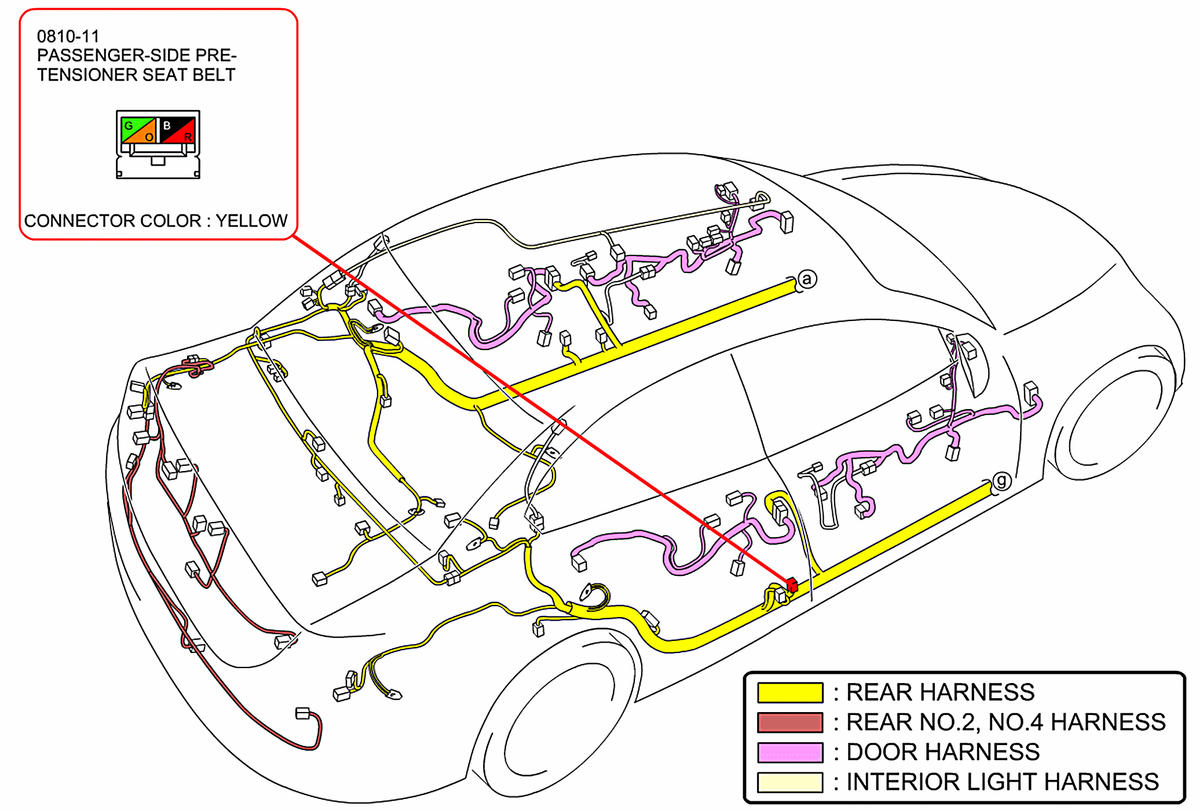

Fig 132: Body Overview

G00471086

Courtesy of MAZDA MOTORS CORP.

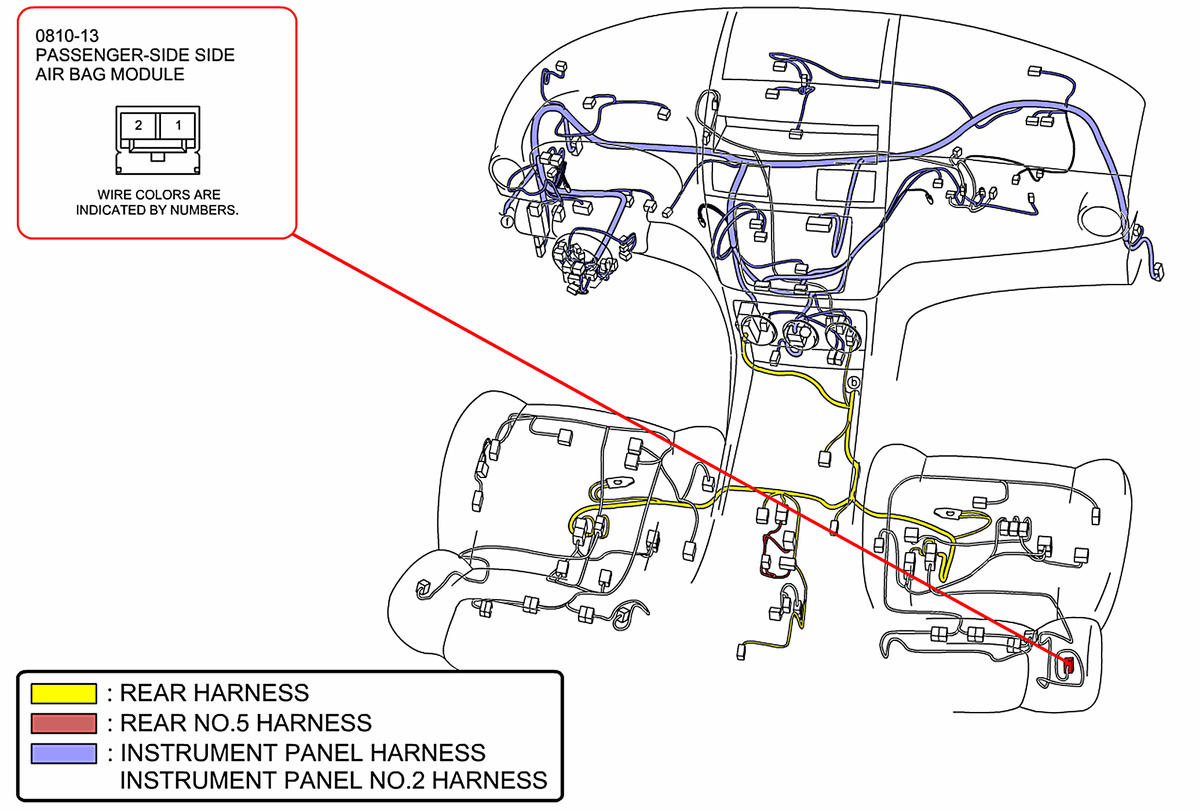

Fig 133: Upper Dash & Front Seats

G00471087

Courtesy of MAZDA MOTORS CORP.

Fig 134: Body Overview

G00471088

Courtesy of MAZDA MOTORS CORP.

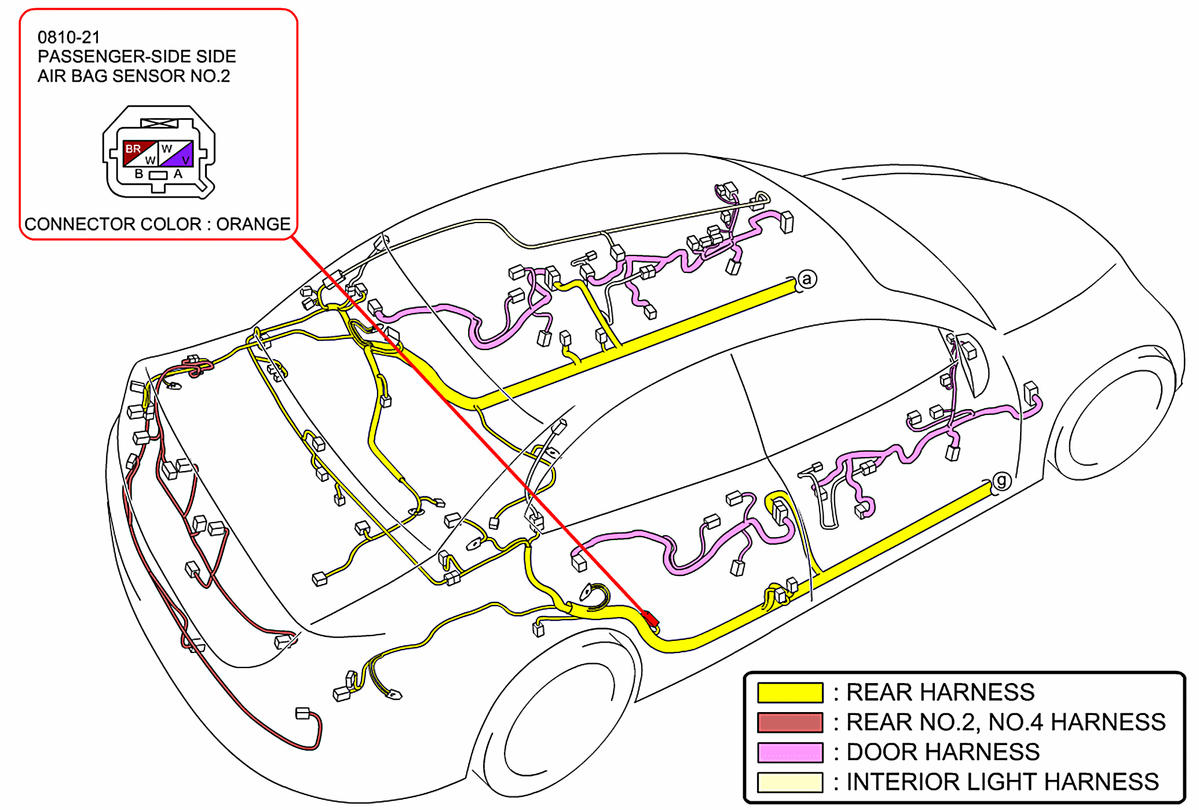

Fig 135: Body Overview

G00471089

Courtesy of MAZDA MOTORS CORP.

Fig 136: Engine Compartment (2.5L)

G00471090

Courtesy of MAZDA MOTORS CORP.

Fig 137: Engine Compartment (3.7L)

G00471091

Courtesy of MAZDA MOTORS CORP.

Fig 138: Upper Dash & Front Seats

G00471092

Courtesy of MAZDA MOTORS CORP.

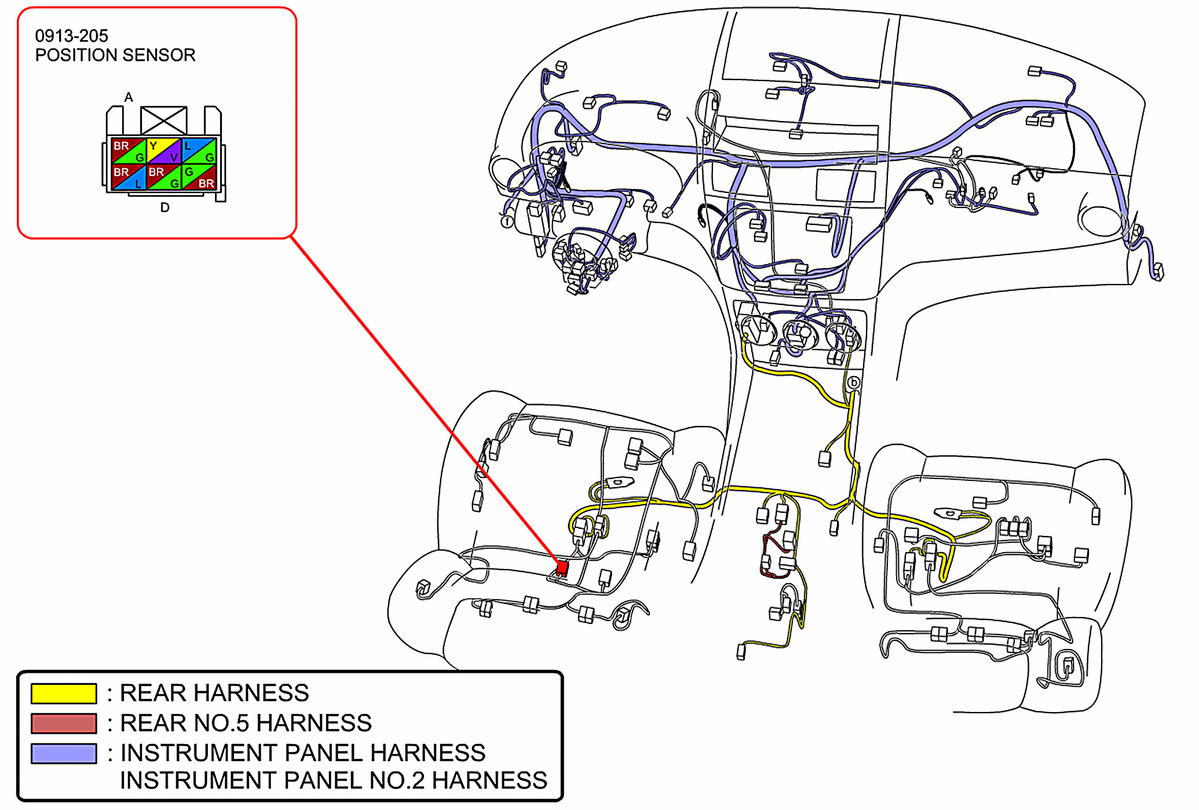

Fig 139: Upper Dash & Front Seats

G00471093

Courtesy of MAZDA MOTORS CORP.

Fig 140: Engine Compartment (3.7L)

G00471095

Courtesy of MAZDA MOTORS CORP.

Fig 141: Engine Compartment (2.5L)

G00471096

Courtesy of MAZDA MOTORS CORP.

Fig 142: Engine Compartment (3.7L)

G00471097

Courtesy of MAZDA MOTORS CORP.

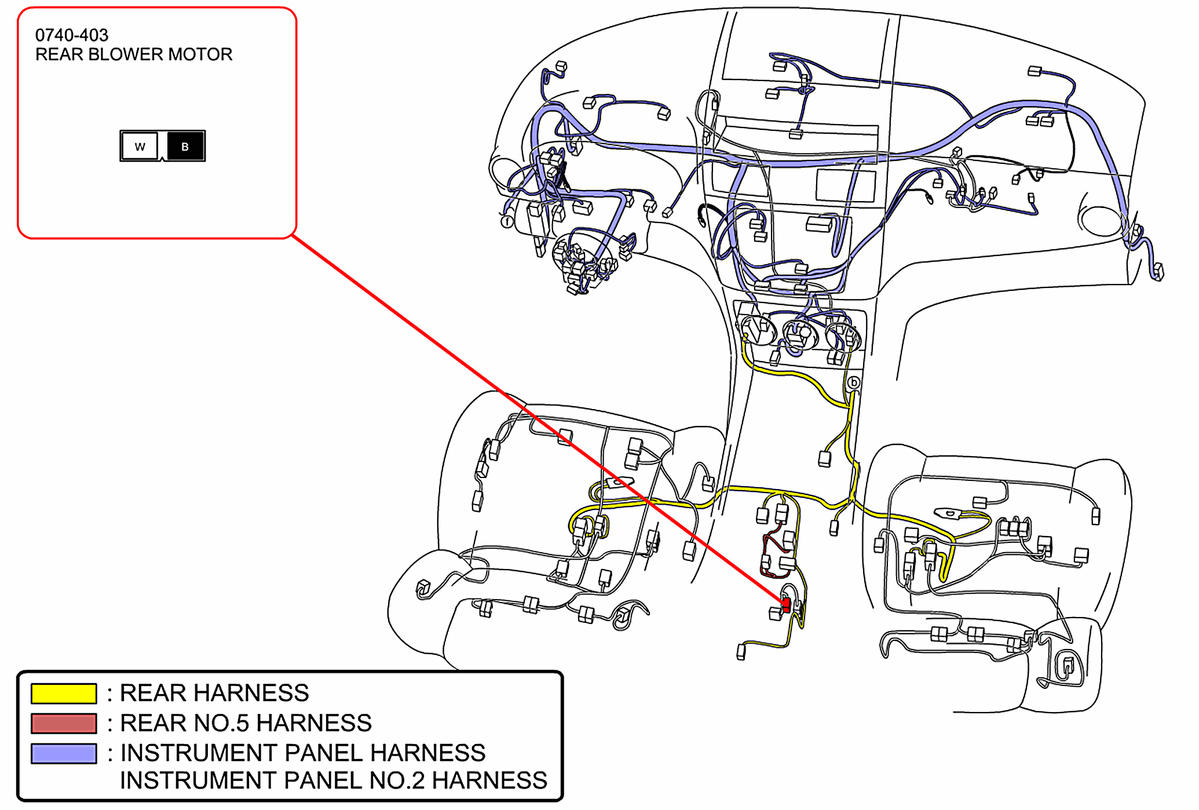

Fig 143: Upper Dash & Front Seats

G00471098

Courtesy of MAZDA MOTORS CORP.

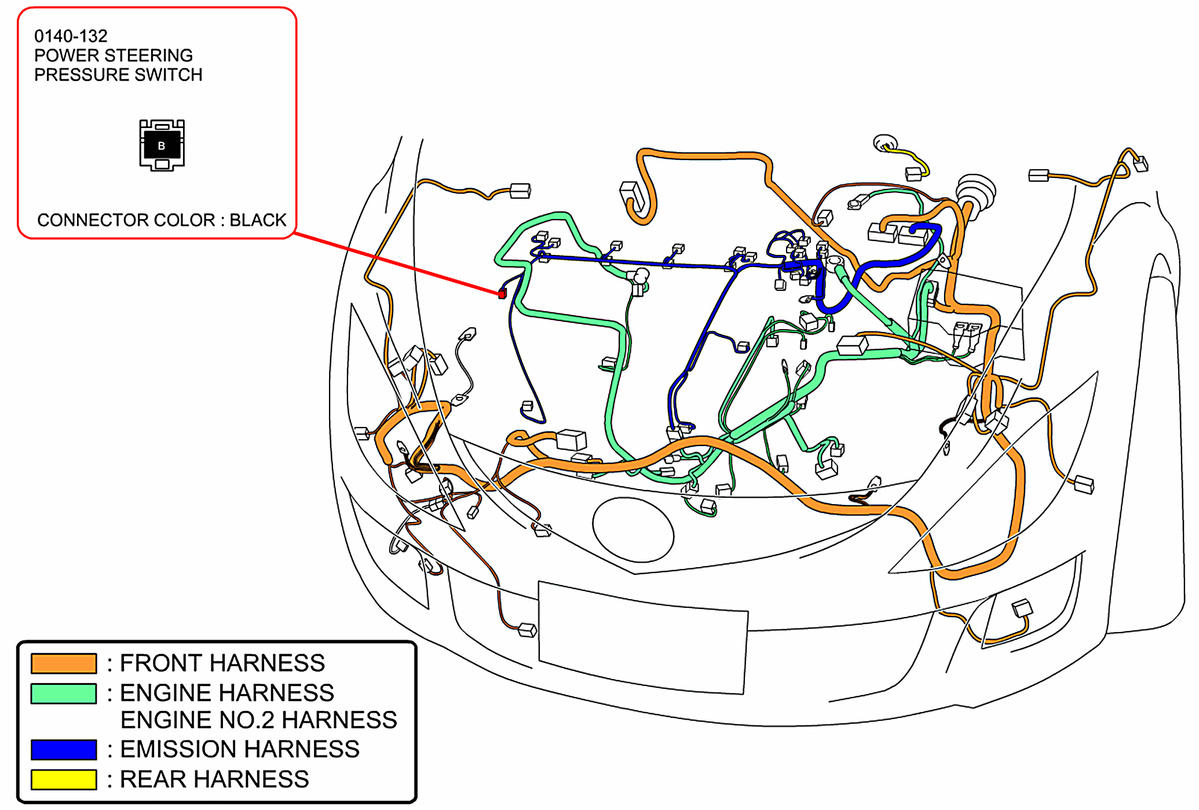

Fig 144: Engine Compartment (2.5L)

G00471094

Courtesy of MAZDA MOTORS CORP.

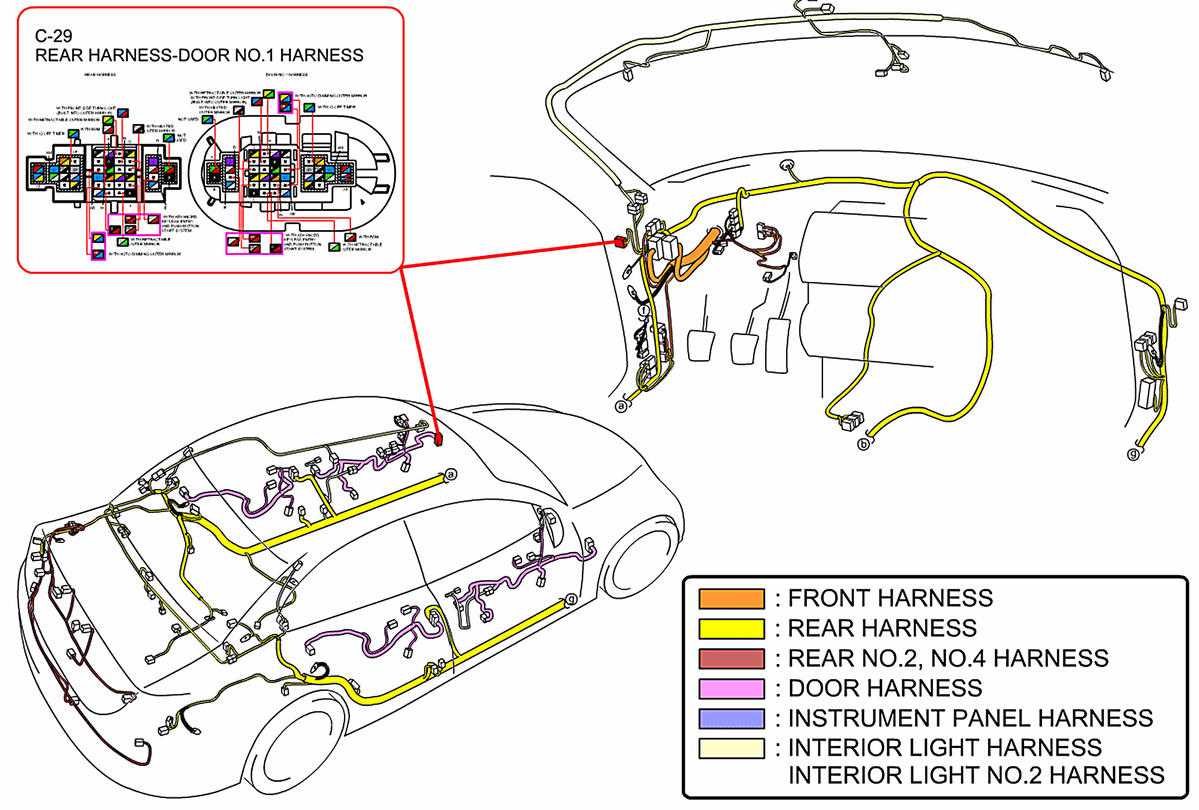

Fig 145: Body Overview & Lower Dash

G00471099

Courtesy of MAZDA MOTORS CORP.

Fig 146: Body Overview & Lower Dash

G00471100

Courtesy of MAZDA MOTORS CORP.

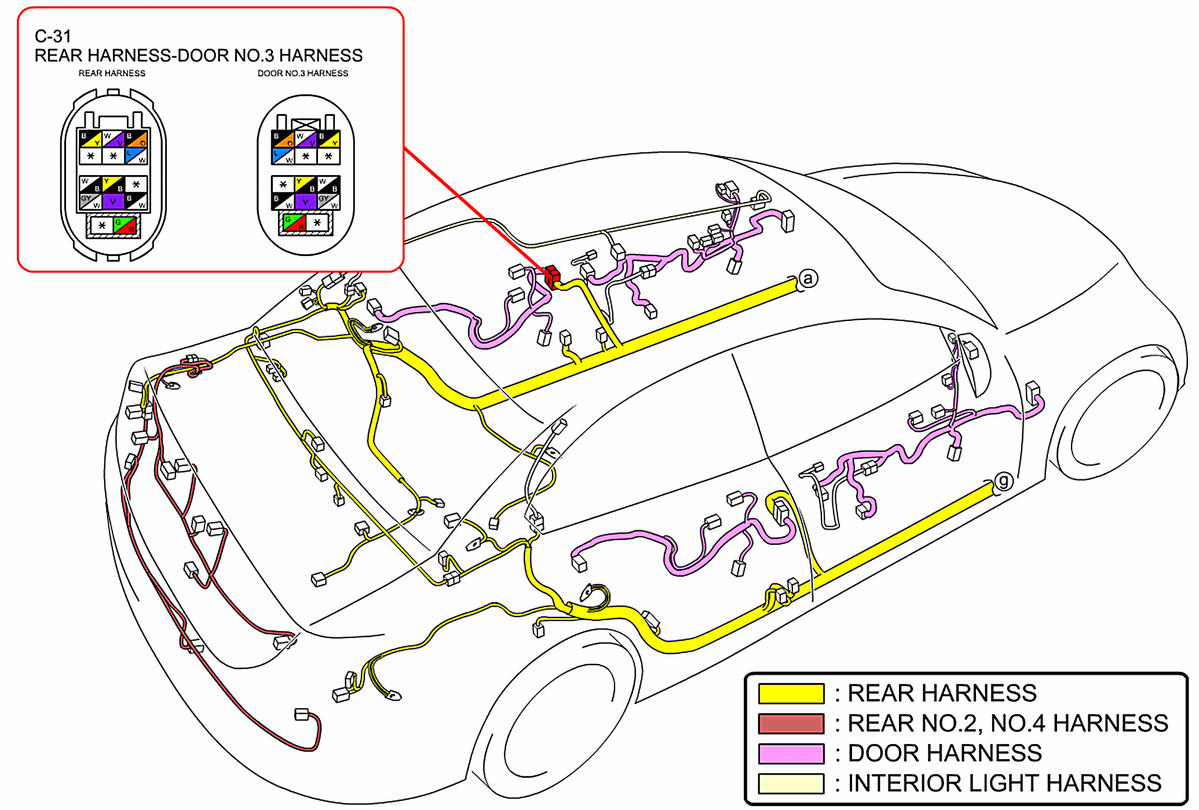

Fig 147: Body Overview

G00471101

Courtesy of MAZDA MOTORS CORP.

Fig 148: Body Overview

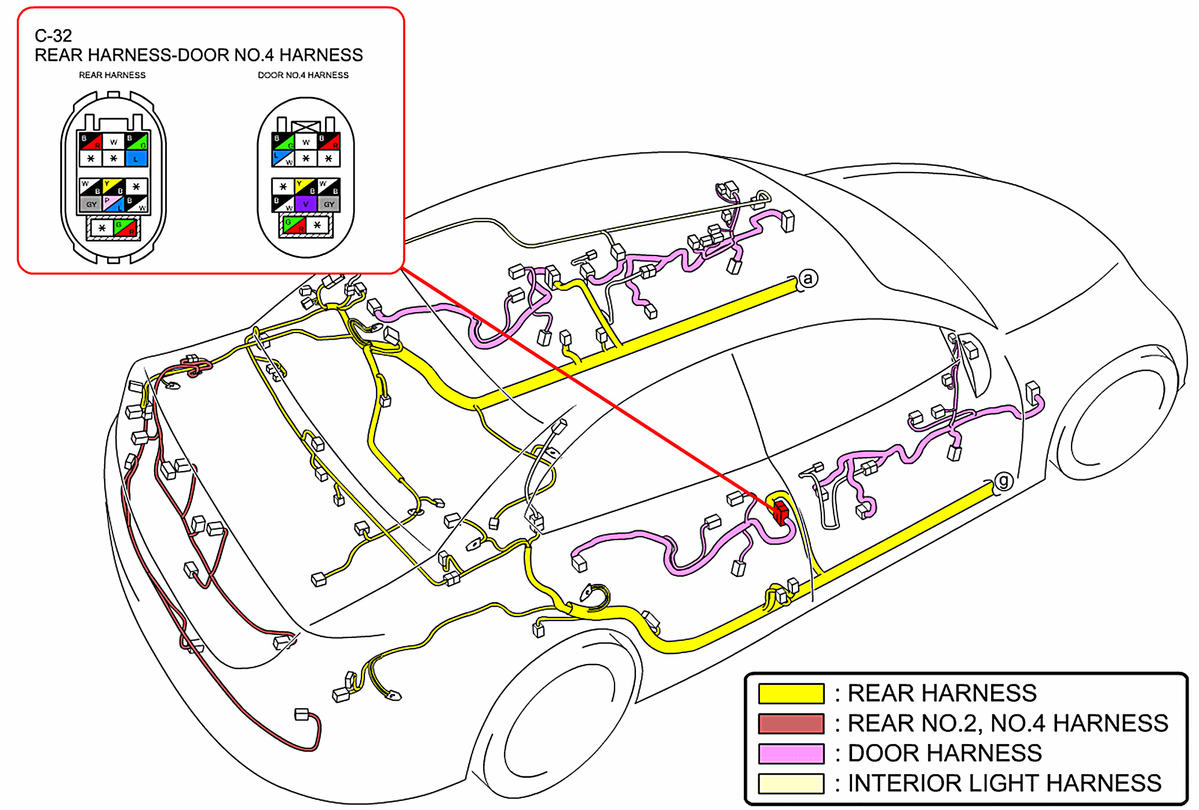

G00471102

Courtesy of MAZDA MOTORS CORP.

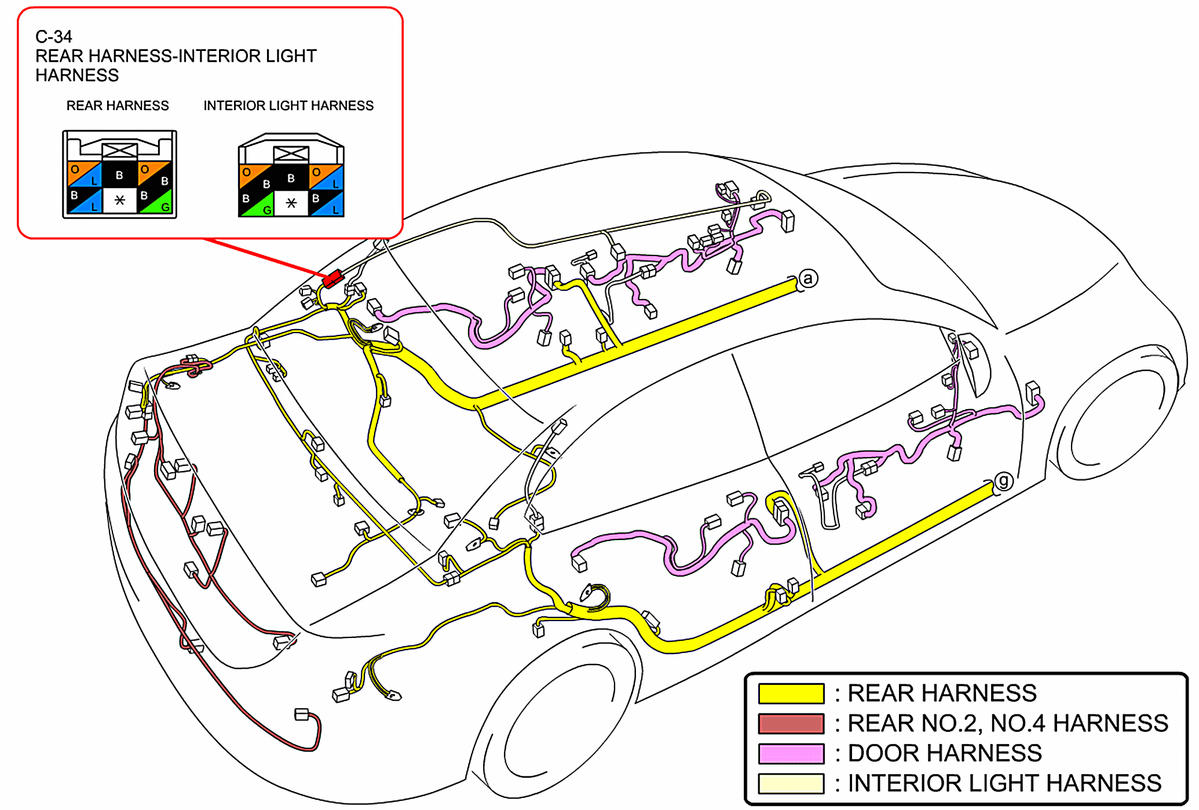

Fig 149: Body Overview

G00471103

Courtesy of MAZDA MOTORS CORP.

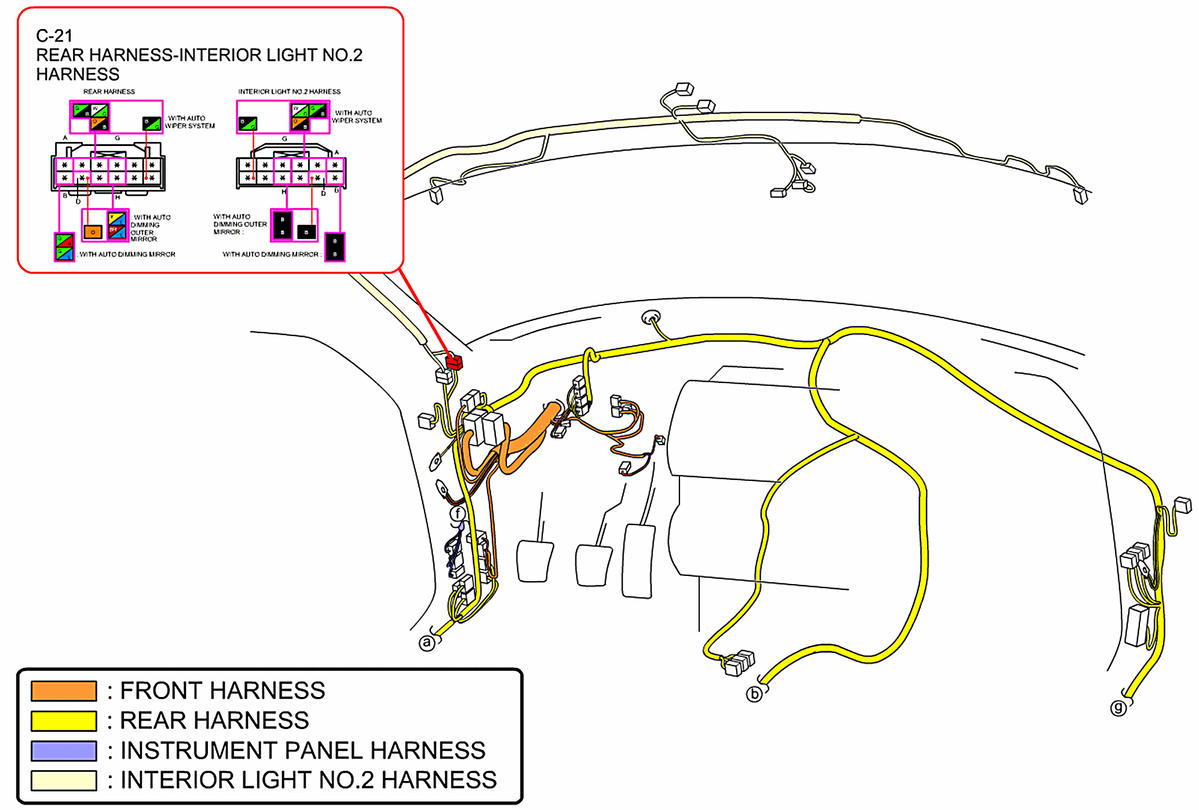

Fig 150: Lower Dash

G00471104

Courtesy of MAZDA MOTORS CORP.

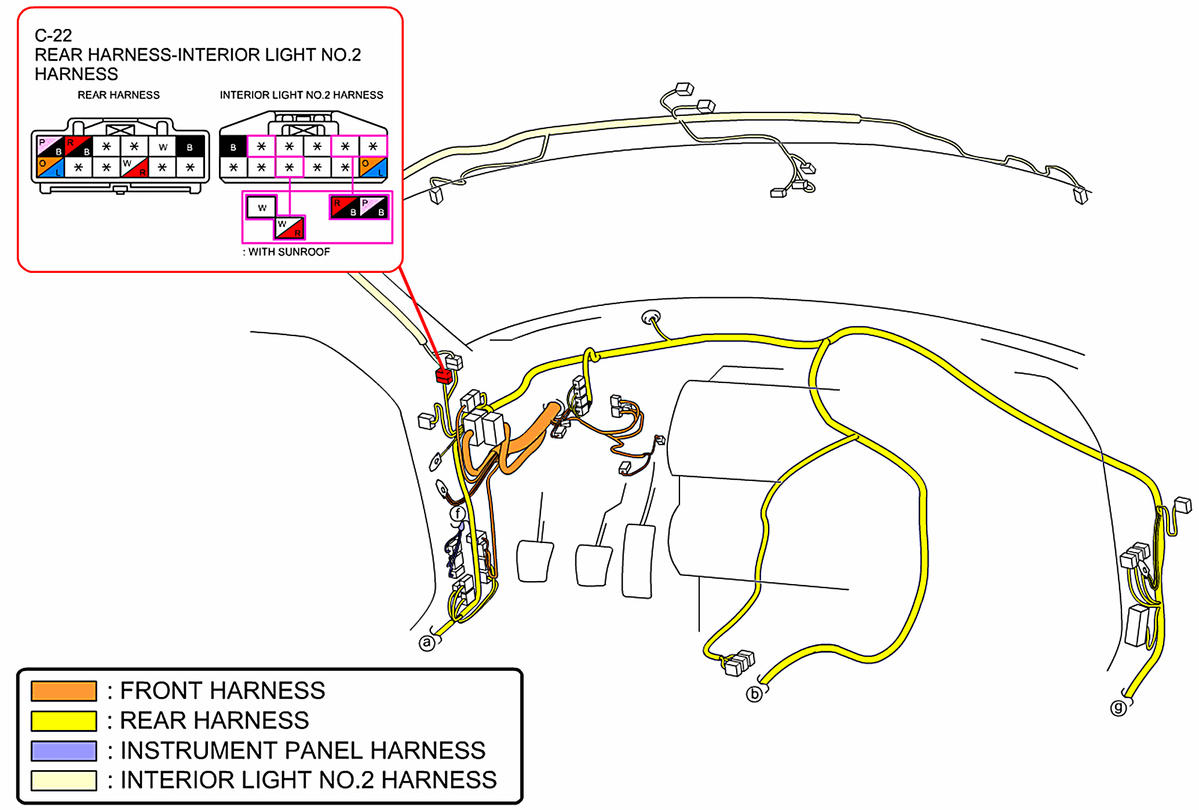

Fig 151: Lower Dash

G00471105

Courtesy of MAZDA MOTORS CORP.

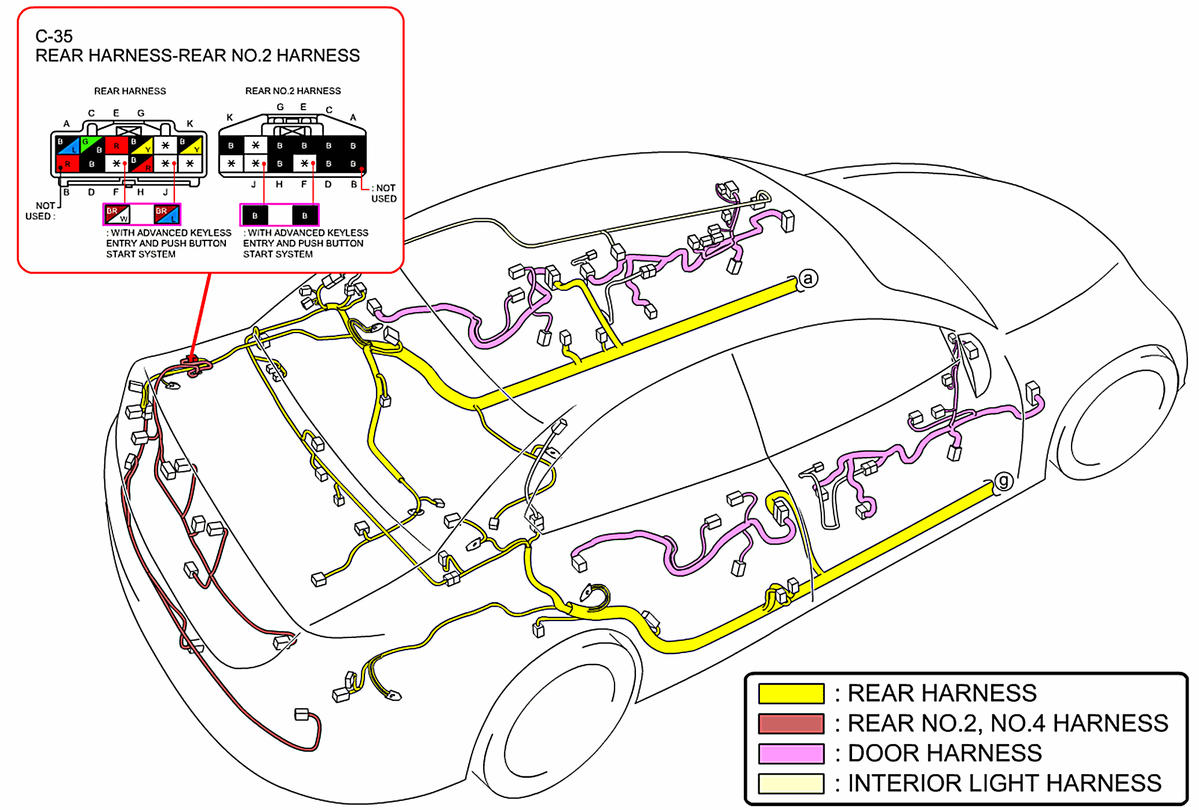

Fig 152: Body Overview

G00471106

Courtesy of MAZDA MOTORS CORP.

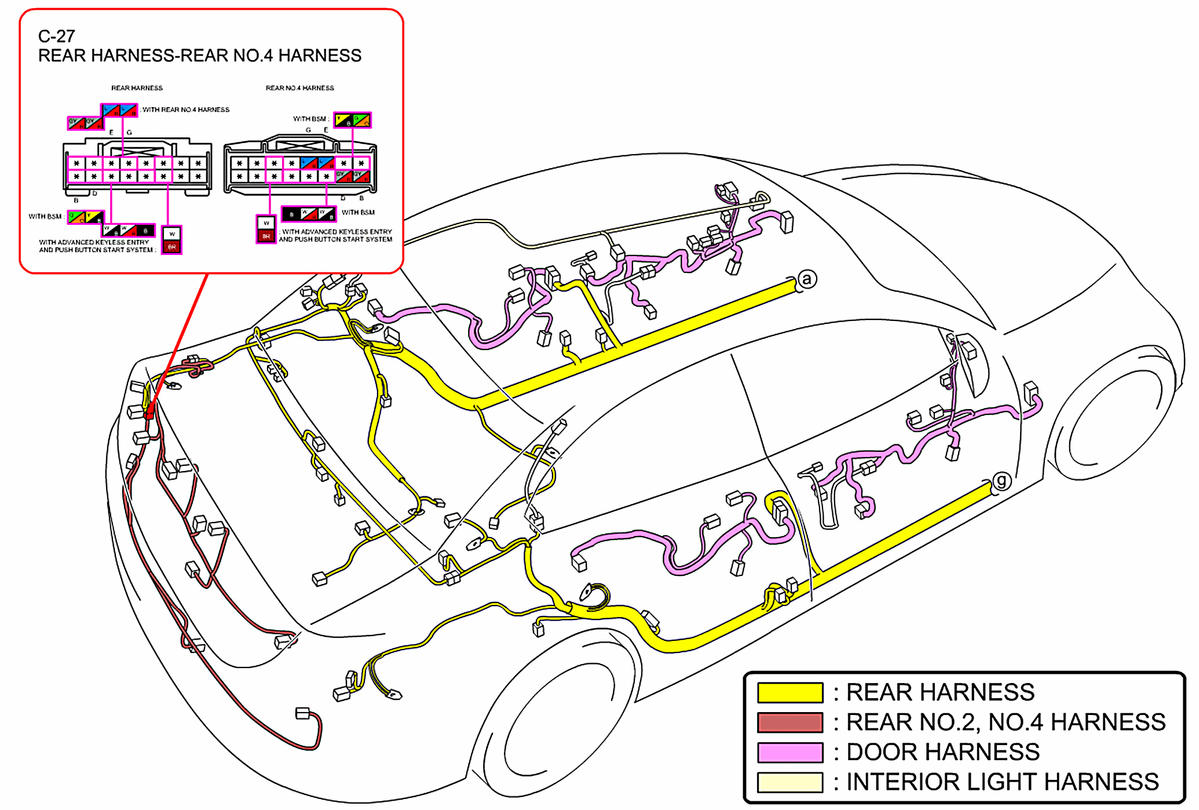

Fig 153: Body Overview

G00471107

Courtesy of MAZDA MOTORS CORP.

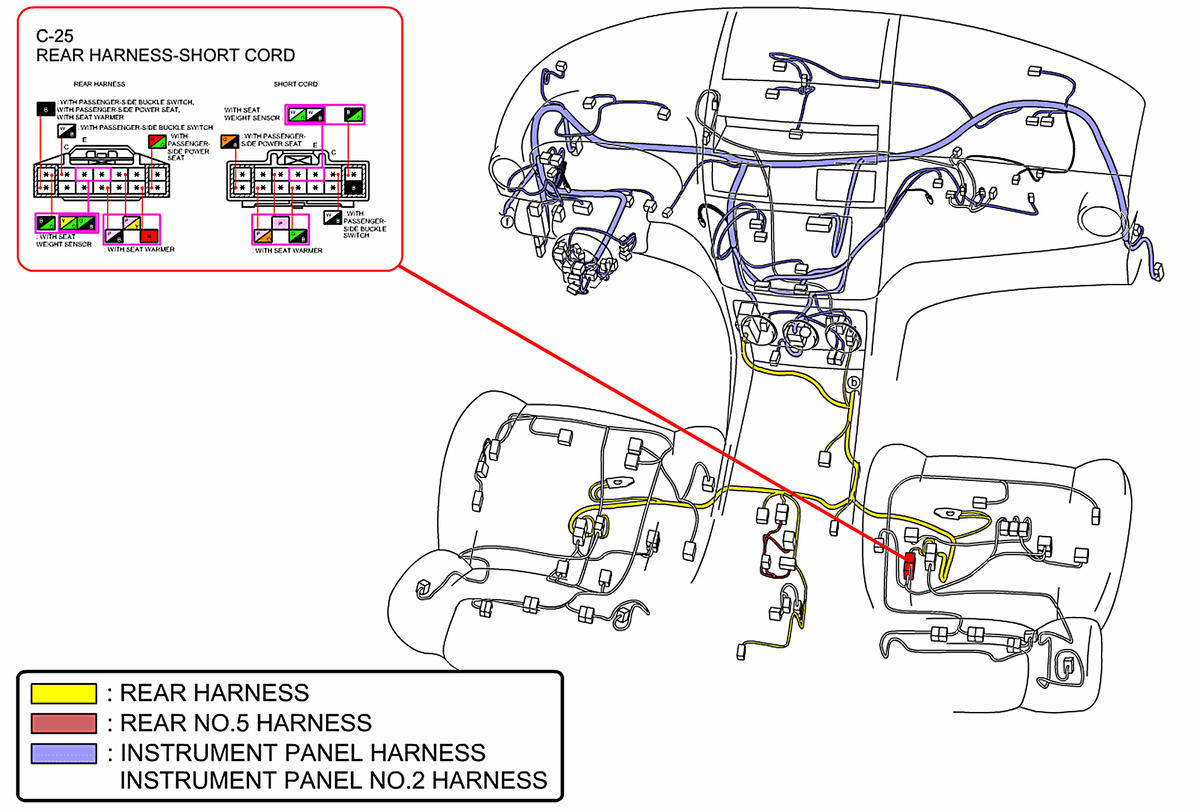

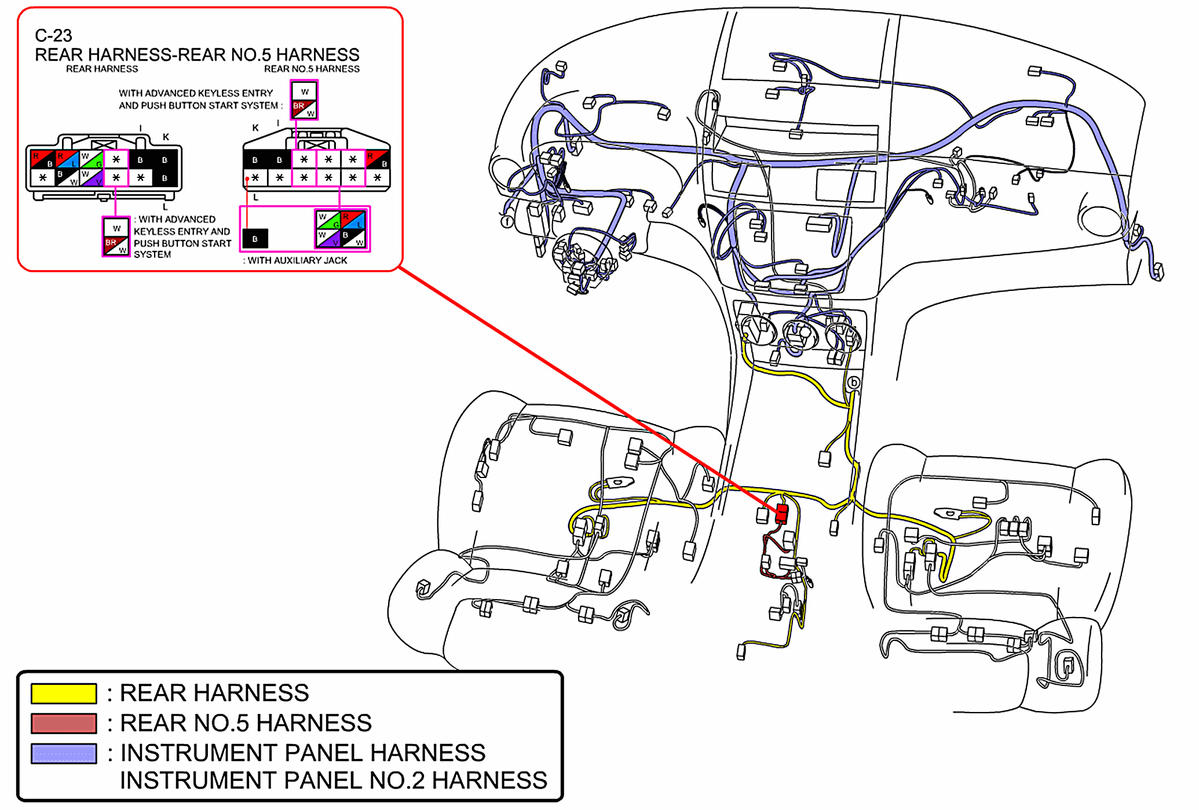

Fig 154: Upper Dash & Front Seats

G00471108

Courtesy of MAZDA MOTORS CORP.

Fig 155: Upper Dash & Front Seats

G00471109

Courtesy of MAZDA MOTORS CORP.

Fig 156: Upper Dash & Front Seats

G00471110

Courtesy of MAZDA MOTORS CORP.

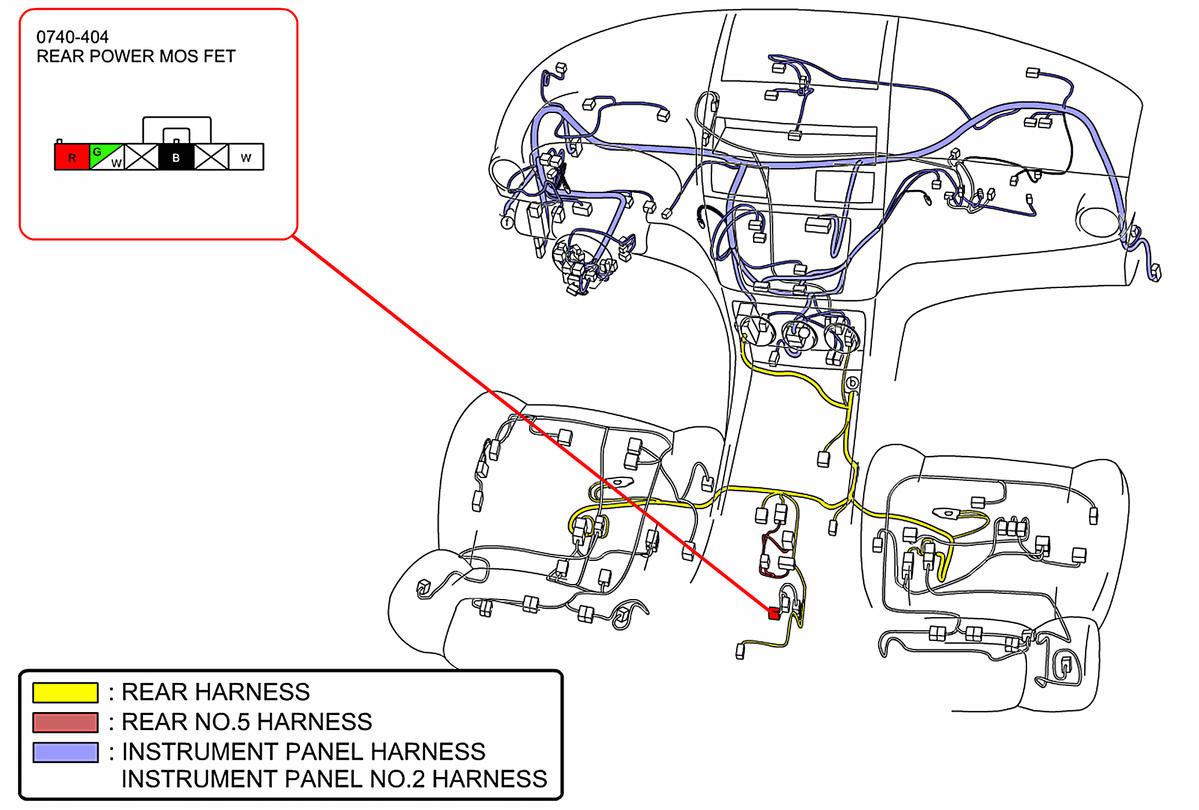

Fig 157: Upper Dash & Front Seats

G00471111

Courtesy of MAZDA MOTORS CORP.

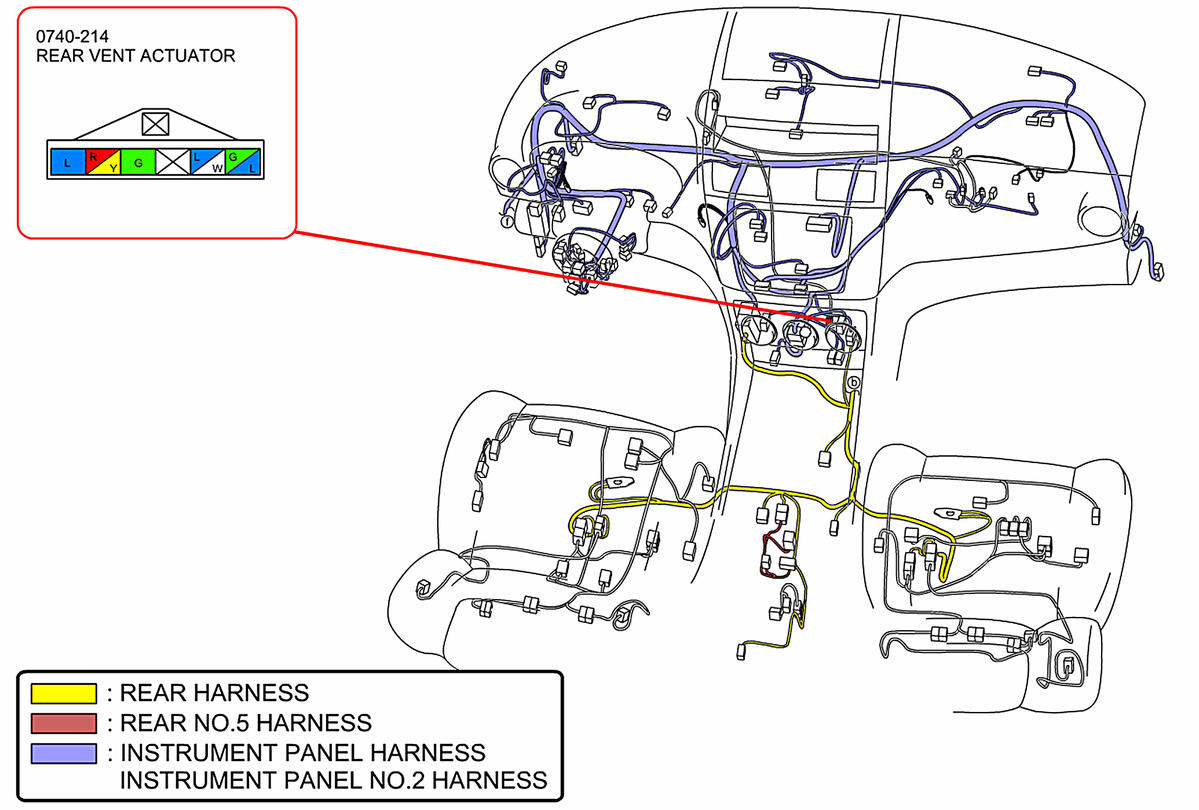

Fig 158: Upper Dash & Front Seats

G00471112

Courtesy of MAZDA MOTORS CORP.

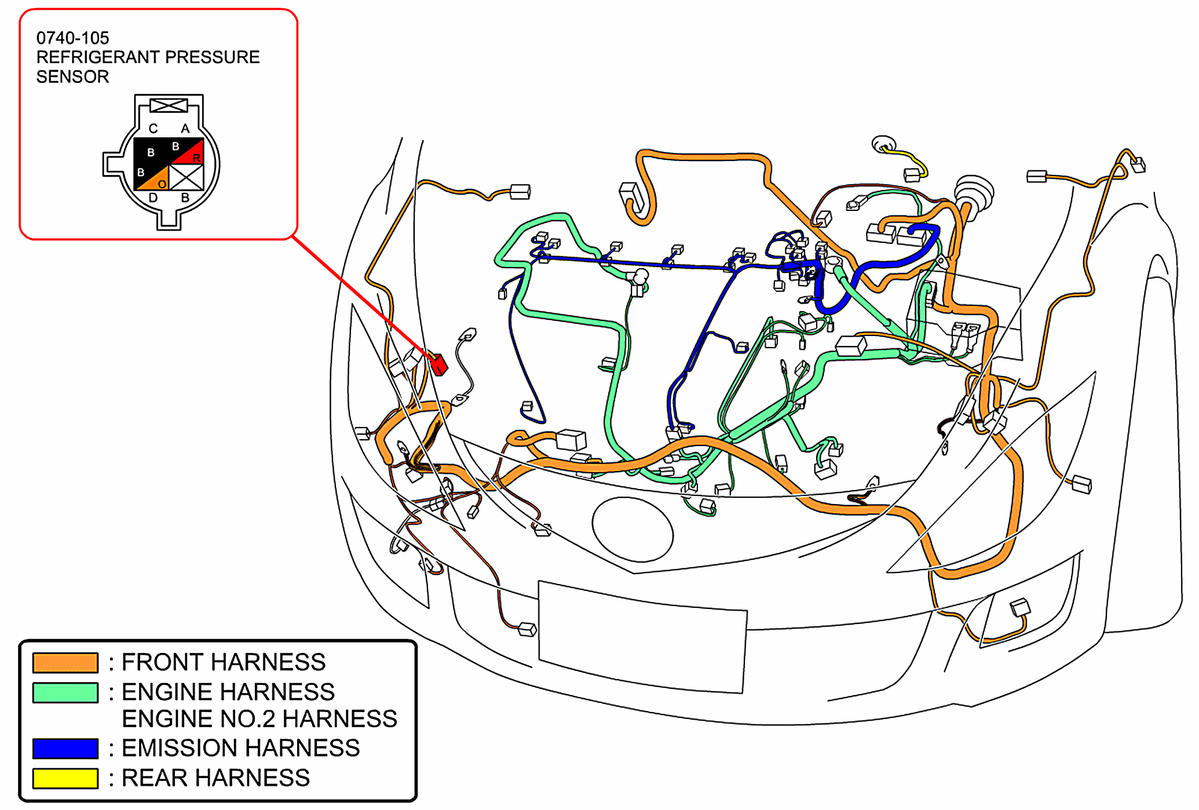

Fig 159: Engine Compartment

G00471113

Courtesy of MAZDA MOTORS CORP.

Fig 160: Upper Dash

G00471114

Courtesy of MAZDA MOTORS CORP.

Fig 161: Lower Dash

G00471115

Courtesy of MAZDA MOTORS CORP.

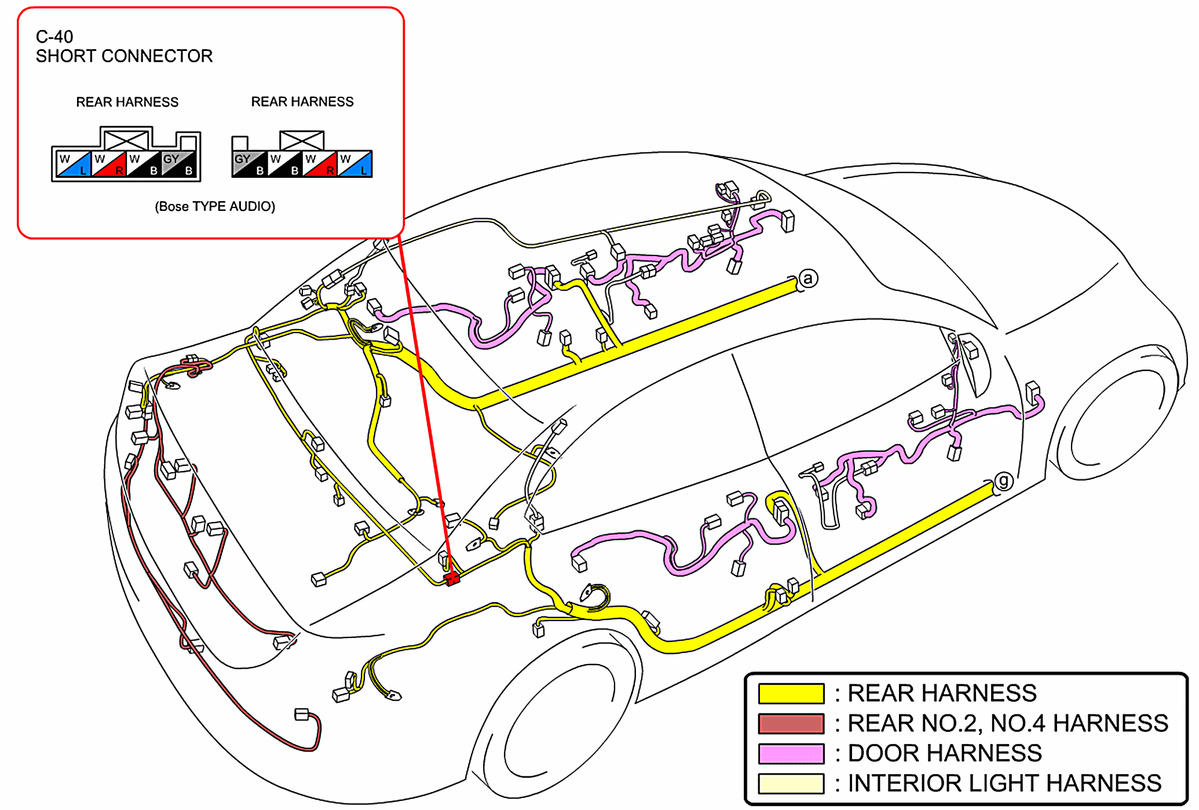

Fig 162: Body Overview

G00471116

Courtesy of MAZDA MOTORS CORP.

Fig 163: Upper Dash & Front Seats

G00471117

Courtesy of MAZDA MOTORS CORP.

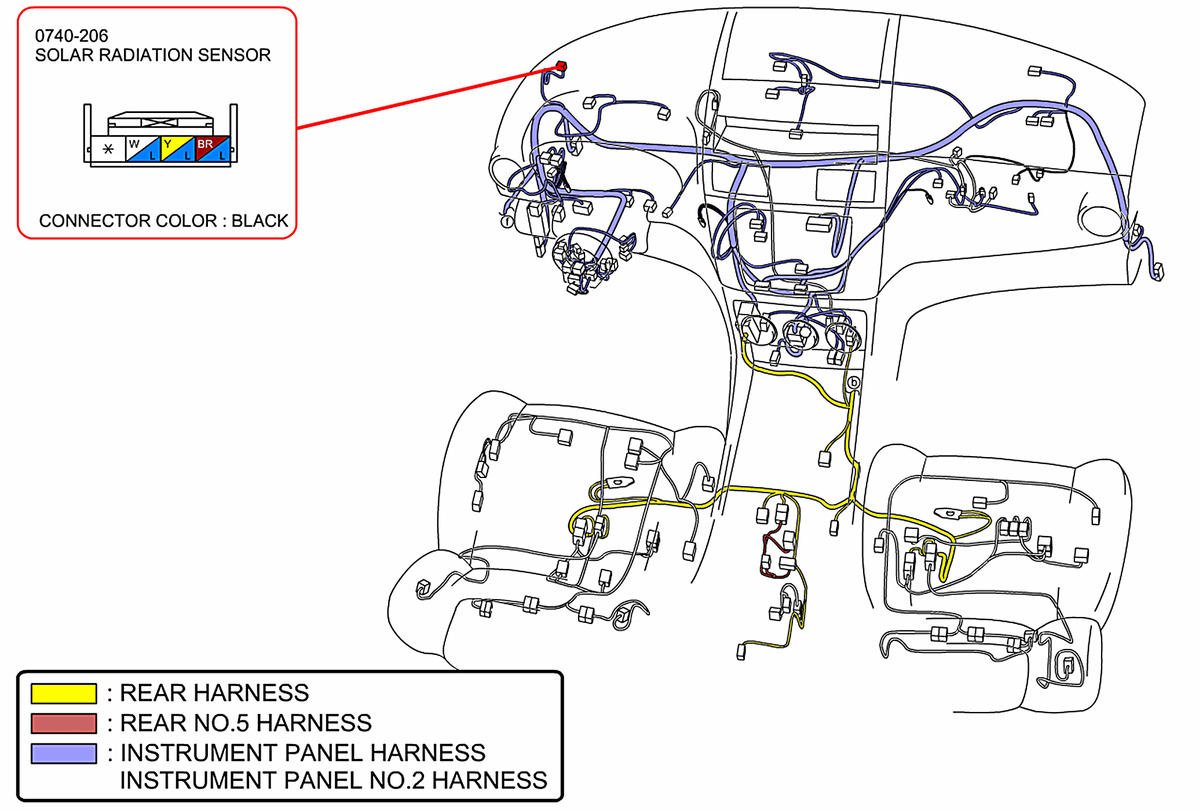

Fig 164: Upper Dash & Front Seats

G00471118

Courtesy of MAZDA MOTORS CORP.

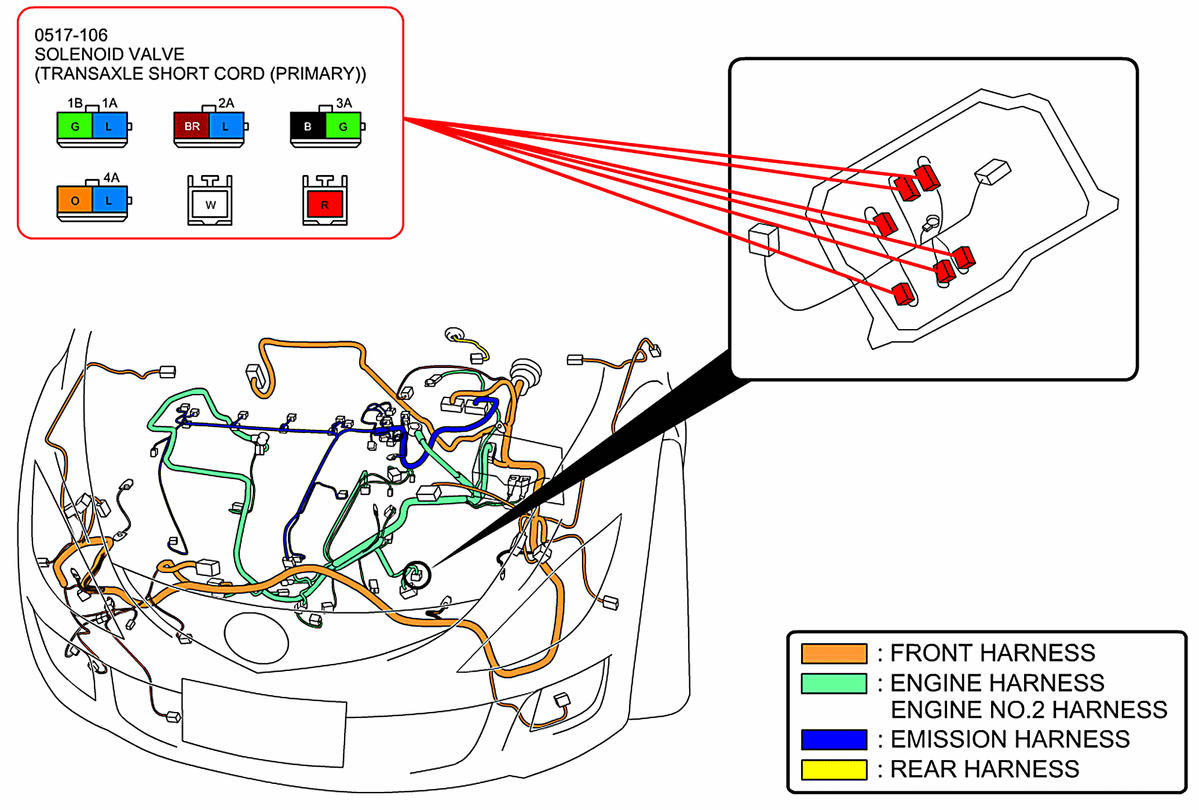

Fig 165: Engine Compartment

G00471119

Courtesy of MAZDA MOTORS CORP.

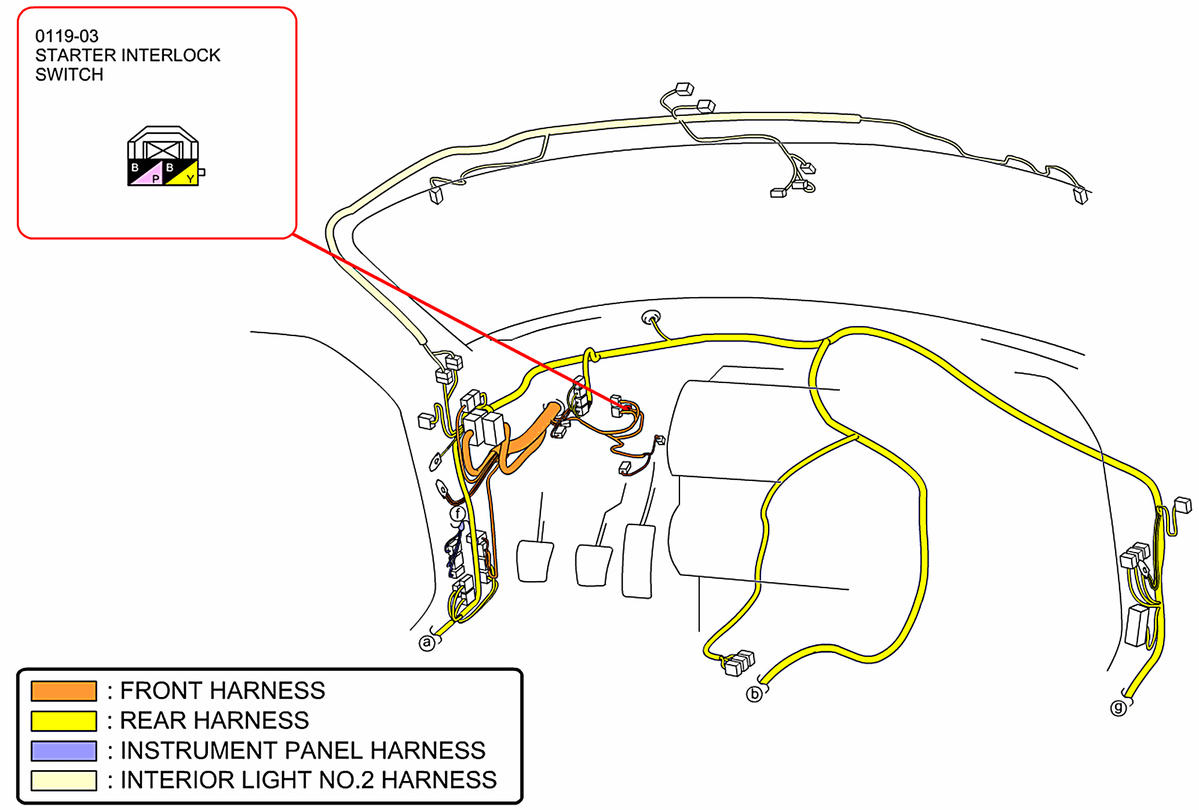

Fig 166: Lower Dash

G00471120

Courtesy of MAZDA MOTORS CORP.

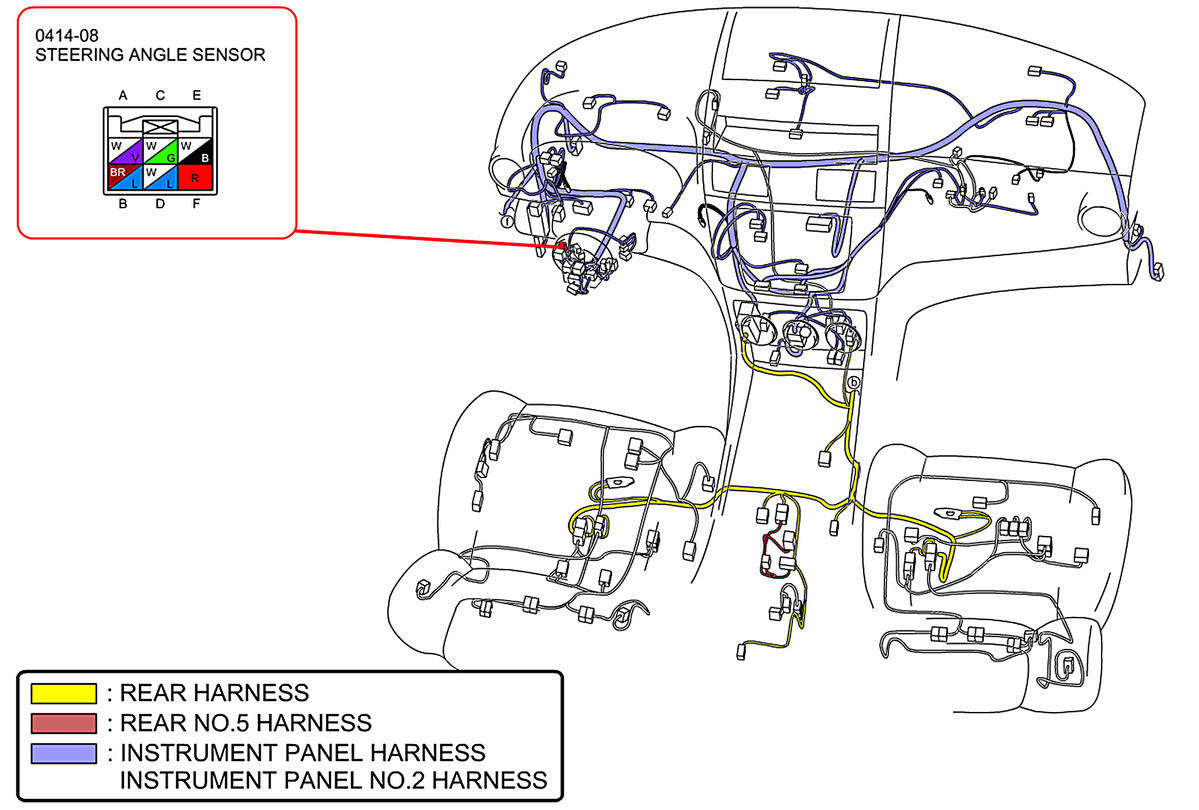

Fig 167: Upper Dash & Front Seats

G00471121

Courtesy of MAZDA MOTORS CORP.

Fig 168: Upper Dash & Front Seats

G00471122

Courtesy of MAZDA MOTORS CORP.

Fig 169: Engine Compartment

G00471123

Courtesy of MAZDA MOTORS CORP.

Fig 170: Lower Dash

G00471124

Courtesy of MAZDA MOTORS CORP.

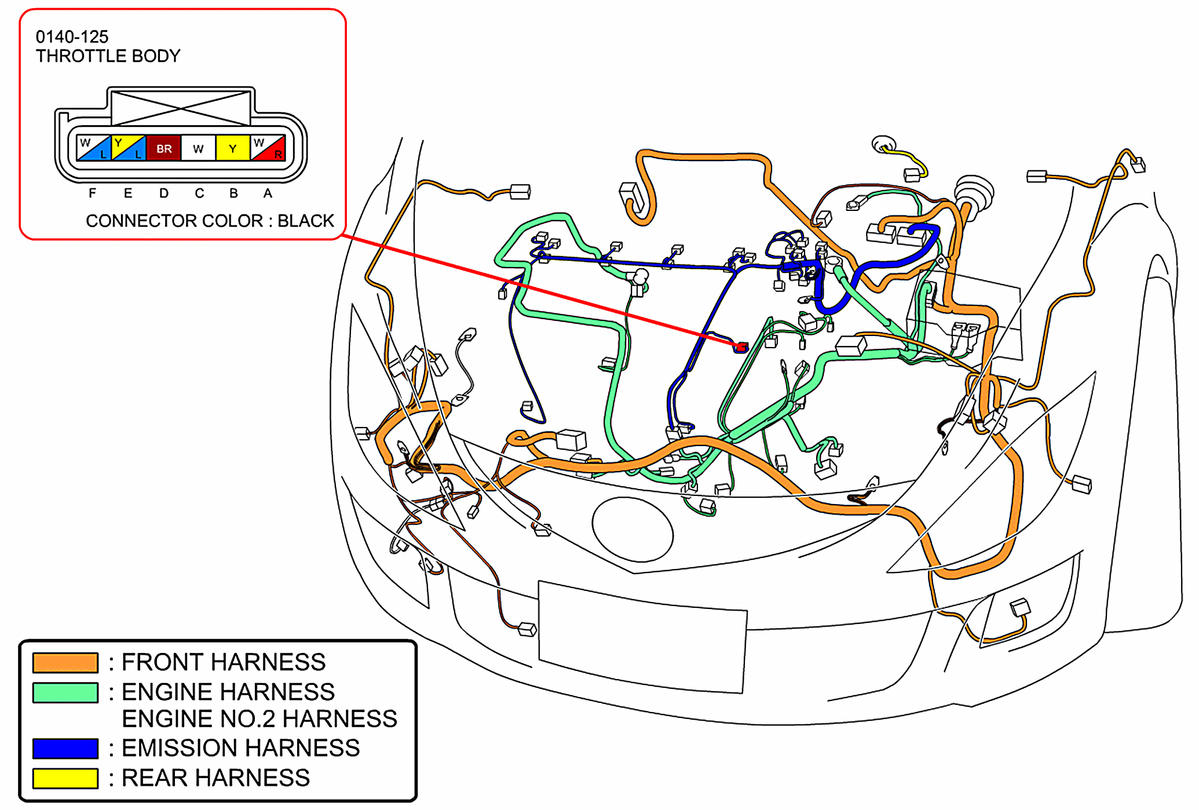

Fig 171: Engine Compartment (2.5L)

G00471125

Courtesy of MAZDA MOTORS CORP.

Fig 172: Engine Compartment (3.7L)

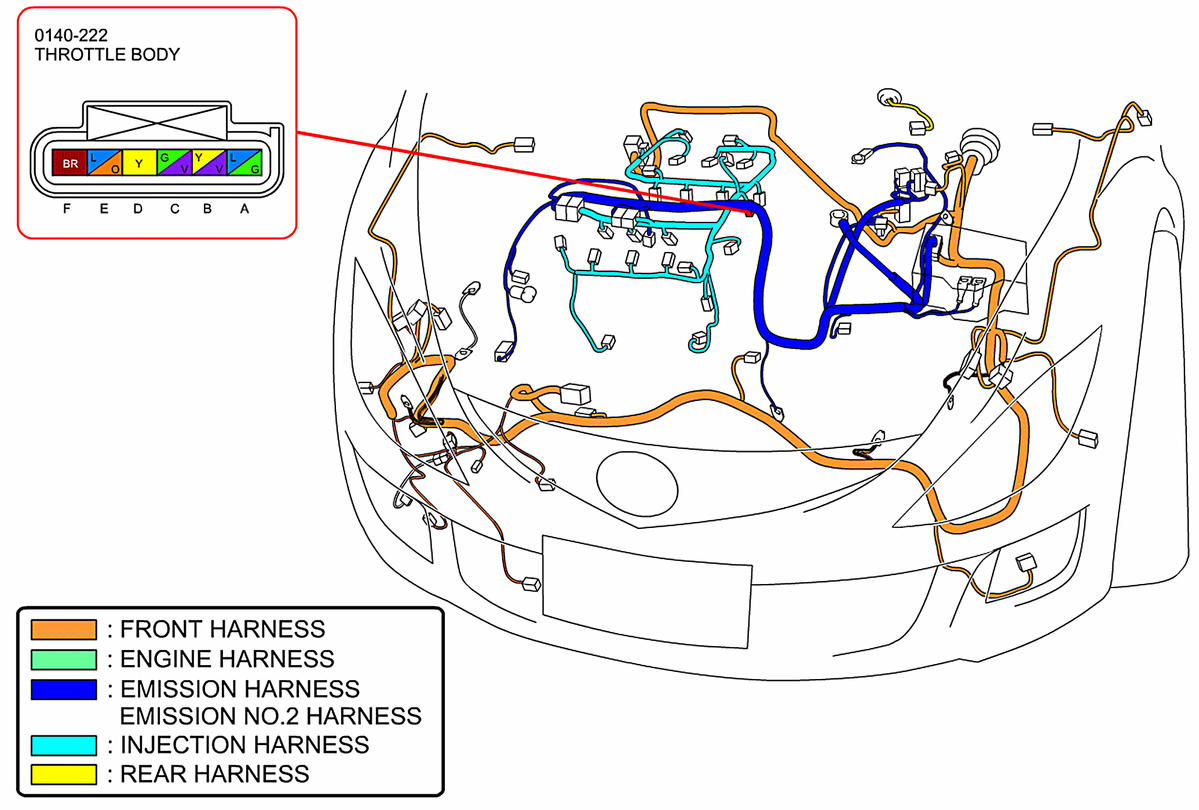

G00471126

Courtesy of MAZDA MOTORS CORP.

Fig 173: Engine Compartment

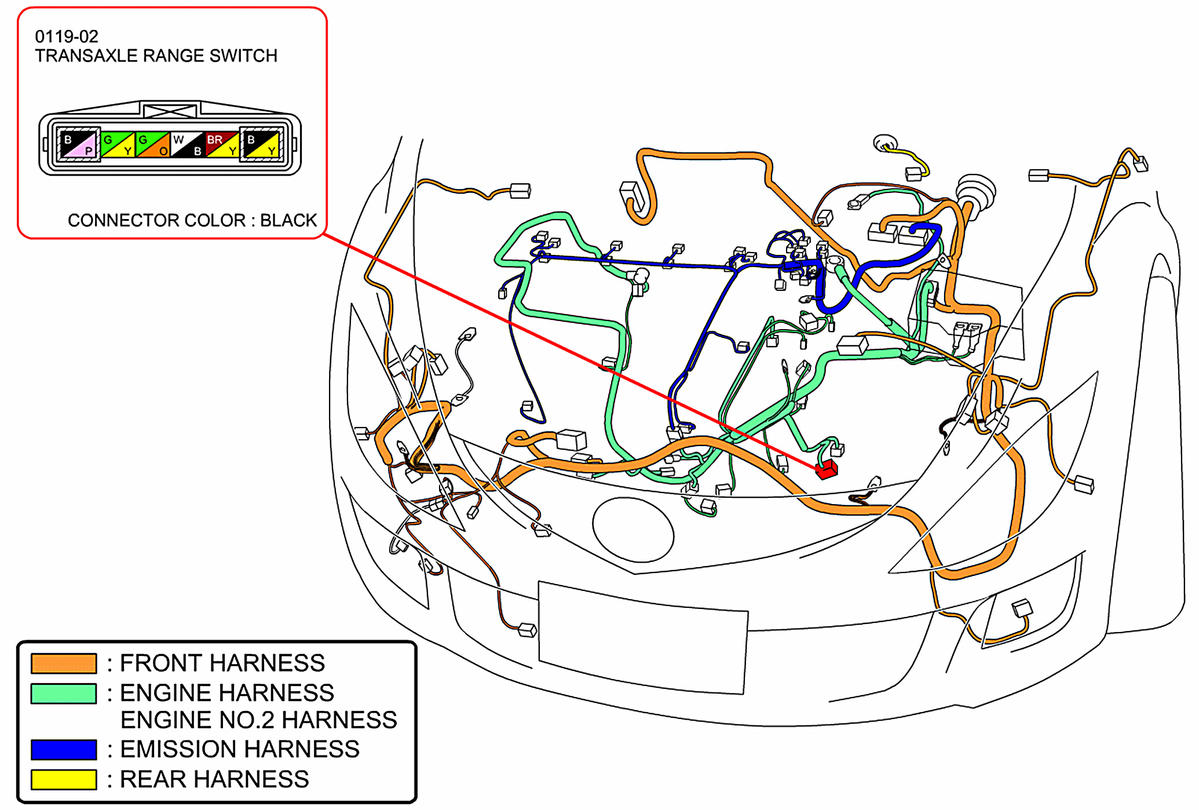

G00471127

Courtesy of MAZDA MOTORS CORP.

Fig 174: Engine Compartment

G00471128

Courtesy of MAZDA MOTORS CORP.

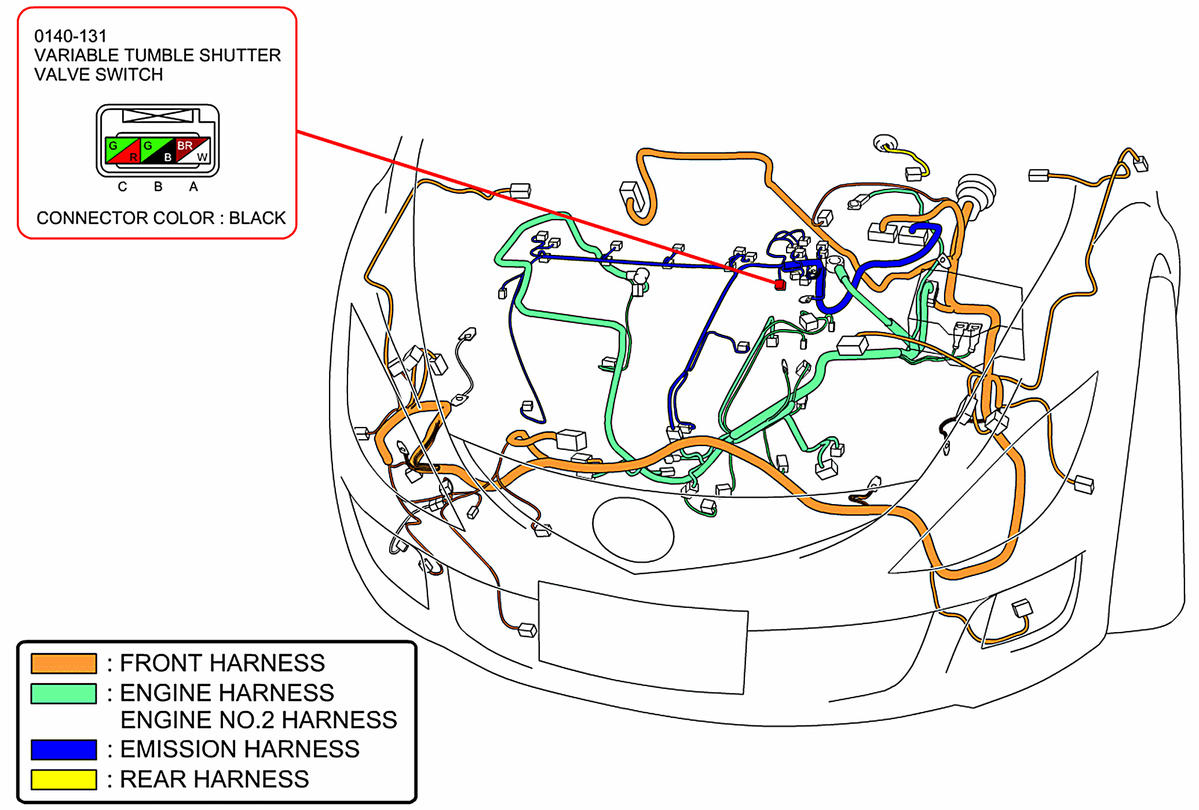

Fig 175: Engine Compartment

G00471129

Courtesy of MAZDA MOTORS CORP.

Fig 176: Engine Compartment

G00471130

Courtesy of MAZDA MOTORS CORP.

Fig 177: Engine Compartment (2.5L)

G00471131

Courtesy of MAZDA MOTORS CORP.

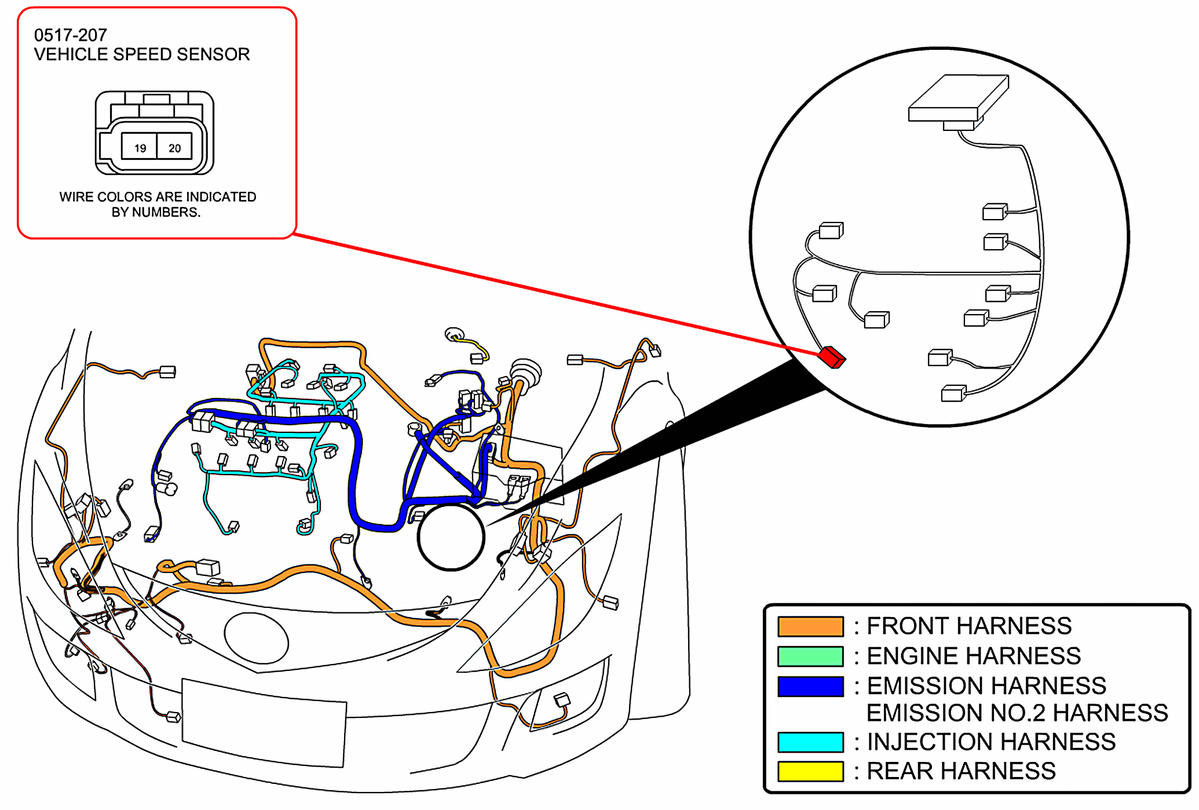

Fig 178: Engine Compartment (3.7L)

G00471132

Courtesy of MAZDA MOTORS CORP.

Fig 179: Engine Compartment

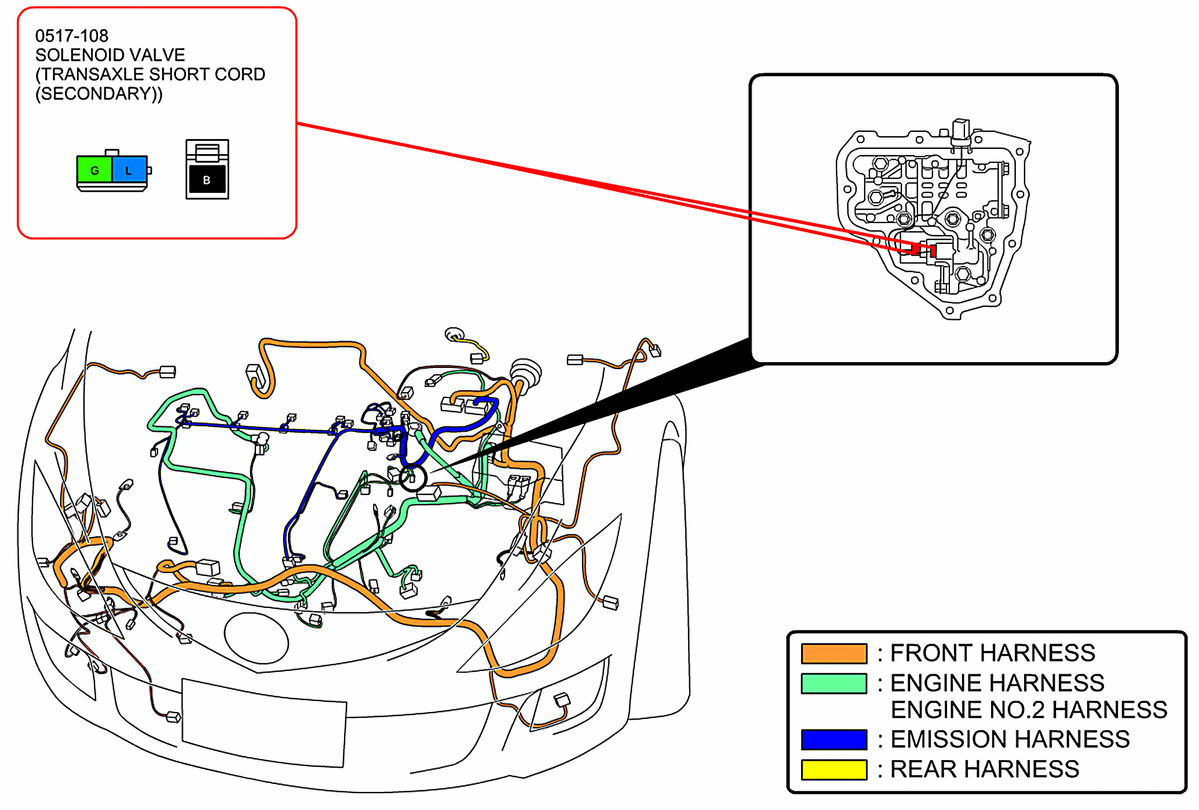

G00471133

Courtesy of MAZDA MOTORS CORP.

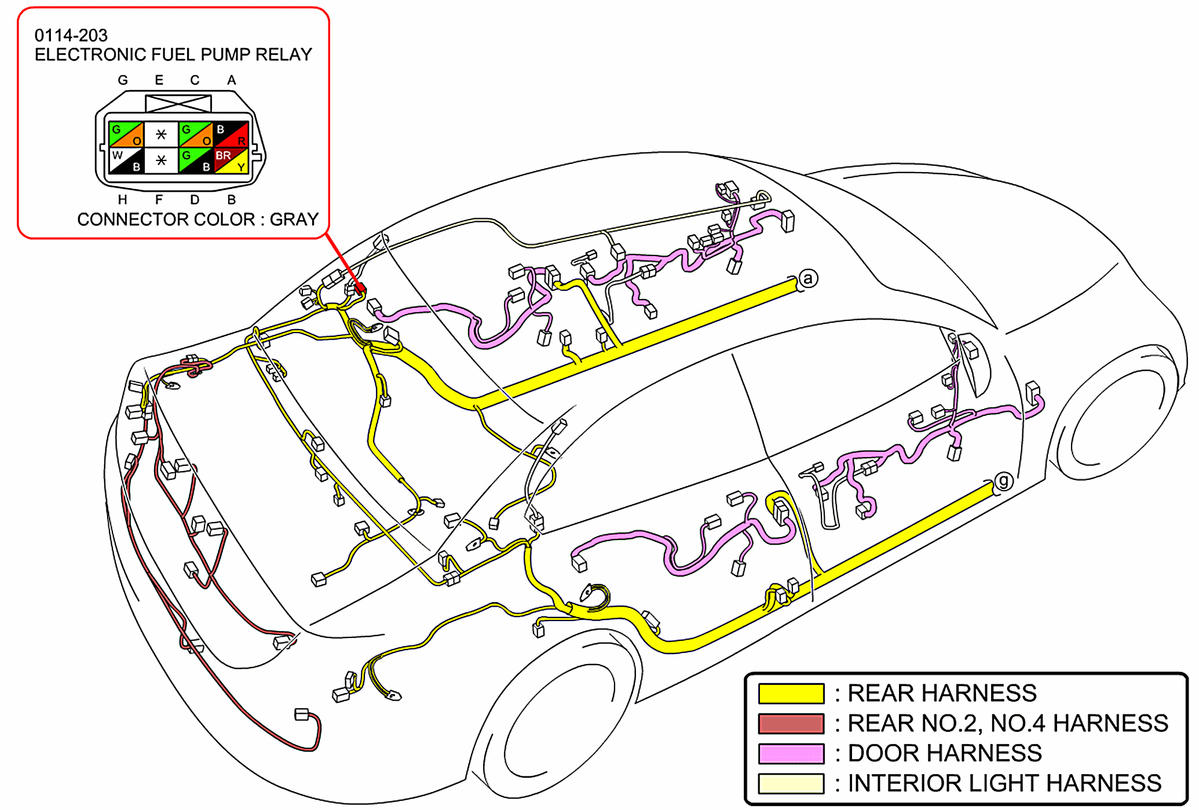

Fig 180: Body Overview

G00471134

Courtesy of MAZDA MOTORS CORP.

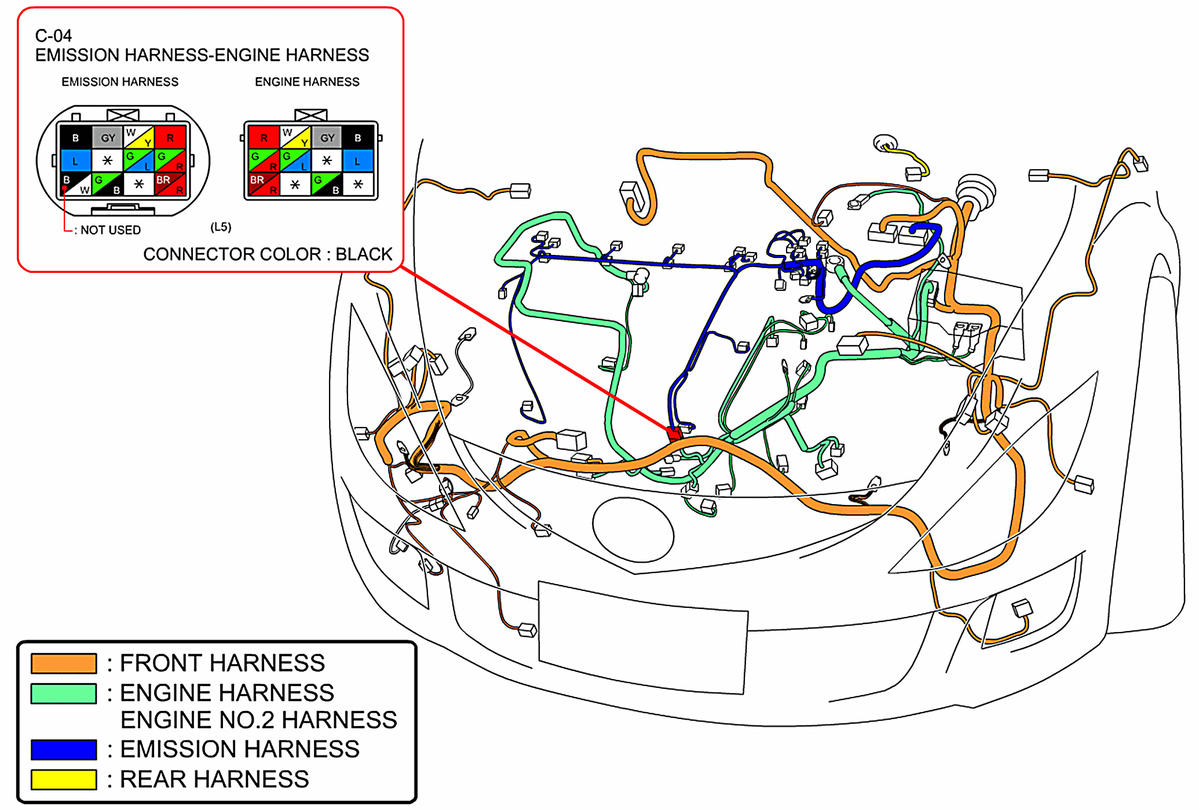

Fig 181: Engine Compartment

G00471432

Courtesy of MAZDA MOTORS CORP.

Fig 182: Upper Dash & Front Seats

G00471433

Courtesy of MAZDA MOTORS CORP.
