Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | On left front inner fender panel. See Figure. |

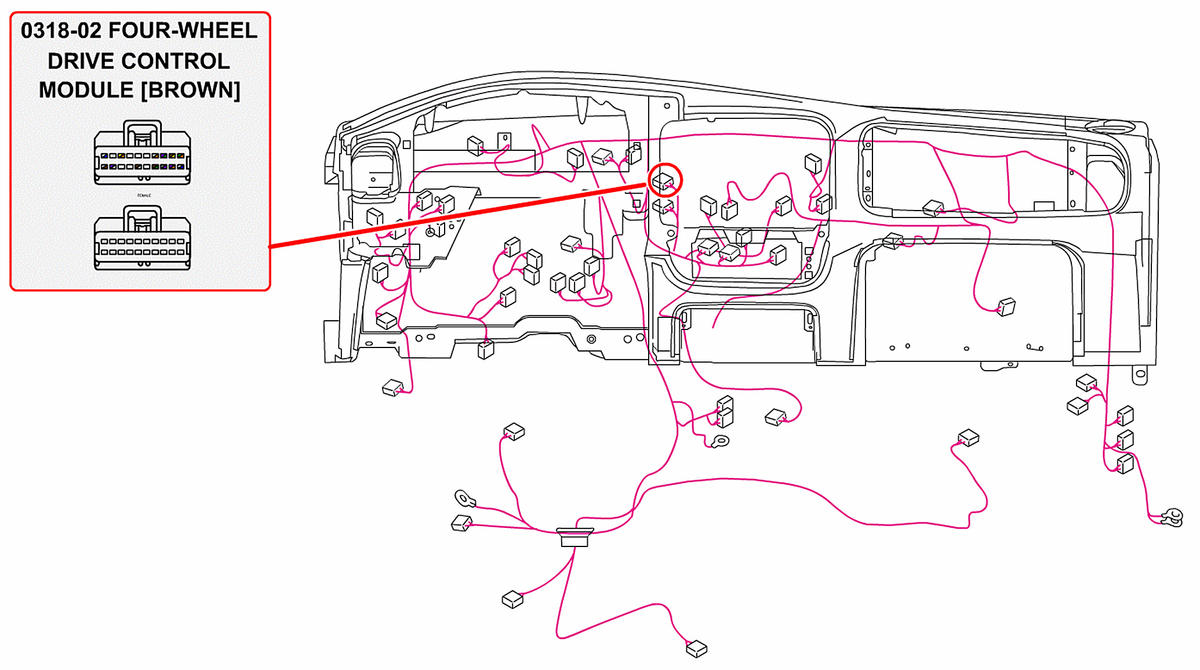

| Four Wheel Drive Control Module | Center of dash. See Figure. |

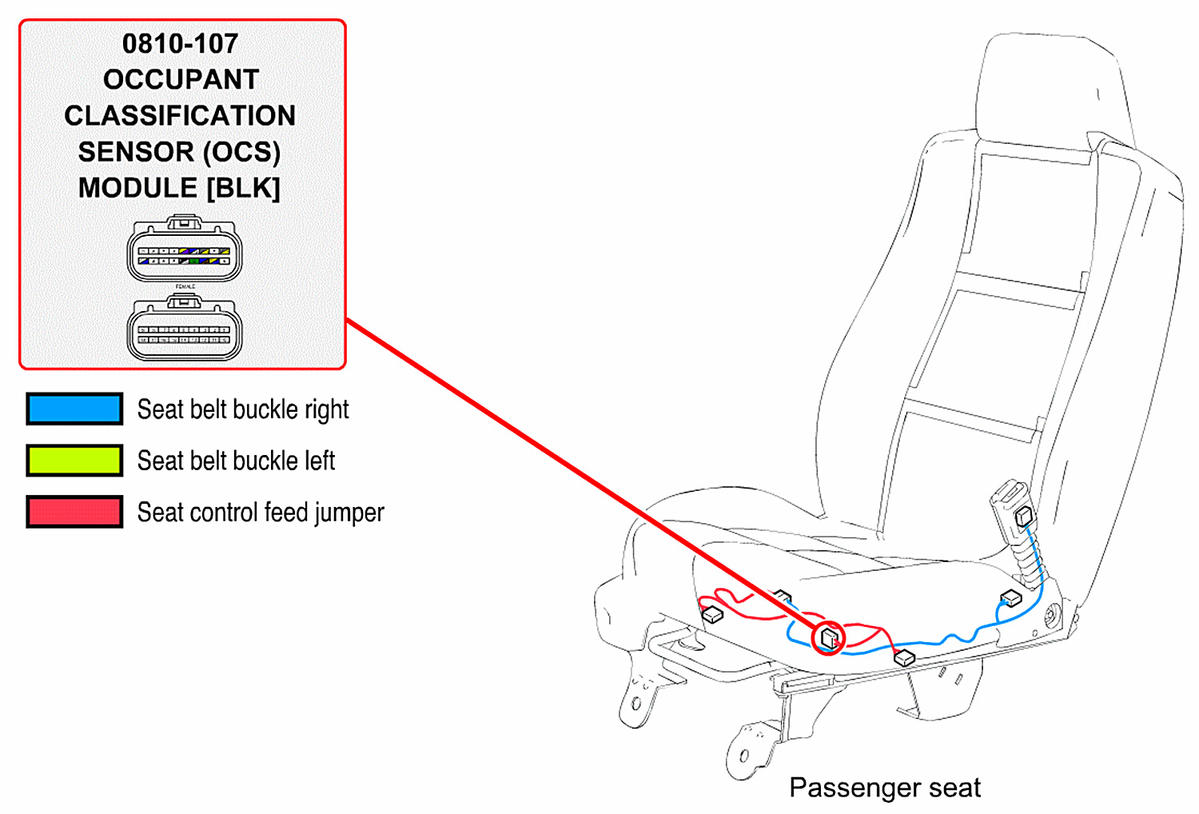

| Occupant Classification Sensor (OCS) Module | Under passenger's seat. See Figure. |
| Passenger Air Bag Module | Behind right side of dash. See Figure. |
| Powertrain Control Module (PCM) (2.3L) | At right rear of engine compartment, through firewall. See Figure. |
| Powertrain Control Module (PCM) (4.0L) | At right rear of engine compartment, through firewall. See Figure. |
| Restraints Control Module | Below center of dash. See Figure. |
