Door Switch Removal/Installation: Front
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove in the order indicated in the table/figure.

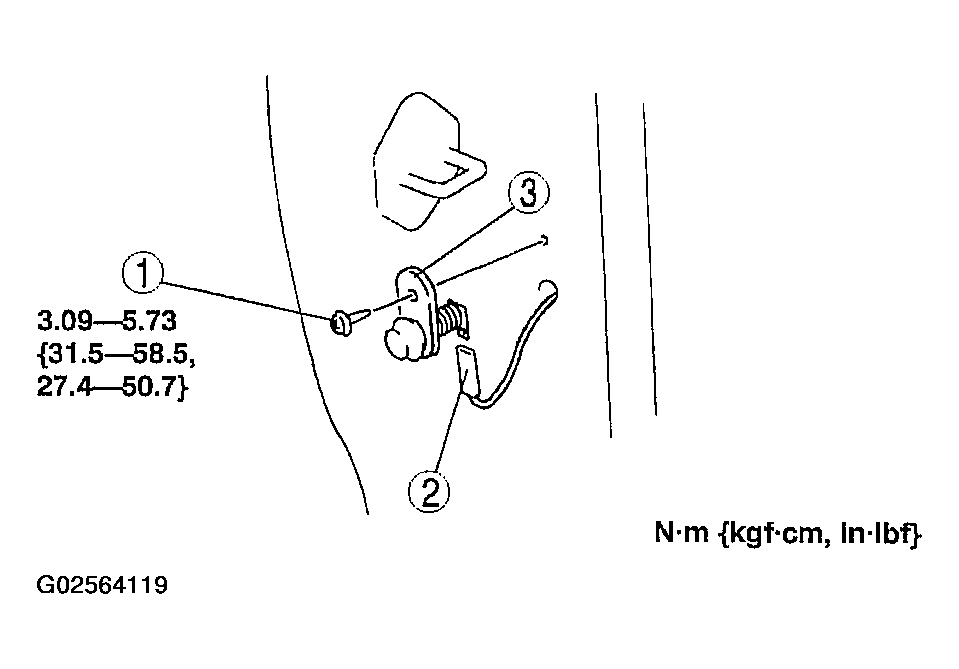

REMOVING/INSTALLING DOOR SWITCH - FRONT
| Component/Step No. |
Component Description |
| 1 |
Screw |
| 2 |
Connector |
| 3 |
Door switch |
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
