Control System Location Index [LF]

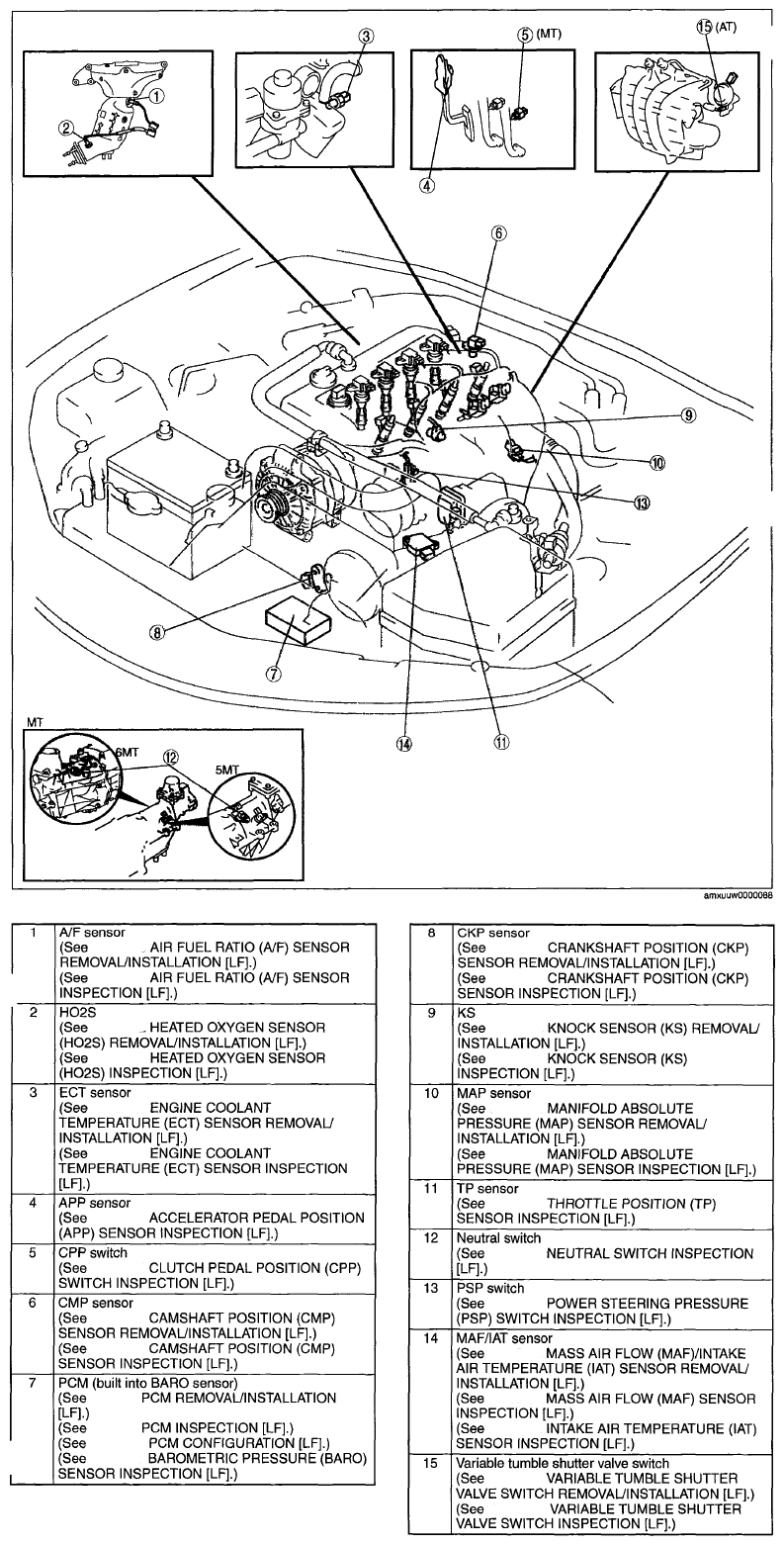

Fig 1: Identifying Control System Components Location

G06151034

Courtesy of MAZDA MOTORS CORP.
