Total Toe-In Adjustment

Loosen the installation nut of the adjusting cam bolt.

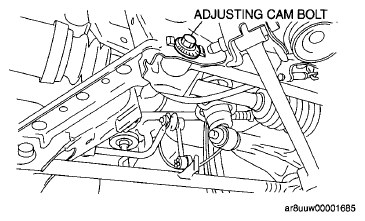

Fig 1: Identifying Adjusting Cam Bolt
Courtesy of MAZDA MOTORS CORP.
Rotate the adjusting cam bolt in either direction to adjust the toe-in.
Standard

3.6±4 mm {0.14±0.15 in} (0°19'±20')

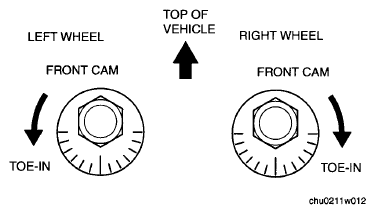

Fig 2: Cam Bolt Adjusting Positions
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Refer to the following figure for the adjusting angle per one graduation of the toe-in gauge.
Tighten the nut.
Tightening torque

70-95 N.m {7.2-9.6 kgf.m, 52-70 ft.lbf}

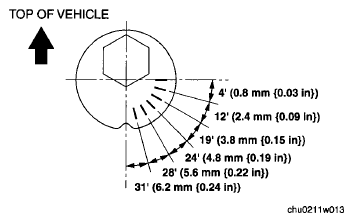

Fig 3: Identifying Adjusting Angle Per One Graduation Of Toe-In Gauge

Courtesy of MAZDA MOTORS CORP.
