Combined Sensor Removal/Installation

CAUTION:
  • The DSC may not function normally immediately after the combined sensor is replaced. After installation, always perform the initialization procedures for the combined sensor.
  • The internal parts of the combined sensor could be damaged if dropped. Be careful not to drop the combined sensor. Replace the combined sensor if it is subjected to an impact. Also, do not use an impact wrench or other similar air tools when removing/installing the sensor.
  1. Perform the following procedures:
    1. Remove the front seat (RH). (See FRONT SEAT REMOVAL/INSTALLATION .)
    2. Remove the audio amplifier. (With Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
    3. Remove the front scuff plate (RH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Remove the front side trim (RH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Remove the rear scuff plate (RH). (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Remove the B-pillar lower trim (RH). (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    7. Remove the fastener A and fastener B.
  2. Partially peel back the floor covering.
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
  5. After installation, perform the combined sensor initialization procedure. (See DSC SENSOR INITIALIZATION PROCEDURE .)

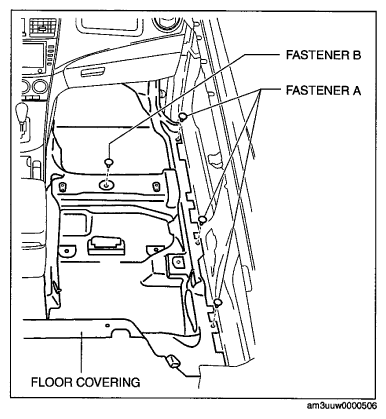

    Fig 1: Identifying Peel Back Floor Covering And Fasteners
    G06733271Courtesy of MAZDA MOTORS CORP.

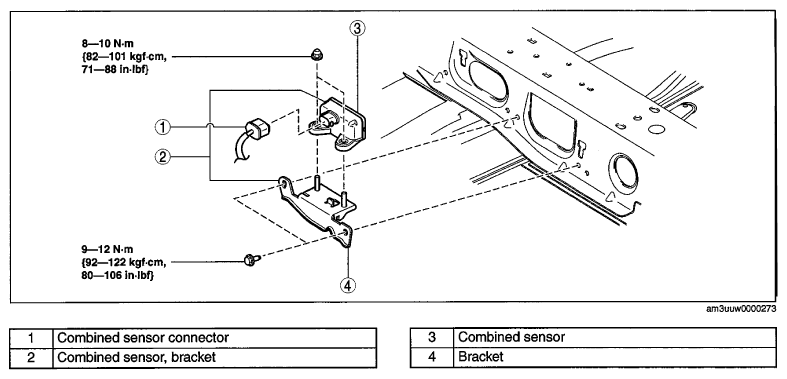

    Fig 2: Combined Sensor Replacement Components With Torque Specifications
    G06733272Courtesy of MAZDA MOTORS CORP.
