Pattern 2

Terminal:
- Windshield wiper switch input (HI): 6F (+) ↔ body ground (-)
- Headlight switch input (HI): 6I (+) ↔ body ground (-)
- Headlight switch input (front fog light): 6K (+) ↔ body ground (-)
- Headlight switch input (LO): 60 (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range

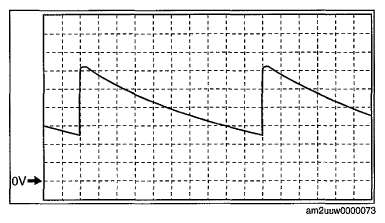

Fig 1: Switches Output Pulse (Pattern 2)

Courtesy of MAZDA MOTORS CORP.
