Pattern 7

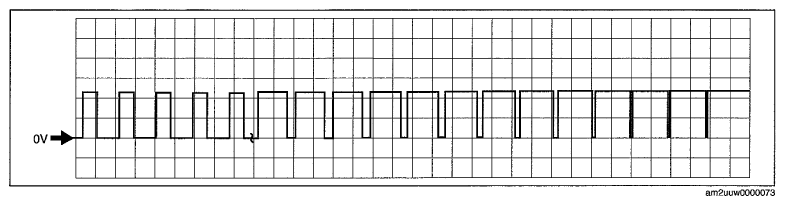

Fig 1: Switches Output Pulse (Pattern 7)

G06942401

Courtesy of MAZDA MOTORS CORP.

Terminal: 31 (+) ↔ body ground (-)
Oscilloscope setting: 5 V/DIV (Y), 5 ms/DIV (X), DC range
