DSC Off Switch Removal/Installation

  1. Remove the switch panel in the direction of the arrow shown in illustration.
  2. Disconnect the connector.

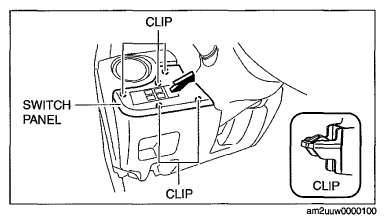

    Fig 1: Removing Switch Panel And Clips
    G06941104Courtesy of MAZDA MOTORS CORP.
  3. Press the tabs in the direction of the arrow (1) shown in illustration and remove the DSC OFF switch in the direction of the arrow (2).
  4. Install in the reverse order of removal.

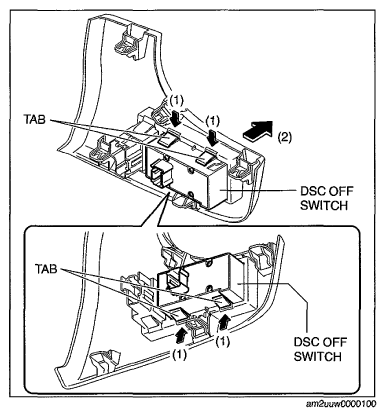

    Fig 2: Identifying Tabs And DSC OFF Switch
    G06941105Courtesy of MAZDA MOTORS CORP.
