Clip Installation Note

  1. Install the clip to the ABS wheel-speed sensor as shown in illustration.
  2. Cut the remaining band of the clip.

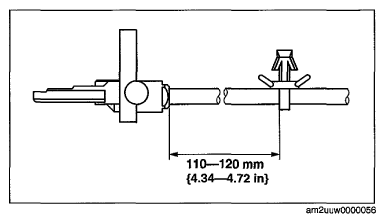

    Fig 1: Identifying ABS Wheel-Speed Sensor Clip Length
    G06941096Courtesy of MAZDA MOTORS CORP.
