Neutral Switch Inspection
- Disconnect the negative battery cable.
- Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)

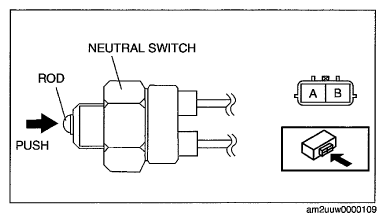

- Inspect for continuity between the neutral switch terminals using an ohmmeter.
- If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
Specification
CONTINUITY SPECIFICATION
| Measured condition | Continuity |
|---|---|
| Rod pushed | Continuity detected |
| Except above | No continuity |
