DSC Off Switch Removal/Installation

  1. Remove the switch panel in the direction of the arrow shown in the figure.
  2. Disconnect the connector.

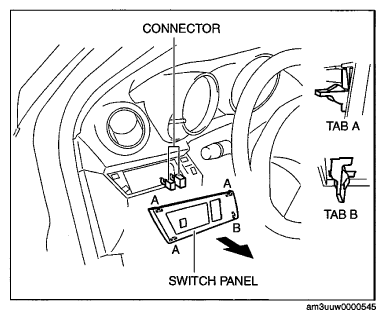

    Fig 1: Removing DSC OFF Switch Panel
    G06733278Courtesy of MAZDA MOTORS CORP.
  3. Remove the DSC OFF switch in the direction of the arrow (2) shown in the figure while pressing the tabs in the direction of the arrow (1).
  4. Remove the DSC OFF switch.
  5. Install in the reverse order of removal.

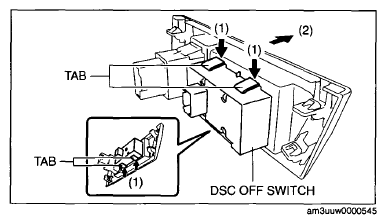

    Fig 2: Pressing Tabs In Direction
    G07874361Courtesy of MAZDA MOTORS CORP.
