Windshield Removal: Notes

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION ).
    3. Rain sensor (Vehicles with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION ).
    4. Auto-dimming mirror (Vehicles with auto-dimming mirror) (See AUTO-DIMMING MIRROR REMOVAL ).
    5. Rear view mirror (Vehicles without auto-dimming mirror) (See REARVIEW MIRROR REMOVAL ).
    6. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION ).
    7. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION ).
    8. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION ).
  3. Set the headliner out of the way.
  4. Apply protective tape along the edge of the body.
    NOTE:
    • Overlap and adhere the protective tape to the corners to prevent damage.
  5. Remove the windshield molding by pulling it outward.

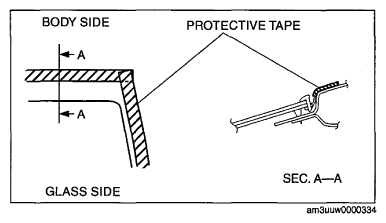

    Fig 1: Identifying Protective Tape
    G06731795Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • If the windshield molding is difficult to remove, warm the windshield molding using a hot air blower.
    • The windshield molding is a replacement part.
