Power Systems Personalization Features Setting Procedure

NOTE:
  • Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the POWER SYSTEMS PERSONALIZATION FEATURES SETTING PROCEDURE.
  1. Connect the M-MDS to the DLC-2.
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    1. Select the "Module Programming".
  3. Then, select items from the screen menu in the following order.
    1. Select "Programmable Parameters".
    2. Select "RKE".
  4. Select an item name, and then select option.

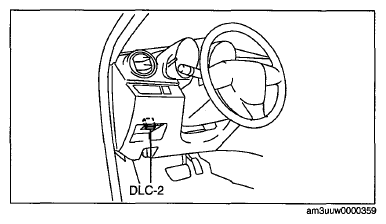

    Fig 1: Identifying DLC-2
    G06733226Courtesy of MAZDA MOTORS CORP.
    M-MDS display Function Initial setting Setting content Control unit
    ACC auto off The function to automatically switch off the ignition after one hour has elapsed since the ignition was switched to ACC can be set to operable or inoperable. Enabled Disabled/Enabled Keyless control module
    Power off mode The transition pattern in which the ignition position is switched by pressing the push button start can be selected. Direct Direct/Stepwise Keyless control module
