Pcm Configuration: Notes

NOTE:
  • Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the PCM CONFIGURATION.
  1. Connect the M-MDS to the DLC-2.
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    • When using the IDS (laptop PC)
      1. Select the "Module Programming".
  3. Then, select items from the screen menu in the following order.
    1. Select "Programmable Module Installation".
    2. Select "PCM".
  4. Perform the configuration according to the directions on the screen.

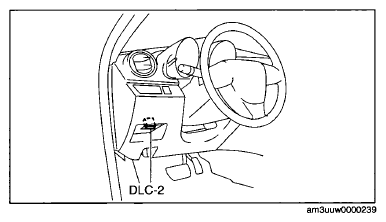

    Fig 1: Identifying DLC-2
    G07868512Courtesy of MAZDA MOTORS CORP.
  5. Retrieve DTCs by the M-MDS, then verify that there is no DTC present.
    • If a DTC(s) is detected, perform the applicable DTC inspection. (See DTC TABLE ).
