Pattern 1

Terminal: 8G (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range

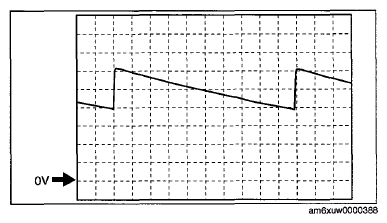

Fig 1: Voltage Signal Pattern 1

G07622603

Courtesy of MAZDA MOTORS CORP.
