Pattern 3

Terminal: 5F (+) ↔ body ground (-)
Oscilloscope setting: 1 V/DIV (Y), 200μs/DIV (X), DC range

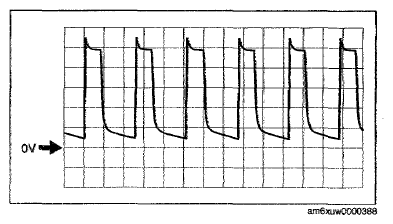

Fig 1: Voltage Signal Pattern 3

G07622605

Courtesy of MAZDA MOTORS CORP.
