Brake Fluid Pressure Sensor Inspection

1. Switch the ignition to off.
2. Disconnect the brake pipe.
3. Remove the brake hose (LF).
4. Remove the bracket.
   Fig 1: Brake Hose, Bracket And Brake Pipe Flare Nut

   Courtesy of MAZDA MOTORS CORP.
5. Install the SSTs  to the brake pipe as shown in the illustration.
6. Perform air bleeding of the SST  and brake fine from bleeder screw A.

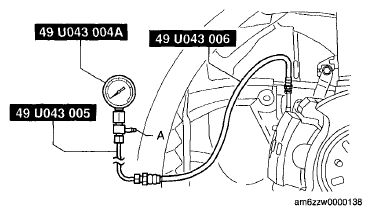

   Fig 2: Installing SSTs To Brake Pipe

   Courtesy of MAZDA MOTORS CORP.
7. Connect the M-MDS (IDS) to the DLC-2.
8. Select the "MCYLI_P" PID. (See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)] .)
9. Start the engine.
10. Depress the brake pedal, and verify that the fluid pressure value of the SST  (gauge) and the value shown on the M-MDS are equal.
    • If the fluid pressure values are different, replace the DSC HU/CM. (See DSC HU/CM REMOVAL/INSTALLATION .)
11. Remove the SSTs after the inspection and install the bracket, brake hose and brake pipe to their original positions. (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION .)
12. Perform air bleeding of the brake line. (See BRAKE FLUID AIR BLEEDING .)
