Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the nuts.
  3. Remove the main fuse from the main fuse block.
  4. Install in the reverse order of removal.

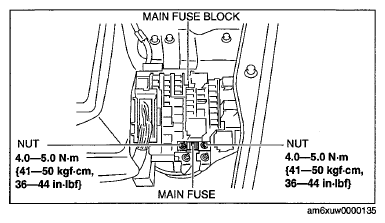

Fig 1: Main Fuse Block And Nuts With Torque Specification
G07622472Courtesy of MAZDA MOTORS CORP.
