DSC HU/Cm Removal/Installation: Notes
CAUTION:
- When replacing the DSC HU/CM, the configuration procedure must be done before removing the DSC HU/CM. If the configuration is not completed before removing the DSC HU/CM, DSC will not work properly after installation of the DSC HU/CM.
- The DSC may not function normally when the DSC HU/CM is replaced. After installation, always perform the initialization procedures for the combined sensor and the steering angle sensor.
- The internal parts of the DSC HU/CM could be damaged if dropped. Be careful not to drop the DSC HU/CM. Replace the DSC HU/CM if it is subjected to an impact.
- Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP] .)
- Remove the front suspension tower bar. (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION [MT] .) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION [AT] .)

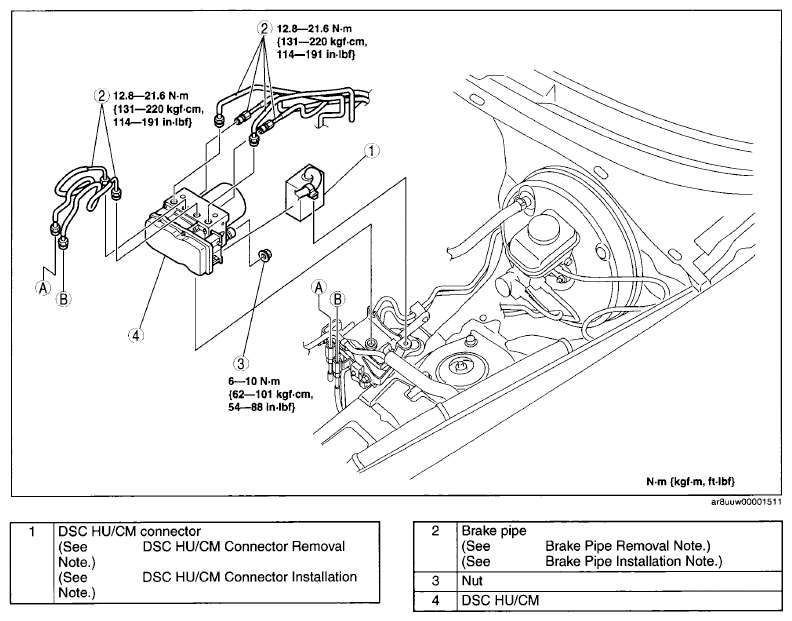

- Remove in the order indicated in the figure below.
- Install in the reverse order of removal.
- Configure the DSC HU/CM. (See DSC CONFIGURATION .)
- After installation, perform the combined sensor initialization procedure. (See COMBINED SENSOR INITIALIZATION PROCEDURE .)
- After installation, perform the steering angle sensor initialization procedure. (See STEERING ANGLE SENSOR INITIALIZATION PROCEDURE .)
