DSC Off Switch Inspection

  1. Remove the DSC OFF switch.
  2. Verify that the continuity is as indicated in the continuity chart below.
    • If not as indicated in the chart, replace the DSC OFF switch.

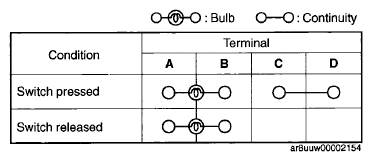

    Fig 1: DSC OFF Switch Continuity Chart
    G05985227Courtesy of MAZDA MOTORS CORP.

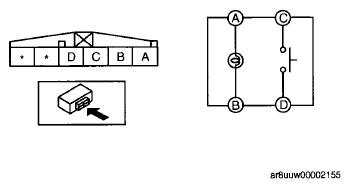

    Fig 2: Identifying DSC OFF Switch Connector Terminals
    G05985228Courtesy of MAZDA MOTORS CORP.
