Rear Abs Wheel-Speed Sensor Removal/Installation

1. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the figure below.
3. Install in the reverse order of removal.

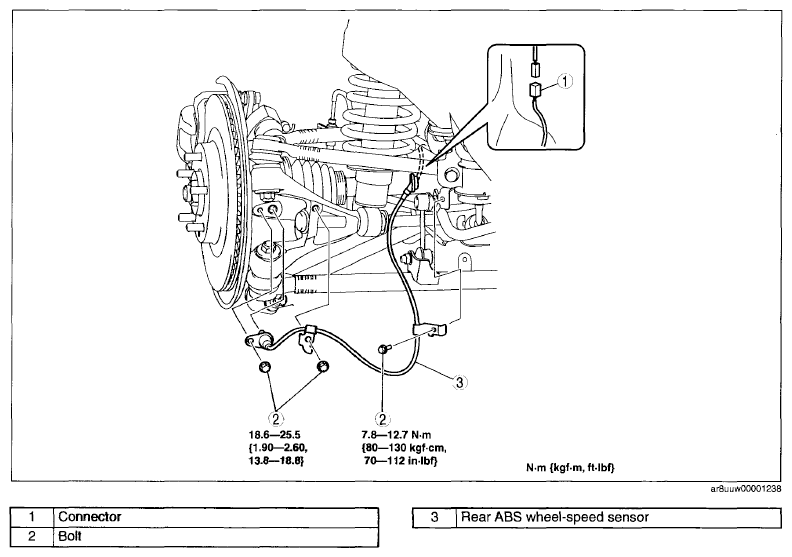

Fig 1: Rear ABS Wheel-Speed Sensor Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
