DSC Off Switch Removal/Installation

  1. Remove in the order indicated in the figure below.

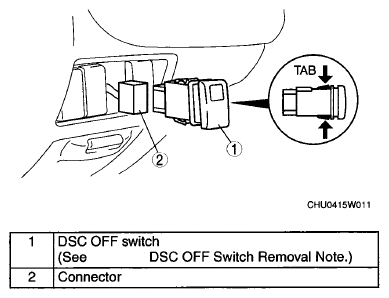

    Fig 1: Identifying DSC OFF Switch Components
    G05985226Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
