Eccentric Shaft Position Plate Inspection

1. Verify that there are no cracks, damage, or corrosion on the projecting parts of the eccentric shaft position plate.

• If there are cracks, damage, or corrosion on the projecting parts, replace the eccentric shaft position plate. (See ECCENTRIC SHAFT POSITION PLATE REMOVAL/INSTALLATION .)

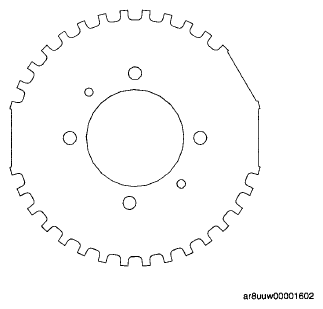

Fig 1: Identifying Damaged Eccentric Shaft Position Plate

Courtesy of MAZDA MOTORS CORP.
