Eccentric Shaft Position Plate Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] )
  2. Disconnect the negative battery cable.
  3. Remove the drive belt referring to the drive belt replacement. (See DRIVE BELT REPLACEMENT .)
  4. Remove in the order indicated in the table.

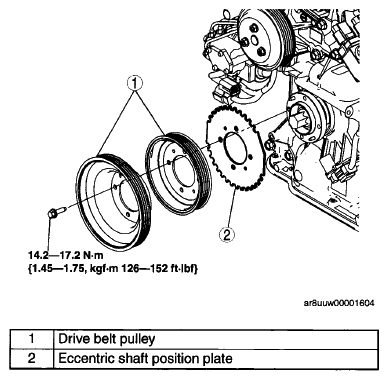

    5. Fig 1: Drive Belt Pulley, Eccentric Shaft Position Plate Screws With Torque Specifications
    G05981158Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
