Metering Oil Pump Driver Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
  2. Disconnect the negative battery cable.
  3. Disconnect the metering oil pump driver connector.
  4. Remove the metering oil pump driver.
  5. Install in the reverse order of removal.

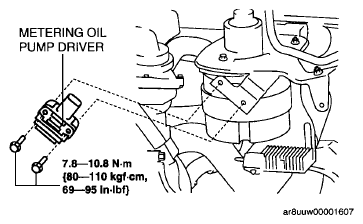

Fig 1: Metering Oil Pump Driver Screws With Torque Specifications
G05981161Courtesy of MAZDA MOTORS CORP.
