Oil Pressure Sensor Removal/Installation

1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
2. Disconnect the negative battery cable.
3. Remove the extension manifold (upper.) (Refer to the INTAKE MANIFOLD REMOVAL/INSTALLATION [13B-MSP] in the appropriate Intake-Air System article )
4. Remove the extension manifold (lower.) (Refer to the INTAKE MANIFOLD REMOVAL/INSTALLATION [13B-MSP] in the appropriate Intake-Air System article )
5. Disconnect the oil pressure sensor connector.
6. Remove the oil pressure sensor.
7. Install in the reverse order of removal.

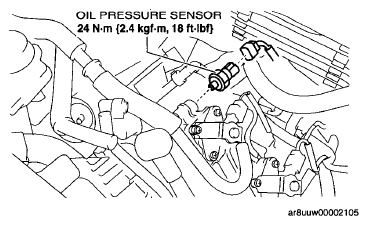

Fig 1: Oil Pressure Sensor Screws With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
