Pcm Removal/Installation
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
- Disconnect the negative battery cable.

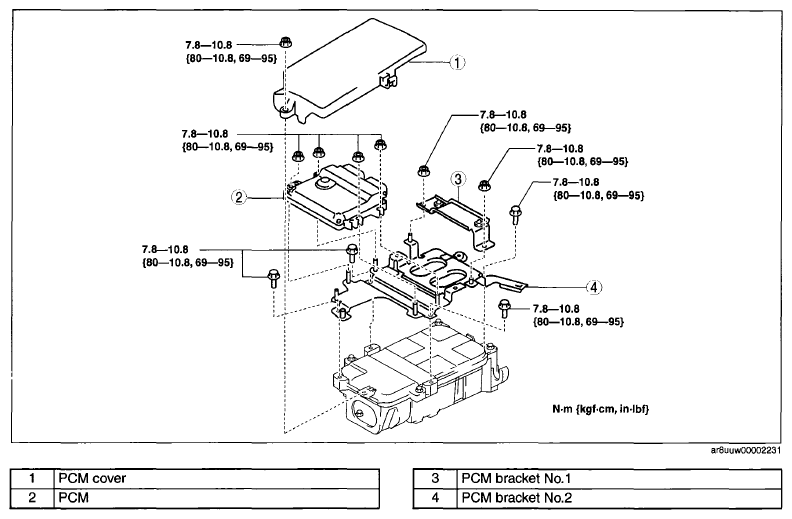

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- When replacing the PCM on the vehicles, perform the following:
- PCM configuration (See PCM CONFIGURATION .)
- Immobilizer system component replacement/key addition and clearing (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [WITH ADVANCED KEYLESS SYSTEM] .) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [WITH KEYLESS ENTRY SYSTEM] .)
