Pcm Temperature Sensor Inspection
NOTE:
- Before performing the following inspection, make sure to follow the troubleshooting flowchart. (Refer to the FOREWORD [13B-MSP] in the appropriate Symptom Troubleshooting - Engine article .)

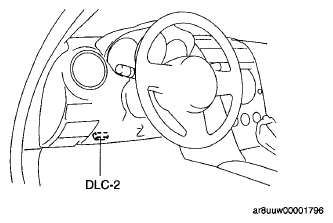

- Connect the M-MDS to the DLC-2.
- Turn the ignition switch to the ON position.
- Select PCM_T on the M-MDS.
- Verify that the PCM_T PID voltage is within the specification.
- If not as verified, replace the PCM. (See PCM REMOVAL/INSTALLATION .)
PCM Temperature Sensor Output Voltage 1.2-2.6 V
