Fuel Injector Removal/Installation: Notes

1. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
3. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
4. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] .)
5. Remove the extension manifold (upper and lower.) (Refer to the INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP] in appropriate Intake-Air System article .)
6. Remove the oil filler pipe. (Refer to the INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [13B-MSP] in appropriate Intake-Air System article .)
7. Remove the metering oil pump (No. 1, No. 2.) (See METERING OIL PUMP REMOVAL/INSTALLATION .)
8. Remove the metering oil pump bracket (No. 1, No. 2.) (See METERING OIL PUMP BRACKET INSTALLATION NOTE .)
9. Remove in the order indicated in the table.
10. Install in the reverse order of removal.
11. Perform the VDI operation inspection. (Refer to the VARIABLE DYNAMIC EFFECT INTAKE-AIR (VDI) SOLENOID VALVE INSPECTION [13B-MSP] in appropriate Intake-Air article .)
12. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

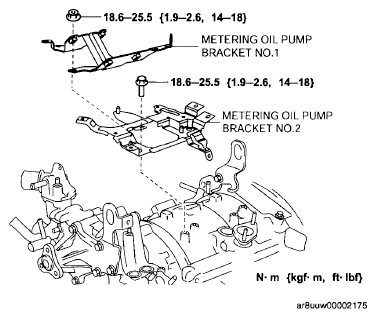

Fig 1: Metering Oil Pump Bracket Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

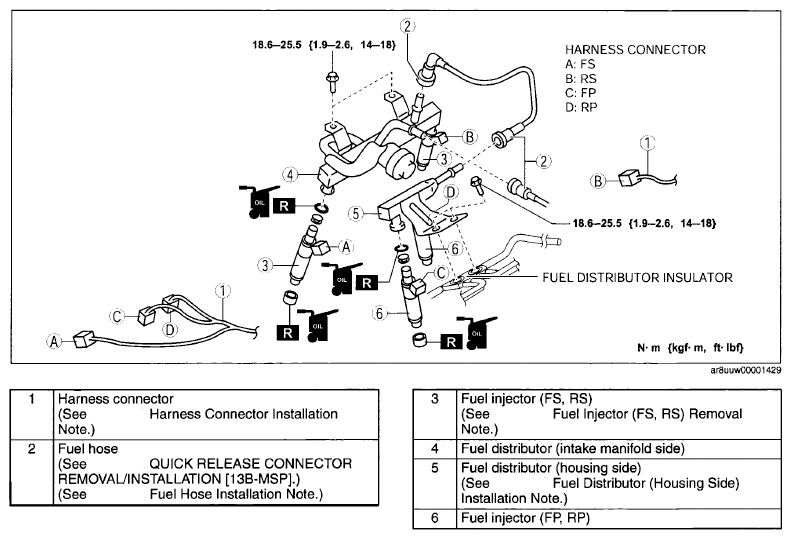

Fig 2: Fuel Injector Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
