Ignition Coil Removal/Installation

  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION ).
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] ).
  3. Remove the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [13B-MSP] ).
  4. Remove the air hose (air cleaner to throttle body). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
  5. Remove in the order indicated in the table in figure.
  6. Install in the reverse order of removal.

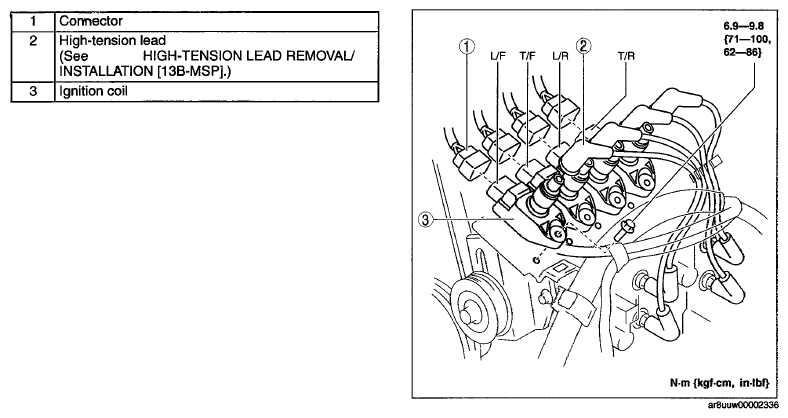

    Fig 1: Ignition Coil, Connector, High-Tension Lead And Bolt With Torque Specifications
    G07878223Courtesy of MAZDA MOTORS CORP.
