After Repair Procedure

  1. Connect the M-MDS to the DLC-2.
  2. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
    • When using the IDS (laptop PC)
      1. Select "Self Test".
      2. Select "Modules".
      3. Select "PCM".
      4. Select "Retrieve CMDTCs".
    • When using the PDS (Pocket PC)
      1. Select "Module Tests".
      2. Select "PCM".
      3. Select "Self Test".
      4. Select "Retrieve CMDTCs".

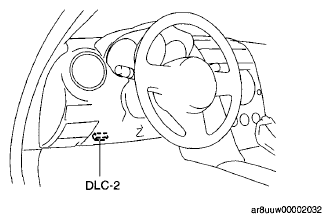

    Fig 1: Identifying DLC-2
    G05982299Courtesy of MAZDA MOTORS CORP.
  3. Verify the DTC according to the directions on the M-MDS screen.
  4. Press the clear button on the DTC screen to clear the DTC.
  5. Verify that no DTCs are displayed.
