Engine Ignition - LH

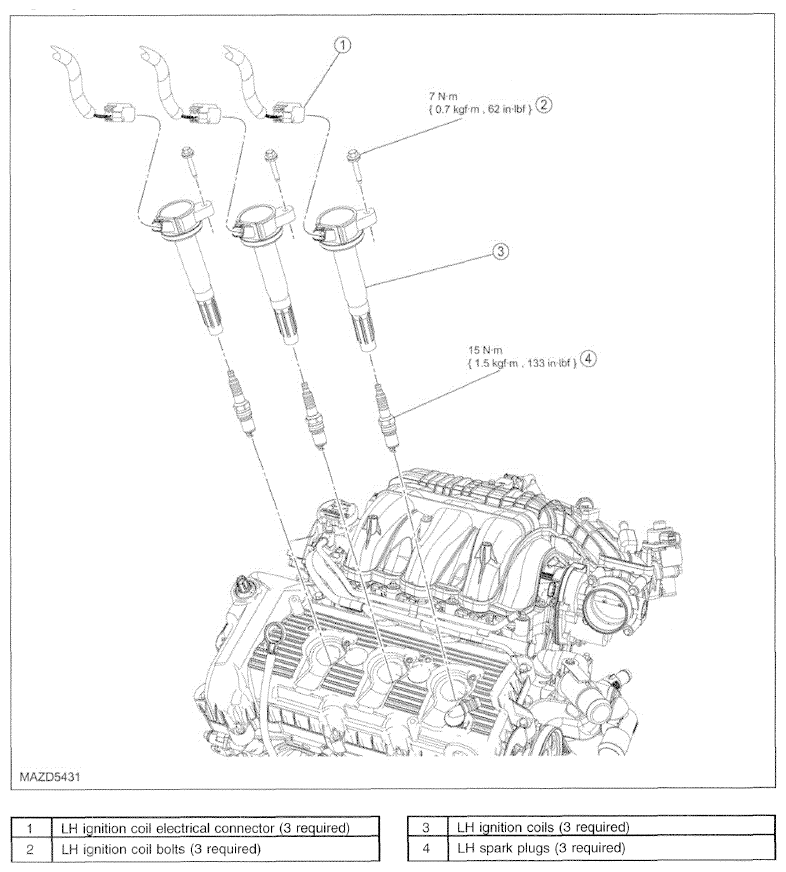

Fig 1: Exploded View Of Engine Ignition Components (LH) With Torque Specification - 3.0L

Courtesy of MAZDA MOTORS CORP.

For additional information, see the appropriate procedures in this service information.
