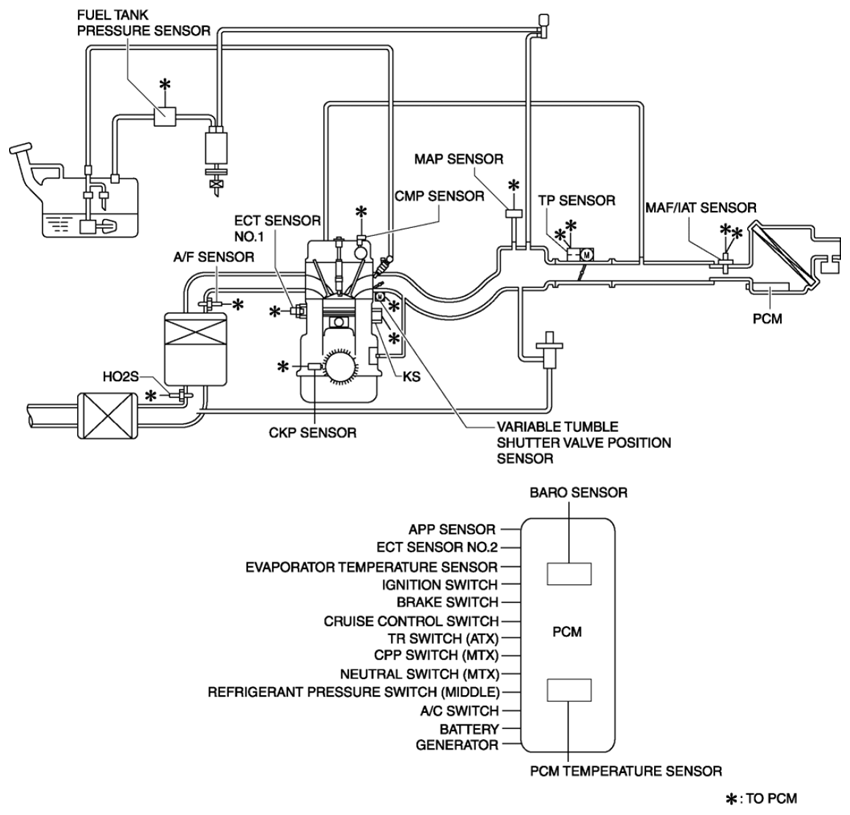

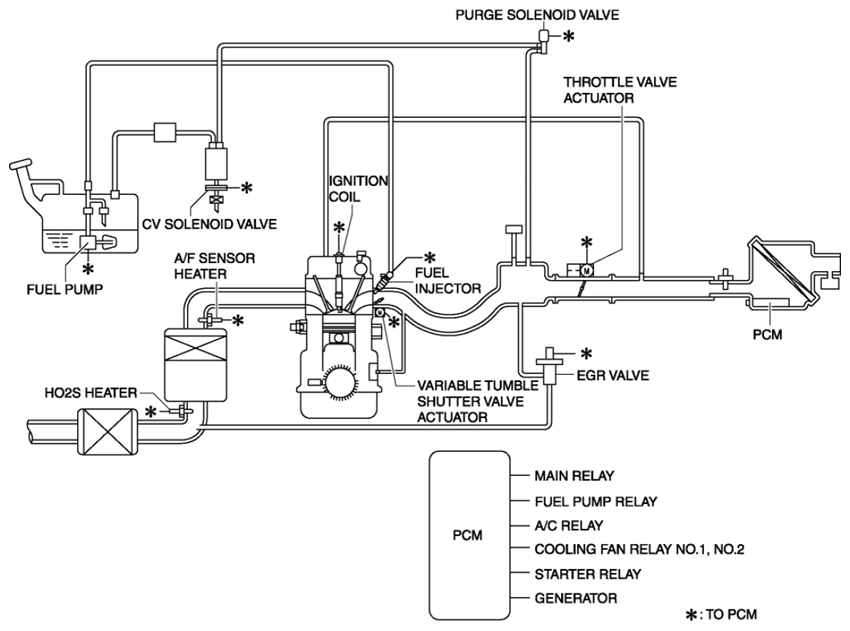

Home >> Mazda >> 2012 >> 2 Touring, 1.5L Eng VIN Z, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System [MZR 1.5] >> Engine Control System Diagram
