Dynamic Stability Control Off Switch Removal/Installation

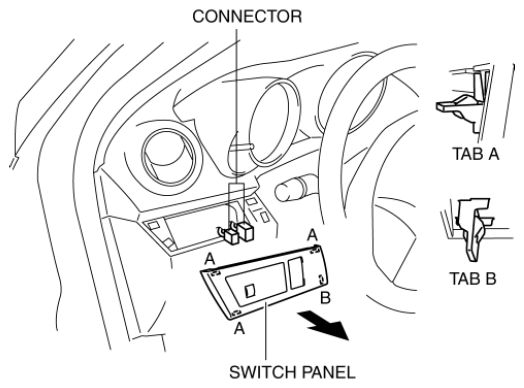

  1. Remove the switch panel in the direction of the arrow shown in the figure.
    Fig 1: Switch Panel
    G08156079
  2. Disconnect the connector.

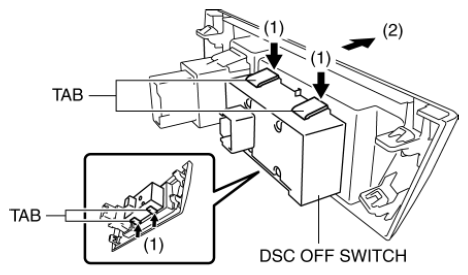

  3. Remove the DSC OFF switch in the direction of the arrow (2) shown in the figure while pressing the tabs in the direction of the arrow (1).
    Fig 2: DSC OFF Switch
    G08156080
  4. Remove the DSC OFF switch.
  5. Install in the reverse order of removal.
