Dynamic Stability Control Sensor Initialization Procedure

WARNING:
  • If the DSC sensor initialization procedure is not completed, the DSC will not operate properly and it might cause an unexpected accident. Therefore, after replacing or removing the DSC HU/CM or SAS control module, make sure to perform the DSC sensor initialization procedure to insure proper DSC operation.
  1. Inspect the wheel alignment and the tire pressure.
    • If there is any malfunction, adjust the applicable part.
  2. Position the vehicle on level ground.
  3. Switch the ignition to off.
  4. Connect the M-MDS (IDS) to DLC-2.

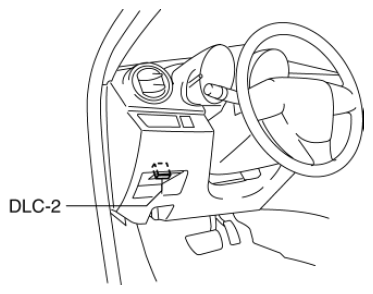

    Fig 1: Identifying Data Link Connector (DLC-2)
    G08156075
  5. After the vehicle is identified, select the following items from the initial screen of the IDS.
    • Select "Chassis".
    • Select "ABS/DSC".
    • Select "Sensor Initialization".
  6. Perform the procedure according to the directions on the screen.
  7. Drive the vehicle.
  8. After 5 min or more  of driving, verify that the DSC system is normal.
