Clock Switch Inspection

NOTE:
  • The clock switch is integrated with the hazard warning switch.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    2. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    3. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    4. Clock switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
  3. Verify the resistance between the clock switch terminals.

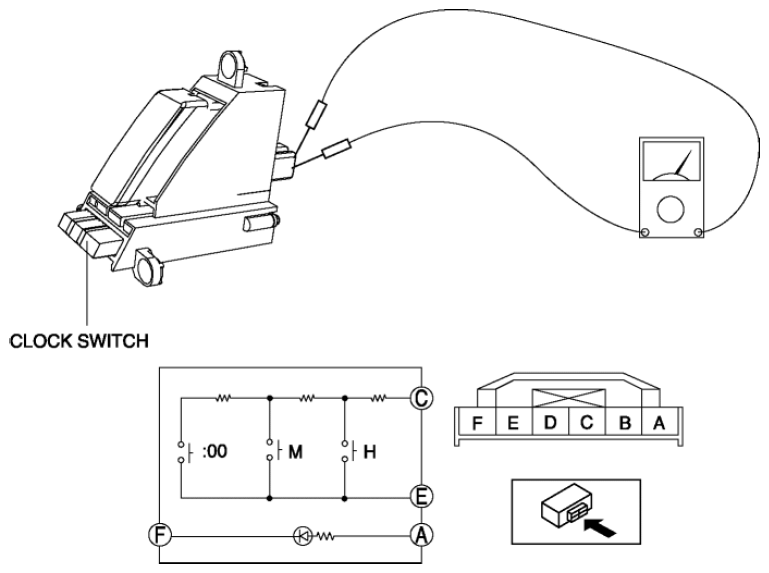

    Fig 1: Identifying Clock Switch Connector Terminals
    G08153610
    • If not within the specification, replace the clock switch.

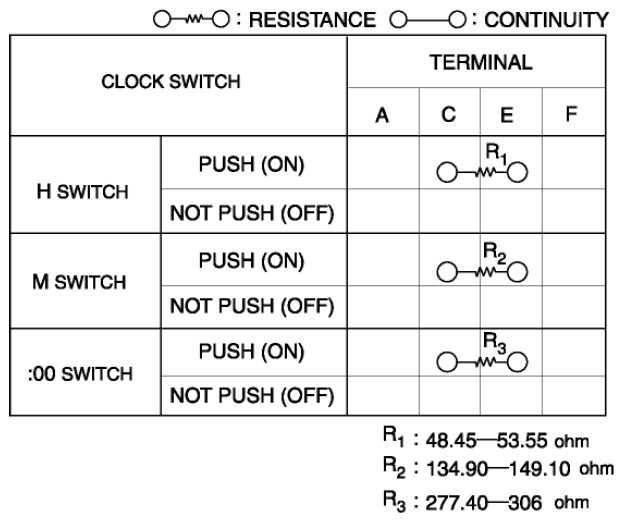

    Fig 2: Clock Switch Resistance Chart
    G08153611
  4. Apply battery positive voltage to clock switch terminal A, and connect terminal F to ground.
  5. Verify that the LED illuminates.
    • If the LED does illuminate, replace the clock switch.
