Check Code Table

NOTE:

The check codes are displayed in numerical order at 5 s intervals. While performing an inspection, if you want to display a check code with a number smaller than the code number currently displayed, terminate the check mode then repeat the inspection from the beginning.

Check code	Check content	Related item
01	Unit communication error	CAN system DTC U0010:88 CAN system communication error
02	Audio unit communication error Climate control unit communication error Instrument cluster communication error	CAN system DTC U0184:00 Communication error to audio unit DTC U0164:00 Communication error to climate control unit DTC U0155:00 Communication error to instrument cluster
04	Light switch signal input	Light switch Related wiring harness
06	Ignition switch signal input	Ignition switch Related wiring harness
08	INFO switch signal input	INFO switch Related wiring harness
09	Clock switch signal input	Clock switch Related wiring harness
-	LCD illumination status	LCD

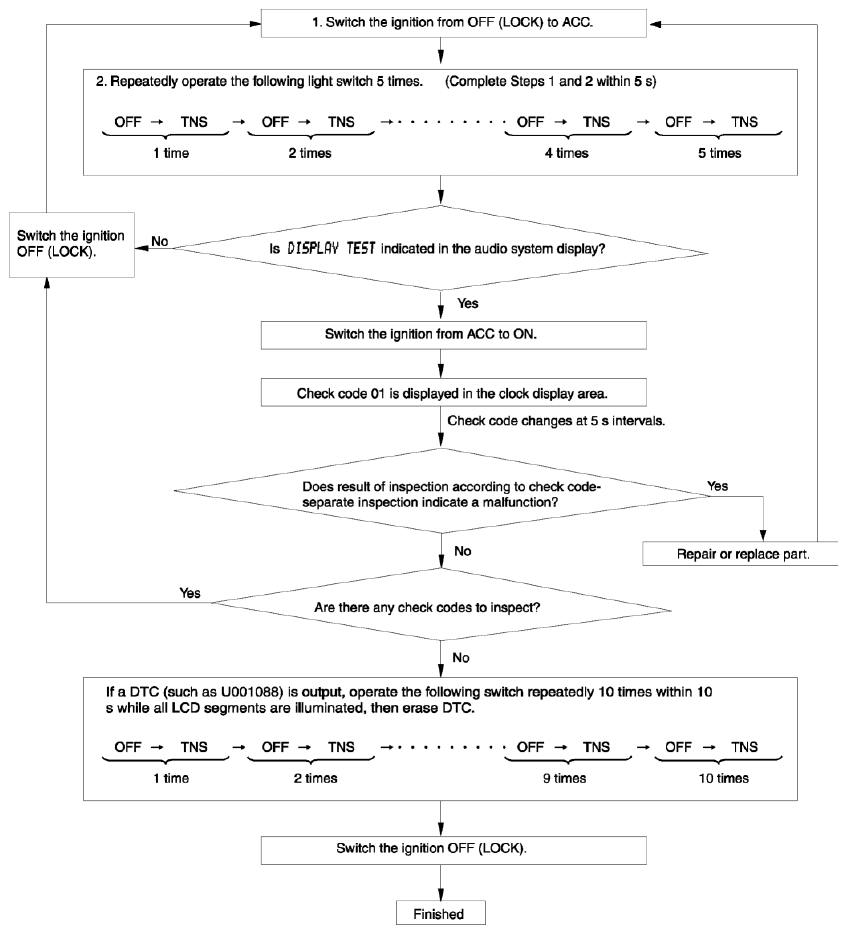

Fig 1: Output Check Mode Operations Chart
