Buckle Switch Inspection

Switch the ignition to off.
Disconnect the negative battery cable.
Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the front buckle. (See FRONT BUCKLE REMOVAL/INSTALLATION .)
Inspect for continuity between the buckle switch terminals using a tester.

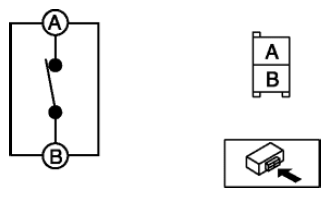

Fig 1: Buckle Switch Circuit
- If not as indicated in the table, replace the front buckle.

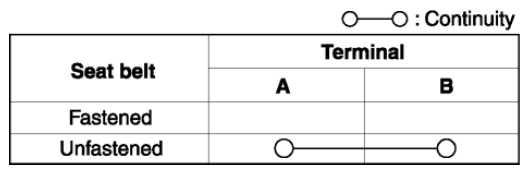

Fig 2: Buckle Switch Continuity Chart
