Front Abs Wheel-Speed Sensor Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. After installation, verify that there is no twisting in the ABS wheel-speed sensor.

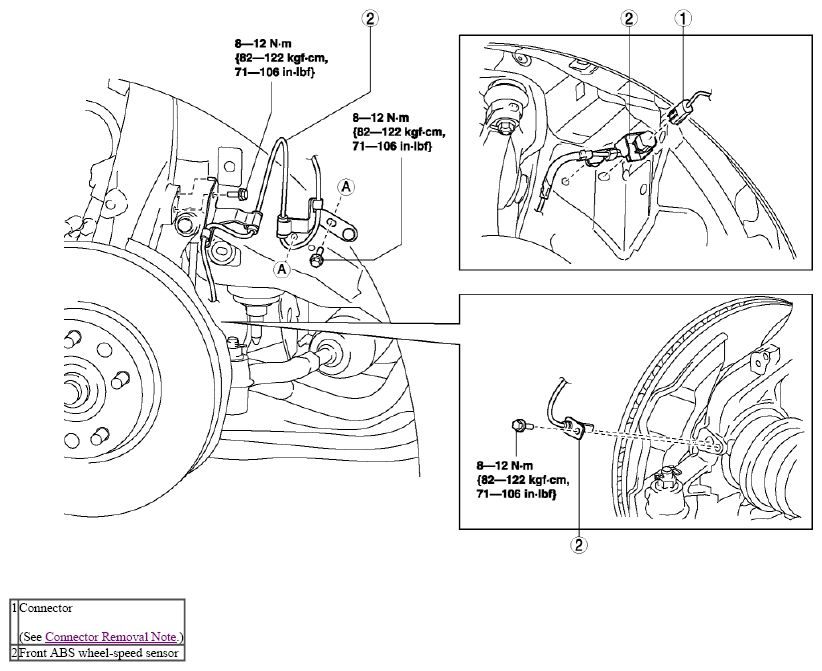

    Fig 1: Front ABS Wheel-Speed Sensor Components With Torque Specifications
    G08142553
