Relay And Fuse Block Disassembly/Assembly

  1. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

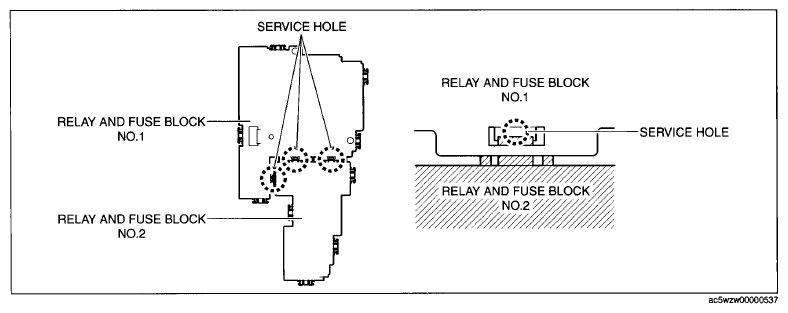

    Fig 1: Identifying Relay And Fuse Block No. 1 And 2 Service Hole
    G09077781Courtesy of MAZDA MOTORS CORP.
  2. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, pull up relay and fuse block No. 1 in the direction of the arrow (2) shown in the figure, and detach the relay and fuse block No. 2 tab from relay and fuse block No. 1.
  3. Detach all the relay and fuse block No. 2 tabs from relay and fuse block No. 1, and remove relay and fuse block No. 1 from relay and fuse block No. 2.
  4. Assemble in the reverse order of disassembly.

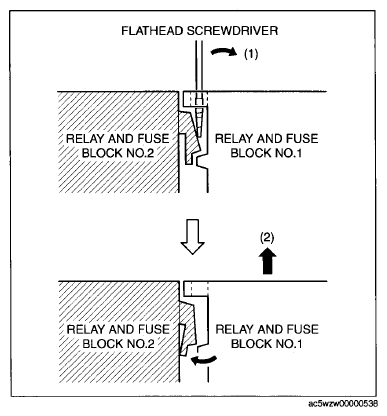

    Fig 2: Disconnecting Relay And Fuse Block No. 2 From Block No. 1
    G09077782Courtesy of MAZDA MOTORS CORP.
