Home >> Mazda >> 2013 >> CX-5 Touring, FWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery System >> Fuel Pump Unit Disassembly/Assembly >> 2WD

Fuel Pump Unit Disassembly/Assembly: 2WD

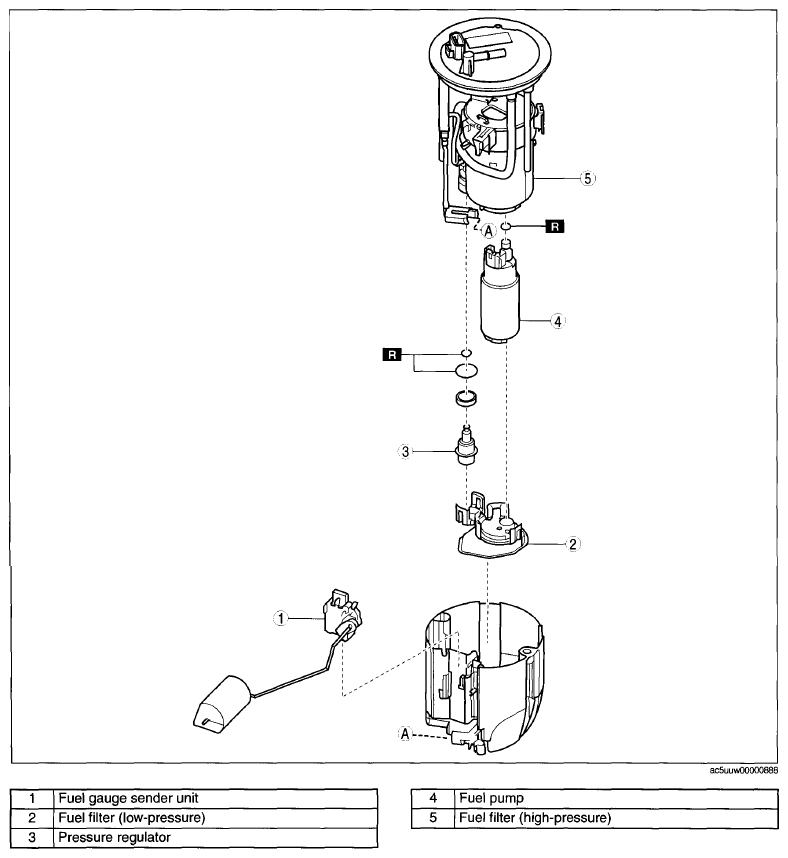

Fig 1: Exploded View Of Fuel Pump Unit (2WD)

G09074938
