Fuel Pump Unit Removal/Installation: AWD

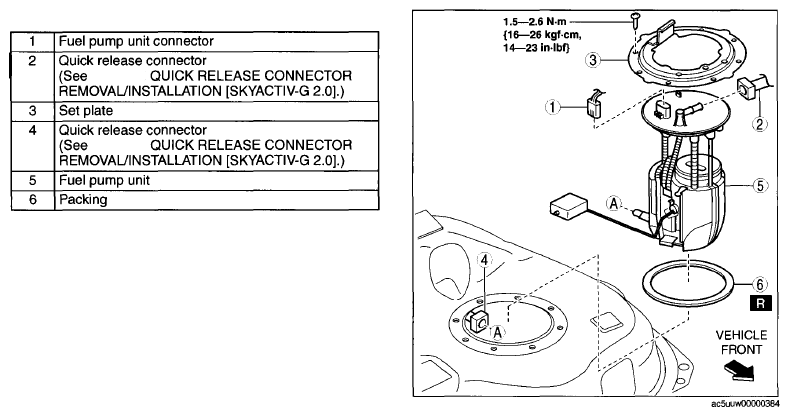

Fig 1: Fuel Pump Unit, Connector, Quick Release Connector, Set Plate And Packing With Torque Specifications (AWD)

1. 8. Install in the reverse order of removal.
2. 9. Complete the "AFTER SERVICE PRECAUTION" (See AFTER SERVICE PRECAUTION ).
