Keyless Receiver Removal/Installation: 4SD

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. C-pillar trim (RH) (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.
  4. Remove the bolt.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.

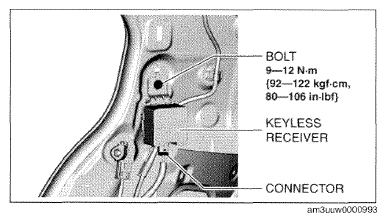

    Fig 1: Keyless Receiver And Connector With Torque Specifications
    G09772058Courtesy of MAZDA MOTORS CORP.
