Front Abs Wheel-Speed Sensor Removal/Installation

  1. Remove the mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

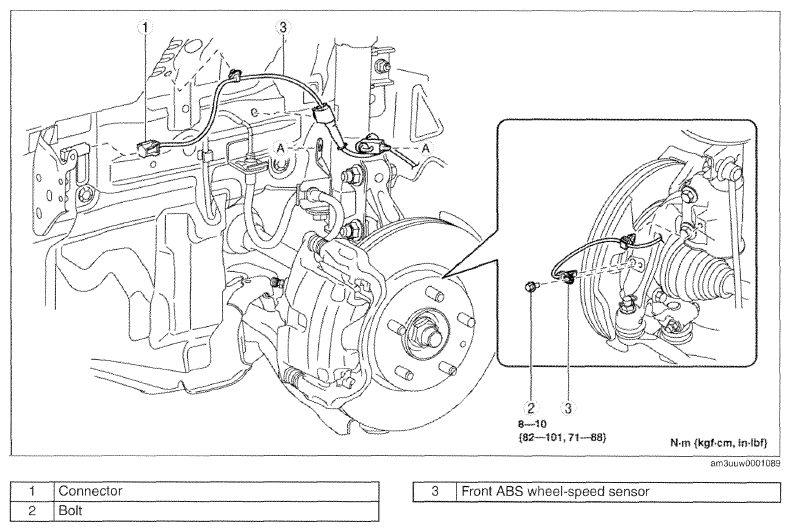

    Fig 1: Front ABS Wheel-Speed Sensor, Connector And Bolt With Torque Specifications
    G09783074Courtesy of MAZDA MOTORS CORP.
